Quantity Available: 591
Looking to add some serious digital inputs to your VINT Hub? This module has four active-high digital inputs ideal for reading switches, buttons, digital sensors, and other devices with a logic-level output. Each input can withstand up to 30V from the devices it's connected to, and they trigger faster than ordinary VINT digital inputs, making it more likely to trigger from very brief changes.

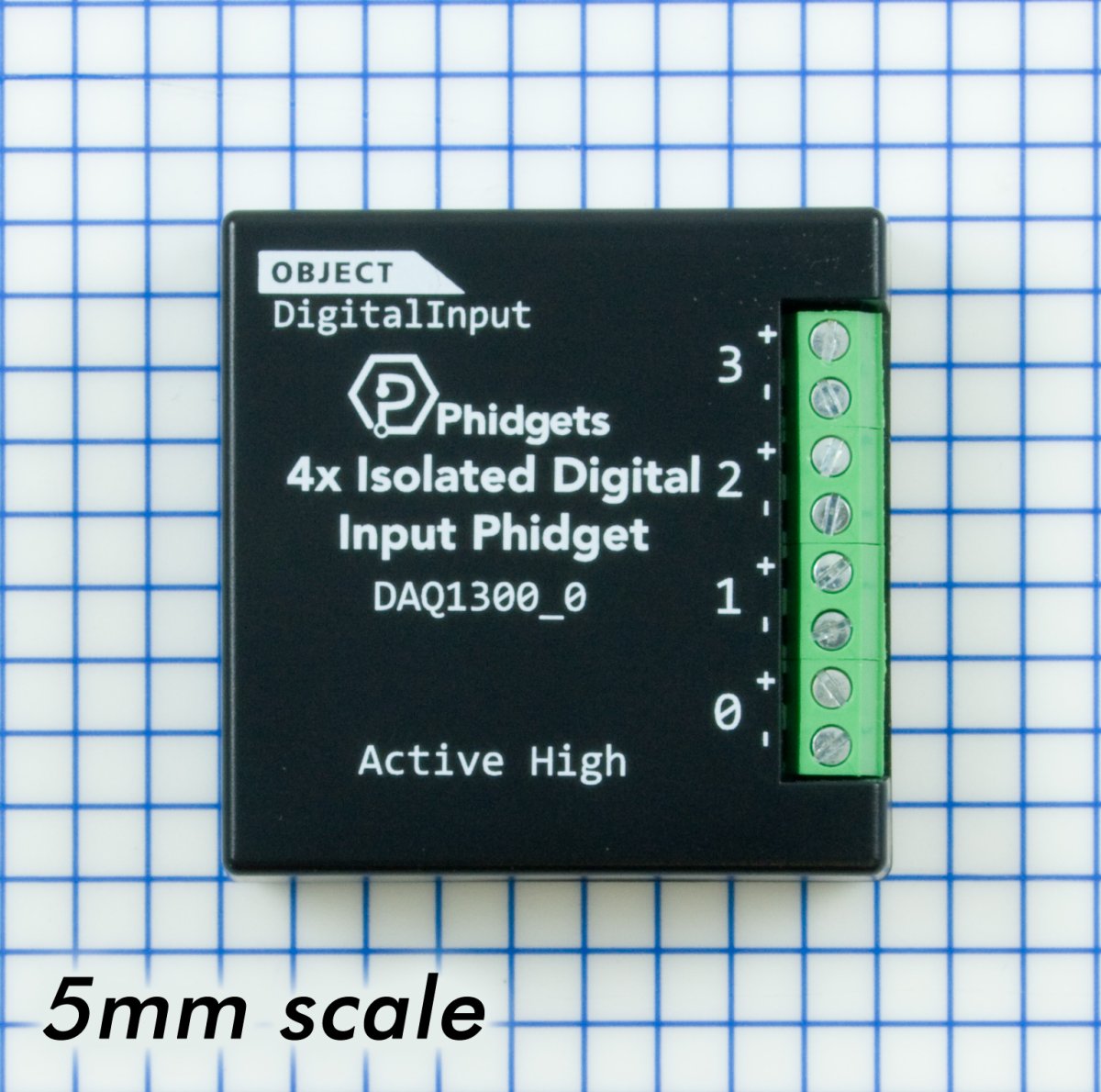

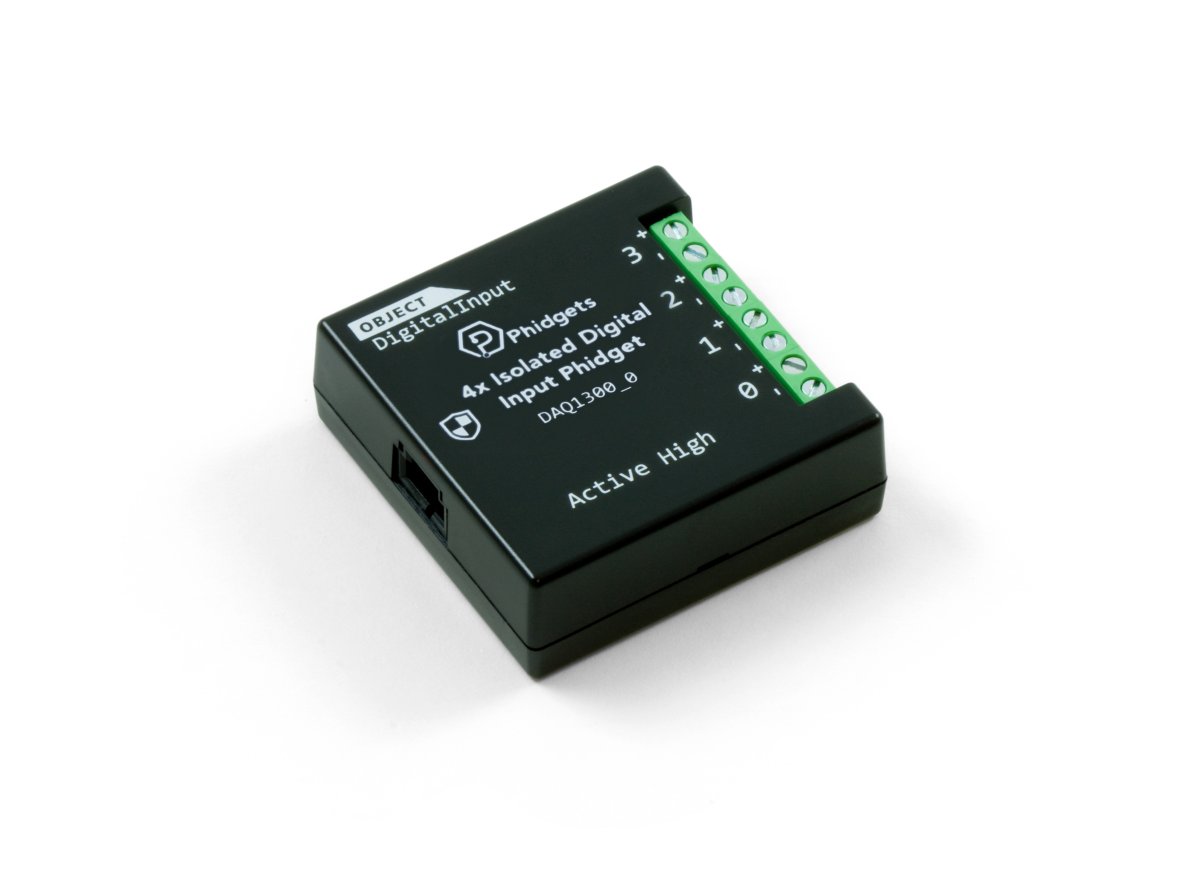

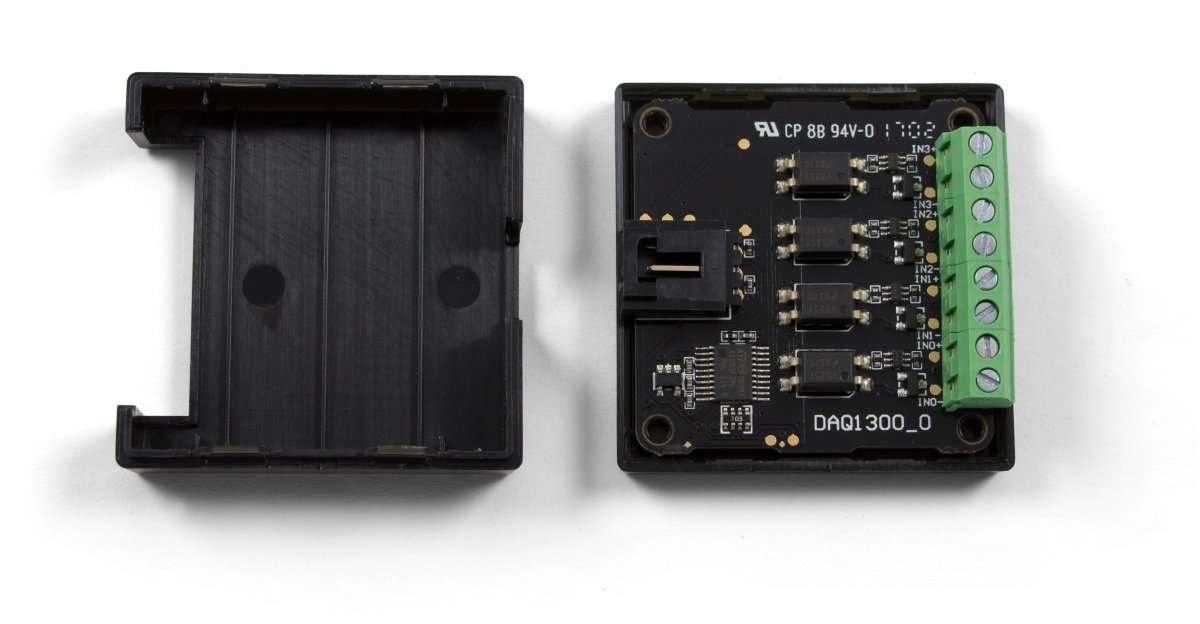

The VINT port on this board is isolated from the digital inputs, improving stability by removing unintentional ground loops from the system. Each input is also isolated from one another, reducing the amount of cross-channel interference.
If you need a module with more isolated digital inputs per VINT port, or if you want a simpler, more cost effective solution, have a look at the Connection & Compatibility tab.
This Phidget is a smart device that must be controlled by a VINT Hub. For more information about VINT, have a look at the VINT Primer. You can use a Phidget Cable to simply and easily connect the two devices. Here's a list of all of the different VINT Hubs currently available:
|Image||Part Number||Price||Number of VINT Ports||Controlled By|
|HUB5000_0||$60.00||6||Local Network (Ethernet or Wi-Fi)|
Use a Phidget cable to connect this device to the hub. You can solder multiple cables together in order to make even longer Phidget cables, but you should be aware of the effects of having long wires in your system.
Welcome to the DAQ1300 user guide! In order to get started, make sure you have the following hardware on hand:

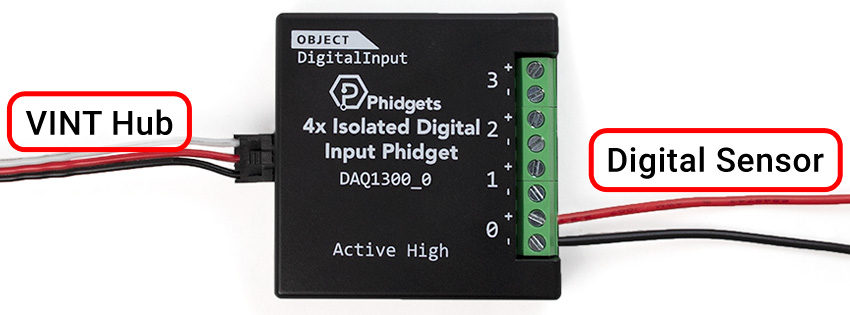

Next, you will need to connect the pieces:
Now that you have everything together, let's start using the DAQ1300!
In order to demonstrate the functionality of the DAQ1300, the Phidget Control Panel running on a Windows machine will be used.
The Phidget Control Panel is available for use on both macOS and Windows machines.
To open the Phidget Control Panel on Windows, find the icon in the taskbar. If it is not there, open up the start menu and search for Phidget Control Panel
To open the Phidget Control Panel on macOS, open Finder and navigate to the Phidget Control Panel in the Applications list. Double click on the icon to bring up the Phidget Control Panel.
For more information, take a look at the getting started guide for your operating system:
Linux users can follow the getting started with Linux guide and continue reading here for more information about the DAQ1300.
After plugging the DAQ1300 into your computer and opening the Phidget Control Panel, you will see something like this:
The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:
The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.
Double-click on a Digital Input object in order to run the example:
General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:
For more information about Digital Inputs, take a look at the Digital Input Primer
Before you can access the device in your own code, and from our examples, you'll need to take note of the addressing parameters for your Phidget. These will indicate how the Phidget is physically connected to your application. For simplicity, these parameters can be found by clicking the button at the top of the Control Panel example for that Phidget.
In the Addressing Information window, the section above the line displays information you will need to connect to your Phidget from any application. In particular, note the Channel Class field as this will be the API you will need to use with your Phidget, and the type of example you should use to get started with it. The section below the line provides information about the network the Phidget is connected on if it is attached remotely. Keep track of these parameters moving forward, as you will need them once you start running our examples or your own code.
You are now ready to start writing your own code for the device. The best way to do that is to start from our Code Samples.
Select your programming language of choice from the drop-down list to get an example for your device. You can use the options provided to further customize the example to best suit your needs.
Once you have your example, you will need to follow the instructions on the page for your programming language to get it running. To find these instructions, select your programming language from the Programming Languages page.
The DAQ1300 features four isolated digital input terminals. Each input is isolated from all other inputs, which allows a single device to connect to a variety of sources, and prevents cross-channel interference.
Each input is active-high, meaning the (+) terminal must be pulled at least 2.5 volts above the (-) terminal to register as TRUE.
Here are a few things you can do with the DAQ1300 Digital Input Phidget

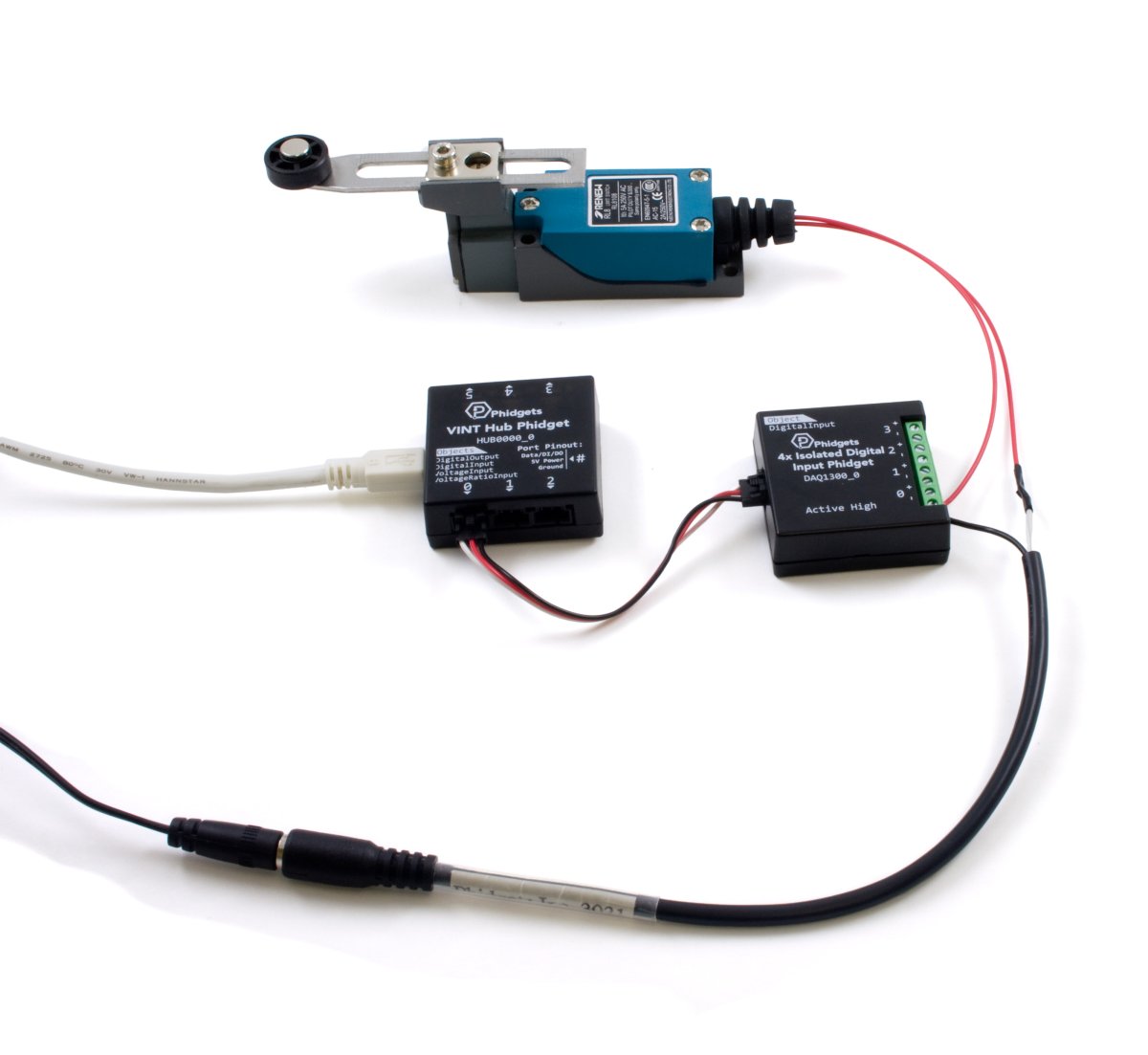

To interface a switch with the DAQ1300, an external voltage source must be provided to pull the input HIGH.
All inputs on the DAQ1300 are isolated from one another, so a variety of signals from different sources can be monitored with a single device.
The DAQ1300 can be used without additional circuitry to detect the presence of a voltage on a line (from a power source or a signal), by wiring the input terminals to the line and its corresponding ground.

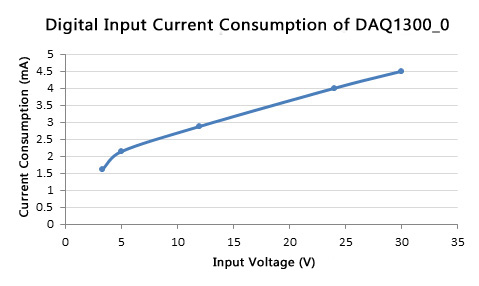

The current consumption of this device varies depending on the voltage applied at the input. It ranges from 1.6mA to 4.5mA, according to the curve below:
|Current Consumption Min||28 μA|
|Current Consumption Max||2.8 mA|
|Number of Digital Inputs||4|
|Low Voltage Max (False)||1.3 V DC|
|High Voltage Min (True)||2.5 V DC|
|Low Voltage Trigger Length Min||0.2 ms|
|High Voltage Trigger Length Min||0.05 ms|
|Digital Input Current Max||* 4.5 mA|
|Digital Input Voltage Max||30 V DC|
|Recommended Wire Size||16 - 26 AWG|
|Operating Temperature Min||-40 °C|
|Operating Temperature Max||85 °C|
*Note: This value varies with input voltage. See the technical section of the User Guide for more information.
|Date||Board Revision||Device Version||Comment|
|June 2017||0||102||Product Release|
|Digital Input Isolated||DigitalInput||0 - 3|
|DigitalInput||Visual Studio GUI||C#||Windows||Download|
|DigitalInput||Visual Basic .NET||Windows||Download|
|Image||Part Number||Price||Number of Digital Inputs||Low Voltage Max (False)||Low Voltage Max (True)||High Voltage Min (False)||High Voltage Min (True)|
|1010_0||$80.00||8||—||900 mV DC||4.2 V DC||—|
|1011_0||$50.00||2||—||800 mV DC||2.1 V DC||—|
|1012_2B||$95.00||16||900 mV DC||—||—||4.2 V DC|
|1018_2B||$80.00||8||—||900 mV DC||4.2 V DC||—|
|1019_1B||$110.00||8||—||900 mV DC||4.2 V DC||—|
|1065_1B||$75.00||2||—||800 mV DC||2.1 V DC||—|
|1203_2B||$70.00||8||—||900 mV DC||4.2 V DC||—|
|DAQ1200_0||$12.00||4||—||1.5 V DC||3.5 V DC||—|
|DAQ1300_0||$20.00||4||1.3 V DC||—||—||2.5 V DC|
|DAQ1301_0||$50.00||16||1.3 V DC||—||—||2.5 V DC|
|HUB0000_0||$30.00||6 (Shared)||—||1 V DC||1.8 V DC||—|
|HUB5000_0||$60.00||6 (Shared)||—||1 V DC||1.8 V DC||—|
