Phidget Cable 350cm

ID: 3004_0

Recommended for new designs: This product (or a similar replacement with a compatible form, fit and function) is estimated to be available for ten years or more.

$3.00

Quantity Available: 1000+

Qty	Price
5	$2.85
10	$2.70
25	$2.40
50	$2.10
100	$1.95
250	$1.80
500	$1.65
1000	$1.50

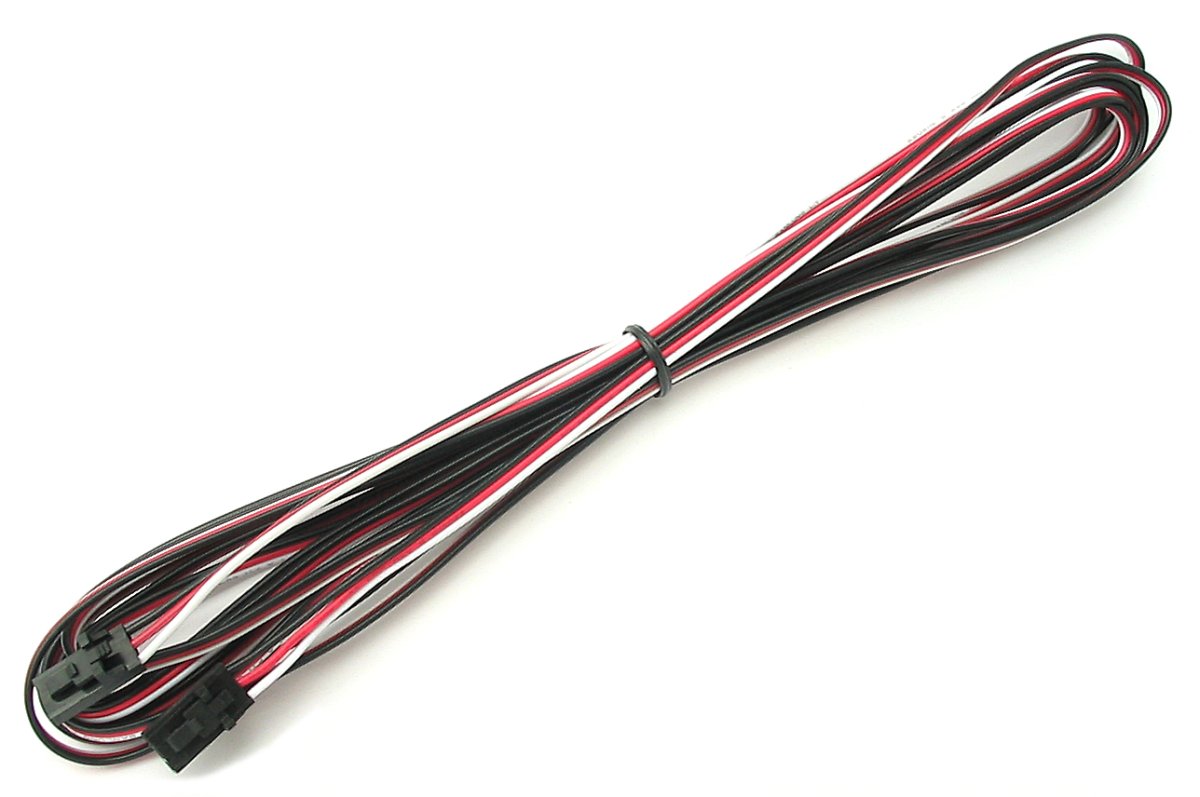

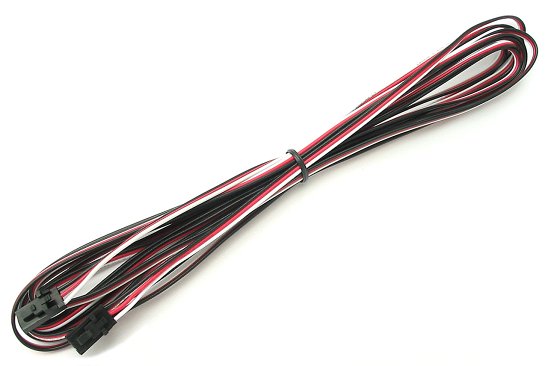

This 350cm Phidget Cable connects:

analog sensors to Phidgets with an analog input or VINT Hub port.
VINT devices to Phidgets with a VINT Hub port.

You can also cut off one end and solder it to a switch or LED and connect it to a VINT port in DigitalInput or DigitalOutput mode.

Product Specifications

Physical Properties
Connector A	50-57-9403
Connector B	50-57-9403
Number of Conductors	3
Cable Length	3.5 m
Cable Gauge	26 AWG
Customs Information
Canadian HS Export Code	8544.42.10
American HTS Import Code	8544.42.20.00
Country of Origin	CN (China)

Have a look at our Phidget cables:

Product		Physical Properties
Part Number	Price	Cable Length
3002_0 Phidget Cable 60cm	$2.00	600 mm
3003_0 Phidget Cable 10cm	$1.50	100 mm
3004_0 Phidget Cable 350cm	$3.00	3.5 m
3038_0 Phidget Cable 120cm	$2.25	1.2 m
3039_0 Phidget Cable 180cm	$2.75	1.8 m
CBL4104_0 Phidget Cable 30cm	$1.75	300 mm
CBL4105_0 Phidget Cable 90cm	$2.00	900 mm
CBL4106_0 Phidget Cable 150cm	$2.50	1.5 m
