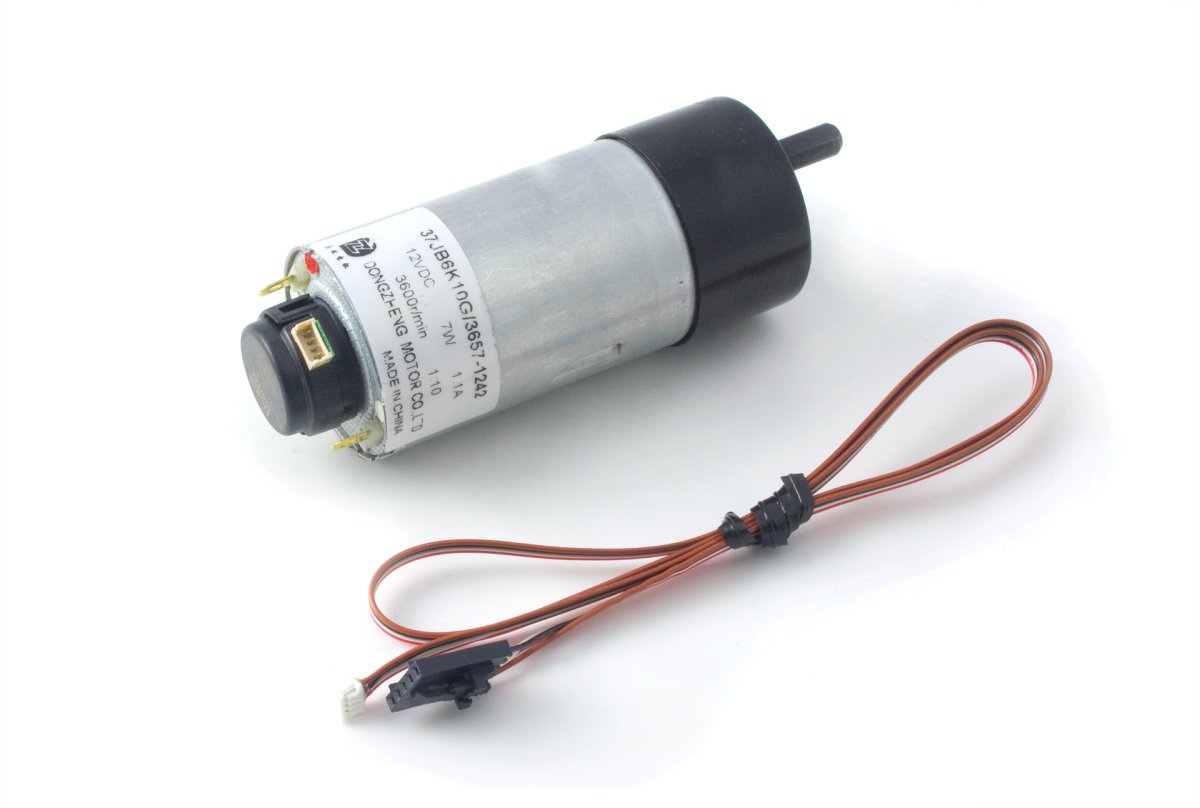

The 3258E is a 12 volt gear motor, generating 1.53 Kg-cm of torque at 365 RPM. While this motor is small and inexpensive, it is also aggressive- less efficient than the others, but very powerful for its size.
This motor comes equipped with an E4P US Digital Encoder, which keeps track of the motor's rotation, allowing you to control your motor precisely.
This family of motors (3258, 3259, 3260) have the same gearbox type and mounting metrics as the (3254, 3255, 3256, 3257) family of motors.
|
The torque this motor produces when it stalls exceeds the rated strength of the gearbox. This means that stalling or very heavily loading this motor can cause serious damage to the gearbox. To avoid damage, avoid sudden loads or any load higher than the Maximum Strength of Gears spec. |
| Motor Properties | |
|---|---|
| Motor Type | DC Motor with Encoder |
| Output Power (Mechanical) | 7 W |
| Rated Speed | 365 RPM |
| Rated Torque | 1.5 kg·cm |
| Stall Torque | 14.1 kg·cm |
| Electrical Properties | |
| Rated Voltage | 12 V DC |
| Rated Current | 1.1 A |
| Stall Current | 5 A |
| Physical Properties | |
| Shaft Diameter | 6 mm |
| Weight | 273 g |
| Recommended Wire Size (Motor) | 16 - 18 AWG |
| Gearbox Specifications | |
| Gearbox Type | Spur |
| Gear Ratio | 10 : 1 |
| Number of Gear Trains | 2 |
| Maximum Strength of Gears | 3 kg·cm |
| Shaft Maximum Axial Load | 35 N |
| Shaft Maximum Radial Load | 25 N |
| Encoder Specifications | |
| Encoder Resolution | 360 CPR |
| Connector Type | E4P |
| Current Consumption Min | 27 mA |
| Supply Voltage Min | 4.5 V DC |
| Supply Voltage Max | 5.5 V DC |
| Customs Information | |
| Canadian HS Export Code | 8501.10.00 |
| American HTS Import Code | 8501.10.40.60 |
| Country of Origin | CN (China) |
