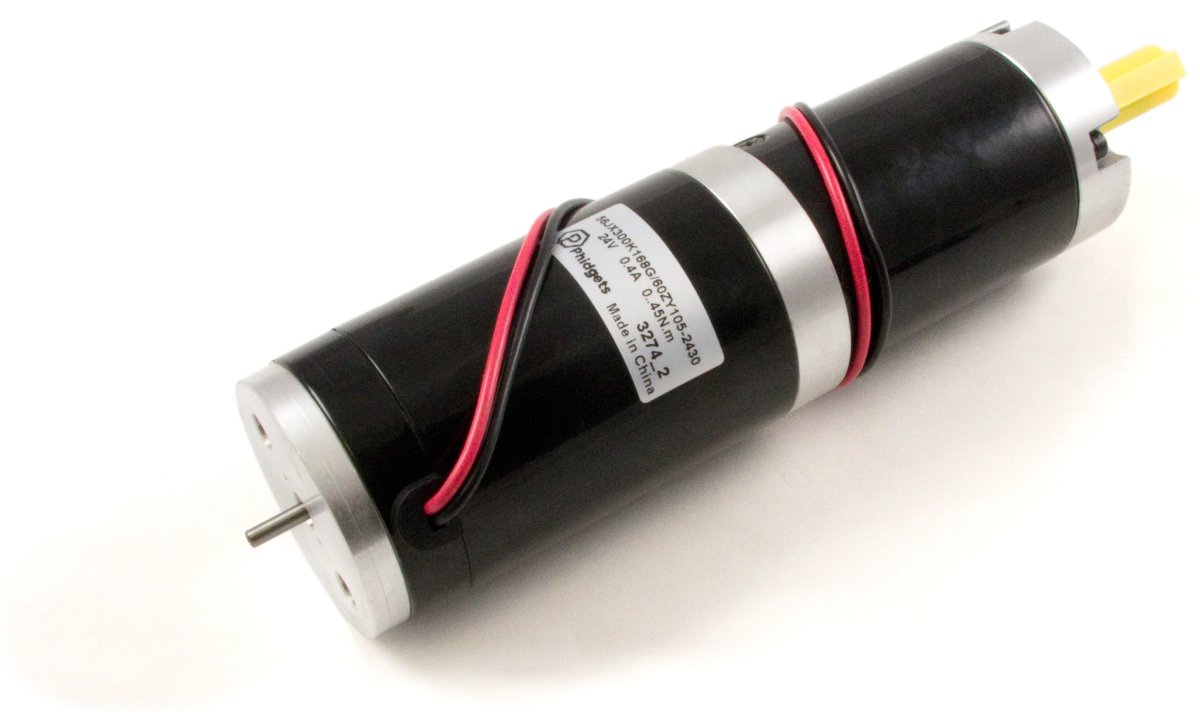

24V/173.3Kg-cm/15RPM 168:1 DC Gear Motor

ID: 3274_2

ⓘ

This DC motor has a 168:1 gearbox, a rated speed of 15 RPM and rated torque of 173 Kg·cm.

$76.00

Quantity Available: 119

Qty	Price
5	$72.96
10	$69.92
25	$68.40
50	$66.88
100	$65.36
50+	...

This revision of the 3274 is the same as the previous revision except that it has a metal plate on the back to make encoder mounting possible.

The 3274 is a 24 volt gear motor, generating 173 Kg-cm of torque at 15 RPM. It's a large motor that provides an amazing amount of torque.

The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.

Features

Rated for 173 kg-cm of torque
Reach speeds of up to 15RPM
Connects directly to a Phidgets DC Motor Controller
4mm rear shaft for mounting optional encoder
Best performance with controllers that can provide 2.2 amps or more

Connection

This motor can be controlled by a DC motor controller. You can find a list of suitable controllers on the Connection & Compatibility tab.

Warnings

The torque this motor produces when it stalls exceeds the rated strength of the gearbox. This means that stalling or very heavily loading this motor can cause serious damage to the gearbox. To avoid damage, avoid sudden loads or any load higher than the Maximum Strength of Gears spec.

DC Motor Controllers

DC motors can be simply connected to a power supply according to their rated voltage in order to make them run, but if you want to have control over direction, velocity, and acceleration in real-time, you'll need to use a motor controller. In order to connect this motor to a controller, you can connect the wires to the motor terminal on the controller. Don't worry about wiring the motor backwards; doing so will only reverse the direction of rotation. This motor requires higher voltage than our small motors, so only the following controllers are suitable:

Product		Electrical Properties		Controller Properties			Board Properties
Part Number	Price	Supply Voltage Max	Continuous Motor Current Max	Number of Motor Ports	Velocity Resolution	Acceleration Resolution	Controlled By
DCC1020_0 30V 50A DC Motor Phidget	$150.00	30 V DC	50 A	1	0.00078 Duty Cycle	—	VINT
DCC1000_0 DC Motor Phidget	$75.00	30 V DC	25 A	1	0.001 Duty Cycle	1 Duty Cycle/s	VINT
DCC1003_0 2x DC Motor Phidget	$60.00	30 V DC	(per motor) 4 A	2	0.001 Duty Cycle	0.1 Duty Cycle/s	VINT
DCC1002_0 4A DC Motor Phidget	$40.00	30 V DC	4 A	1	0.001 Duty Cycle	0.1 Duty Cycle/s	VINT
1065_1B PhidgetMotorControl 1-Motor	$75.00	28 V DC	5 A	1	0.39 Duty Cycle	24.5 Duty Cycle/s	USB (Mini-USB)

Shaft Couplers

If you need to connect the main shaft of this motor to another device with a shaft, you can use a shaft coupler:

Product		Physical Properties
Part Number	Price	Inner Diameter	Material	Coupling Rated Torque	Coupling Rated Speed	Torsional Stiffness
TRM4317_0 Jaw Coupling Half 12mm Series 12	$3.60	12 mm	Aluminum	35.7 kg·cm	12000 RPM	—
TRM4318_0 Jaw Coupling Half 12mm Series 24	$6.85	12 mm	Aluminum	611.8 kg·cm	4000 RPM	—

Pulleys and Sprockets

If you're using this motor to drive a rotary system that requires a lot of torque, you may be interested in pulleys and sprockets. By using a two pulleys or sprockets of different sizes, you can increase the gear ratio of the motor. Pulleys and sprockets can also be used to transmit the motor's rotation over a long distance. For more guidance on building a transmission system, visit our Rotary Motion Guide. Here is a list of our 12mm bore pulleys and sprockets:

Product		Physical Properties
Part Number	Price	Inner Diameter	Number of Teeth
TRM4139_0 #25 Chain Sprocket with 12mm Bore and 12 Teeth	$3.25	12 mm	10
TRM4140_0 #25 Chain Sprocket with 12mm Bore and 18 Teeth	$3.75	12 mm	18
TRM4141_0 #25 Chain Sprocket with 12mm Bore and 32 Teeth	$5.00	12 mm	32
TRM4142_0 #25 Chain Sprocket with 12mm Bore and 52 Teeth	$8.00	12 mm	52
TRM4107_0 GT2 Pulley with 12mm Bore and 36 Teeth	$3.00	12 mm	36
TRM4108_0 GT2 Pulley with 12mm Bore and 44 Teeth	$3.00	12 mm	44
TRM4109_0 GT2 Pulley with 12mm Bore and 60 Teeth	$3.55	12 mm	60
TRM4110_0 GT2 Pulley with 12mm Bore and 80 Teeth	$4.45	12 mm	80
TRM4144_0 #40 Chain Sprocket with 12mm Bore and 9 Teeth	$4.25	12 mm	9
TRM4145_0 #40 Chain Sprocket with 12mm Bore and 14 Teeth	$4.50	12 mm	14
TRM4146_0 #40 Chain Sprocket with 12mm Bore and 20 Teeth	$7.00	12 mm	20
TRM4120_0 GT5 Pulley with 12mm Bore and 16 Teeth	$3.50	12 mm	16
TRM4121_0 GT5 Pulley with 12mm Bore and 24 Teeth	$4.00	12 mm	24
TRM4122_0 GT5 Pulley with 12mm Bore and 34 Teeth	$5.00	12 mm	34
TRM4123_0 GT5 Pulley with 12mm Bore and 50 Teeth	$7.40	12 mm	50
TRM4124_0 GT5 Pulley with 12mm Bore and 72 Teeth	$12.95	12 mm	72

Mounting Brackets

Mounting this motor to a flat surface is easy with these metal mounting brackets. The holes on the bracket match those on the front of the gearbox. The following brackets will fit the mounting holes on this motor:

Product		Physical Properties
Part Number	Price	Mounting Plate Size	Material
3339_0 Motor Mounting Bracket (NEMA 23)	$4.00	NEMA - 23	Mild Steel (Coated)

Rotary Bearings

Systems with heavy loads or pulley/sprocket assemblies often put a lot of sideways strain on the motor shaft. If you're using this motor to drive such a system, you can use rotary bearings to protect the motor:

Product		Physical Properties		Mechanical Properties
Part Number	Price	Inner Diameter	Bearing Type	Static Load	Dynamic Load
TRM4502_0 Flanged Rotary Bearing for 12mm Shaft	$4.00	12 mm	Rotary Shaft (Flanged)	2.4 kN	5.1 kN
TRM4503_0 Pillow Block Rotary Bearing for 12mm Shaft	$4.00	12 mm	Rotary Shaft (Pillow Block)	2.4 kN	5.1 kN

Encoders

The rear shaft of this motor can be equipped with an encoder for applications where you need to keep track of the exact position, velocity, or acceleration of the motor. The mounting holes on the back of this motor are compatible with the following encoders:

Product		Encoder Properties
Part Number	Price	Output Circuit Type	Encoder Resolution	Encoder Speed Max
3531_0 Rotary Encoder - For 4mm Motor Shaft 300 CPR	$25.00	Push-Pull	300 CPR	6000 RPM
ENC4109_0 Rotary Encoder - For 4mm Motor Shaft 40 CPR	$10.00	Push-Pull	40 CPR	6000 RPM

Product Specifications

Motor Properties
Motor Type	DC Motor
Output Power (Mechanical)	30 W
Rated Speed	15 RPM
Rated Torque	136.6 kg·cm
Stall Torque	1.2 Mg·cm
Electrical Properties
Rated Voltage	24 V DC
Rated Current	2.2 A
Stall Current	10.8 A
Physical Properties
Shaft Diameter	12 mm
Keyway Width	4 mm
Wire Length	300 mm
Weight	2 kg
Gearbox Specifications
Gearbox Type	Planetary
Gear Ratio	167 ⁶⁰¹⁄₆₂₅ : 1
Number of Gear Trains	4
Maximum Strength of Gears	460 kg·cm
Shaft Maximum Axial Load	200 N
Shaft Maximum Radial Load	100 N
Backlash Error	3°
Customs Information
Canadian HS Export Code	8501.10.00
American HTS Import Code	8501.10.60.60
Country of Origin	CN (China)

Documents

Here's a list of our DC motors:

Product		Motor Properties		Physical Properties		Gearbox Specifications
Part Number	Price	Rated Speed	Rated Torque	Shaft Diameter	Weight	Gear Ratio	Gearbox Type
3261_0 12V/0.2Kg-cm/1080RPM 3.7:1 DC Gear Motor	$18.00	1080 RPM	240 g·cm	6 mm	144 g	3 ¹²⁄₁₇ : 1	Planetary
3254_0 12V/0.2Kg-cm/230RPM 10:1 DC Gear Motor	$10.00	230 RPM	200 g·cm	6 mm	128 g	10 : 1	Spur
3262_1 12V/0.9Kg-cm/285RPM 14:1 DC Gear Motor	$18.00	285 RPM	900 g·cm	6 mm	170 g	13 ²¹²⁄₂₈₉ : 1	Planetary
3255_0 12V/0.3Kg-cm/127RPM 18:1 DC Gear Motor	$10.00	127 RPM	310 g·cm	6 mm	133 g	18 : 1	Spur
3256_0 12V/0.8Kg-cm/46RPM 50:1 DC Gear Motor	$11.00	46 RPM	820 g·cm	6 mm	137 g	50 : 1	Spur
3263_1 12V/3.0Kg-cm/78RPM 51:1 DC Gear Motor	$20.50	78 RPM	3.1 kg·cm	6 mm	193 g	50 ⁸⁰¹⁄₈₉₅ : 1	Planetary
3257_0 12V/1.6Kg-cm/23RPM 100:1 DC Gear Motor	$11.00	23 RPM	1.6 kg·cm	6 mm	136 g	100 : 1	Spur
3265_0 12V/0.5Kg-cm/670RPM 3.7:1 DC Gear Motor	$38.00	670 RPM	540 g·cm	8 mm	416 g	3 ¹²⁄₁₇ : 1	Planetary
3266_1 12V/1.9Kg-cm/175RPM 14:1 DC Gear Motor	$42.00	175 RPM	1.9 kg·cm	8 mm	464 g	13 ²¹²⁄₂₈₉ : 1	Planetary
3267_1 12V/6.6Kg-cm/49RPM 51:1 DC Gear Motor	$43.00	49 RPM	6.6 kg·cm	8 mm	526 g	50 ⁸⁰¹⁄₈₉₅ : 1	Planetary
3267_0 12V/6.6Kg-cm/49RPM 51:1 DC Gear Motor	$33.00	49 RPM	6.6 kg·cm	8 mm	526 g	50 ⁸⁰¹⁄₈₉₅ : 1	Planetary
3268_1 12V/17.3Kg-cm/18RPM 139:1 DC Gear Motor	$43.00	18 RPM	17.3 kg·cm	8 mm	526 g	* 139 ¹⁸⁴⁄₁₂₂₁ : 1	Planetary
DCM4000_0 24V/2.5Kg-cm/3280RPM DC Motor	$40.00	3280 RPM	3.3 kg·cm	8 mm	1.4 kg	—	—
DCM4004_0 24V/7Kg-cm/3000RPM DC Motor	$50.00	2800 RPM	7.1 kg·cm	10 mm	2.7 kg	—	—
DCM4005_0 24V/9.6Kg-cm/3200RPM DC Motor	$60.00	2900 RPM	9.7 kg·cm	10 mm	3.3 kg	—	—
3269_3 24V/5.1Kg-cm/588RPM 4.25:1 DC Gear Motor	$69.00	588 RPM	4.4 kg·cm	12 mm	1.3 kg	4 ¹⁄₄ : 1	Planetary
DCM4001_0 24V/12.2Kg-cm/772RPM/4.25:1 DC Gear Motor	$80.00	772 RPM	12.2 kg·cm	12 mm	1.9 kg	4 ¹⁄₄ : 1	Planetary
3270_2 24V/14.2Kg-cm/192RPM 13:1 DC Gear Motor	$66.00	192 RPM	13.3 kg·cm	12 mm	1.5 kg	12 ²⁴⁄₂₅ : 1	Planetary
DCM4002_0 24V/45Kg-cm/182RPM/18:1 DC Gear Motor	$82.00	182 RPM	47 kg·cm	12 mm	2.1 kg	18 : 1	Planetary
3272_2 24V/50.9Kg-cm/53RPM 47:1 DC Gear Motor	$72.00	53 RPM	43.8 kg·cm	12 mm	1.7 kg	46 ⁸²⁄₁₂₅ : 1	Planetary
DCM4003_0 24V/153Kg-cm/50RPM/65:1 DC Gear Motor	$84.00	50 RPM	153 kg·cm	12 mm	2.2 kg	65 : 1	Planetary
3273_2 24V/82.6Kg-cm/33RPM 76:1 DC Gear Motor	$72.00	33 RPM	71.4 kg·cm	12 mm	1.7 kg	76 ⁴⁹⁄₆₄ : 1	Planetary
3274_2 24V/173.3Kg-cm/15RPM 168:1 DC Gear Motor	$76.00	15 RPM	136.6 kg·cm	12 mm	2 kg	167 ⁶⁰¹⁄₆₂₅ : 1	Planetary

Here's a list of DC motors with encoders attached:

Product		Motor Properties		Physical Properties		Gearbox Specifications
Part Number	Price	Rated Speed	Rated Torque	Shaft Diameter	Weight	Gear Ratio	Gearbox Type
3261E_1 12V/0.2Kg-cm/1080RPM 3.7:1 DC Gear Motor w/ Encoder	$48.00	1080 RPM	240 g·cm	6 mm	147 g	3 ¹²⁄₁₇ : 1	Planetary
