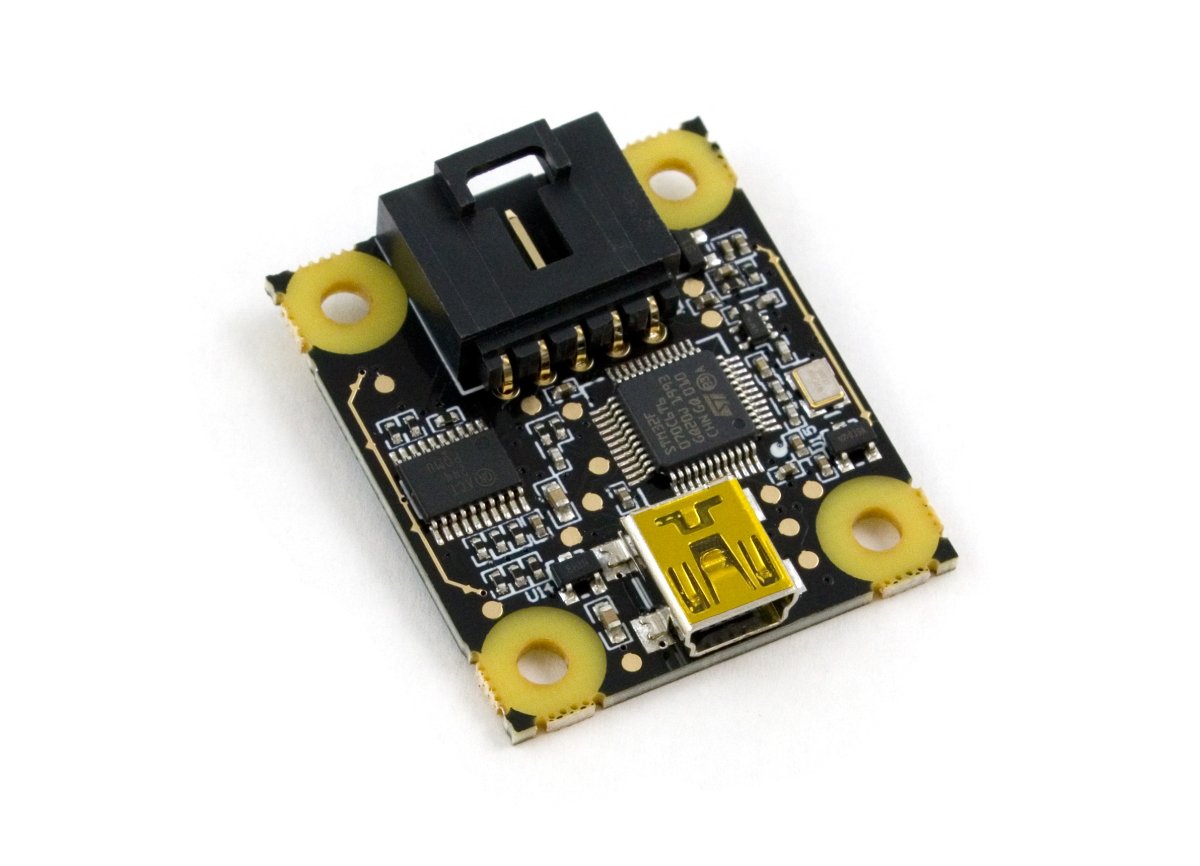

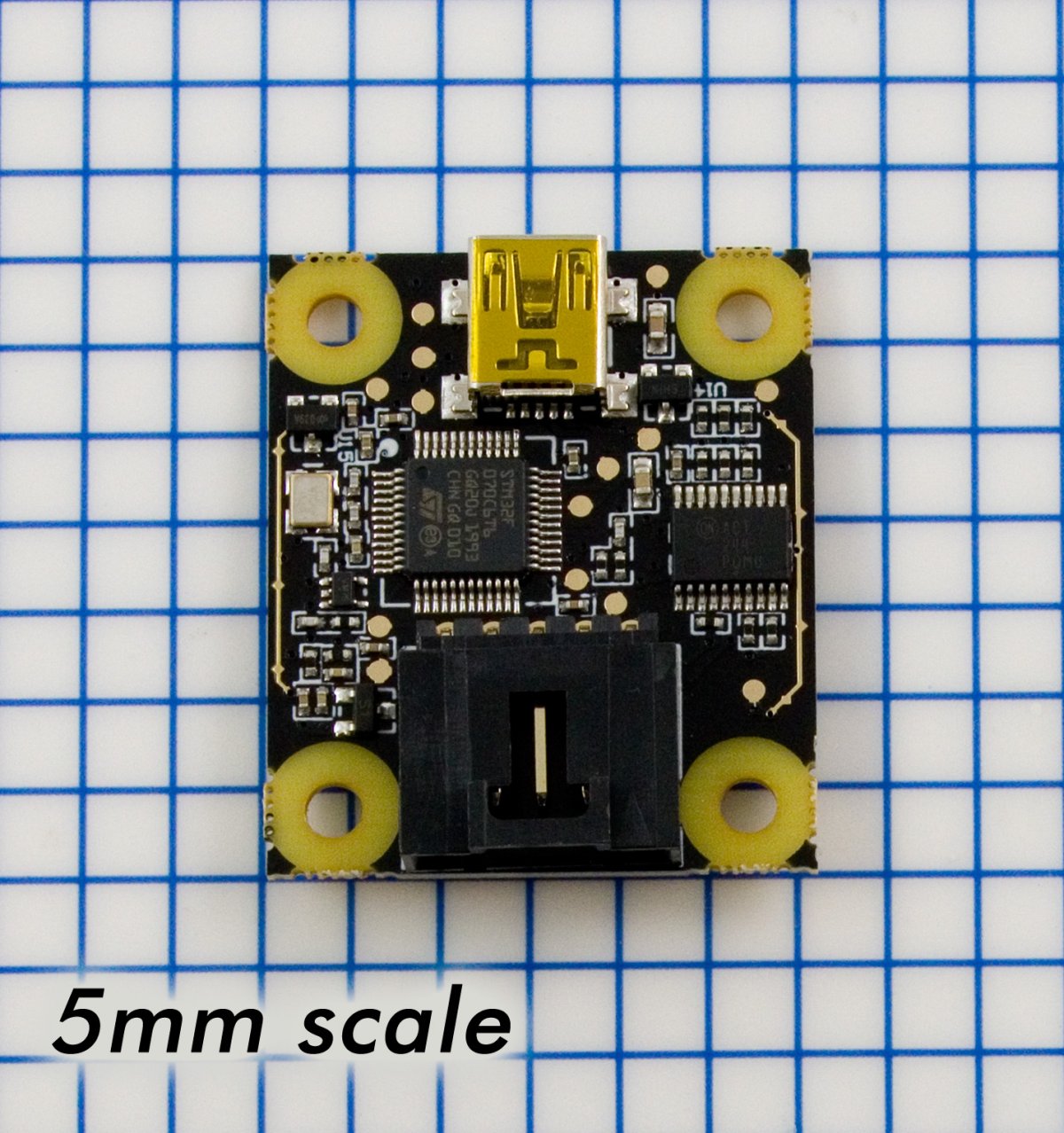

PhidgetEncoder HighSpeed

ID: 1057_3B

This encoder interface can measure 500,000 quadrature cycles per second at 125 Hz.

$50.00

Quantity Available: 316

Qty Price
5 $47.50
10 $45.00
25 $40.00
50 $35.00
100 $32.50
250 $30.00
500 $27.50
1000 $25.00
50+...

Warning
Due to parts and components going obsolete and becoming unavailable, the 1057_3B has moved to a new processor that is not supported under Phidget21. If you're using our old libraries you must upgrade to Phidget22 before you can make use of this Phidget. If you are using Phidget21, the 1057_2 is still available.

The PhidgetEncoder Highspeed interfaces with any 5V quadrature encoder. A quadrature encoder is the most commonly used feedback device for a DC or stepper motor. With an encoder, you can keep track of how far your motor has turned, which then allows you to control the position and velocity in your code. This Phidget connects to your computer via USB.

Features

  • Read at speeds of up to 500,000 quadrature cycles per second
  • High compatibility - line driver, open collector, or push-pull with configurable resistor values
  • Supports index channel, if present
  • Reports a timestamp in milliseconds for each position change event, for easy velocity calculation
  • Get encoder data at speeds of up to 125 Hz
  • Mounting hardware included

Guides

Enclosures

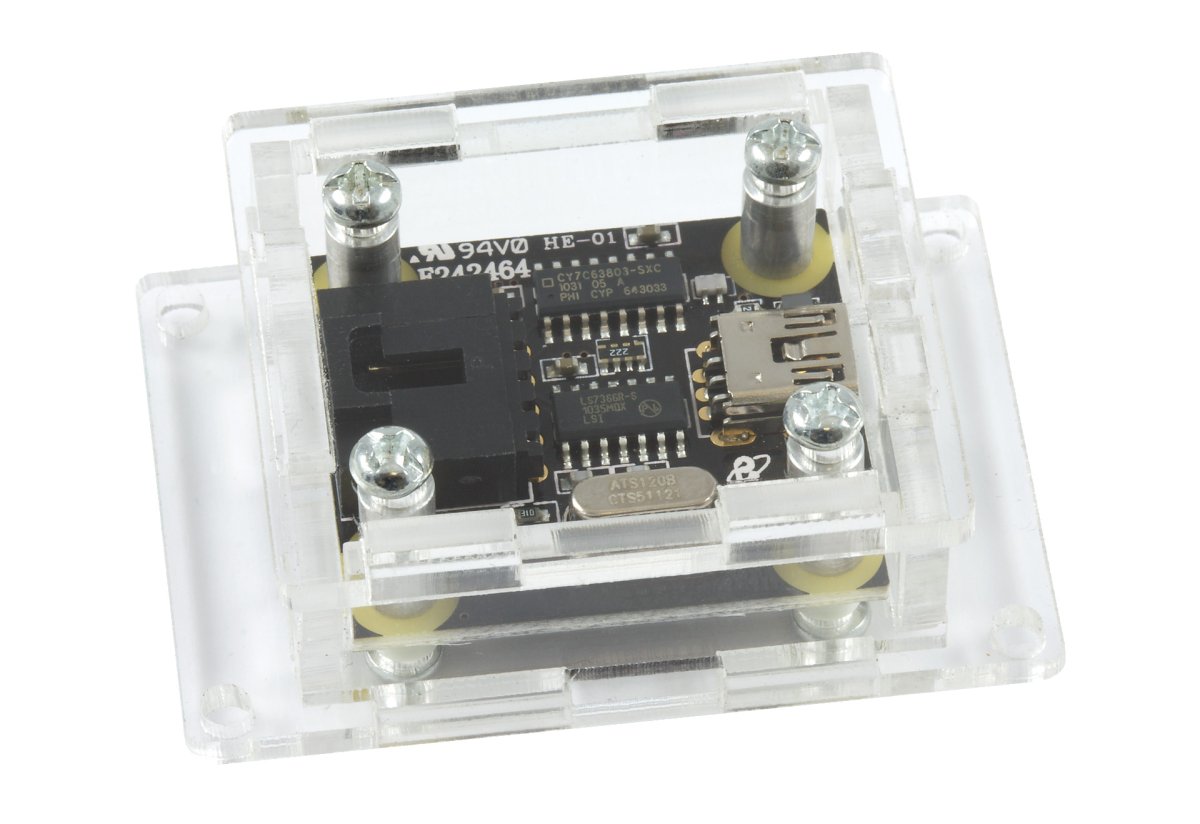

You can protect your board from dust and debris by purchasing an enclosure. An enclosure will also prevent unintentional shorts caused by objects touching the pins on the bottom of the board or any terminal screws.

Product Physical Properties
Part Number Price Material
3815_2
Acrylic Enclosure for the 1057
$7.00 Clear Acrylic

Rotary Encoders

The PhidgetEncoder HighSpeed can be used with any incremental quadrature encoder. For more details on the different kinds of encoders, have a look at the Encoder Guide. All of the encoders listed below are compatible with this Phidget:

Product Encoder Properties
Part Number Price Output Circuit Type Encoder Resolution Encoder Speed Max
ENC4126_0
Rotary Encoder - 12mm Hollow Shaft 1000CPR with Index
$50.00 Push-Pull 1000 CPR 6000 RPM
ENC4124_0
Rotary Encoder - 12mm Solid Shaft 1000CPR with Index
$60.00 Push-Pull 1000 CPR 2000 RPM
ENC4122_0
Rotary Encoder - 6mm Solid Shaft 1000CPR with Index
$40.00 Push-Pull 1000 CPR 6000 RPM
ENC4121_0
Rotary Encoder - 6mm Solid Shaft 600CPR
$25.00 Push-Pull 600 CPR 6000 RPM
ENC4123_0
Rotary Encoder - 8mm Solid Shaft 1000CPR with Index
$45.00 Push-Pull 1000 CPR 6000 RPM
3531_0
Rotary Encoder - For 4mm Motor Shaft 300 CPR
$25.00 Push-Pull 300 CPR 6000 RPM
ENC4109_0
Rotary Encoder - For 4mm Motor Shaft 40 CPR
$10.00 Push-Pull 40 CPR 6000 RPM
ENC4127_0
Rotary Encoder - For 5mm Motor Shaft 1000CPR
$30.00 Push-Pull 1000 CPR 5000 RPM
3530_1
Rotary Encoder with 4mm Shaft (360 CPR)
$50.00 Push-Pull 360 CPR 3000 RPM
3532_1
Rotary Encoder with 8mm Bore (500 CPR)
$50.00 Push-Pull 500 CPR 4500 RPM

Linear Encoders

These linear encoders can all be used with the 1057:

Product Physical Properties
Part Number Price Travel
ENC4110_0
Linear Encoder - 300mm
$90.00 300 mm
ENC4111_0
Linear Encoder - 500mm
$95.00 500 mm
ENC4112_0
Linear Encoder - 700mm
$100.00 700 mm
ENC4113_0
Linear Encoder - 900mm
$110.00 900 mm
ENC4114_0
Linear Encoder - 1100mm
$120.00 1.1 m
ENC4115_0
Linear Encoder - 1400mm
$340.00 1.4 m
ENC4116_0
Linear Encoder - 1700mm
$360.00 1.7 m
ENC4117_0
Linear Encoder - 2000mm
$380.00 2 m

Draw Wire Encoders

Here are all of the draw-wire encoders that can be used with the 1057:

Product Encoder Properties Physical Properties
Part Number Price Output Circuit Type Length Resolution Wire Pull Length Weight
ENC4118_0
Draw-Wire Encoder - 1000mm
$100.00 Push-Pull 1 m 400 g
ENC4119_0
Draw-Wire Encoder - 3000mm
$150.00 Push-Pull 3 m 790 g

Encoder Cables

This Phidget comes with a 5-wire encoder cable that you can use to easily connect to an encoder. If you need extras, you can find them below.

Product Physical Properties
Part Number Price Cable Length Cable Gauge
3019_0
HighSpeed Encoder Cable 50cm
$5.00 500 mm 26 AWG

USB Cables

Use a USB cable to connect this Phidget to your computer. We have a number of different lengths available, although the maximum length of a USB cable is 5 meters due to limitations in the timing protocol. For longer distances, we recommend that you use a Single Board Computer to control the Phidget remotely.

Product Physical Properties
Part Number Price Connector A Connector B Cable Length
3017_1
USB-A to Mini-B Cable 28cm 24AWG
$3.00 USB Type A USB Mini-B 280 mm
CBL4011_0
USB-A to Mini-B Cable 28cm Right Angle
$3.50 USB Type A USB Mini-B (90 degree) 280 mm
3036_0
USB-A to Mini-B Cable 60cm 24AWG
$3.50 USB Type A USB Mini-B 600 mm
CBL4020_0
USB-C to Mini-B Cable 60cm 28AWG
$5.00 USB Type C USB Mini-B 600 mm
CBL4012_0
USB-A to Mini-B Cable 83cm Right Angle
$4.50 USB Type A USB Mini-B (90 degree) 830 mm
3037_0
USB-A to Mini-B Cable 120cm 24AWG
$4.00 USB Type A USB Mini-B 1.2 m
3018_0
USB-A to Mini-B Cable 180cm 24AWG
$4.00 USB Type A USB Mini-B 1.8 m
CBL4021_0
USB-C to Mini-B Cable 180cm 28AWG
$6.00 USB Type C USB Mini-B 1.8 m
3020_0
USB-A to Mini-B Cable 450cm 20AWG
$12.00 USB Type A USB Mini-B 4.5 m


Getting Started

Welcome to the 1057 user guide! In order to get started, make sure you have the following hardware on hand:


Next, you will need to connect the pieces:

1057 2 Connecting The Hardware.jpg
  1. Connect the encoder to the PhidgetEncoder's input.
  2. Connect the PhidgetEncoder to your computer using the USB cable.


Now that you have everything together, let's start using the 1057!


Using the 1057

Phidget Control Panel

In order to demonstrate the functionality of the 1057, the Phidget Control Panel running on a Windows machine will be used.


The Phidget Control Panel is available for use on both macOS and Windows machines.

Windows

To open the Phidget Control Panel on Windows, find the Ph.jpg icon in the taskbar. If it is not there, open up the start menu and search for Phidget Control Panel

Windows PhidgetTaskbar.PNG

macOS

To open the Phidget Control Panel on macOS, open Finder and navigate to the Phidget Control Panel in the Applications list. Double click on the Ph.jpg icon to bring up the Phidget Control Panel.


For more information, take a look at the getting started guide for your operating system:


Linux users can follow the getting started with Linux guide and continue reading here for more information about the 1057.

First Look

After plugging the 1057 into your computer and opening the Phidget Control Panel, you will see something like this:

1057 Panel.jpg


The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:

  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.


The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

Encoder

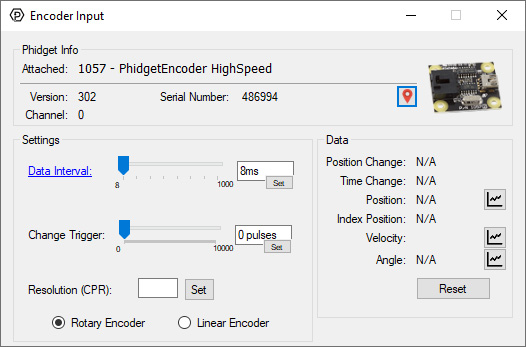

Double-click on the Encoder object, labelled PhidgetEncoder HighSpeed, in order to run the example:

1057 Encoder Example.jpg


General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

  • Position Change: the number of ticks (or quadrature cycles) that have occurred since the last change event.
  • Time Change: the amount of time in milliseconds that has elapsed since the last change event.
  • Position: the total position in ticks relative to where the encoder was when the window was opened.
  • Index Position: the position where the index channel was last encountered. Some encoders do not support index, check your encoder's datasheet for more information.
  • Velocity: the average velocity in rotations per second. A CPR must be specified to enable this functionality.
  • Specify a counts per revolution (CPR) value to enable velocity calculation.

Finding The Addressing Information

Before you can access the device in your own code, and from our examples, you'll need to take note of the addressing parameters for your Phidget. These will indicate how the Phidget is physically connected to your application. For simplicity, these parameters can be found by clicking the button at the top of the Control Panel example for that Phidget.

The locate Phidget button is found in the device information box

In the Addressing Information window, the section above the line displays information you will need to connect to your Phidget from any application. In particular, note the Channel Class field as this will be the API you will need to use with your Phidget, and the type of example you should use to get started with it. The section below the line provides information about the network the Phidget is connected on if it is attached remotely. Keep track of these parameters moving forward, as you will need them once you start running our examples or your own code.

All the information you need to address your Phidget

Using Your Own Program

You are now ready to start writing your own code for the device. The best way to do that is to start from our Code Samples.

Select your programming language of choice from the drop-down list to get an example for your device. You can use the options provided to further customize the example to best suit your needs.

Code Sample Choose Language.png


Once you have your example, you will need to follow the instructions on the page for your programming language to get it running. To find these instructions, select your programming language from the Programming Languages page.

Technical Details

General

The 1057 can be used with a wide assortment of mechanical and optical encoders. The encoder should be of quadrature output type, indicating that there will be two output channels (usually labeled A and B). Specifically, the 1057 reads a standard incremental non-differential TTL encoder.


The maximum rate of the 1057 is specified at 500,000 cycles per second. In your application, this number relates directly to the number of revolutions per second you wish to measure, and the number of counts per revolution specified for your encoder. If your encoder's wheel has 1000 counts per revolution, then the limit on measurable revolutions per second is 500, or 30,000rpm (which, for the 1057, corresponds to 2000 position changes in software per second).

Choosing Encoders

Both mechanical and optical encoders are available, with optical encoders prevailing in quality at higher revolution speeds. Review the data sheet for the encoder that your are selecting carefully before purchasing it to ensure it is compatible with the 1057. Almost any incremental quadrature encoder will work but it is important to verify this before connecting it. Absolute encoders will not work with this device. Warning: The 1057 incorporates a 1kOhm pull-up resistor on each line from the encoder input connector. Some encoders will not be able to sink enough current to reliably signal to the 1057. They may work initially, or not at all.

We have reviewed the following encoders, and found that they can be used with the 1057. This is not meant to be a comprehensive list but should be used as a comparison with other encoders.


Manufacturer Web Page Part Number
Grayhill www.Grayhill.com Series 63R, Series 61R Series 63Q TTL Output
US Digital (Recommended) www.USDigital.com S4, S5, E2, E3, E4, E4P, etc.
Avago Technologies (Formerly Agilent) www.avagotech.com HEDS 5500
CUI Inc. www.cui.com AMT103-V


Connectors

The encoder input on the 1057 uses a 5-pin, 0.100 inch pitch locking connector. The connectors are commonly available - refer to the Table below for manufacturer part numbers.


Manufacturer Part Number Description
Molex 50-57-9405 5 Position Cable Connector
Molex 16-02-0102 Wire Crimp Insert for Cable Connector
Molex 70543-0004 5 Position Vertical PCB Connector
Molex 70553-0004 5 Position Right-Angle PCB Connector (Gold)
Molex 70553-0039 5 Position Right-Angle PCB Connector (Tin)
Molex 15-91-2055 5 Position Right-Angle PCB Connector - Surface Mount


Note: Most of the above components can be bought at Digikey.

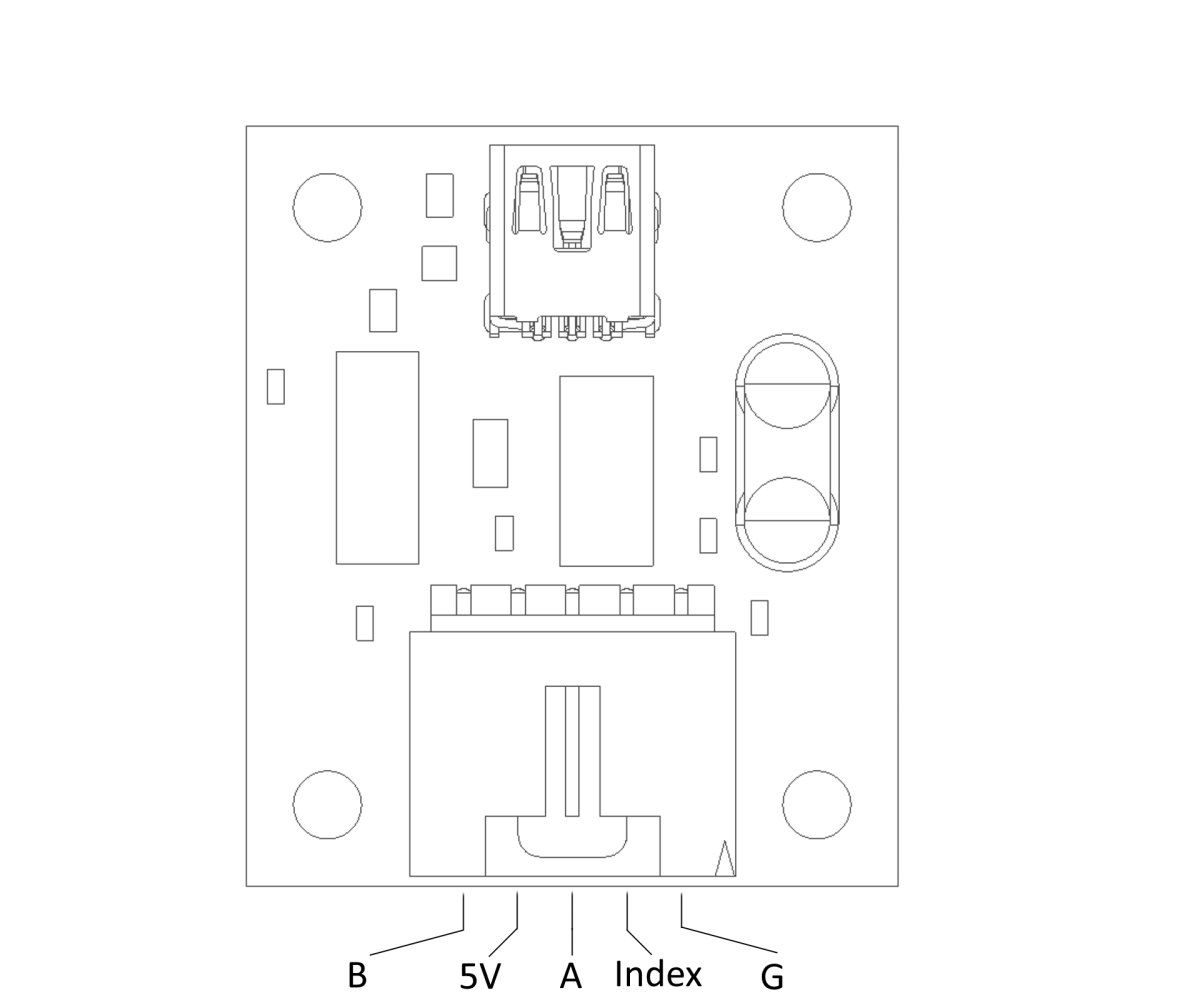

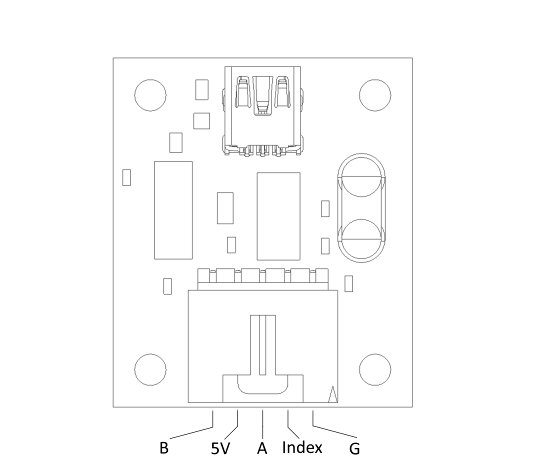

Connector Pinout Diagram

1057 2 Functional.jpg


Further Reading

If you want to know more about encoders, check out the Encoder Guide.

What to do Next

  • Programming Languages - Find your preferred programming language here and learn how to write your own code with Phidgets!
  • Phidget Programming Basics - Once you have set up Phidgets to work with your programming environment, we recommend you read our page on to learn the fundamentals of programming with Phidgets.


Product Specifications

Board Properties
Controlled By USB (Mini-USB)
API Object Name Encoder
Encoder Interface
Number of Encoder Inputs 1
Count Rate Max 1E+06 pulses/s
Encoder Interface Resolution x4
Sampling Interval Min 0.008 s/sample
Sampling Interval Max 1 s/sample
Encoder Input Low Voltage Max 1.7 V DC
Encoder Input High Voltage Min 2.1 V DC
Pull-down Resistance (Line Driver) 2.2 kΩ or 10 kΩ
Pull-up Resistance (Open Collector) 2.2 kΩ or 10 kΩ
USB Speed High Speed
Electrical Properties
Current Consumption Max 500 mA
Current Consumption Min 55 mA
USB Voltage Min 4.5 V DC
USB Voltage Max 5.3 V DC
Physical Properties
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C
Customs Information
Canadian HS Export Code 8471.80.00
American HTS Import Code 8471.80.40.00
Country of Origin CN (China)

Documents

Product History

Date Board Revision Device Version Packaging Revision Comment
January 2005 0300Product Release
November 20091302Increased pull-up resistance from 1kO to 2.2kO
January 2010 2302Replaced USB connector with Mini-USB connector, made board slightly smaller.
January 2018 2302BRemoved cables from packaging.
June 2021 3400BAdded IOMode support. Updated obsolete components on board; no longer supports Phidget21
May 2023 3401BUSB bug fixes
