Quantity Available: 655

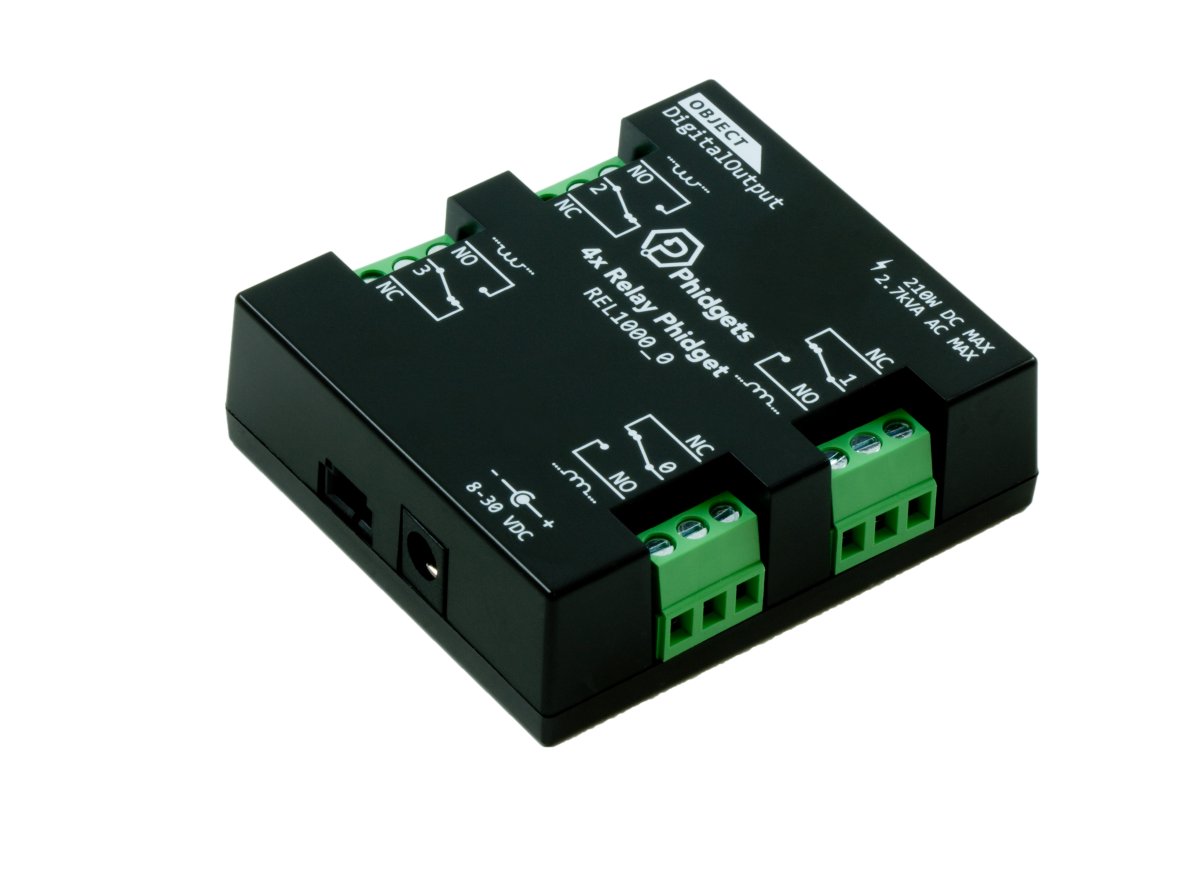

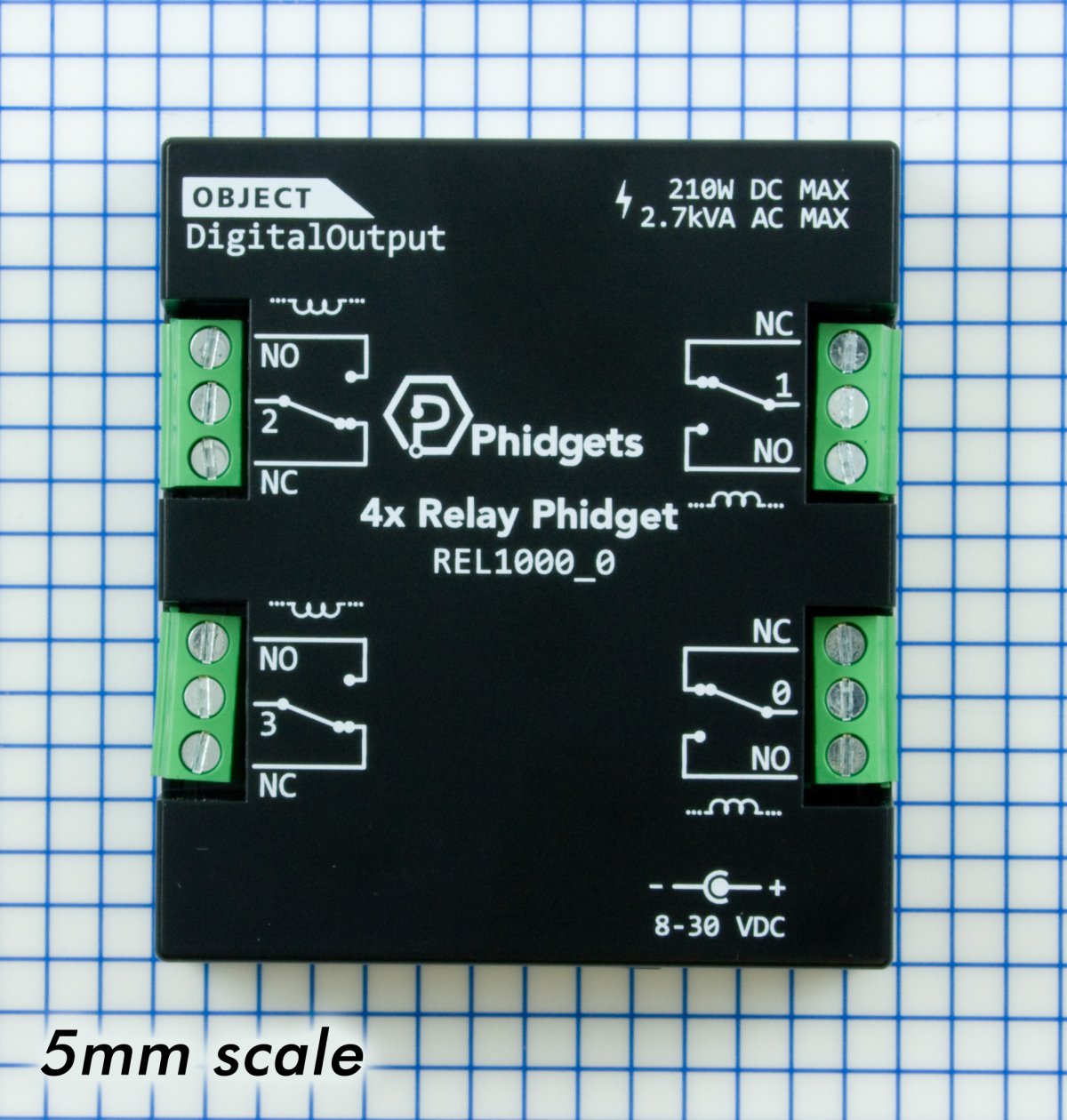

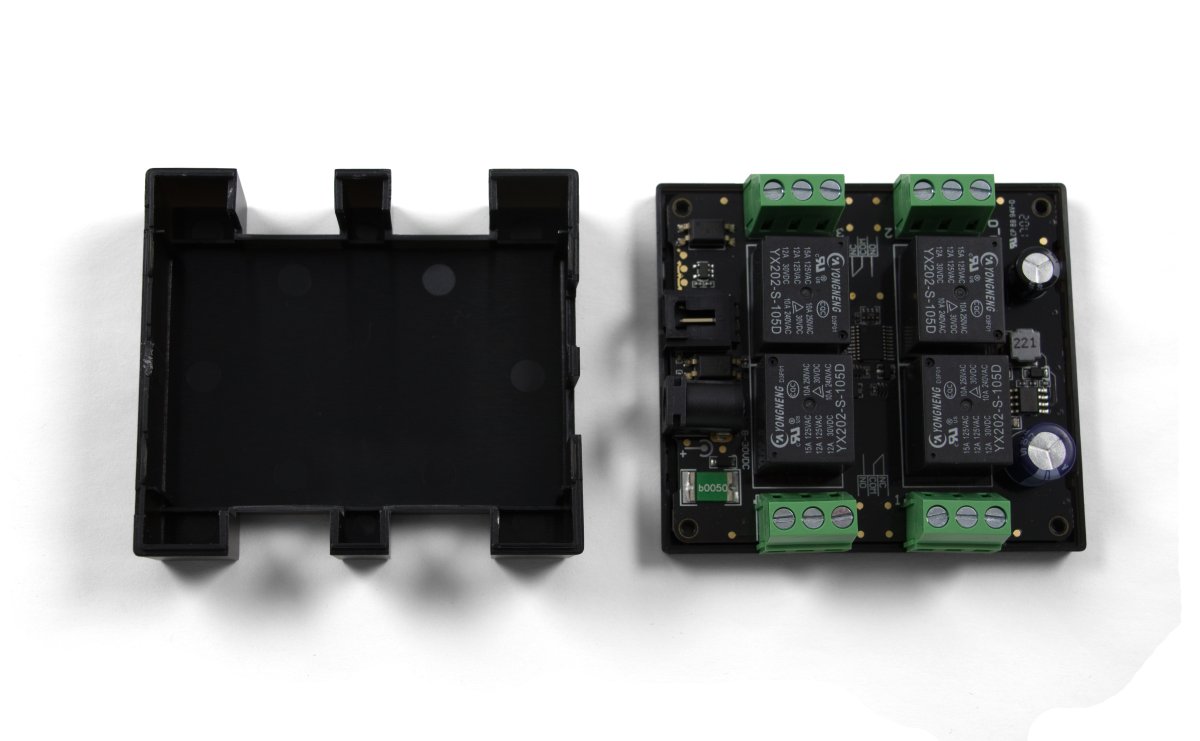

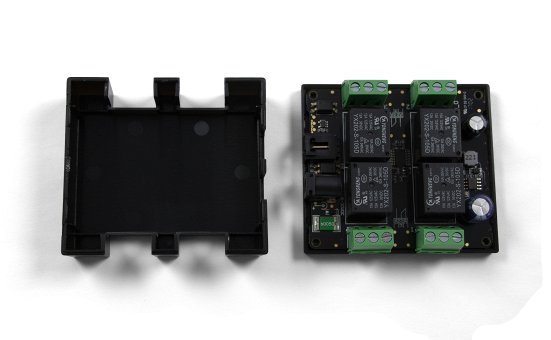

Controlling the power circuits of as many as four separate devices is a snap with this relay module. Each mechanical relay can control a seperate circuit of up to 210W of DC power or 1750 VA of AC power. This module requires an external power supply, which is isolated from the VINT port in order to improve stability by preventing ground loops. The relays by nature also isolate the load circuit from the control circuit, meaning you don't have to worry about voltage spikes in the load damaging your VINT Hub or computer. The REL1000 connects to a port on a VINT Hub. See the Connection & Compatibility tab for a list of hubs.
This Phidget is a smart device that must be controlled by a VINT Hub. For more information about VINT, have a look at the VINT Primer. You can use a Phidget Cable to simply and easily connect the two devices. Here's a list of all of the different VINT Hubs currently available:
|Image||Part Number||Price||Number of VINT Ports||Controlled By|
Use a Phidget cable to connect this device to the hub. You can solder multiple cables together in order to make even longer Phidget cables, but you should be aware of the effects of having long wires in your system.
|Image||Part Number||Price||Cable Length|
This Phidget requires a power supply between 8 and 30V DC. We recommend that you use a 12V 2A DC power supply, since this is more than enough power to operate all four relays. Select the power supply from the list below that matches your region's wall socket type.
|Product||Electrical Properties||Physical Properties|
|Image||Part Number||Price||Power Supply Voltage Min||Power Supply Voltage Max||Power Supply Current||Wall Plug Style|
|3022_0||$10.00||11.4 V DC||12.6 V DC||2 A||Australian|
|3023_1||$10.00||11.4 V DC||12.6 V DC||2 A||European|
|3024_1||$10.00||11.4 V DC||12.6 V DC||2 A||North American|
|3025_0||$10.00||11.4 V DC||12.6 V DC||2 A||British|
|3084_0||$1.50||11.4 V DC||12.6 V DC||500 mA||European|
|3085_0||$1.50||11.4 V DC||12.6 V DC||500 mA||North American|
|3086_0||$10.00||22.8 V DC||25.2 V DC||1 A||North American|
|PSU4013_0||$20.00||22.8 V DC||25.2 V DC||2.5 A||—|
|PSU4014_0||$40.00||22.8 V DC||25.2 V DC||5 A||—|
|PSU4015_0||$20.00||21.6 V DC||26.4 V DC||1 A||—|
|PSU4016_0||$40.00||21.6 V DC||28.8 V DC||15 A||—|
|PSU4017_0||$75.00||20 V DC||26.4 V DC||15 A||—|
|PSU4018_0||$20.00||11.4 V DC||12.6 V DC||5 A||—|
Welcome to the REL1000 user guide! In order to get started, make sure you have the following hardware on hand:

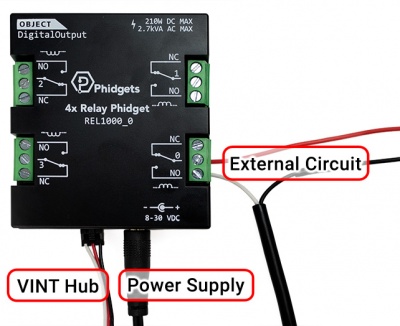

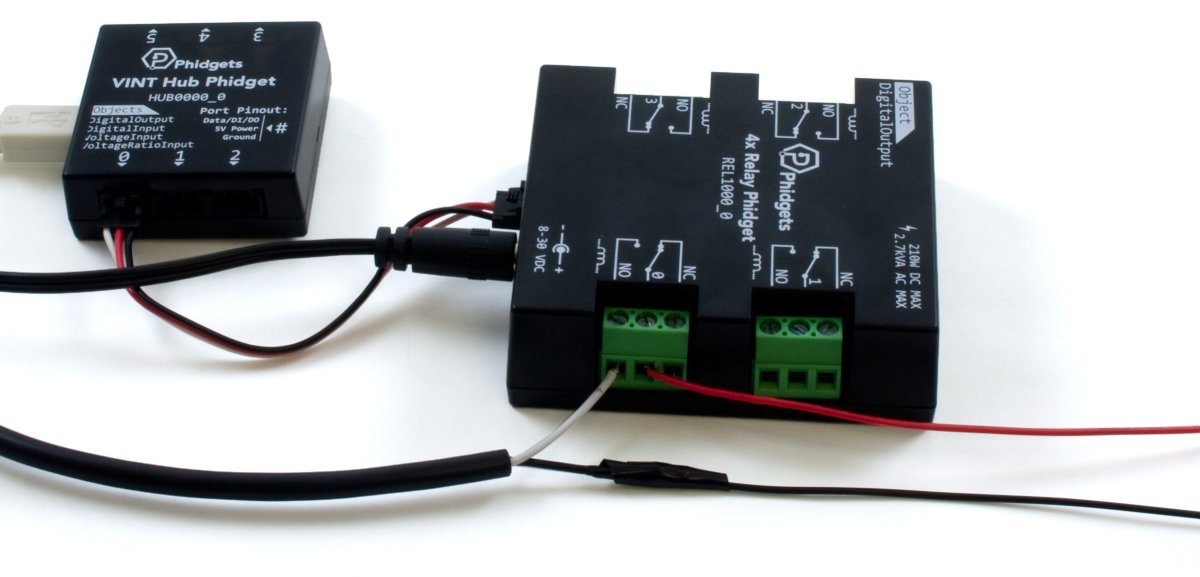

Next, you will need to connect the pieces:
Now that you have everything together, let's start using the REL1000!
In order to demonstrate the functionality of the REL1000, the Phidget Control Panel running on a Windows machine will be used.
The Phidget Control Panel is available for use on both macOS and Windows machines.
To open the Phidget Control Panel on Windows, find the icon in the taskbar. If it is not there, open up the start menu and search for Phidget Control Panel
To open the Phidget Control Panel on macOS, open Finder and navigate to the Phidget Control Panel in the Applications list. Double click on the icon to bring up the Phidget Control Panel.
For more information, take a look at the getting started guide for your operating system:
Linux users can follow the getting started with Linux guide and continue reading here for more information about the REL1000.
After plugging the REL1000 into your computer and opening the Phidget Control Panel, you will see something like this:
The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:
The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

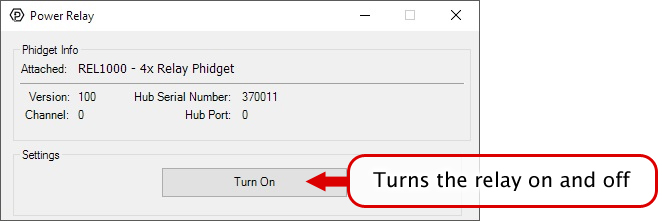

Double-click on a Digital Output object labelled Power Relay in order to run the example:
General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:
Before you can access the device in your own code, and from our examples, you'll need to take note of the addressing parameters for your Phidget. These will indicate how the Phidget is physically connected to your application. For simplicity, these parameters can be found by clicking the button at the top of the Control Panel example for that Phidget.
In the Addressing Information window, the section above the line displays information you will need to connect to your Phidget from any application. In particular, note the Channel Class field as this will be the API you will need to use with your Phidget, and the type of example you should use to get started with it. The section below the line provides information about the network the Phidget is connected on if it is attached remotely. Keep track of these parameters moving forward, as you will need them once you start running our examples or your own code.
You are now ready to start writing your own code for the device. The best way to do that is to start from our examples:
This Phidget is compatible with the DigitalOutput Examples.
Once you have your example, you will need to follow the instructions on the page for your programming language to get it running. To find these instructions, select your programming language from the Programming Languages page.

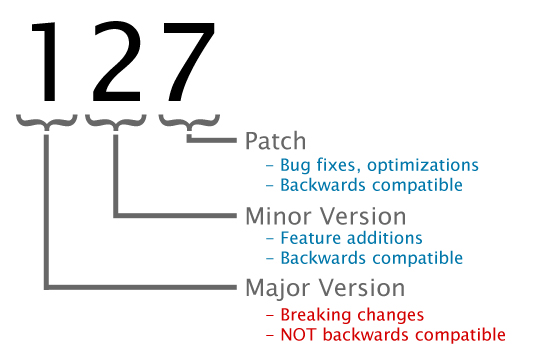

Starting from firmware version 110, using Phidget22 library versions 188.8.131.5290107 and later, this device supports the use of a failsafe feature to put your device in a safe state should your program hang or crash.
With this feature, each Digital Output channel on this device has its own independently settable failsafe timer.
If the failsafe is not enabled, the device will behave as it did before the addition of this feature, maintaining the last state or duty cycle it received until it is explicitly told to stop.
Enabling the failsafe feature for a channel starts a recurring failsafe timer. Once the failsafe timer is enabled, it must be reset within the specified time or the channel will enter a failsafe state. Resetting the failsafe timer will reload the timer with the specified failsafe time, starting when the message to reset the timer is received by the Phidget.

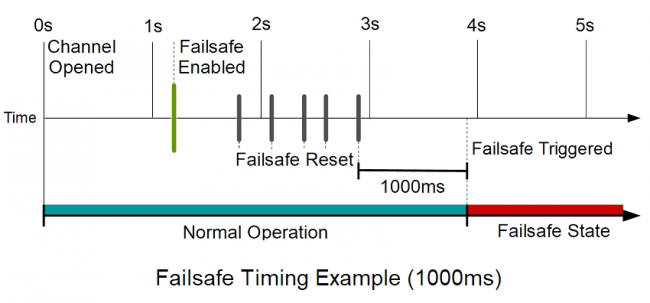

For example: if the failsafe is enabled with a failsafe time of 1000ms, you will have 1000ms to reset the failsafe timer. Every time the failsafe timer is reset, you will have 1000ms from that time to reset the failsafe again.
If the failsafe timer is not reset before it runs out, the channel will enter a failsafe state. For Digital Output channels, this sets the output to a FALSE state. On the REL1000 this switches the relay contact to the Normally-Closed position. Once the channel enters the failsafe state, it will reject any further input until the channel is reopened.
To prevent the channel from falsely entering the failsafe state, we recommend resetting the failsafe timer as frequently as is practical for your applicaiton. A good rule of thumb is to not let more than a third of the failsafe time pass before resetting the timer.
Once the failsafe has been enabled, it cannot be disabled by any means other than closing and reopening the channel.
When you use a failsafe in your program, we strongly recommend setting up an error event handler to catch the Failsafe Error Event, to allow your program to catch the failsafe event.
If you want your program to try to automatically recover from a failsafe state, you can close and re-open the channel from the error event handler after determining a failsafe condition caused the event.
The relays on the REL1000 are SPDT (Single pole, double throw). This means there is a common pin (C), a normally open pin (NO) and a normally closed pin (NC). When the relay is unpowered, the switch will be resting in the NC position, as seen in the diagram. When the relay's Digital Output object is toggled in software, it will switch to the NO position. If the Digital Output object is closed (using the
Close() method), the relay will always return to the NC position. For this reason, it is considered a best practice to call
Close() at the end of your program on in the 'closing' portion of your project.
If communication between the REL1000 and your computer is broken (e.g. if the Phidget cable is unplugged), the relay will not change state. You will, however, get a detach event for the attached channels of that Phidget, so you may want to handle this case in your Digital Output detach handler. Since communication is already interrupted at this point, you can't tell the Digital Output to return to the NC position, but you can set a warning in your program to notify someone to come and reset the system manually.
You can read more about how mechanical relays work on our Mechanical Relay Primer.
|Number of Relays||4|
|Load Current Min||100 mA|
|Turn-off Time Max||5 ms|
|Turn-on Time Max||8 ms|
|Contact Resistance Max||50 mΩ|
|Dielectric Strength||1.5 kV AC|
|Electromagnet Coil Resistance||70 Ω|
|Switching Power Max (Real)||210 W|
|Switching Power Max (Apparent)||1.8 kVA|
|Load Voltage Max (DC)||* 30 V DC|
|Load Current Max (DC)||7 A|
|Load Voltage Max (AC)||277 V AC|
|Load Current Max (AC)||12 A|
|Current Consumption Min (VINT Port)||500 μA|
|Power Consumption||40 mW|
|Supply Voltage Min||8 V DC|
|Supply Voltage Max||30 V DC|
|Recommended Wire Size||12 - 24 AWG|
|Operating Temperature Min||-40 °C|
|Operating Temperature Max||70 °C|
*Note: Switching this relay at voltages higher than 30V will result in a reduced product lifespan.
Please Note: This relay cannot be switched at its maximum AC voltage and current at the same time. Ensure that total power of the load does not exceed the switching power for the relay. For example, you can switch this relay at 277V AC and 6.3A (1750VA), or at 145V AC and 12A (1750VA), but not at 277V and 12A (3324VA).
The lifespan of the relays on this Phidget vary depending on how much current you're switching and whether it's AC or DC. The following graph illustrates the relationship between load current and relay lifespan:
The vertical axis is the lifespan of the relay (number of actuations) and the horizontal axis is load current in amps. As you can see, increasing load current from 5A to 10A can reduce relay life by more than half.
|Power Relay||DigitalOutput||0 - 3|
|DigitalOutput||Visual Basic .NET||Windows||Download|
|Date||Board Revision||Device Version||Comment|
|June 2017||0||101||Product Release|
|Image||Part Number||Price||Load Current Max (AC)||Load Voltage Max (AC)||Load Current Max (DC)||Load Voltage Max (DC)|
|1014_2B||$55.00||12 A||277 V AC||7 A||* 30 V DC|
|1017_1B||$85.00||2 A||250 V AC||2 A||* 120 V DC|
|3051_1||$19.00||12 A||277 V AC||7 A||* 30 V DC|
|3052_1||$15.00||2.5 A||28 V AC||2.5 A||40 V DC|
|3053_0||$30.00||(per channel) 9 A||28 V AC||(per channel) 9 A||40 V DC|
|3054_0||$10.00||500 mA||28 V AC||500 mA||40 V DC|
|REL1000_0||$30.00||12 A||277 V AC||7 A||* 30 V DC|
|REL1100_0||$25.00||—||—||8 A||30 V DC|
|REL1101_0||$50.00||—||—||8 A||30 V DC|
|REL2001_0||$10.00||12 A||277 V AC||7 A||* 30 V DC|
|REL2002_0||$12.00||2 A||240 V AC||2 A||120 V DC|
For applications with a higher switching power, Hockey Puck style relays are the more robust choice:
|Image||Part Number||Price||Control Voltage Min||Control Voltage Max||Load Voltage Min (DC)||Load Voltage Max (DC)||Load Voltage Max (AC)|
|3950_0||$20.00||4 V DC||32 V DC||—||30 V DC||—|
|3951_0||$25.00||4 V DC||32 V DC||—||50 V DC||—|
|3952_0||$30.00||4 V DC||32 V DC||—||30 V DC||—|
|3953_1||$15.00||4 V DC||32 V DC||—||—||280 V AC|
|3957_0||$22.00||3 V DC||32 V DC||5 V DC||120 V DC||—|
|3958_0||$45.00||3 V DC||32 V DC||5 V DC||120 V DC||—|
|3959_0||$16.00||4 V DC||32 V DC||—||—||280 V AC|
|3962_0||$15.00||4 V DC||32 V DC||—||—||280 V AC|
