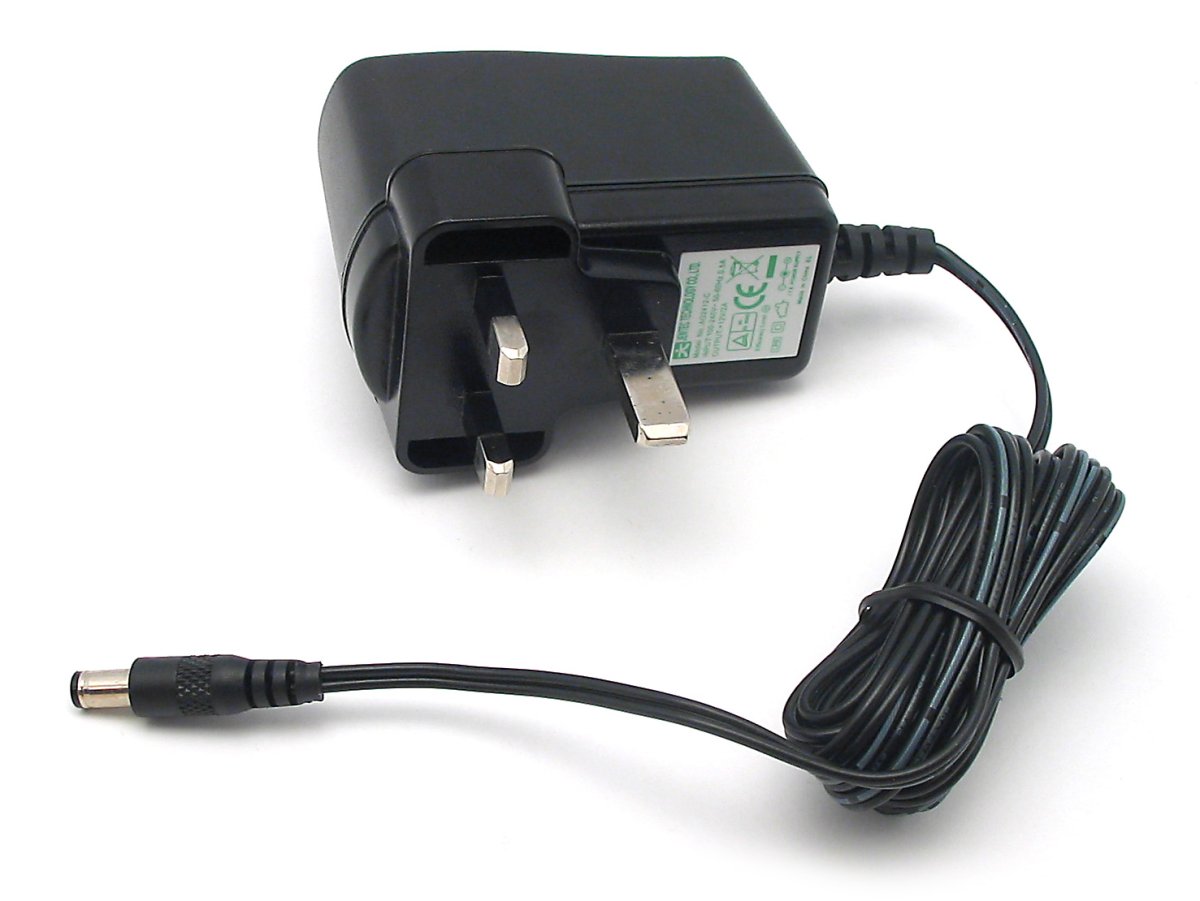

The 3025 provides efficient power at 12VDC, 2.0 Amps, 24 Watts. It is protected against over-current, over-voltage, and short-circuit. It has a British-style plug.
Here are some handy products that are compatible with this power supply:
Product | Physical Properties | ||||
---|---|---|---|---|---|
Part Number | Price | Connector A | Connector B | Cable Length | Cable Gauge |
Female Pigtail 5.5x2.1mm
|
$2.75 | Power Jack 5.5 x 2.1mm (Female) | 2 Loose Wires | 250 mm | 20 AWG |
Electrical Properties | |
---|---|
Output Voltage | 12 V |
Power Supply Current | 2 A |
Output Power | 24 W |
AC Input Voltage Min | 100 V AC |
AC Input Voltage Max | 240 V AC |
AC Input Frequency Min | 50 Hz |
AC Input Frequency Max | 60 Hz |
Protection Circuitry | Over-Current, Over-Voltage, Short Circuit |
Physical Properties | |
Wall Plug Style | British |
Power Jack Hole Diameter | 5.5 mm |
Power Jack Pin Diameter | 2.1 mm |
Power Jack Polarity | Center Positive |
Operating Temperature Min | 0 °C |
Operating Temperature Max | 40 °C |
Customs Information | |
Canadian HS Export Code | 8504.40.00 |
American HTS Import Code | 8504.40.70.01 |
Country of Origin | TW (Taiwan) |
The power supply can be used with all Phidgets that accept an external power supply, or for projects that need a power source.
Product | Electrical Properties | Physical Properties | ||
---|---|---|---|---|
Part Number | Price | Power Supply Current | Output Voltage | Wall Plug Style |
Power Supply 24VDC 14.6A
|
$40.00 | 14.6 A | 24 V | — |
Power Supply 24VDC 25A Current Limiting
|
$120.00 | 25 A | 24 V | — |
Power Supply DIN Mount 24VDC 1A
|
$20.00 | 1 A | 24 V | — |
Power Supply 12VDC 0.5A - EU
|
$1.50 | 500 mA | 12 V | European |
Power Supply 12VDC 0.5A - US
|
$1.50 | 500 mA | 12 V | North American |
Power Supply 12VDC 2.0A - AU
|
$10.00 | 2 A | 12 V | Australian |
Power Supply 12VDC 2.0A - EU
|
$10.00 | 2 A | 12 V | European |
Power Supply 12VDC 2.0A - UK
|
$10.00 | 2 A | 12 V | British |
Power Supply 12VDC 5A
|
$20.00 | 5 A | 12 V | — |
Power Supply 24VDC 1.0A - US
|
$10.00 | 1 A | 24 V | North American |
Power Supply 24VDC 2.5A
|
$20.00 | 2.5 A | 24 V | — |
Power Supply 24VDC 5A
|
$40.00 | 5 A | 24 V | — |
Power Supply-12VDC 2.0A - US
|
$10.00 | 2 A | 12 V | North American |
