Name: Power Supply 12VDC 2.0A - AU
Brand: Phidgets
SKU: 3022_0
Availability: InStock

PHIDGETS Inc.

Unit 1 - 6115 4 St SE
Calgary AB T2H 2H9
Canada
+1 403 282-7335

Power Supply 12VDC 2.0A - AU

ID: 3022_0

ⓘ

$10.00

Quantity Available: 216

Qty	Price
5	$9.60
10	$9.20
25	$9.00
50	$8.80
100	$8.60
50+	...

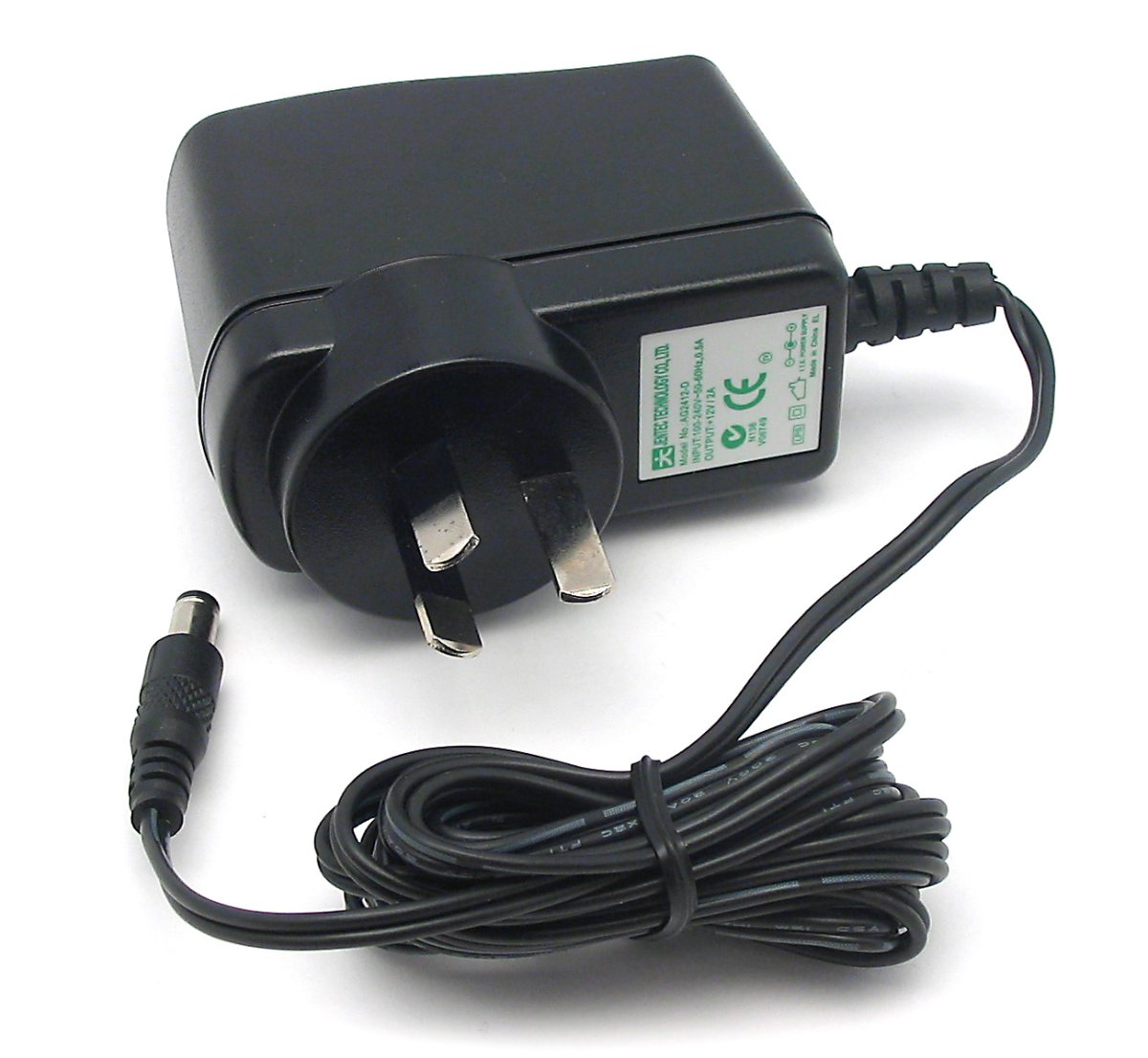

The 3022 provides efficient power at 12VDC, 2.0 Amps, 24 Watts. It is protected against over-current, over-voltage, and short-circuits. It has an Australian-style plug.

Features

12V 2A DC power supply
AU regional plug

Power Supply Accessories

Here are some handy products that are compatible with this power supply:

Product		Physical Properties
Part Number	Price	Connector A	Connector B	Cable Length	Cable Gauge
CBL4209_1 Female Pigtail 5.5x2.1mm	$2.75	Power Jack 5.5 x 2.1mm (Female)	2 Loose Wires	250 mm	20 AWG

Product Specifications

Electrical Properties
Output Voltage	12 V
Power Supply Current	2 A
Output Power	24 W
AC Input Voltage Min	100 V AC
AC Input Voltage Max	240 V AC
AC Input Frequency Min	50 Hz
AC Input Frequency Max	60 Hz
Protection Circuitry	Over-Current, Over-Voltage, Short Circuit
Physical Properties
Wall Plug Style	Australian
Power Jack Hole Diameter	5.5 mm
Power Jack Pin Diameter	2.1 mm
Power Jack Polarity	Center Positive
Operating Temperature Min	0 °C
Operating Temperature Max	40 °C
Customs Information
Canadian HS Export Code	8504.40.00
American HTS Import Code	8504.40.70.01
Country of Origin	TW (Taiwan)

Documents

Product Manual

Product Certification

C-Tick
DOIR
CE

The power supply can be used with all Phidgets that accept an external power supply, or for projects that need a power source.

Have a look at our power supplies:

Product		Electrical Properties		Physical Properties
Part Number	Price	Power Supply Current	Output Voltage	Wall Plug Style
PSU4016_0 Power Supply 24VDC 14.6A	$40.00	14.6 A	24 V	—
PSU4019_0 Power Supply 24VDC 25A Current Limiting	$120.00	25 A	24 V	—
PSU4015_0 Power Supply DIN Mount 24VDC 1A	$20.00	1 A	24 V	—
3084_0 Power Supply 12VDC 0.5A - EU	$1.50	500 mA	12 V	European
3085_0 Power Supply 12VDC 0.5A - US	$1.50	500 mA	12 V	North American
3022_0 Power Supply 12VDC 2.0A - AU	$10.00	2 A	12 V	Australian
3023_1 Power Supply 12VDC 2.0A - EU	$10.00	2 A	12 V	European
3025_0 Power Supply 12VDC 2.0A - UK	$10.00	2 A	12 V	British
PSU4018_0 Power Supply 12VDC 5A	$20.00	5 A	12 V	—
3086_0 Power Supply 24VDC 1.0A - US	$10.00	1 A	24 V	North American
PSU4013_0 Power Supply 24VDC 2.5A	$20.00	2.5 A	24 V	—
PSU4014_0 Power Supply 24VDC 5A	$40.00	5 A	24 V	—
3024_1 Power Supply-12VDC 2.0A - US	$10.00	2 A	12 V	North American
