60V 50A DC Motor Phidget
DCC1130 Product Video

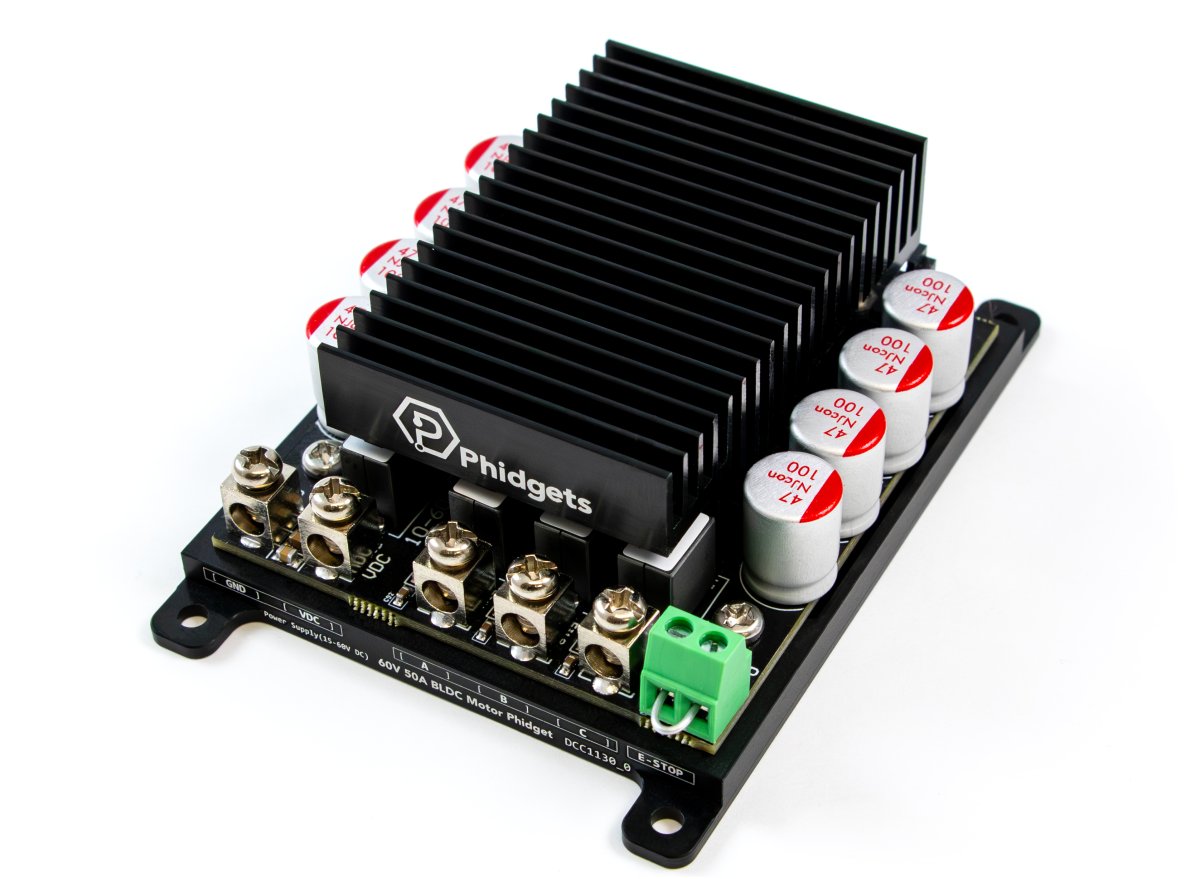

60V 50A Brushless DC Motor Phidget

SKU: DCC1130_0
ⓘ
This controller can deliver up to 50A of continuous current and 50A of peak current to a single brushless DC motor, with a supply voltage of up to 60V.

$190.00

Quantity Available: 145

Qty Price
10 $180.50
25 $161.50
50 $142.50
100 $133.00
Need larger quantities?
Contact us for pricing

The 60V 50A Brushless DC Motor Phidget is a high-performance brushless DC motor driver. It has an 15-60V DC supply input, and provides up to 50 amps of continuous current, with a peak current capacity of 50 amps to a single brushless DC motor. The motor must have Hall-effect feedback for this controller to function.

This controller includes three operating modes: BLDC Motor, Position Controller, and Velocity Controller. The Position and Velocity Controller modes utilize the built-in encoder channel or Hall-effect sensor data to deliver fast and precise closed-loop control. Prebuilt tuning software is available through the Phidget Control Panel on Windows. In BLDC Motor mode, the motor can be manually controlled, allowing for custom control loops. Comprehensive guides are available for each mode.

There are several built-in safety features, including an E-Stop circuit, thermal protection, over-current protection, advanced failsafe modes, supply voltage monitoring, and polarity protection. For detailed information about these features, refer to the API.

Additional features include regenerative braking, surge current limiting, automatic inductance measurement, electrical isolation, and more.

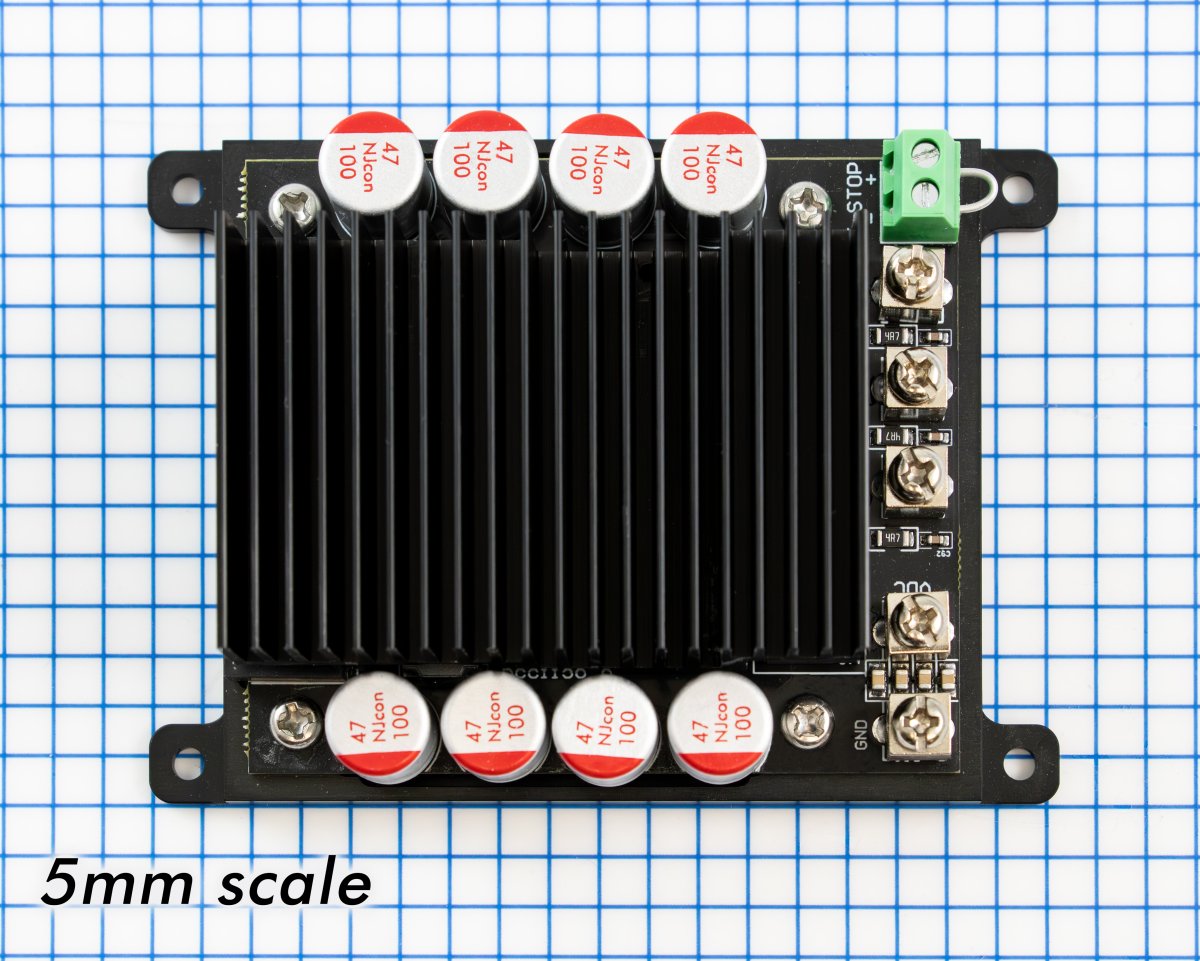

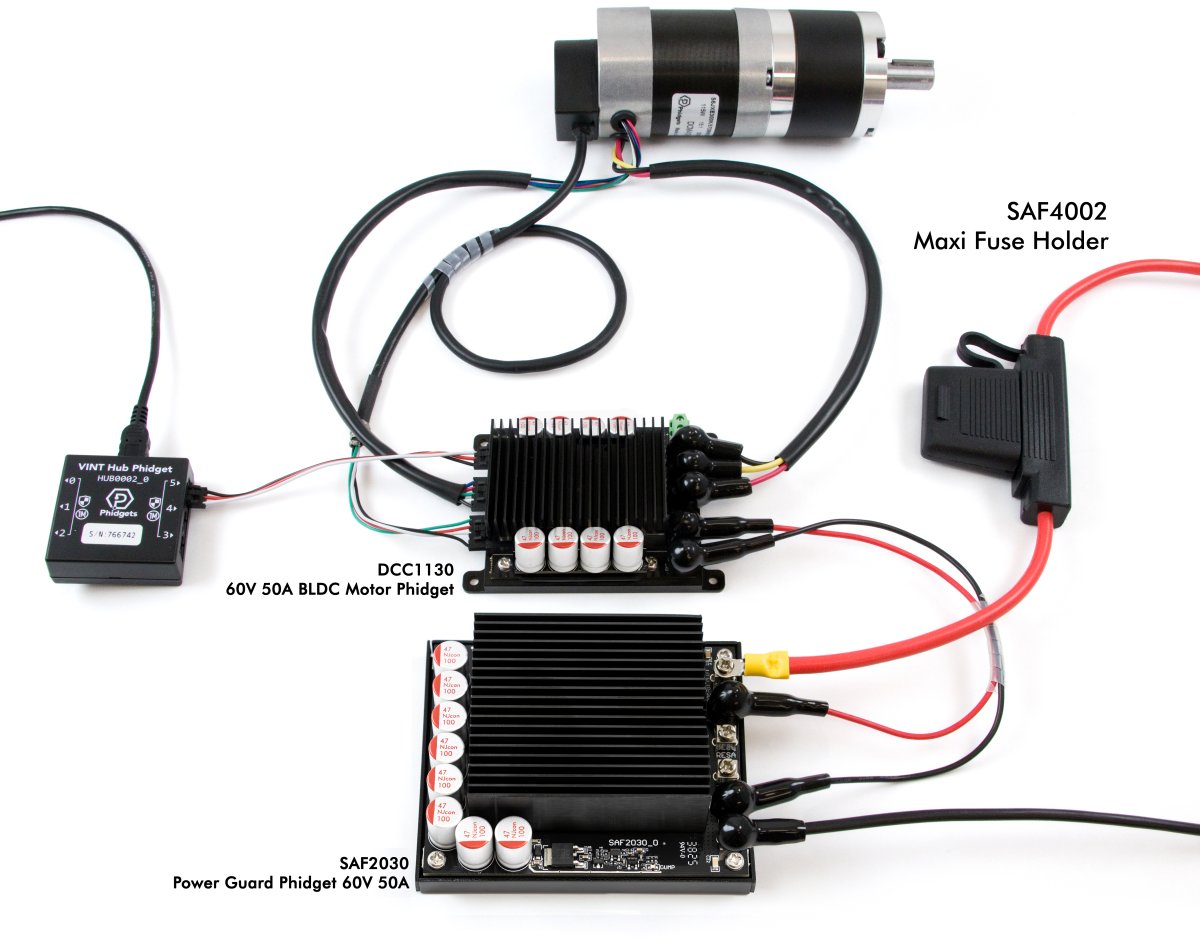

The 60V 50A BLDC Motor Phidget must be connected to a VINT Hub Phidget to function. A Power Guard Phidget is also required for most applications. For more information, review our Power Guard Guide.

Features

  • Delivers 50A continuous (50A peak) current to a single brushless DC motor.
  • Closed-loop position or velocity control via the built-in encoder input or Hall-effect sensors
  • Advanced safety: E-Stop circuit, thermal and over-current protection, failsafe modes, and more.
  • Built-in electrical isolation for enhanced system reliability.
  • Ultrasonic PWM frequency (25kHz).

BLDC Guides

BLDCMotor API Guide

BLDCMotor API Guide

Get started with your Brushless DC Motor Phidget
MotorPositionController API Guide

MotorPositionController API Guide

Get started with your Position Controller
MotorVelocityController API Guide

MotorVelocityController API Guide

Get started with your Velocity Controller
Power Guard Guide

Power Guard Guide

Learn about Power Guard Phidgets and when to use one.

Videos

DCC1130 - Product Video

DCC1130 - Product Video

Product video for the BLDC Motor Phidget (DCC1130_0)
Position Controller - PID Tuning

Position Controller - PID Tuning

Tuning your Position Controller
Velocity Controller - PID Tuning

Velocity Controller - PID Tuning

Tuning your Position Controller

VINT Guides

VINT Upgrades

VINT Upgrades

Second generation VINT devices have increased communication speeds, longer Phidget cables, and improved electrical immunity. Learn more here.
${query.$title}

VINT Communication Speed Guide

Second generation VINT devices have increased communication speeds. Learn more here.
${query.$title}

Cable Length Calculator Guide

Second generation VINT devices can now extend up to 50 meters from a VINT Hub. Learn more here.
Error reading wiki page: Error: Wiki request failed with status code 404

For specifications that deal with acceleration and velocity limits, see the API tab.

Product Specifications

Part Numbers DCC1130_0, DCC1130_0MX
Board Properties
Controlled By VINT
Driver Support Phidget22
VINT Communication Speed Max 1 Mbit/s
Controller Properties
Motor Type Brushless DC
Number of Motor Ports 1
Velocity Resolution 0.00078 Duty Cycle
Acceleration Min 0.1 Duty Cycle/s
Acceleration Max 1000 Duty Cycle/s
Motor Induction Min 100 μH
Motor Induction Max 10 mH
Electrical Properties
Supply Voltage Min 15 V DC
Supply Voltage Max 60 V DC
Power Consumption (Unconfigured) 500 mW
Power Consumption motor power plus 500 mW
Current Consumption Max (VINT Port) 3 mA
Continuous Motor Current Max 50 A
Peak Motor Current Max 50 A
Isolation Voltage (DC) 1 kV DC
Encoder Properties
Encoder Input High Voltage Min 1.7 V DC
Encoder Input Low Voltage Max 1.4 V DC
Encoder Interface Resolution 4x
Count Rate Max 2.4E+06 pulses/s
Time Resolution 6.3E-05 s
Hall-Effect Sensor
Hall-Effect Voltage 5 V DC
Physical Properties
Operating Temperature Min -40 °C
Operating Temperature Max 100 °C
Recommended Wire Size (Motor) 10 - 20 AWG
Recommended Wire Size (Power Terminal) 10 - 20 AWG
Recommended Wire Size (E-stop) 26 AWG
Customs Information
Canadian HS Export Code 8471.80.00
American HTS Import Code 8471.80.40.00
Country of Origin
DCC1130_0 CN (China)
DCC1130_0MX MX (Mexico)

Hall-Effect Input

CableMotor Wire
BlackGround
GreenHall-Effect 'C'
WhiteHall-Effect 'B'
Red+5V
BrownHall-Effect 'A'

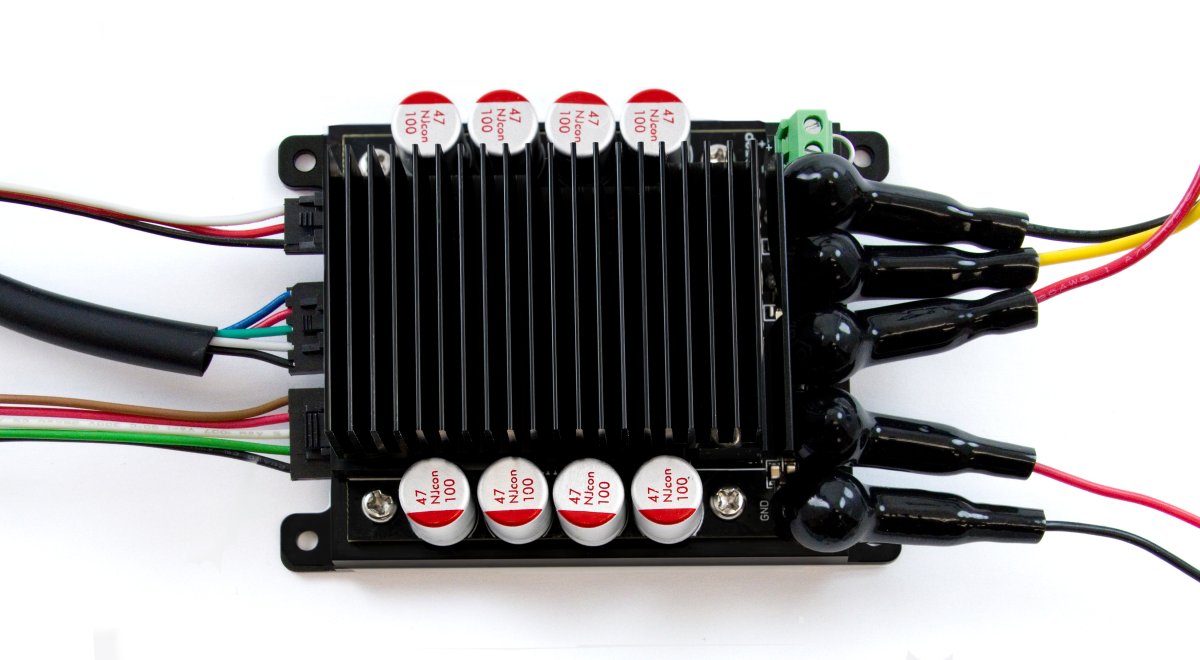

To make connection simple, the DCC1130 has a 5-pin molex connector to interface with the motor's hall-effect output. All BLDC motors sold at Phidgets have the mating connector soldered to the end of the cable. If you have your own motor, you can cut a Phidget Encoder cable in half and solder them together as follows:
