Linear Encoder - 900mm

ID: ENC4113_0

This linear encoder has a 900mm rail and allows you to precisely measure linear position.

$110.00

Quantity Available: 3

Qty Price
5 $105.60
10 $101.20

This linear encoder converts movement along its 900mm of travel into a quadrature signal that is readable by any of our encoder interfaces. It has an index channel that triggers every 5cm to aid in startup calibration.

Features

  • Measure changes as small as 5 µm
  • Index channel pulses every 5cm for precise position homing
  • Plugs directly into any Phidgets encoder interface
  • Easy mounting with included hardware

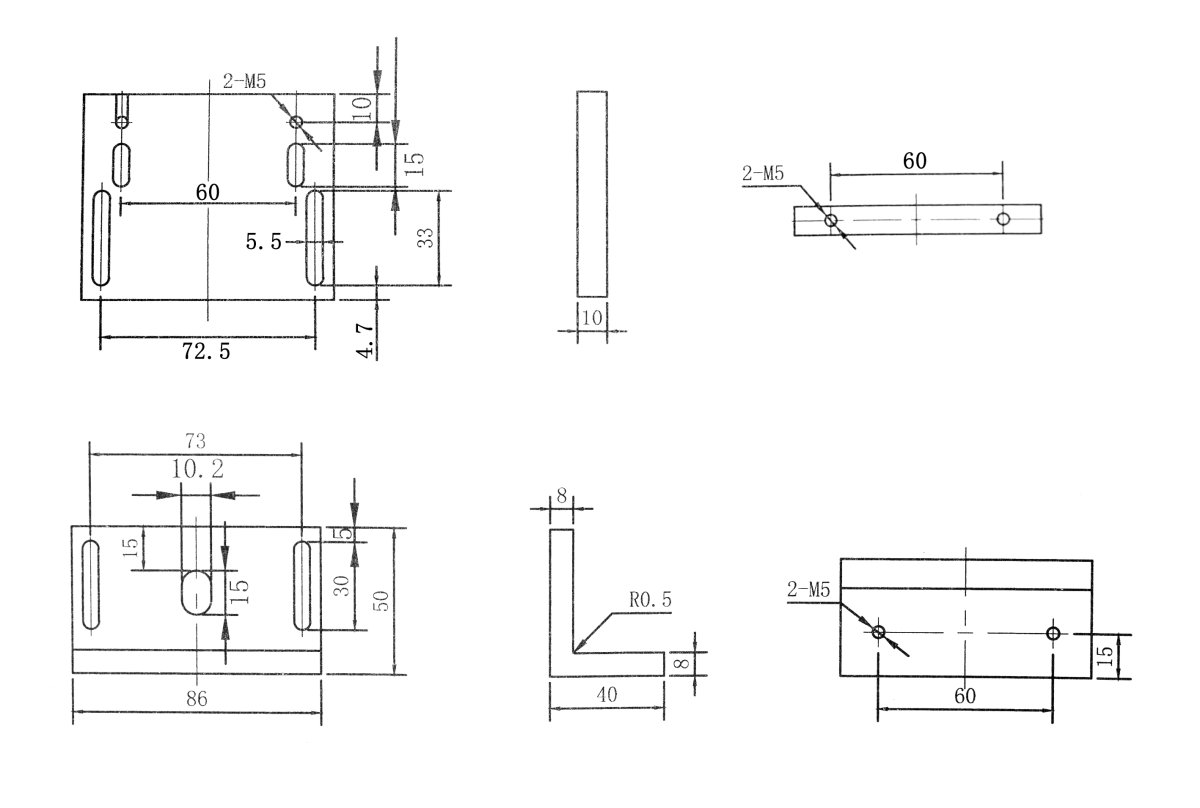

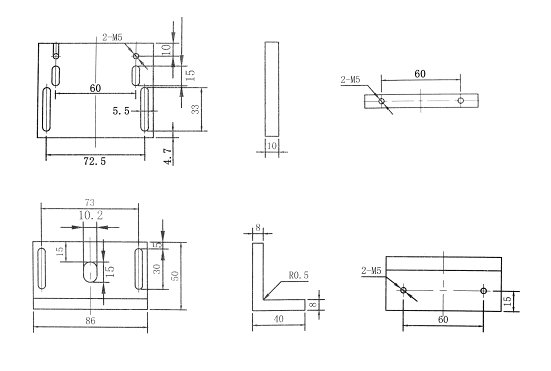

Included hardware: Phidget encoder cable to DB9 adapter, Debris shielding, Two mounting plates, Washers (2x large, 4x medium, 6x small), M5 Screws (2x 40mm, 2x 30mm, 4x 20mm), M4 Screws (4x 20mm, 5x 12mm), 4x Metal mounting shim, 3x Plastic cable clip.

Guides

Encoder Interfaces

This linear encoder connects directly to any of our encoder interfaces:

Product Encoder Interface
Part Number Price Number of Encoder Inputs Count Rate Max
ENC1001_0
Quadrature Encoder Phidget
$15.00 1 1E+06 pulses/s
1057_3B
PhidgetEncoder HighSpeed
$50.00 1 1E+06 pulses/s
1047_2B
PhidgetEncoder HighSpeed 4-Input
$75.00 4 1E+06 pulses/s
1057_2B
PhidgetEncoder HighSpeed
$40.00 1 2E+06 pulses/s
1047_1B
PhidgetEncoder HighSpeed 4-Input
$65.00 4 1E+06 pulses/s

Product Specifications

Encoder Properties
Length Resolution 5 μm/pulse
Electrical Properties
Supply Voltage Min 5 V DC
Supply Voltage Max 5 V DC
Physical Properties
Travel 900 mm
IP Rating IP55
Maximum Speed 1 m/s
Customs Information
Canadian HS Export Code 9029.10.00
American HTS Import Code 9029.10.80.00
Country of Origin CN (China)

Connector Pinout

The DB9 connector on this encoder has the following pinout:

DB9 Pinout
Pin 1 2 3 4 5 6 7 8 9
Signal NC Gnd NC Shield NC A Vcc B Index
Color Black Shielding Yellow Red Green Brown

Product Physical Properties
Part Number Price Travel
ENC4110_0
Linear Encoder - 300mm
$90.00 300 mm
ENC4111_0
Linear Encoder - 500mm
$95.00 500 mm
ENC4112_0
Linear Encoder - 700mm
$100.00 700 mm
ENC4113_0
Linear Encoder - 900mm
$110.00 900 mm
ENC4114_0
Linear Encoder - 1100mm
$120.00 1.1 m
ENC4115_0
Linear Encoder - 1400mm
$340.00 1.4 m
ENC4116_0
Linear Encoder - 1700mm
$360.00 1.7 m
ENC4117_0
Linear Encoder - 2000mm
$380.00 2 m
