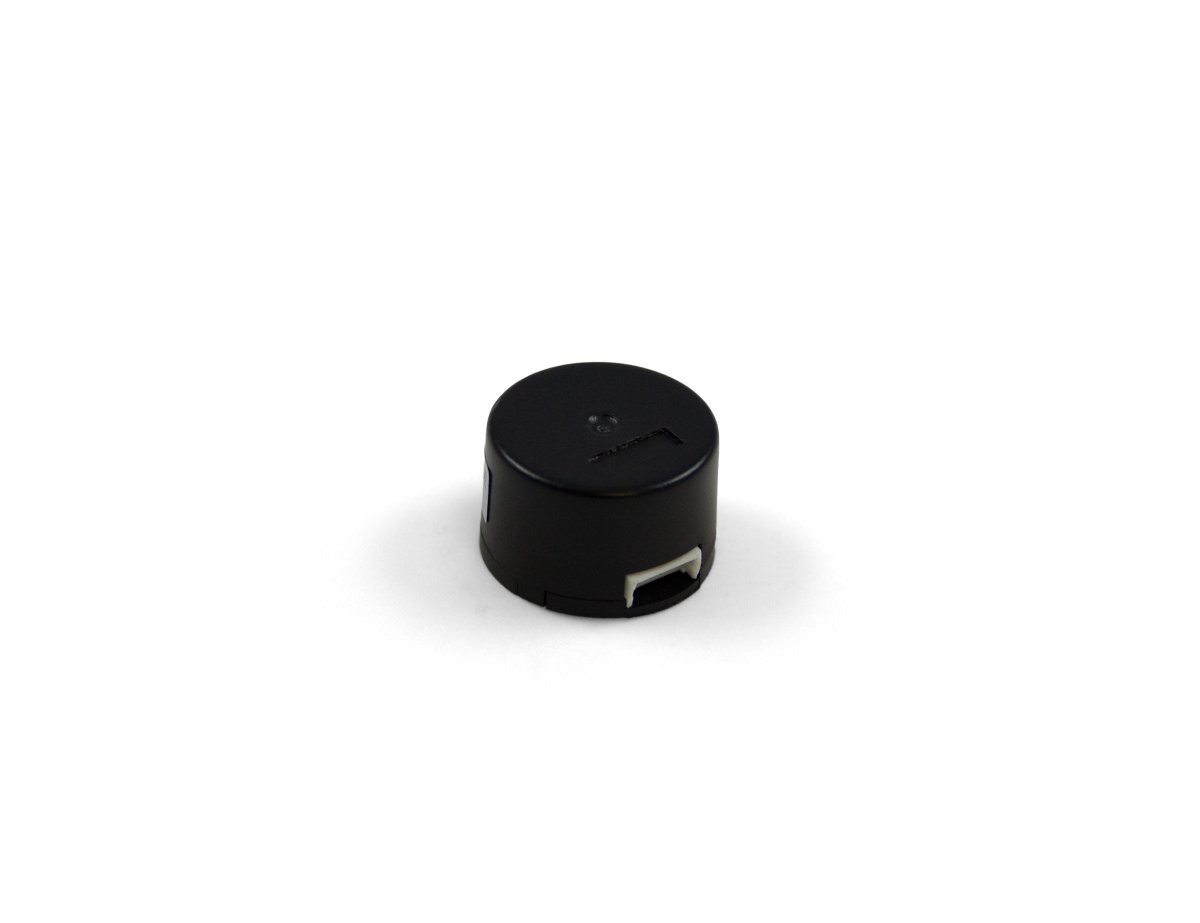

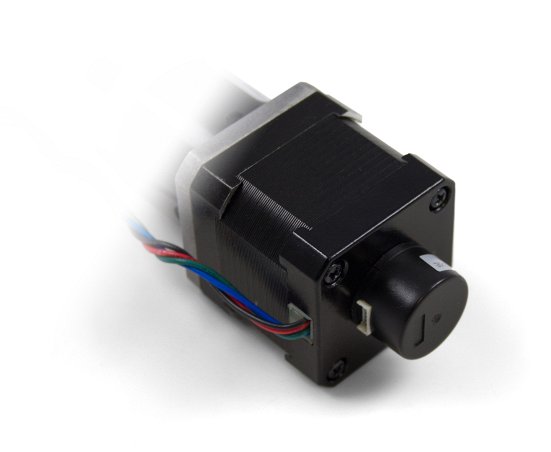

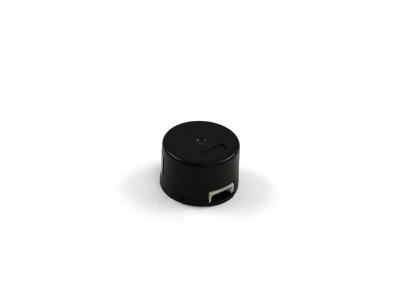

This compact, economical optical quadrature encoder can be attached to the 4mm rear shaft of a motor. It has 300 counts (full quadrature cycles) per rotation and can be installed by fitting it over the shaft, mounting it to the back of the motor, and tightening the set-screw. For complete assembly instructions, take a look at the user guide. This encoder does not support the use of an index channel.

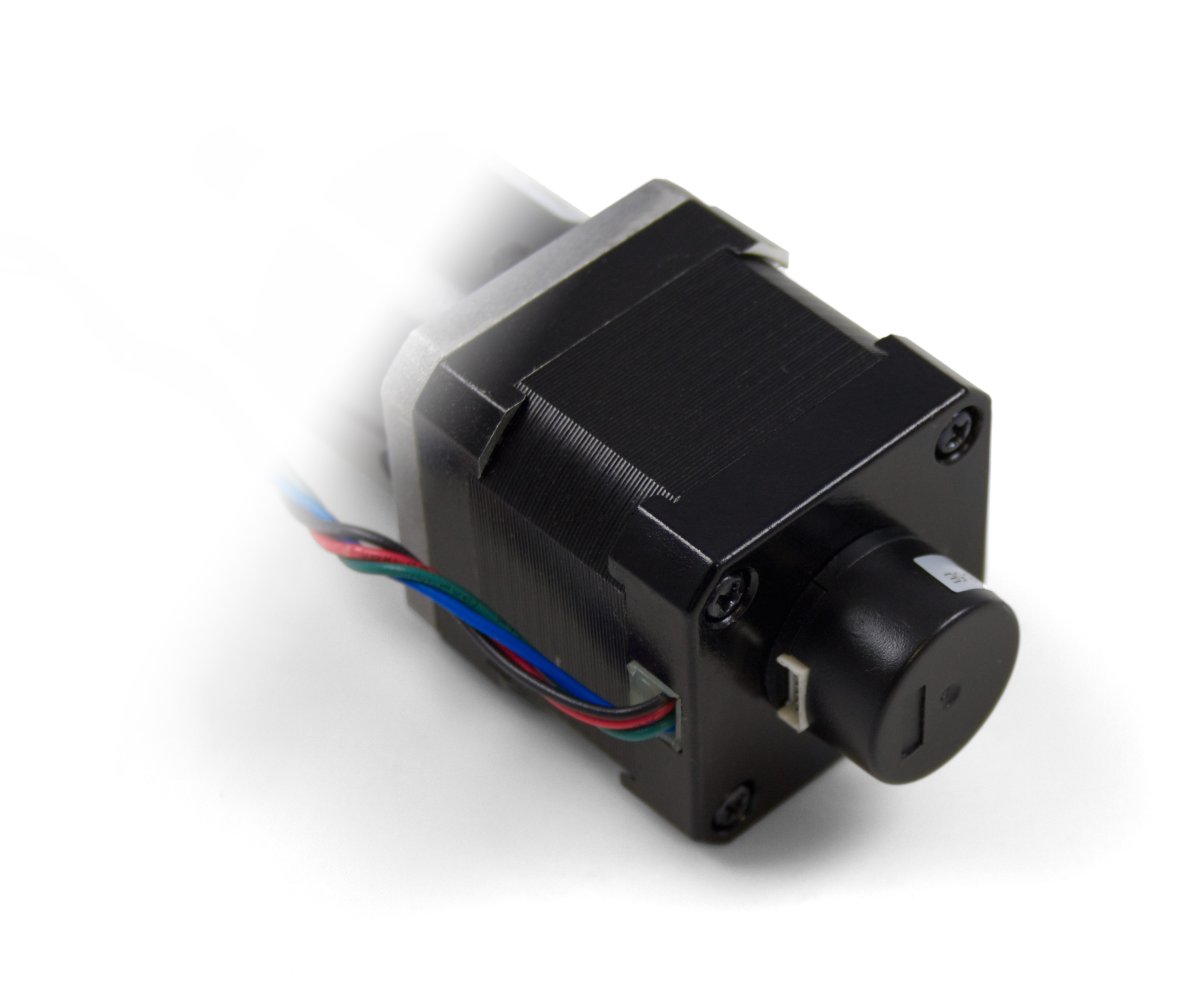

The mounting holes on the HKT22 encoder line up with the holes on the back of any rear-shaft stepper motor sold at Phidgets Inc.
See the User Guide tab for a step-by step installation guide for this encoder.
This encoder connects to a quadrature encoder interface. The encoder cable provided with this encoder is compatible with all Phidgets encoder interfaces. See the Connection & Compatibility tab for details.
This quadrature encoder must be read by an encoder interface. These interfaces will interpret the two quadrature signals in order to determine the continuous position of the rotating part. The following interfaces are compatible with this encoder:
| Product | Encoder Interface | ||
|---|---|---|---|
| Part Number | Price | Number of Encoder Inputs | Count Rate Max |
 Quadrature Encoder Phidget
|
$15.00 | 1 | 1E+06 pulses/s |
 DC Motor Phidget
|
$75.00 | 1 | 400000 pulses/s |
 4A DC Motor Phidget
|
$40.00 | 1 | 400000 pulses/s |
 PhidgetEncoder HighSpeed
|
$50.00 | 1 | 1E+06 pulses/s |
 PhidgetEncoder HighSpeed 4-Input
|
$75.00 | 4 | 1E+06 pulses/s |
 PhidgetEncoder HighSpeed
|
$40.00 | 1 | 2E+06 pulses/s |
 PhidgetEncoder HighSpeed 4-Input
|
$65.00 | 4 | 1E+06 pulses/s |
 PhidgetMotorControl 1-Motor
|
$75.00 | 1 | 500000 cycles/s |
Here is a complete list of all motors sold at Phidgets that have mounting holes on the rear shaft that are compatible with the HKT22 encoder:
| Product | Motor Properties | Gearbox Properties | ||
|---|---|---|---|---|
| Part Number | Price | Rated Torque | Motor Type | Gear Ratio |
 12V/17.3Kg-cm/18RPM 139:1 DC Gear Motor
|
$43.00 | 17.3 kg·cm | DC Motor | — |
 24V/2.5Kg-cm/3280RPM DC Motor
|
$40.00 | 3.3 kg·cm | DC Motor | — |
 24V/7Kg-cm/3000RPM DC Motor
|
$50.00 | 7.1 kg·cm | DC Motor | — |
 24V/9.6Kg-cm/3200RPM DC Motor
|
$60.00 | 9.7 kg·cm | DC Motor | — |
 24V/5.1Kg-cm/588RPM 4.25:1 DC Gear Motor
|
$69.00 | 4.4 kg·cm | DC Motor | — |
 NEMA11 - 1.8 Degree - 0.67A Stepper - Gearless
|
$16.00 | 520 g·cm | Bipolar Stepper | — |
 24V/12.2Kg-cm/772RPM/4.25:1 DC Gear Motor
|
$80.00 | 12.2 kg·cm | DC Motor | — |
 24V/14.2Kg-cm/192RPM 13:1 DC Gear Motor
|
$66.00 | 13.3 kg·cm | DC Motor | — |
 24V/45Kg-cm/182RPM/18:1 DC Gear Motor
|
$82.00 | 47 kg·cm | DC Motor | — |
 24V/50.9Kg-cm/53RPM 47:1 DC Gear Motor
|
$72.00 | 43.8 kg·cm | DC Motor | — |
 NEMA11 - 1.8 Degree - 1.5A Stepper - 27:1 Gearbox
|
$38.00 | 14 kg·cm | Bipolar Stepper | 26 103⁄121 : 1 |
 24V/153Kg-cm/50RPM/65:1 DC Gear Motor
|
$84.00 | 153 kg·cm | DC Motor | — |
 24V/82.6Kg-cm/33RPM 76:1 DC Gear Motor
|
$72.00 | 71.4 kg·cm | DC Motor | — |
 NEMA11 - 1.8 Degree - 0.67A Stepper - 100:1 Gearbox
|
$38.00 | 32 kg·cm | Bipolar Stepper | 99 1044⁄2057 : 1 |
 NEMA14 - 1.8 Degree - 1A Stepper - Gearless
|
$16.00 | 1.2 kg·cm | Bipolar Stepper | — |
 NEMA17 - 1.8 Degree - 1.68A Stepper - Gearless
|
$16.00 | 3.3 kg·cm | Bipolar Stepper | — |
 24V/173.3Kg-cm/15RPM 168:1 DC Gear Motor
|
$76.00 | 136.6 kg·cm | DC Motor | — |
 NEMA17 - 1.8 Degree - 1.68A Stepper - 5.18:1 Gearbox
|
$40.00 | 18 kg·cm | Bipolar Stepper | 5 2⁄11 : 1 |
 NEMA17 - 1.8 Degree - 1.68A Stepper - 14:1 Gearbox
|
$42.00 | 30 kg·cm | Bipolar Stepper | 13 212⁄289 : 1 |
 NEMA17 - 1.8 Degree - 1.68A Stepper - 27:1 Gearbox
|
$44.00 | 30 kg·cm | Bipolar Stepper | 26 103⁄121 : 1 |
 NEMA17 - 1.8 Degree - 1.68A Stepper - 51:1 Gearbox
|
$46.00 | 48 kg·cm | Bipolar Stepper | 50 4397⁄4913 : 1 |
 NEMA17 - 1.8 Degree - 1.68A Stepper - 100:1 Gearbox
|
$48.00 | 48 kg·cm | Bipolar Stepper | 99 1044⁄2057 : 1 |
 NEMA23 - 0.9 Degree - 2.8A Stepper - Gearless
|
$28.00 | 11.2 kg·cm | Bipolar Stepper | — |
 NEMA23 - 1.8 Degree - 2.8A Stepper - 4.25:1 Gearbox
|
$70.00 | 46.6 kg·cm | Bipolar Stepper | 4 1⁄4 : 1 |
 NEMA23 - 1.8 Degree - 2.8A Stepper - 15:1 Gearbox
|
$72.00 | 150 kg·cm | Bipolar Stepper | 15 3⁄10 : 1 |
 NEMA23 - 1.8 Degree - 2.8A Stepper - 77:1 Gearbox
|
$74.00 | 240 kg·cm | Bipolar Stepper | 76 49⁄64 : 1 |
 NEMA34 - 1.8 Degree - 4A Stepper - Gearless
|
$60.00 | 30 kg·cm | Bipolar Stepper | — |
If you need a replacement encoder cable, you can find one below:
| Product | Physical Properties | |
|---|---|---|
| Part Number | Price | Cable Length |
 Cable for HKT22 Encoder
|
$3.00 | 500 mm |
| |
| Go to this device's product page |
|

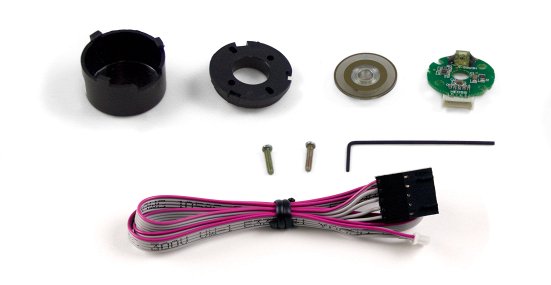

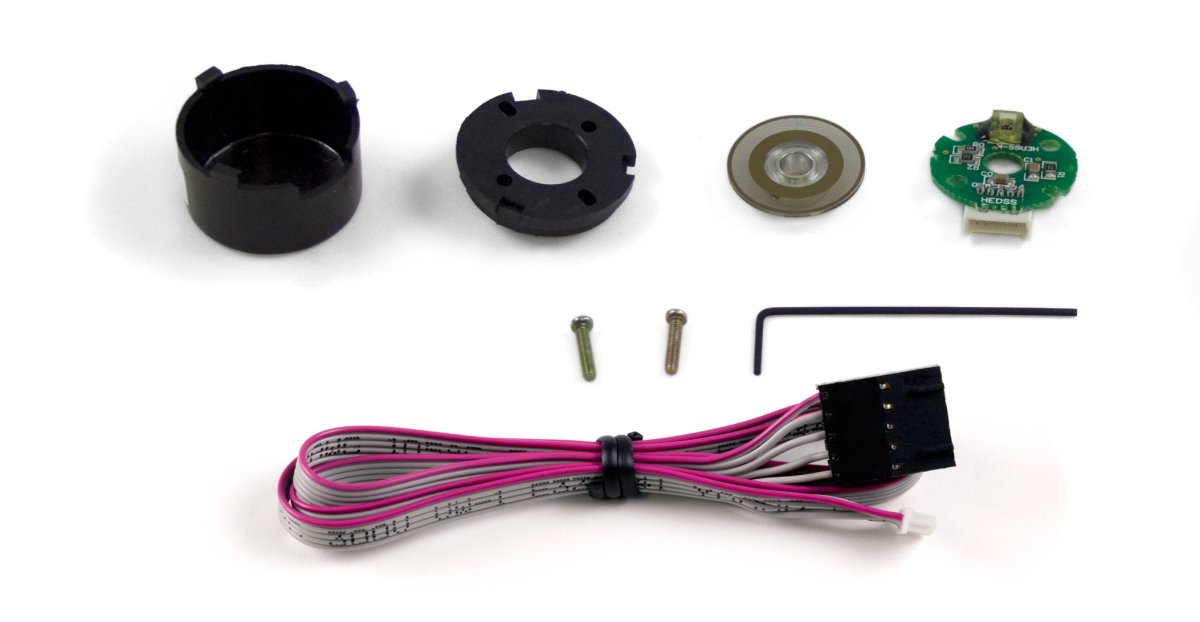

You should have received:
|
In order to test your new Phidget you will also need:
| |
|

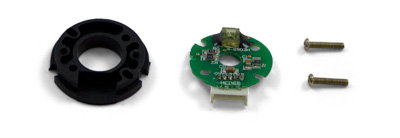

Take the plastic base, the encoder PCB, and the two screws (the screws should be inside the encoder cap). Place the PCB with the white connector facing downward so that it fits into the space on the plastic base. Take care not to touch the optical sensor on top of the PCB, because your fingerprints could affect the operation of the sensor. Place the screws in the two holes in the PCB. |
| |
|

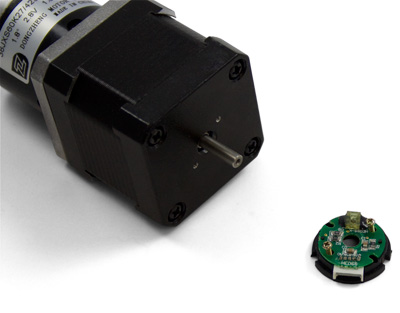

Line the parts up with the mounting holes on the back of the motor. It doesn't matter which way the encoder is facing, but for cable management purposes you may want to have the connector facing the same direction as the motor's wires. Screw the parts onto the back of the motor, tightening until there is no visible gap between the PCB and the plastic base. Do not over-tighten. |
|
|

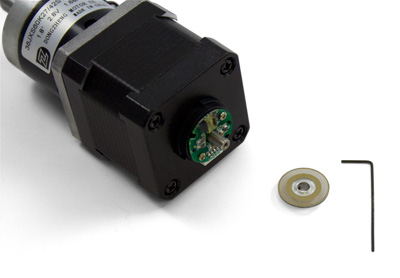

Get the encoder disk and hex key. Do not touch the surface of the encoder disk, as your fingerprints could affect the operation of the optical sensor. Place the encoder disk on the rear shaft of the motor with the metal coupler facing outward. Slide the encoder disk until the surface of the disk is approximately 1.5mm from the optical sensor on the PCB. Use the hex key to tighten the set-screw on the coupler of the encoder disk. |
| |
|

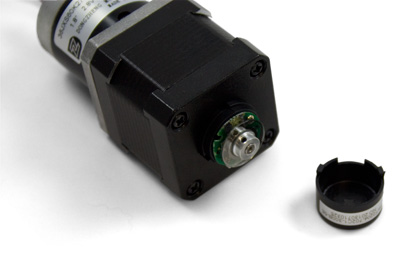

Double check everything before attaching the plastic cap; it is very difficult to remove once it snaps in place. |
| |
|

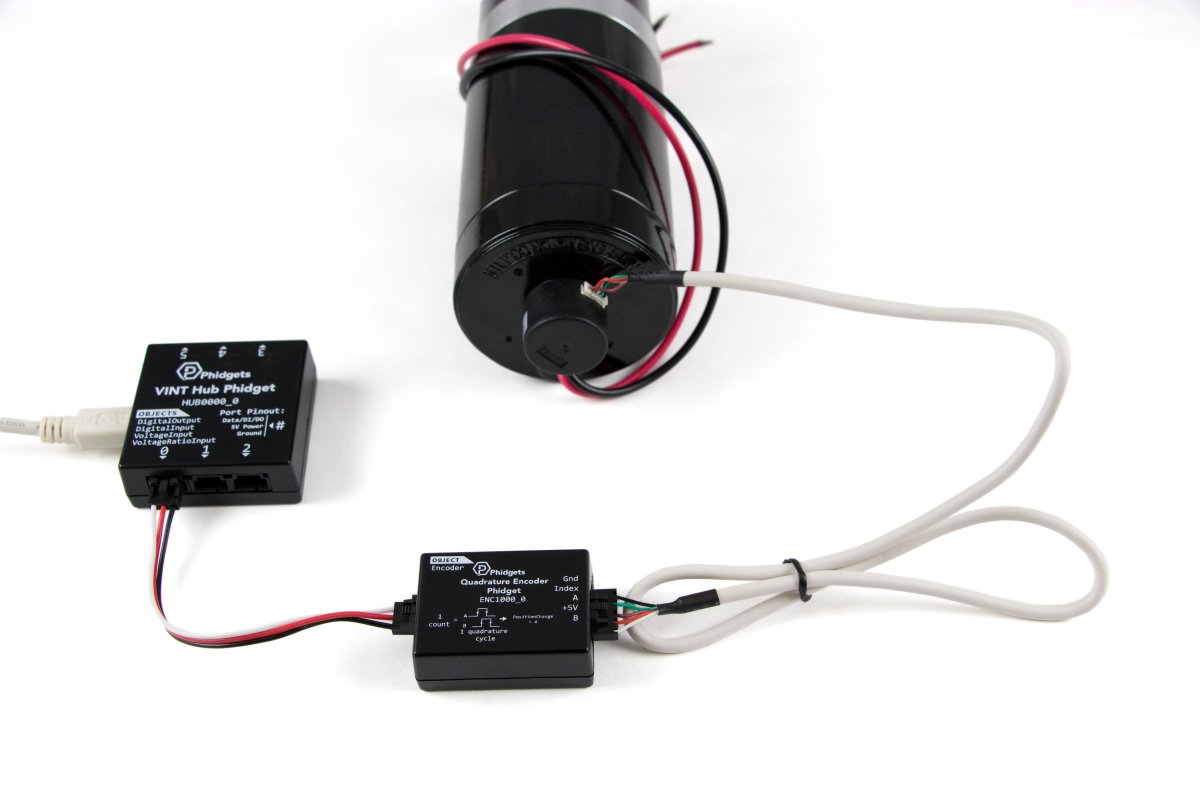

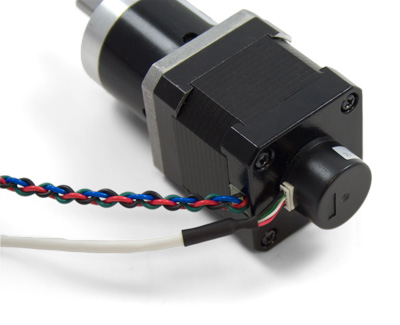

Attach the included encoder cable and you're all done! For further instructions, visit the user guide for the motor controller and encoder interface Phidget that you're using. |
|
| Encoder Properties | |
|---|---|
| Controlled By | Encoder Interface |
| Output Circuit Type | Push-Pull |
| Encoder Speed Max | 6000 RPM |
| Encoder Resolution | 300 CPR |
| Electrical Properties | |
| Supply Voltage Min | 5 V DC |
| Supply Voltage Max | 5 V DC |
| Output Frequency Max | 30 kHz |
| Physical Properties | |
| Inner Diameter | 4 mm |
| Operating Humidity Min | 30 %RH |
| Operating Humidity Max | (Non-condensing) 85 %RH |
| Operating Temperature Min | -10 °C |
| Operating Temperature Max | 85 °C |
| IP Rating | IP40 |
| Weight | 4 g |
| Customs Information | |
| Canadian HS Export Code | 9029.10.00 |
| American HTS Import Code | 9029.10.80.00 |
| Country of Origin | CN (China) |
