Motor Mounting Bracket (NEMA 23)

ID: 3339_0

Fix a NEMA-23 sized motor or 56mm gearbox to a flat surface with this steel mounting bracket.

$4.00

Quantity Available: 199

Qty Price
5 $3.84
10 $3.68
25 $3.60
50 $3.52
100 $3.44
50+...

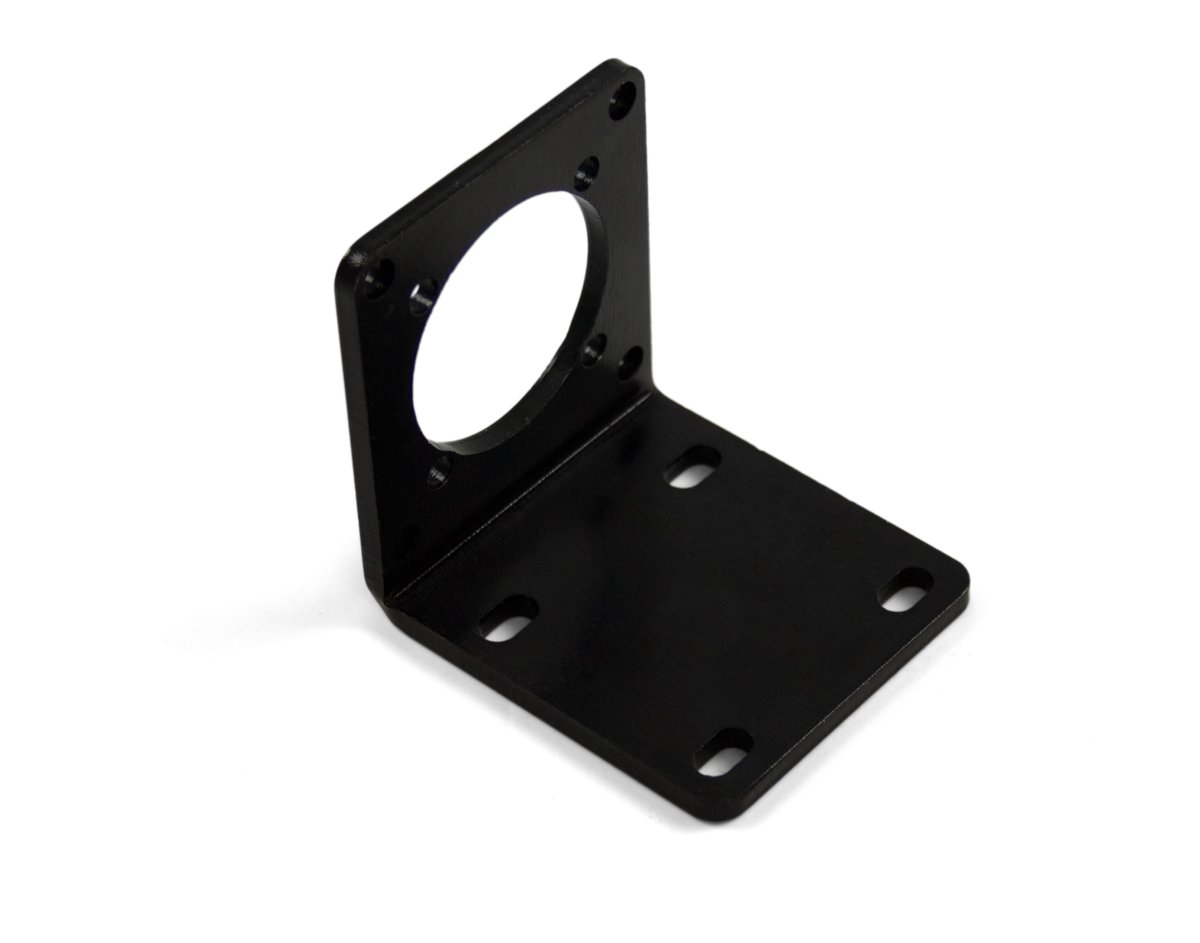

This coated steel mounting bracket provides a simple means of attaching a NEMA-23 sized motor to a flat surface. It has two sets of mounting holes, so it can be attached to 56mm planetary gearboxes or mounted directly to the motor.

Nuts, screws, and other hardware not included.

Features

  • Fits the standard mounting holes on a NEMA-23 motor
  • Compatible with or without a gearbox
FUNCTIONAL FUNCTIONAL

Stepper Motors

This mounting bracket can fit on any motor or gearbox that uses the NEMA-23 mounting pattern. Here's a list of stepper motors it fits on:

Product Physical Properties Motor Properties Electrical Properties Gearbox Properties
Part Number Price Mounting Plate Size Shaft Diameter Weight Step Angle Rated Torque Maximum Motor Speed Recommended Voltage Gear Ratio
3330_0
NEMA23 - 0.9 Degree - 2.8A Stepper - Gearless
$28.00 NEMA - 23 14 695 g 0.9° 11.2 kg·cm 500 RPM 24 V DC
3332_0
NEMA23 - 1.8 Degree - 2.8A Stepper - 4.25:1 Gearbox
$70.00 NEMA - 23 12 mm 1.2 kg 0.42° 46.6 kg·cm 165 RPM 24 V DC 4 14 : 1
3333_0
NEMA23 - 1.8 Degree - 2.8A Stepper - 15:1 Gearbox
$72.00 NEMA - 23 12 mm 1.3 kg 0.12° 150 kg·cm 50 RPM 24 V DC 15 310 : 1
3334_0
NEMA23 - 1.8 Degree - 2.8A Stepper - 77:1 Gearbox
$74.00 NEMA - 23 12 mm 1.5 kg 0.023° 240 kg·cm 10 RPM 24 V DC 76 4964 : 1

DC Motors

This mounting bracket can fit on any motor or gearbox that uses the NEMA-23 mounting pattern. Here's a list of DC motors it fits on:

Product Motor Properties Physical Properties Gearbox Properties
Part Number Price Rated Speed Rated Torque Shaft Diameter Weight Gearbox Type Gear Ratio
3269_3
24V/5.1Kg-cm/588RPM 4.25:1 DC Gear Motor
$69.00 588 RPM 4.4 kg·cm 12 mm 1.3 kg
3272_2
24V/50.9Kg-cm/53RPM 47:1 DC Gear Motor
$72.00 53 RPM 43.8 kg·cm 12 mm 1.7 kg
3273_2
24V/82.6Kg-cm/33RPM 76:1 DC Gear Motor
$72.00 33 RPM 71.4 kg·cm 12 mm 1.7 kg
3274_2
24V/173.3Kg-cm/15RPM 168:1 DC Gear Motor
$76.00 15 RPM 136.6 kg·cm 12 mm 2 kg

BLDC Motors

This mounting bracket can fit on any motor or gearbox that uses the NEMA-17 mounting pattern. Here's a list of BLDC motors it fits on:

Product Physical Properties Motor Properties Electrical Properties
Part Number Price Mounting Plate Size Rated Torque Rated Speed Rated Current
DCM4106_0
NEMA23 - Brushless DC Motor - Gearless
$42.00 23 2.9 kg·cm 4000 RPM 7 A
DCM4112_0
NEMA23 - Brushless DC Motor - Gearless
$65.00 23 5 kg·cm 4000 RPM 12 A
DCM4107_1
NEMA23 - Brushless DC Motor - 4.3:1 Gearbox
$84.00 23 10.2 kg·cm 930 RPM 7 A
DCM4108_1
NEMA23 - Brushless DC Motor - 15:1 Gearbox
$86.00 23 33.7 kg·cm 250 RPM 7 A
DCM4109_0
NEMA23 - Brushless DC Motor - 23:1 Gearbox
$88.00 23 51 kg·cm 170 RPM 7 A
DCM4110_0
NEMA23 - Brushless DC Motor - 47:1 Gearbox
$95.00 23 112.2 kg·cm 82 RPM 7 A
DCM4111_0
NEMA23 - Brushless DC Motor - 96:1 Gearbox
$98.00 23 214.1 kg·cm 41 RPM 7 A

Product Specifications

Physical Properties
Mounting Plate Size NEMA - 23
Material Mild Steel (Coated)
Customs Information
Canadian HS Export Code 8503.00.00
American HTS Import Code 8503.00.95.80
Country of Origin CN (China)

Documents

Here are all of our sizes of motor mounting bracket:

Product Physical Properties
Part Number Price Mounting Plate Size Material
3337_0
Motor Mounting Bracket (NEMA 11)
$3.00 NEMA - 11 Mild Steel (Coated)
3338_0
Motor Mounting Bracket (NEMA 17)
$3.50 NEMA - 17 Mild Steel (Coated)
3339_0
Motor Mounting Bracket (NEMA 23)
$4.00 NEMA - 23 Mild Steel (Coated)
