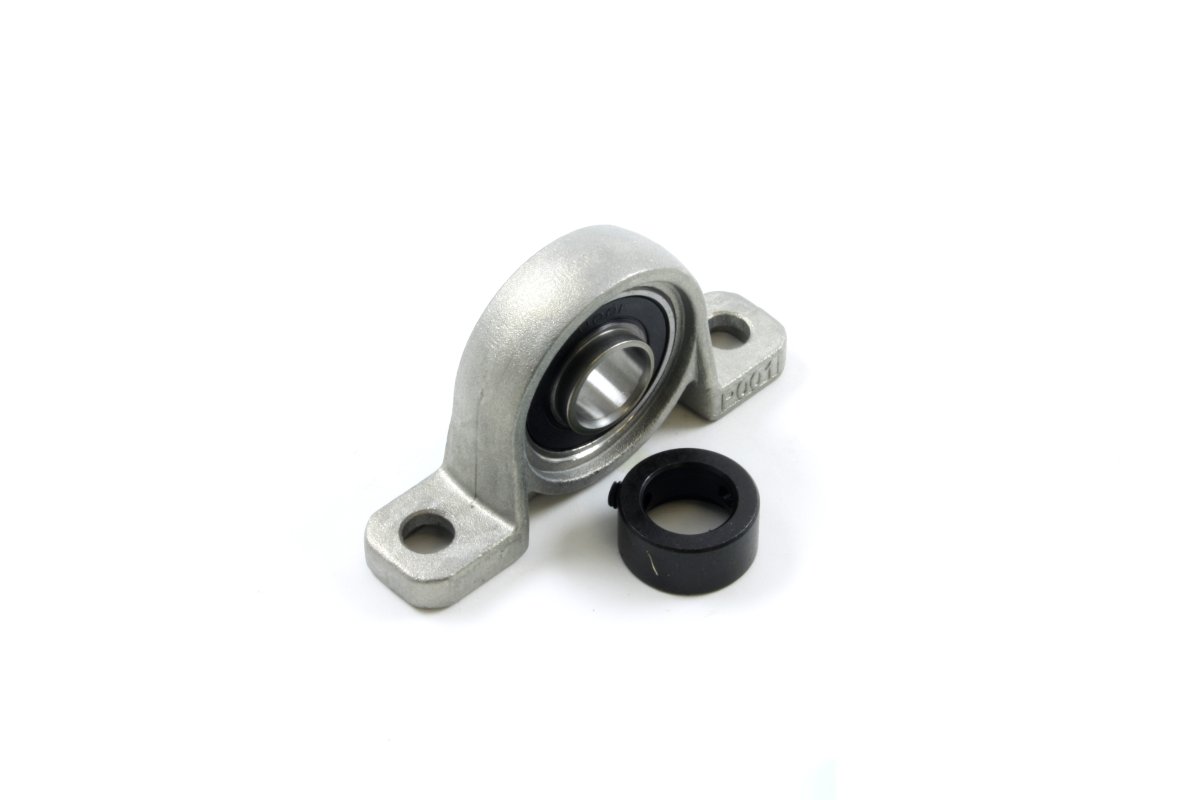

Bearings provide mechanical support for rotating shafts while not interfering with the rotation significantly. This bearing is a pillow block bearing meaning that it mounts to a surface that is parallel to the shaft being supported.
| Physical Properties | |
|---|---|
| Bearing Type | Rotary Shaft (Pillow Block) |
| Inner Diameter | 12 mm |
| Mechanical Properties | |
| Static Load | 2.4 kN |
| Dynamic Load | 5.1 kN |
| Customs Information | |
| Canadian HS Export Code | 8483.20.00 |
| American HTS Import Code | 8483.20.40.40 |
| Country of Origin | CN (China) |
If you're building a rotary transmission system of any kind, chances are you'll need some rotary shaft. Here's a list of rotary shaft compatible with this rotary bearing:
| Product | Physical Properties | Mechanical Properties | |||
|---|---|---|---|---|---|
| Part Number | Price | Inner Diameter | Bearing Type | Static Load | Dynamic Load |
 Flanged Rotary Bearing for 12mm Shaft
|
$4.00 | 12 mm | Rotary Shaft (Flanged) | 2.4 kN | 5.1 kN |
 Pillow Block Rotary Bearing for 12mm Shaft
|
$4.00 | 12 mm | Rotary Shaft (Pillow Block) | 2.4 kN | 5.1 kN |
