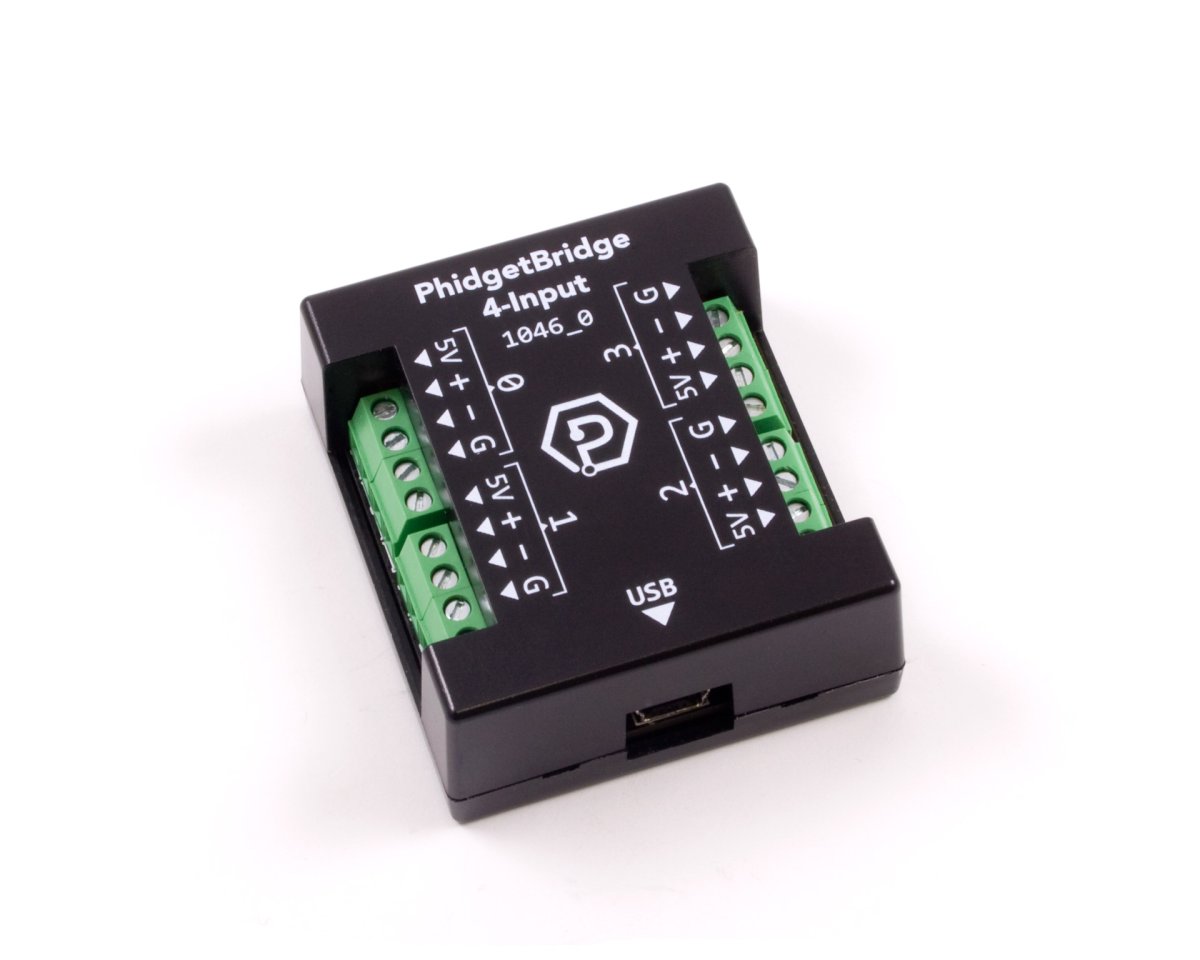

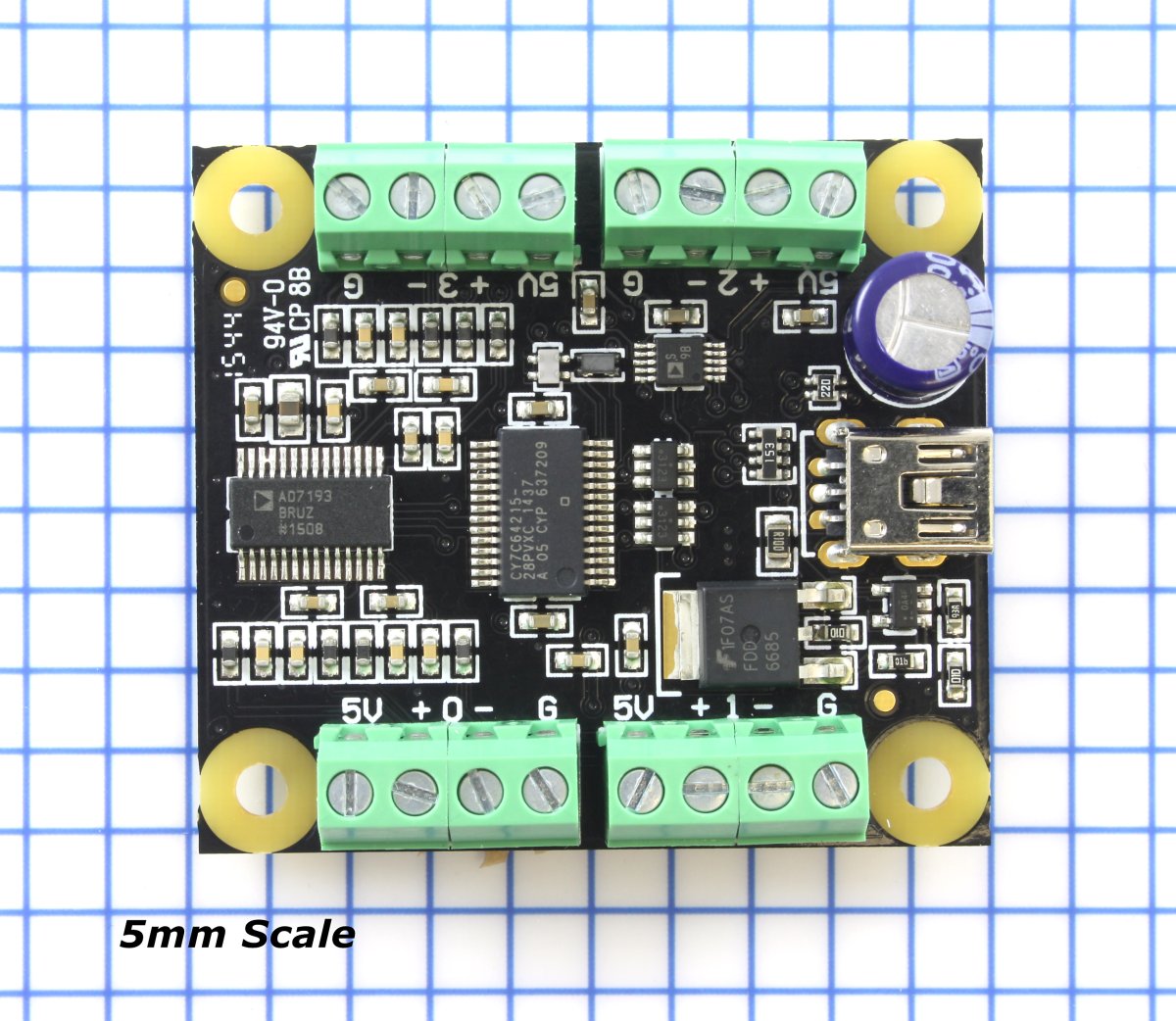

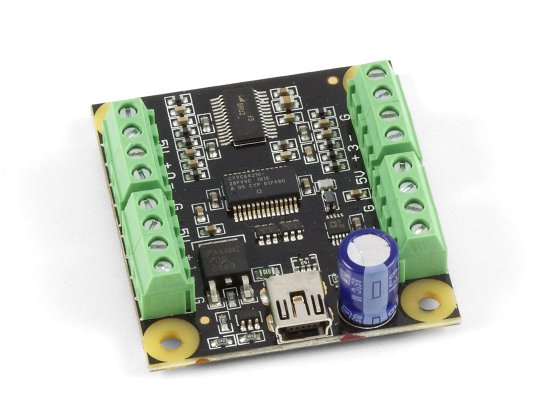

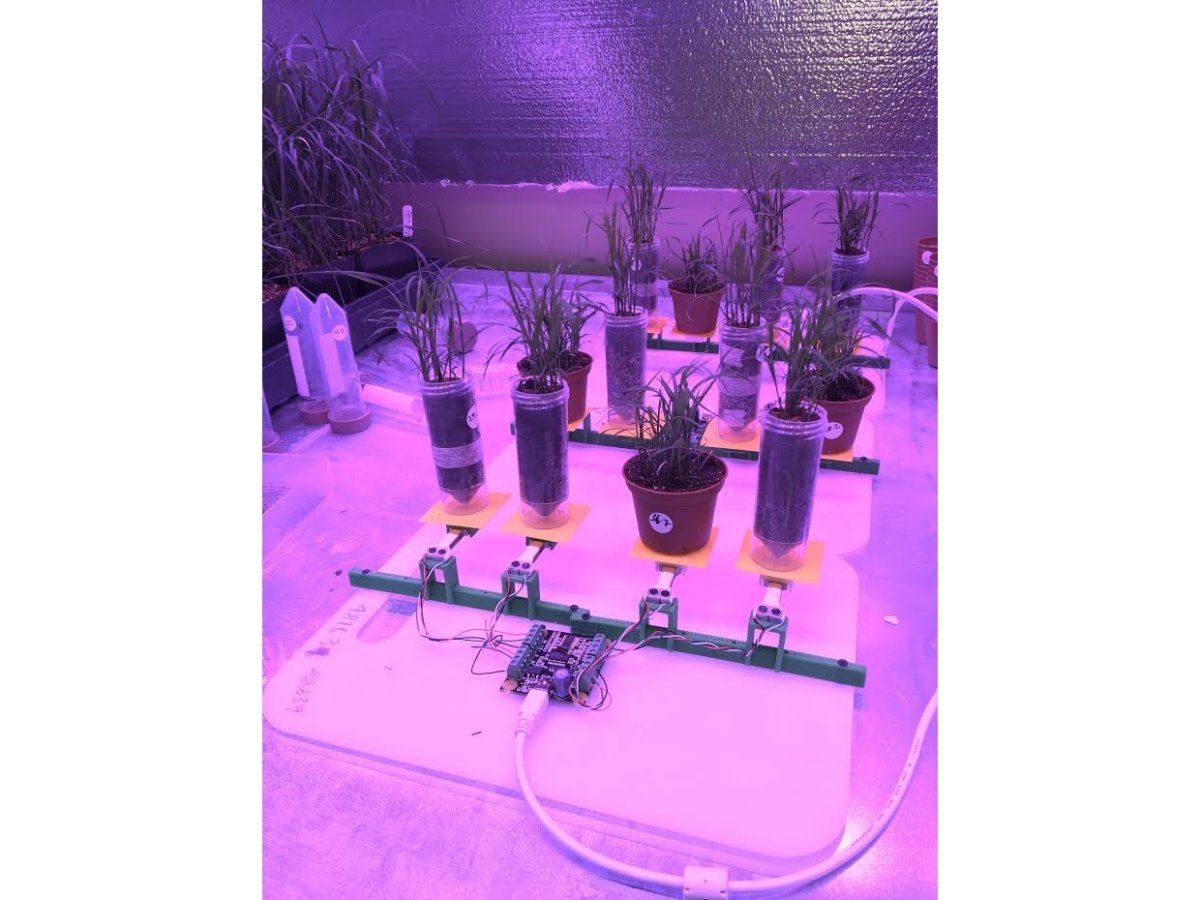

PhidgetBridge 4-Input

ID: 1046_0

This board is needed to measure the output from a load cell. You can connect up to four load cells or strain gauges.

$90.00

Quantity Available: 702

Qty Price
5 $85.50
10 $81.00
25 $72.00
50 $63.00
100 $58.50
250 $54.00
500 $49.50
1000 $45.00

The PhidgetBridge lets you connect up to 4 un-amplified Wheatstone bridges, such as:

  • Strain gauges
  • Compression load cells
  • Pressure sensors/Barometers
  • Piezoresistive accelerometers
  • Magnetoresistive sensors (Compasses)

The data rate and gain values can be configured in software.

Comes Packaged with

Product Specifications

Board
Controlled By USB
API Object Name Bridge
Number of Bridge Inputs 4
Bridge Data Rate Min * 8 ms
Bridge Data Rate Max 1000 ms
Bridge Input Current Max ± 3 nA
Differential Voltage Resolution 24 bit
Electrical Properties
USB Voltage Min 4.5 V DC
USB Voltage Max 5.3 V DC
USB Speed Full Speed
Current Consumption Min 35 mA
Current Consumption Max 500 mA
Available External Current 465 mA
Input Voltage Limit Min Ground + 0.25V DC
Input Voltage Limit Max 5V Supply - 0.25V DC
Physical Properties
Recommended Wire Size 16 - 26 AWG
Operating Temperature Min 0 °C
Operating Temperature Max 70 °C
*The minimum data rate is 8ms though the board has a maximum sample rate of 122 samples a second (slightly less than the 125 an 8ms rate would have you believe).

Software Objects

Channel NameAPIChannel
Bridge Input VoltageRatioInput 0 - 3

API


Back Forward
Print this API

Documents

Code Samples

APILanguageOS
VoltageRatioInput C Multiple Download
VoltageRatioInput C# Windows Download
VoltageRatioInput Java Multiple Download
VoltageRatioInput JavaScript Any Download
VoltageRatioInput Objective-C macOS Download
VoltageRatioInput Python Multiple Download

Projects

Product History

Date Board Revision Device Version Comment
May 20110100Product Release
May 20110101getLabelString fixed for labels longer than 7 characters
February 20140102Various fixes: usb stack, gain switching, bad values after enable

Getting Started

Welcome to the 1046 user guide! In order to get started, make sure you have the following hardware on hand:


Next, you will need to connect the pieces:

1046 0 Connecting The Hardware.jpg
  1. Connect your sensor to the PhidgetBridge according to the wiring specified on the sensor's product page or datasheet. See the technical section to learn how to hook up resistive sensors such as RTDs.
  2. Connect the PhidgetBridge to your computer using the USB cable.


Now that you have everything together, let's start using the 1046!

Using the 1046

Phidget Control Panel

In order to demonstrate the functionality of the 1046, the Phidget Control Panel running on a Windows machine will be used.


The Phidget Control Panel is available for use on both macOS and Windows machines. If you would like to follow along, first take a look at the getting started guide for your operating system:


Linux users can follow the getting started with Linux guide and continue reading here for more information about the 1046.

First Look

After plugging the 1046 into your computer and opening the Phidget Control Panel, you will see something like this:

1046 Panel.jpg


The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:

  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.


The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

Bridge Input

Double-click on the Voltage Ratio object, labelled Bridge Input, in order to run the example:

1046 VoltageRatioBridge Example.jpg


General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

  • Modify the change trigger and/or data interval value by dragging the sliders. For more information on these settings, see the data interval/change trigger page.
  • Toggle the Enable checkbox in order enable/disable the 1046.
  • Select a gain from the Bridge Gain drop-down menu. For more information about choosing the best gain, see the technical section.


Technical Details

How to Calibrate the Bridge

We have observed a 1.5% difference between a 1x gain and an 8x gain. This may require that each system (1046 and sensors) be calibrated as a whole. For maximum accuracy, decide on, and keep with a chosen gain before calibrating the system.


Expensive sensors will ship with a certificate of calibration specifying, often in mv/V, how the sensor responds to stimulus. Less expensive will have to be calibrated, which requires having at least two points where you know accurately what is being measured. In the case of weight measurement, this would be a known force or weight.


Record the output from the 1046 at one known point, and at a second known point. It helps if the two values are reasonably far apart. Use the values to make a linear equation to convert the 1046 output in V/V (called X) to the appropriate unit you are measuring (called Y). Two calibration coefficients (a,b) set the slope and offset for the calibration: (Y = aX + b). It’s possible to use more than two points, if available.


The C# VoltageRatioInput example shows how to do a 2-point calibration and apply the coefficients programmatically.

Gain Setting vs. Resolution

We report the measured voltage in a ratiometric unit known as V/V. This is how the maximum range of sensors that use strain gauges is usually specified. V/V is the output value in V of the measured sensor, scaled for a 1V sensor supply voltage. This value will correspond to the physical quantity that the sensor is measuring, regardless of the actual voltage supplied to the sensor.


Gain Resolution Range
1 119 nV/V ± 1000 mV/V
8 14.9 nV/V ± 125 mV/V
16 7.45 nV/V ± 62.5 mV/V
32 3.72 nV/V ± 31.25 mV/V
64 1.86 nV/V ± 15.625 mV/V
128 0.93 nV/V ± 7.8125 mV/V


When choosing the Gain setting, it's best to use the highest gain possible that can still measure the full range of your sensor. For an individual unit, you can apply the maximum stimulus to the sensor, and ensure the voltage ratio reported is well within the range for the gain setting you have chosen. If many units are being deployed, it’s best to consult the data sheet for the strain gauge and look for maximum offset.


Some wheatstone bridges, most often those produced from silicon and used in pressure sensors, will have a very wide offset, and large manufacturing variation in the offset. This will restrict the gain to lower settings, particularly if the application must support a number of deployed systems with the expected variation. Fortunately, the very high precision electronics used in the 1046 means that in many application, higher gain is not necessary to get adequate accuracy and resolution.

Connecting your Strain Gauge/Load Cell

Load cells are pressure sensors that can be used with the 1046. For more information, see our Load Cell Primer.


If no documentation is available for your strain gauge, it’s possible to use a multimeter to determine how to connect it, provided there are no electronics in the sensor. First, measure resistance between the 4 wires. There are 6 combinations - two combinations will have a resistance 20-40% higher than the other four. Choose one of these high-resistance combinations, and wire it into 5V and G on the 1046. Connect the other two wires into +/-. Apply a load, if the V/V responds in the opposite way to your expectations, flip the +/- wires.

Measurement Considerations

The 1046 is designed to measure voltages as a ratio of the supply voltage - it’s not practical to make measurements of absolute voltages with this product.


For maximum accuracy, all wires from the 1046 to the sensor should be the same length and thickness. Changes in temperature will change the resistance of the wires - if they are all the same, the errors will cancel out.


Each bridge input can be powered down, reducing power consumption with 1046 sensors, and useful for reducing heating of sensors, which can introduce errors.

Changing the Data Rate

Using a slower sampling rate will reduce the noise in the measurements dramatically. The noise figures are specific to individual applications and sensors. The lowest noise level achievable is 5nV/V RMS.

Measuring Resistive Thermal Devices (RTD)

Using a Wheatstone Bridge

This diagram shows how to connect the RTD to a Wheatstone bridge, and then to a PhidgetBridge 4-Input.

A Wheatstone bridge is the classic method of measuring unknown resistances, and requires three resistors of known values. It uses the current in each leg of the bridge to create a voltage differential between both voltage dividers. Using the voltage differential and the three known resistors, the resistance of the fourth resistor can be determined.

To determine the resistance of the RTD, the following formula can be used:



Where is the Bridge Value given by the PhidgetBridge (in mV/V) , and , and are the resistances of the known resistors.


Using a Voltage Divider

The alternate method requires only two resistors. This reduces the amount of error that can be introduced into the system due to resistor tolerances. A voltage is applied to the two resistors and the RTD in series. The voltage drop across the RTD is measured. Using the voltage drop and the values of the two resistors, the resistance of the RTD can be determined.

This diagram illustrates how to connect the RTD to the PhidgetBridge with a voltage divider cirtuit.

To determine the resistance of the RTD, the following formula can be used:



Where is the Bridge Value given by the PhidgetBridge (in mV/V) , and and are the resistances of the known resistors.

Getting Higher Accuracy

In order to get the highest accuracy from the RTD, consider the following:

  • Use resistors with a high degree of tolerance. There will be less variability in the manufacturing of 0.1% resistors when compared to 1% resistors.
  • Measure the known resistors with an ohmmeter. By obtaining the most accurate measurements for the known resistances, the formula will result in a more accurate measurement of the RTD.
  • Use a moving average when obtaining the Bridge Value to reduce the amount of noise in the measured signal.
  • Estimate or Measure the resistance of the +5V and GND wires between the RTD and the 1046 PhidgetBridge. Add this resistance to the two resistors.
  • Turn off the power to the RTD (by disabling the channel on the PhidgetBridge) to reduce self-heating of the RTD.
  • By using higher resistor values (> 1 Kilo ohm), there will be less self-heating of the RTD, but the resolution of the measurement will be reduced somewhat. We recommend 1 Kilo Ohm resistors as a reasonable trade off.

What to do Next

  • Software Overview - Find your preferred programming language here to learn how to write your own code with Phidgets!
  • General Phidget Programming - Read this general guide to the various aspects of programming with Phidgets. Learn how to log data into a spreadsheet, use Phidgets over the network, and much more.
  • Phidget22 API - The API is a universal library of all functions and definitions for programming with Phidgets. Just select your language and device and it'll give you a complete list of all properties, methods, events, and enumerations that are at your disposal.

Load Cells

You can connect up to four load cells to the PhidgetBridge in order to measure the amount of strain in the cell. See the product page or manual for your load cell to learn how to hook it up. We have a variety of types available to measure different types of strain: shear, compression, and tension. See the Load Cell Primer for more information.

Product Sensor Properties
Image Part Number Price Sensor Type Weight Capacity Max Creep Zero Balance Cell Repeatability Error Max Cell Non-Linearity Max Cell Hysteresis Max
3132_0 $6.00 Shear Load Cell 780 g 1.6 g/hr ± 11.7 g ± 390 mg 390 mg 390 mg
3133_0 $7.00 Shear Load Cell 5 kg 5 g/hr ± 75 g ± 2.5 g 2.5 g 2.5 g
3134_0 $7.00 Shear Load Cell 20 kg 20 g/hr ± 300 g ± 10 g 10 g 10 g
3135_0 $7.00 Shear Load Cell 50 kg 50 g/hr ± 750 g ± 25 g 25 g 25 g
3136_0 $45.00 Compression Load Cell 50 kg 20 g/hr ± 500 g ± 100 g 100 g
3137_0 $45.00 Compression Load Cell 200 kg * 40 g/hr * ± 2 kg * ± 200 g * 400 g
3138_0 $45.00 Compression/Tension Load Cell 100 kg
3139_0 $7.00 Shear Load Cell 100 g ± 50 mg 50 mg 50 mg
3140_0 $50.00 Compression/Tension Load Cell 500 kg
3141_0 $50.00 Compression Load Cell 1 Mg

Strain Gauges

Strain gauges are ideal for situations where you want to monitor the strain in a material that's already a part of your project. By attaching strain gauges in a strategic way, you can effectively turn a load-bearing member into a custom load cell. You can read strain gauges using the PhidgetBridge by connecting them as described in the Strain Gauge Primer.

Product Sensor Properties Electrical Properties
Image Part Number Price Sensor Type Strain Gauge Mount Type Resistance Value
3142_0 $12.50 Torque Half-bridge Strain Gauge Steel (per quarter-bridge) 1 kΩ
3143_0 $12.50 Torque Half-bridge Strain Gauge Aluminum (per quarter-bridge) 1 kΩ
3144_0 $15.00 Half-bridge Strain Gauge Steel (per quarter-bridge) 1 kΩ
3145_0 $15.00 Half-bridge Strain Gauge Aluminum (per quarter-bridge) 1 kΩ
3146_0 $17.50 Full-bridge Strain Gauge Steel (per quarter-bridge) 1 kΩ
3147_0 $17.50 Full-bridge Strain Gauge Aluminum (per quarter-bridge) 1 kΩ

Enclosures

You can protect your board from dust and debris by purchasing an enclosure. An enclosure will also prevent unintentional shorts caused by objects touching the pins on the bottom of the board or any terminal screws.

Product Physical Properties
Image Part Number Price Material
3854_0 $6.00 Polycarbonate

Resistors

If you need to use the PhidgetBridge to interface with a platinum RTD or some other wheatstone bridge circuit, you can use these precision resistors for the best measurement accuracy. For details on how to hook up RTDs and bridge circuits, see the technical section of the User Guide.

Product Resistor
Image Part Number Price Resistance Value Resistance Error Max
3175_0 $4.00 1 kΩ 0.1 %

USB Cables

Use a USB cable to connect this Phidget to your computer. We have a number of different lengths available, although the maximum length of a USB cable is 5 meters due to limitations in the timing protocol. For longer distances, we recommend that you use a Single Board Computer to control the Phidget remotely.

Product Physical Properties
Image Part Number Price Connector A Connector B Cable Length
3017_1 $3.00 USB Type A USB Mini-B 280 mm
3018_0 $5.00 USB Type A USB Mini-B 1.8 m
3020_0 $12.00 USB Type A USB Mini-B 4.5 m
3036_0 $3.50 USB Type A USB Mini-B 600 mm
3037_0 $4.00 USB Type A USB Mini-B 1.2 m

Here are our Bridge Interfaces:

Product Board
Image Part Number Price Controlled By Number of Bridge Inputs
1046_0 $90.00 USB 4
DAQ1500_0 $30.00 VINT 2
