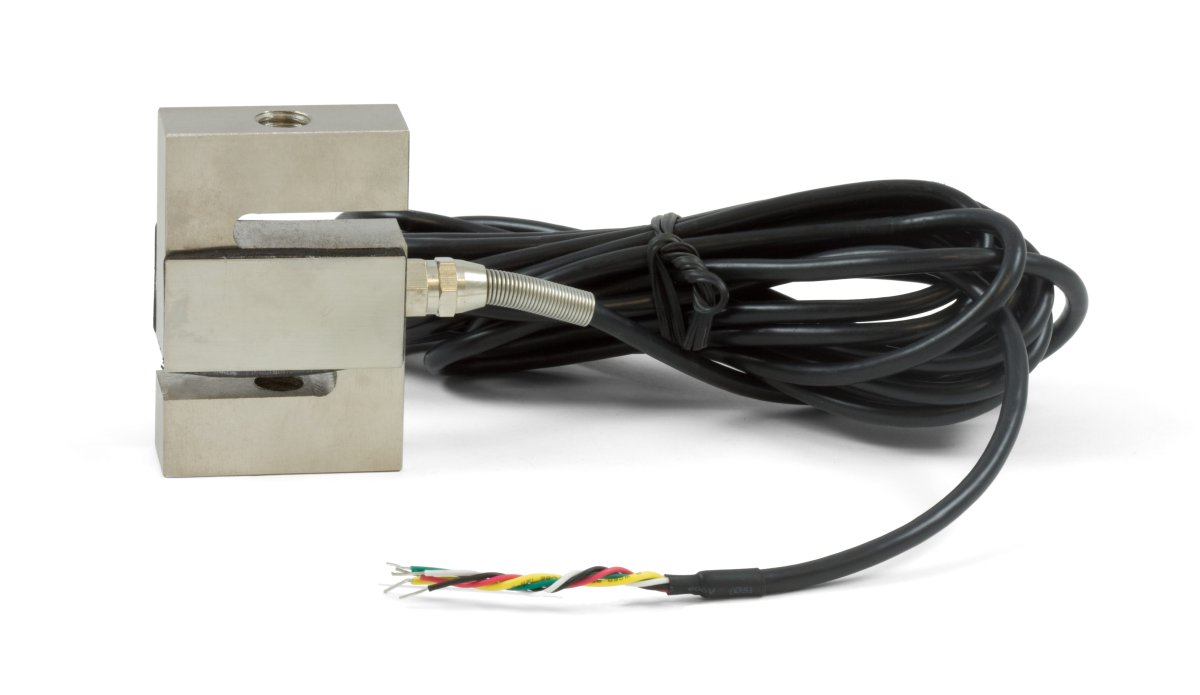

S-Type Load Cell - 500kg (C2)

ID: 3140_0

This load cell measures tensile forces (e.g. hanging loads). Calibration certificate included.

$50.00

Out of Stock

Qty Price
5 $48.00
10 $46.00
25 $45.00
50 $44.00
100 $43.00
50+...

Load cells are used to measure weight or forces. They require a load cell interface to function.

Features

  • Measures up to 500 kilograms
  • Includes a calibration certificate
  • Extremely precise (±0.03% Full Scale)
  • Works with all Phidget Load Cell Interfaces
  • Can be used in both tension and compression

Guides

Videos

Load Cell Interfaces - Connection

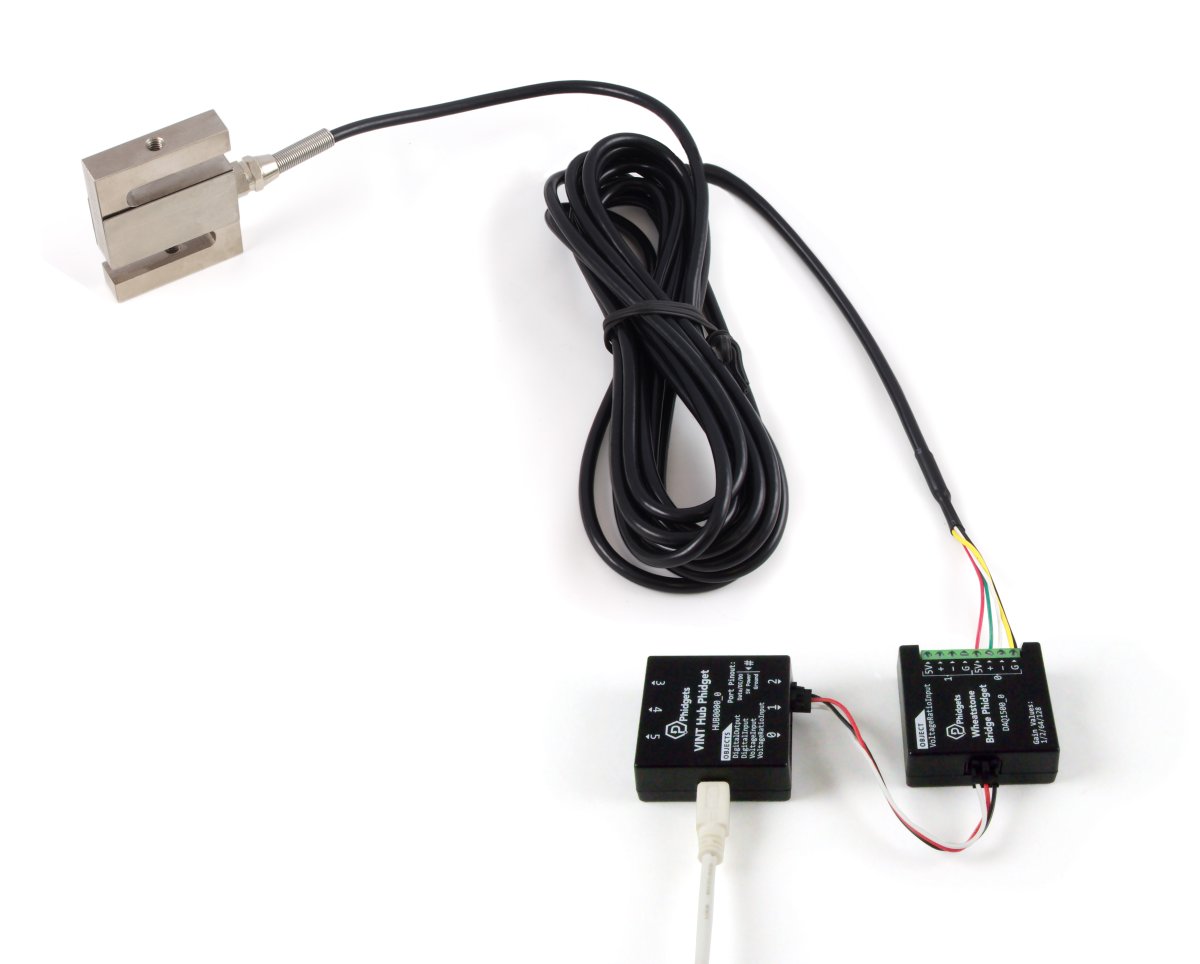

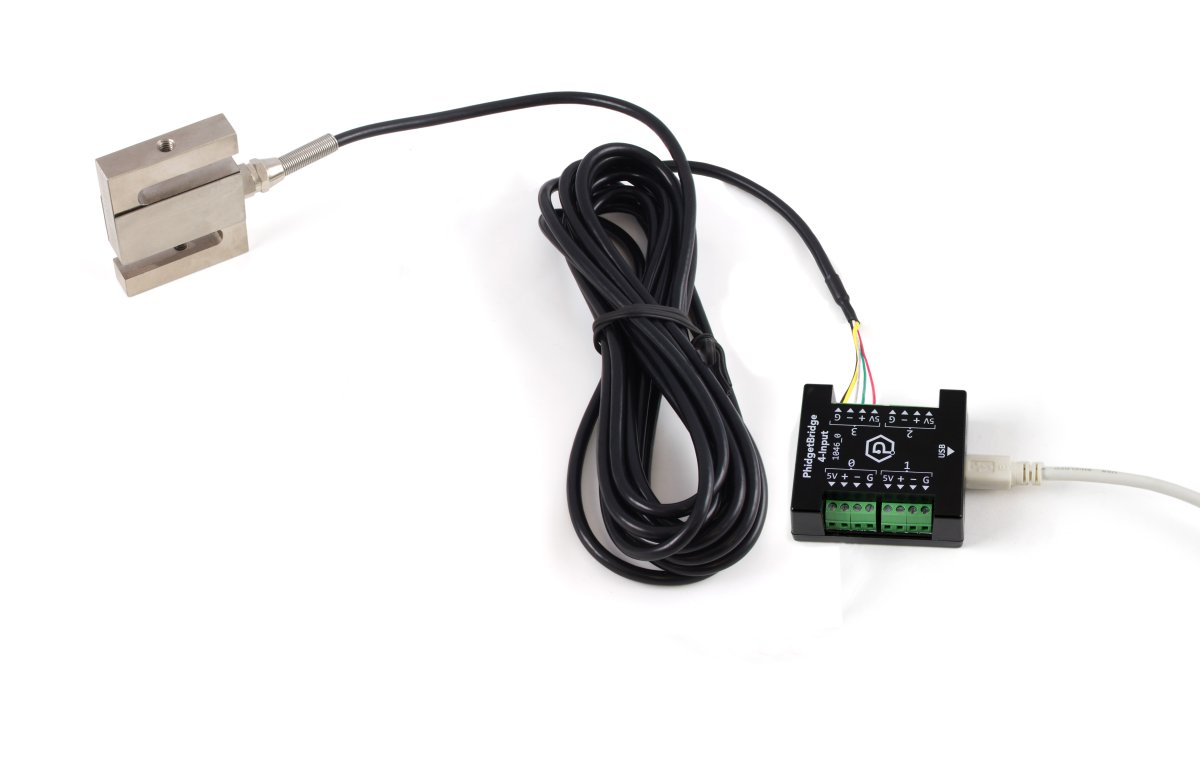

Use the following table to connect this load cell to your load cell interface:

Function 3140Bridge Interface
+5V Red 5V
+ Green +
- White -
Ground Black G
Ground Yellow G
Functional Functional

Load Cell Interfaces

Product Board Properties
Part Number Price Controlled By Number of Bridge Inputs Data Rate Max
1046_1
PhidgetBridge 4-Input
$95.00 USB (Mini-USB) 4 1.2 kHz
DAQ1500_0
Wheatstone Bridge Phidget
$30.00 VINT 2 50 Hz
1046_0B
PhidgetBridge 4-Input
$90.00 USB (Mini-USB) 4 125 Hz

Product Specifications

Sensor Properties
Sensor Type Compression/Tension Load Cell
Controlled By Bridge Input
Load Cell Accuracy Class ** C2
Weight Capacity Max 500 kg
Maximum Overload 750 kg
Electrical Properties
Output Impedance 350 Ω
Supply Voltage Min 5 V DC
Supply Voltage Max 12 V DC
Physical Properties
Compensated Temperature Min -10 °C
Compensated Temperature Max 40 °C
Operating Temperature Min -20 °C
Operating Temperature Max 55 °C
Cable Length 3 m
Cable Gauge 5x 22 AWG
Material Alloy Steel
IP Rating IP66
Screw Thread Size M12x1.75
Weight 603 g
Customs Information
Canadian HS Export Code 8423.90.00
American HTS Import Code 8423.90.10.00
Country of Origin CN (China)

*See the included calibration sheet for exact values for your load cell.

** You can read more about what the Accuracy Class means in our Load Cell Guide.
