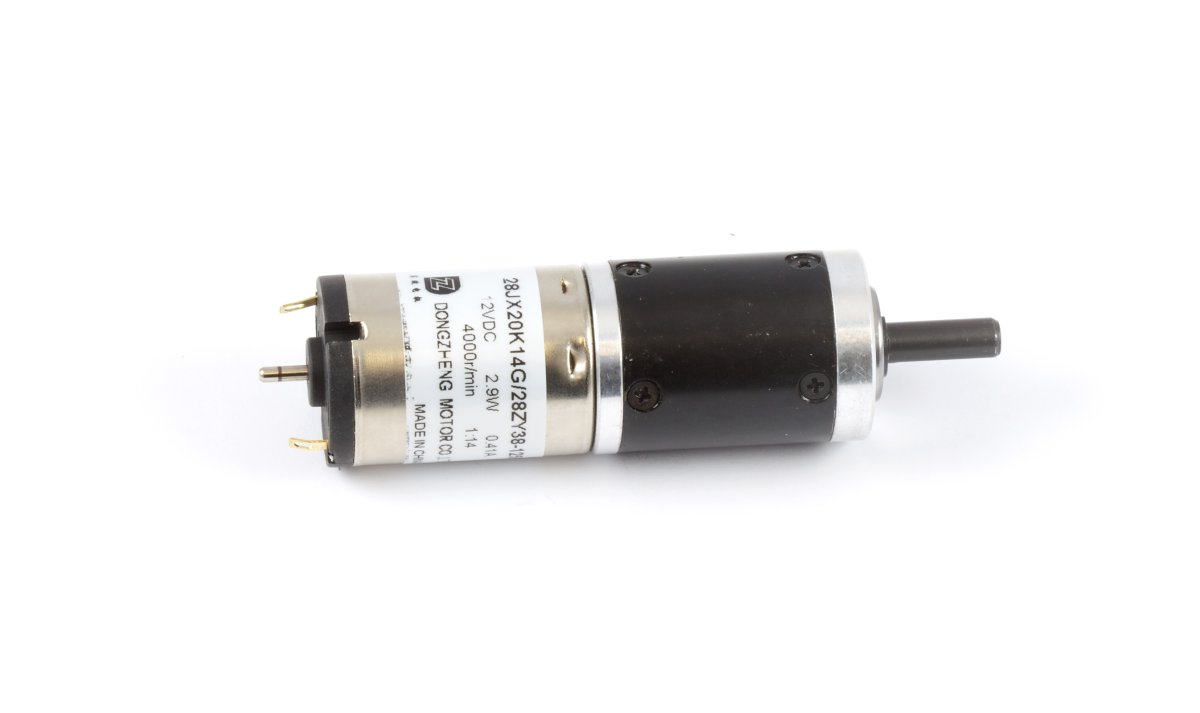

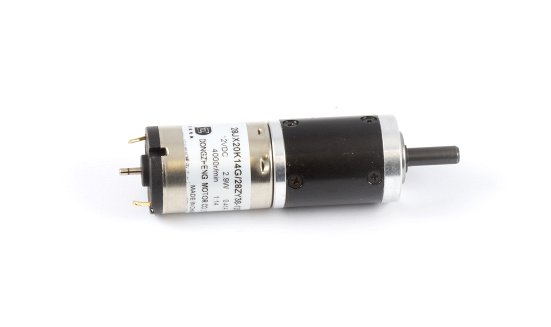

The 3262 is a 12 volt gear motor, generating 0.9 Kg-cm of torque at 285 RPM. This motor is quite compact considering the amout of power it can output.

The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.

Motor Properties | |
---|---|

Motor Type | DC Motor |

Output Power (Mechanical) | 2.9 W |

Maximum Speed at Rated Voltage | 285 RPM |

Rated Torque | 900 g·cm |

Stall Torque | 5 kg·cm |

Electrical Properties | |

Rated Voltage | 12 V DC |

Rated Current | 410 mA |

Stall Current | 1.5 A |

Physical Properties | |

Shaft Diameter | 6 mm |

Weight | 170 g |

Recommended Wire Size (Motor) | 20 - 25 AWG |

Gearbox Specifications | |

Gearbox Type | Planetary |

Gear Ratio | 13 ^{212}⁄_{289} : 1 |

Number of Gear Trains | 2 |

Maximum Strength of Gears | 12 kg·cm |

Shaft Maximum Axial Load | 35 N |

Shaft Maximum Radial Load | 25 N |

Backlash Error | 3° |

DC motors can be simply connected to a power supply according to their rated voltage in order to make them run, but if you want to have control over direction, velocity, and acceleration in real-time, you'll need to use a motor controller. In order to connect this motor to a controller, you'll need to solder wires to the contacts on the back of the motor and connect those wires to the motor terminal on the controller. Don't worry about wiring the motor backwards; doing so will only reverse the direction of rotation.
