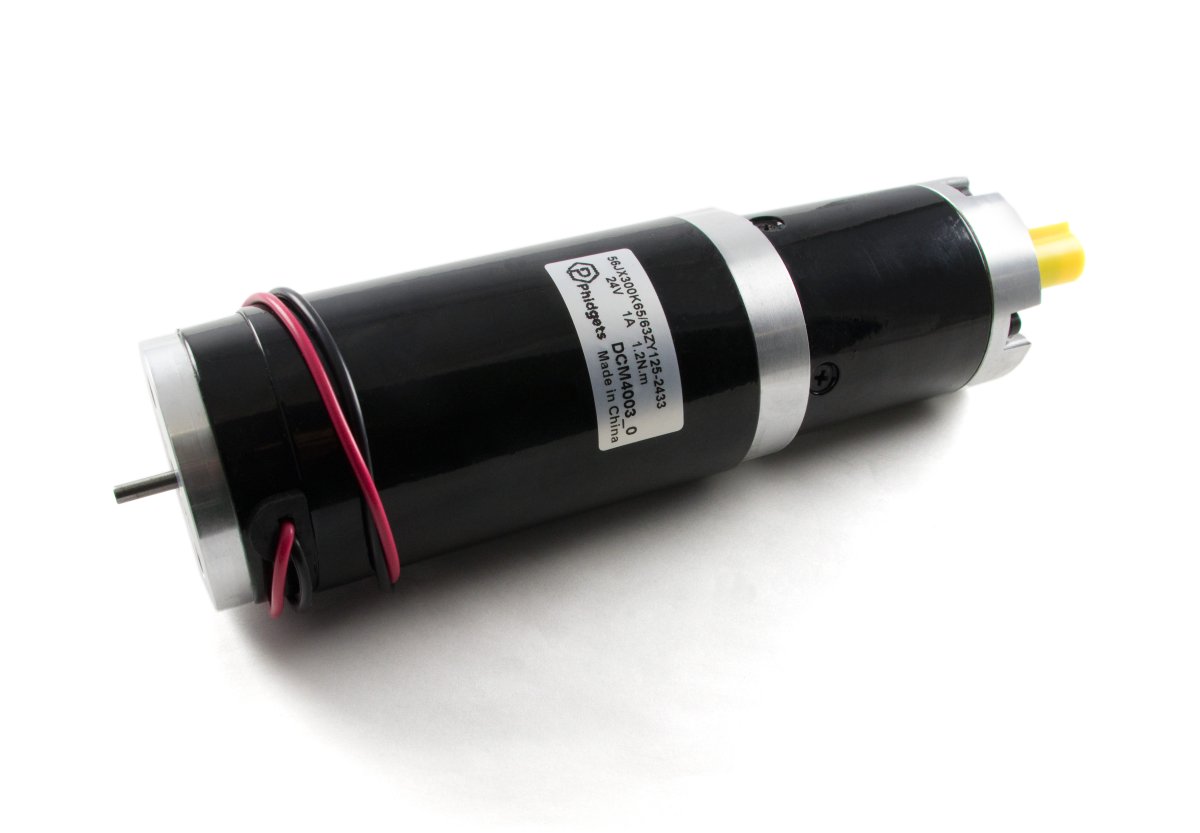

24V/162Kg-cm/50RPM/65:1 DC Gear Motor

ID: DCM4003_0

This DC motor has a rated speed of 50 RPM and a rated torque of 162 kg-cm.

$84.00

Quantity Available: 81

Qty Price
5 $80.64
10 $77.28
25 $75.60
50 $73.92
100 $72.24
50+...

The DCM4003 is a 24 volt motor, generating 162 kg-cm of torque with a top speed of 50 RPM.

Features

  • Rated for 162 kg-cm of torque
  • Reach speeds of up to 50RPM
  • Connects directly to a Phidgets DC Motor Controller
  • 4mm rear shaft for mounting optional encoder
  • Best performance with controllers that can provide 6.5 amps or more

For more details on the torque and speed characteristics of the motor, see the torque curves document on the Resources tab.

This motor has a high rated current, so we recommend you use the DCC1000. See the Connection & Compatibility tab for more information.

Guides

DC Motor Controllers

DC motors can be simply connected to a power supply according to their rated voltage in order to make them run, but if you want to have control over direction, velocity, and acceleration in real-time, you'll need to use a motor controller. In order to connect this motor to a controller, you can connect the wires to the motor terminal on the controller. Don't worry about wiring the motor backwards; doing so will only reverse the direction of rotation. This motor requires higher voltage than our small motors, so only the following controllers are suitable:

Product Electrical Properties Controller Properties Board Properties
Part Number Price Continuous Motor Current Max Supply Voltage Max Number of Motor Ports Velocity Resolution Acceleration Resolution Controlled By
DCC1000_0
DC Motor Phidget
$75.00 25 A 30 V DC 1 0.001 Duty Cycle 1 Duty Cycle/s VINT

Encoders

The rear shaft of this motor can be equipped with an encoder for applications where you need to keep track of the exact position, velocity, or acceleration of the motor. The mounting holes on the back of this motor are compatible with the following encoders:

Product Encoder Properties
Part Number Price Output Circuit Type Encoder Resolution Encoder Speed Max
3531_0
Rotary Encoder - For 4mm Motor Shaft 300 CPR
$25.00 Push-Pull 300 CPR 6000 RPM
ENC4109_0
Rotary Encoder - For 4mm Motor Shaft 40 CPR
$10.00 Push-Pull 40 CPR 6000 RPM

Shaft Couplers

If you need to connect the main shaft of this motor to another device with a shaft, you can use a shaft coupler:

Product Physical Properties
Part Number Price Inner Diameter Material Coupling Rated Torque Coupling Rated Speed Torsional Stiffness
TRM4317_0
Jaw Coupling Half 12mm Series 12
$3.60 12 mm Aluminum 35.7 kg·cm 12000 RPM
TRM4318_0
Jaw Coupling Half 12mm Series 24
$6.85 12 mm Aluminum 611.8 kg·cm 4000 RPM

Pulleys and Sprockets

If you're using this motor to drive a rotary system that requires a lot of torque, you may be interested in pulleys and sprockets. By using a two pulleys or sprockets of different sizes, you can increase the gear ratio of the motor. Pulleys and sprockets can also be used to transmit the motor's rotation over a long distance. For more guidance on building a transmission system, visit our Rotary Motion Guide. Here is a list of our 12mm bore pulleys and sprockets:

Product Physical Properties
Part Number Price Inner Diameter Number of Teeth
TRM4139_0
#25 Chain Sprocket with 12mm Bore and 12 Teeth
$3.25 12 mm 10
TRM4140_0
#25 Chain Sprocket with 12mm Bore and 18 Teeth
$3.75 12 mm 18
TRM4141_0
#25 Chain Sprocket with 12mm Bore and 32 Teeth
$5.00 12 mm 32
TRM4142_0
#25 Chain Sprocket with 12mm Bore and 52 Teeth
$8.00 12 mm 52
TRM4107_0
GT2 Pulley with 12mm Bore and 36 Teeth
$3.00 12 mm 36
TRM4108_0
GT2 Pulley with 12mm Bore and 44 Teeth
$3.00 12 mm 44
TRM4109_0
GT2 Pulley with 12mm Bore and 60 Teeth
$3.55 12 mm 60
TRM4110_0
GT2 Pulley with 12mm Bore and 80 Teeth
$4.45 12 mm 80
TRM4144_0
#40 Chain Sprocket with 12mm Bore and 9 Teeth
$4.25 12 mm 9
TRM4145_0
#40 Chain Sprocket with 12mm Bore and 14 Teeth
$4.50 12 mm 14
TRM4146_0
#40 Chain Sprocket with 12mm Bore and 20 Teeth
$7.00 12 mm 20
TRM4120_0
GT5 Pulley with 12mm Bore and 16 Teeth
$3.50 12 mm 16
TRM4121_0
GT5 Pulley with 12mm Bore and 24 Teeth
$4.00 12 mm 24
TRM4122_0
GT5 Pulley with 12mm Bore and 34 Teeth
$5.00 12 mm 34
TRM4123_0
GT5 Pulley with 12mm Bore and 50 Teeth
$7.40 12 mm 50
TRM4124_0
GT5 Pulley with 12mm Bore and 72 Teeth
$12.95 12 mm 72

Mounting Brackets

Mounting this motor to a flat surface is easy with these metal mounting brackets. The holes on the bracket match those on the front of the gearbox. The following brackets will fit the mounting holes on this motor:

Product Physical Properties
Part Number Price Mounting Plate Size Material
3339_0
Motor Mounting Bracket (NEMA 23)
$4.00 NEMA - 23 Mild Steel (Coated)

Rotary Bearings

Systems with heavy loads or pulley/sprocket assemblies often put a lot of sideways strain on the motor shaft. If you're using this motor to drive such a system, you can use rotary bearings to protect the motor:

Product Physical Properties Mechanical Properties
Part Number Price Inner Diameter Bearing Type Static Load Dynamic Load
TRM4502_0
Flanged Rotary Bearing for 12mm Shaft
$4.00 12 mm Rotary Shaft (Flanged) 2.4 kN 5.1 kN
TRM4503_0
Pillow Block Rotary Bearing for 12mm Shaft
$4.00 12 mm Rotary Shaft (Pillow Block) 2.4 kN 5.1 kN

Product Specifications

Motor Properties
Motor Type DC Motor
Output Power (Mechanical) 100 W
Rated Speed 50 RPM
Rated Torque 153 kg·cm
Stall Torque 966.6 kg·cm
Electrical Properties
Rated Voltage 24 V DC
Rated Current 6.5 A
Stall Current 22 A
Physical Properties
Shaft Diameter 12 mm
Keyway Width 4 mm
Wire Length 300 mm
Weight 2.2 kg
Gearbox Specifications
Gearbox Type Planetary
Gear Ratio 65 : 1
Number of Gear Trains 3
Maximum Strength of Gears 50 N·m
Backlash Error
Customs Information
Canadian HS Export Code 8501.31.00
American HTS Import Code 8501.31.40.00
Country of Origin CN (China)

Documents

Here's a list of our DC motors:

Product Motor Properties Physical Properties Gearbox Specifications
Part Number Price Rated Speed Rated Torque Shaft Diameter Weight Gear Ratio Gearbox Type
3261_0
12V/0.2Kg-cm/1080RPM 3.7:1 DC Gear Motor
$18.00 1080 RPM 240 g·cm 6 mm 144 g 3 1217 : 1 Planetary
3254_0
12V/0.2Kg-cm/230RPM 10:1 DC Gear Motor
$10.00 230 RPM 200 g·cm 6 mm 128 g 10 : 1 Spur
3262_1
12V/0.9Kg-cm/285RPM 14:1 DC Gear Motor
$18.00 285 RPM 900 g·cm 6 mm 170 g 13 212289 : 1 Planetary
3255_0
12V/0.3Kg-cm/127RPM 18:1 DC Gear Motor
$10.00 127 RPM 310 g·cm 6 mm 133 g 18 : 1 Spur
3256_0
12V/0.8Kg-cm/46RPM 50:1 DC Gear Motor
$11.00 46 RPM 820 g·cm 6 mm 137 g 50 : 1 Spur
3263_1
12V/3.0Kg-cm/78RPM 51:1 DC Gear Motor
$20.50 78 RPM 3.1 kg·cm 6 mm 193 g 50 801895 : 1 Planetary
3257_0
12V/1.6Kg-cm/23RPM 100:1 DC Gear Motor
$11.00 23 RPM 1.6 kg·cm 6 mm 136 g 100 : 1 Spur
3265_0
12V/0.5Kg-cm/670RPM 3.7:1 DC Gear Motor
$38.00 670 RPM 540 g·cm 8 mm 416 g 3 1217 : 1 Planetary
3266_1
12V/1.9Kg-cm/175RPM 14:1 DC Gear Motor
$42.00 175 RPM 1.9 kg·cm 8 mm 464 g 13 212289 : 1 Planetary
3267_1
12V/6.6Kg-cm/49RPM 51:1 DC Gear Motor
$43.00 49 RPM 6.6 kg·cm 8 mm 526 g 50 801895 : 1 Planetary
3267_0
12V/6.6Kg-cm/49RPM 51:1 DC Gear Motor
$33.00 49 RPM 6.6 kg·cm 8 mm 526 g 50 801895 : 1 Planetary
3268_1
12V/17.3Kg-cm/18RPM 139:1 DC Gear Motor
$43.00 18 RPM 17.3 kg·cm 8 mm 526 g * 139 1841221 : 1 Planetary
DCM4000_0
24V/2.5Kg-cm/3280RPM DC Motor
$40.00 3280 RPM 4 kg·cm 8 mm 1.4 kg
DCM4004_0
24V/4.3Kg-cm/3000RPM DC Motor
$50.00 2800 RPM 8.7 kg·cm 10 mm 2.7 kg
DCM4005_0
24V/6Kg-cm/3200RPM DC Motor
$60.00 2900 RPM 11.4 kg·cm 10 mm 3.3 kg
3269_3
24V/5.1Kg-cm/588RPM 4.25:1 DC Gear Motor
$69.00 588 RPM 4.4 kg·cm 12 mm 1.3 kg 4 14 : 1 Planetary
DCM4001_0
24V/10Kg-cm/772RPM/4.25:1 DC Gear Motor
$80.00 772 RPM 12.2 kg·cm 12 mm 1.9 kg 4 14 : 1 Planetary
3270_2
24V/14.2Kg-cm/192RPM 13:1 DC Gear Motor
$66.00 192 RPM 13.3 kg·cm 12 mm 1.5 kg 12 2425 : 1 Planetary
DCM4002_0
24V/45Kg-cm/182RPM/18:1 DC Gear Motor
$82.00 182 RPM 47 kg·cm 12 mm 2.1 kg 18 : 1 Planetary
3272_2
24V/50.9Kg-cm/53RPM 47:1 DC Gear Motor
$72.00 53 RPM 43.8 kg·cm 12 mm 1.7 kg 46 82125 : 1 Planetary
DCM4003_0
24V/162Kg-cm/50RPM/65:1 DC Gear Motor
$84.00 50 RPM 153 kg·cm 12 mm 2.2 kg 65 : 1 Planetary
3273_2
24V/82.6Kg-cm/33RPM 76:1 DC Gear Motor
$72.00 33 RPM 71.4 kg·cm 12 mm 1.7 kg 76 4964 : 1 Planetary
3274_2
24V/173.3Kg-cm/15RPM 168:1 DC Gear Motor
$76.00 15 RPM 136.6 kg·cm 12 mm 2 kg 167 601625 : 1 Planetary

Here's a list of DC motors with encoders attached:

Product Motor Properties Physical Properties Gearbox Specifications
Part Number Price Rated Speed Rated Torque Shaft Diameter Weight Gear Ratio Gearbox Type
3261E_1
12V/0.2Kg-cm/1080RPM 3.7:1 DC Gear Motor w/ Encoder
$48.00 1080 RPM 240 g·cm 6 mm 147 g 3 1217 : 1 Planetary
