Waterproof Button Limit Switch

ID: HIN4208_0

Waterproof limit switch with a button head.

$8.00

Quantity Available: 143

Qty Price
5 $7.68
10 $7.36
25 $7.20
50 $7.04
100 $6.88
50+...

This heavy duty switch is a double break type, meaning you can switch two completely different circuits with it should you so desire. When the switch is up, the top two terminals are open and the bottom two are closed. When the switch is pressed, the top terminals close and the bottom terminals open. You can jumper both pins on one side together turn it into a single-pole double-throw switch.

This switch is triggered by a spring-loaded pushbutton, useful for detecting the part resting on it being pushed down.

Features

  • Double break limit switch for detecting moving parts
  • Waterproof casing with industrial form factor
  • Connects to a Phidget digital input
  • Mounting hardware included

Switching Behaviour

Functional

When the switch is unpressed, the bottom two terminals are connected. When the switch is pressed, the top terminals are connected instead. If you wire the top and bottom pins on one side together, you can make it behave like a standard SPDT switch, with the pins that are wired together serving as the common, and the top and bottom pins behaving as normally open and normally closed, respectively.

Interface Boards and Hubs

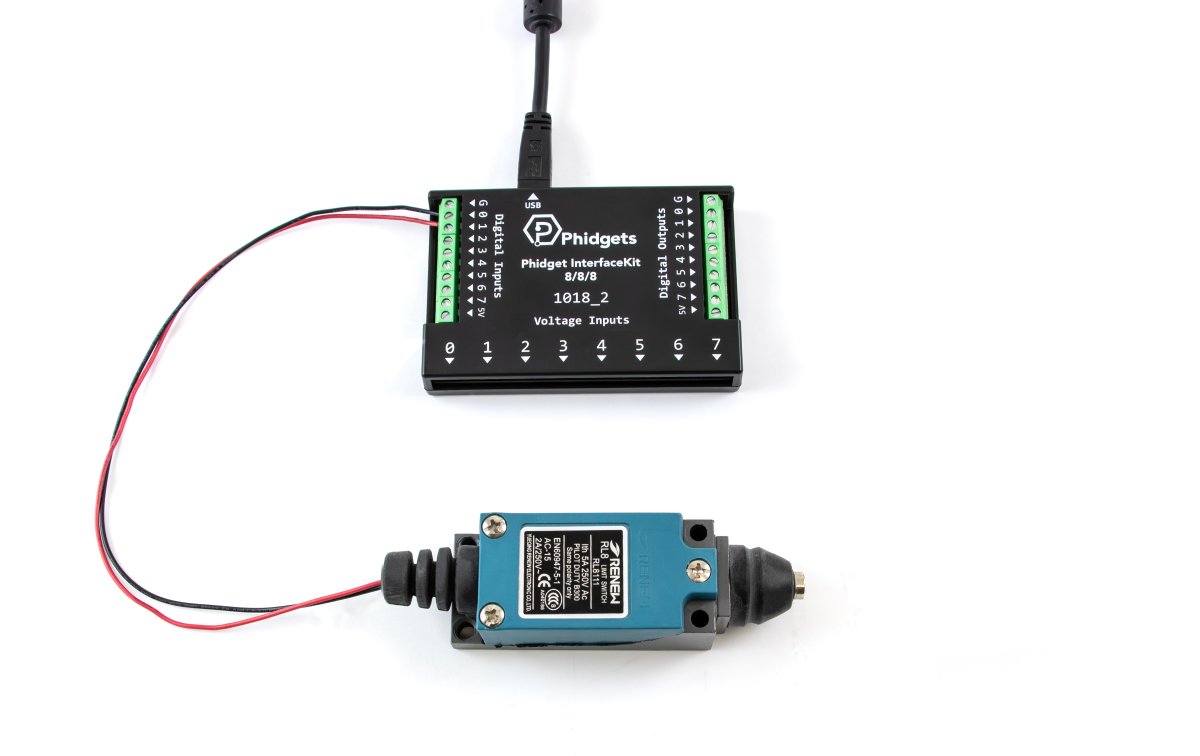

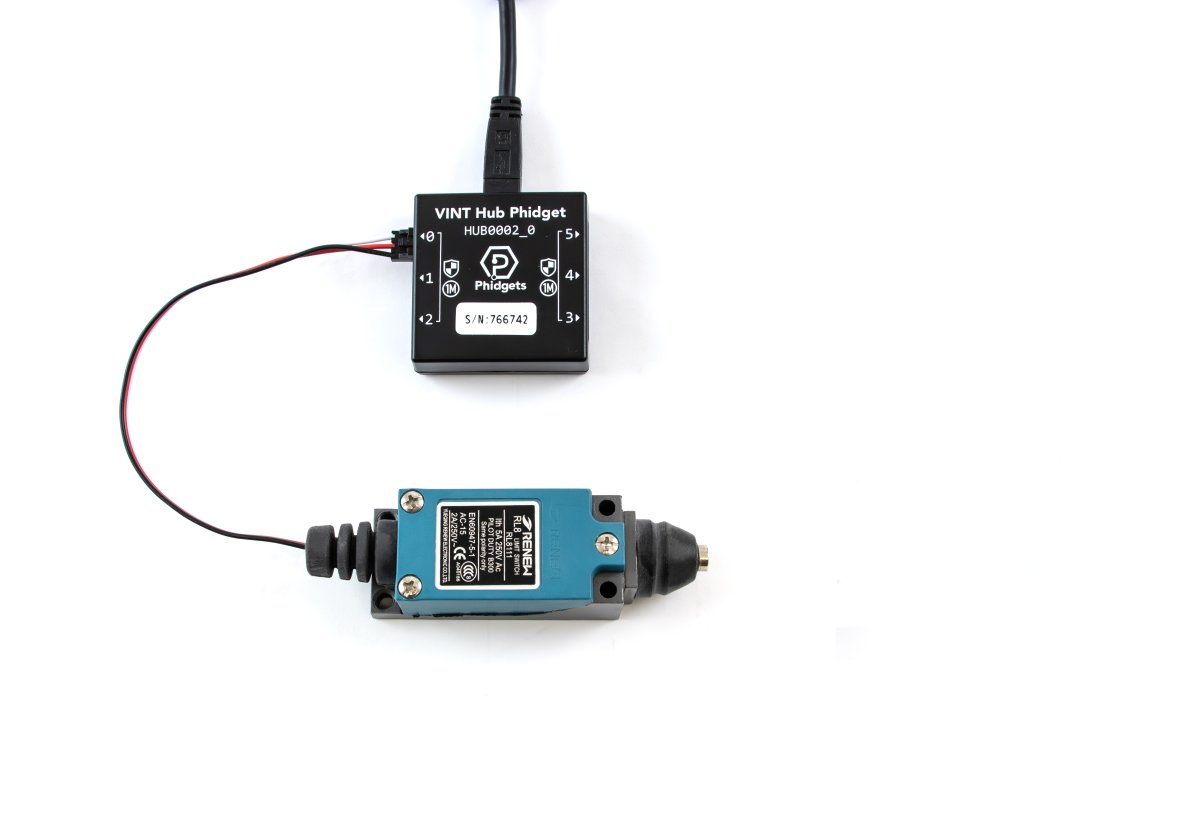

This switch can be read by connecting one end to a digital input and the other end to the ground pin of the same board. Here's a list of boards with digital inputs:

Product Digital Inputs
Part Number Price Number of Digital Inputs Low Voltage Max (False) Low Voltage Max (True) High Voltage Min (False) High Voltage Min (True)
HUB0002_0
VINT Hub Phidget
$40.00 6 (Shared) 1.3 V DC 1.8 V DC
HUB0007_0
1-Port VINT Hub Phidget
$24.00 1 (Shared) 1.3 V DC 1.7 V DC
HUB0001_0
VINT Hub Phidget
$35.00 6 (Shared) 1 V DC 2 V DC
HUB0000_1
VINT Hub Phidget
$30.00 6 (Shared) 1.3 V DC 1.8 V DC
HUB5000_0
Wireless VINT Hub
$60.00 6 (Shared) 1 V DC 1.8 V DC
DAQ1301_0
16x Isolated Digital Input Phidget
$50.00 16 1.3 V DC 2.5 V DC
DAQ1200_0
4x Digital Input Phidget
$12.00 4 1.5 V DC 3.5 V DC
DAQ1300_0
4x Isolated Digital Input Phidget
$20.00 4 1.3 V DC 2.5 V DC
1012_3
PhidgetInterfaceKit 0/16/16
$95.00 16 900 mV DC 4.2 V DC
1018_3B
PhidgetInterfaceKit 8/8/8
$80.00 8 1 V DC 1.8 V DC
1011_0
PhidgetInterfaceKit 2/2/2
$50.00 2 800 mV DC 2.1 V DC
1018_2B
PhidgetInterfaceKit 8/8/8
$80.00 8 900 mV DC 4.2 V DC
1010_0
PhidgetInterfaceKit 8/8/8 Mini-Format
$70.00 8 900 mV DC 4.2 V DC
1019_1B
PhidgetInterfaceKit 8/8/8 w/6 Port Hub
$110.00 8 900 mV DC 4.2 V DC
1065_1B
PhidgetMotorControl 1-Motor
$75.00 2 800 mV DC 2.1 V DC
1203_2B
PhidgetTextLCD 20X2 : White : Integrated PhidgetInterfaceKit 8/8/8
$70.00 8 900 mV DC 4.2 V DC

2-Conductor Cables

Functional

You can use a 2-conductor cable to easily connect this switch to you InterfaceKit or Hub.

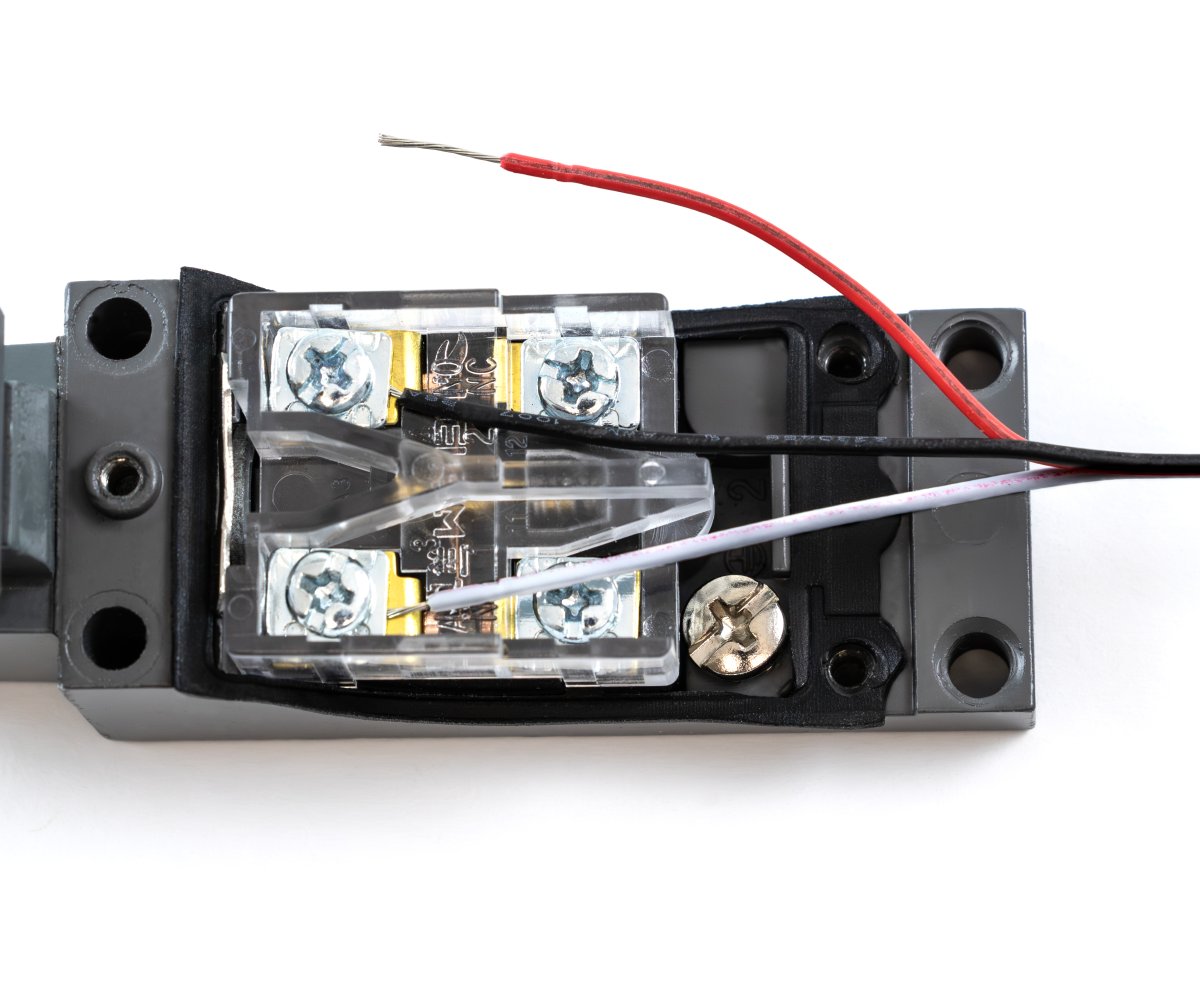

The upper terminals are for "Normally Open" operation and the lower terminals are for "Normally Closed". The last screw is for the case ground. We recommend using fork connectors to attach your wires to the terminals of the switch for a reliable connection. Alternatively, you could just screw the stripped wires into the terminal instead.

Product Physical Properties
Part Number Price Number of Conductors Cable Gauge Insulation Material
CBL4300_0
2 Conductor 16AWG Wire Black
$1.50/Meter 2 16 AWG PVC

Product Specifications

Sensor Properties
Sensor Type Input (Button Switch)
Switch Type SPDT Double Break
Physical Properties
Travel 6.5 mm
Electrical Properties
Switching Voltage Max (AC) 250 V AC
Switching Voltage Max (DC) 250 V DC
Customs Information
Canadian HS Export Code 8536.50.00
American HTS Import Code 8536.50.90.65
Country of Origin CN (China)

Mechanical Drawing

Mechanical

Other Resources

Product Sensor Properties
Part Number Price Sensor Type Switch Type
HIN4207_0
Waterproof Adjustable Rod Limit Switch
$8.00 Input (Rod Switch) SPDT Double Break
HIN4206_0
Waterproof Adjustable Roller Limit Switch
$8.00 Input (Roller Switch) SPDT Double Break
HIN4208_0
Waterproof Button Limit Switch
$8.00 Input (Button Switch) SPDT Double Break
HIN4209_0
Waterproof Flex Switch
$8.00 Input (Flex Switch) SPDT Double Break
HIN4205_0
Waterproof Roller Limit Switch
$8.00 Input (Limit Switch) SPDT Double Break
