Quantity Available: 222
| Qty | Price |
|---|---|
| 5 | $7.68 |
| 10 | $7.36 |
| 25 | $7.20 |
| 50 | $7.04 |
| 100 | $6.88 |

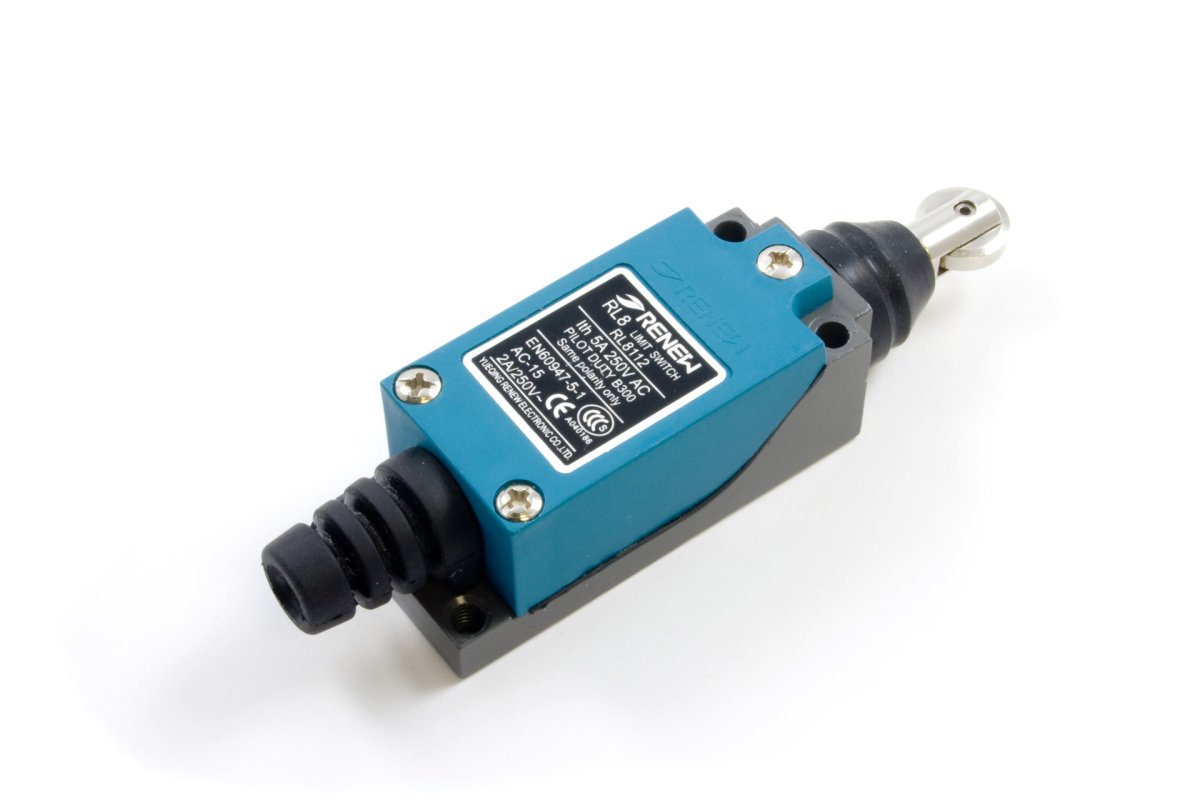

This heavy duty switch combines the functionality of a single pole, double throw (SPDT) switch with a double break meaning you can switch two completely different circuits with it should you so desire. If not, you can simply jumper both pins on one side together to return to normal SPDT behaviour.
For maximum switching ratings please be sure to review the manufacturer's datasheet as the current rating are dependent on the voltage being switched.
| Sensor Properties | |
|---|---|
| Sensor Type | Input (Limit Switch) |
| Switch Type | SPDT Double Break |
| Physical Properties | |
| Travel | 5.5 mm |
| Electrical Properties | |
| Switching Voltage Max (AC) | 250 V AC |
| Switching Voltage Max (DC) | 250 V DC |
| Customs Information | |
| Canadian HS Export Code | 8536.50.00 |
| American HTS Import Code | 8536.50.90.65 |
| Country of Origin | CN (China) |

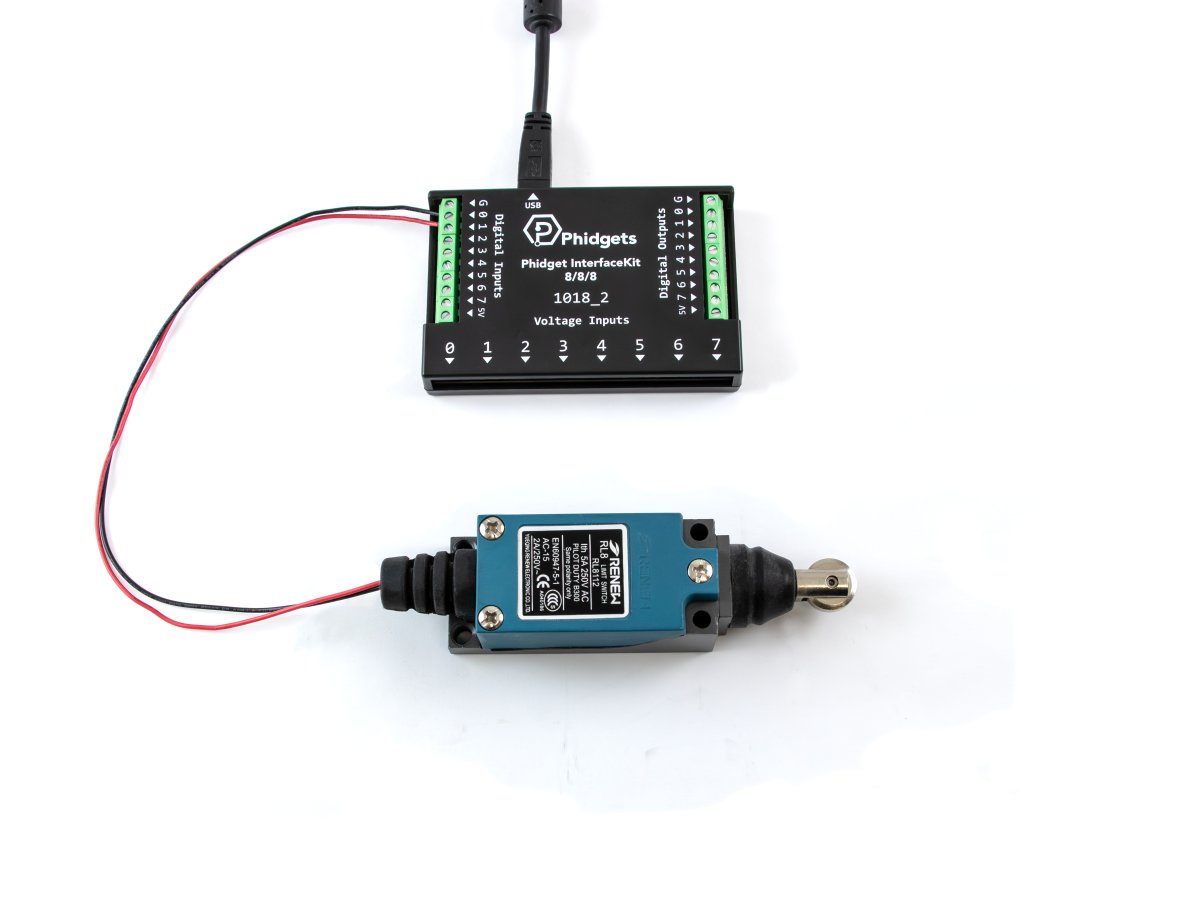

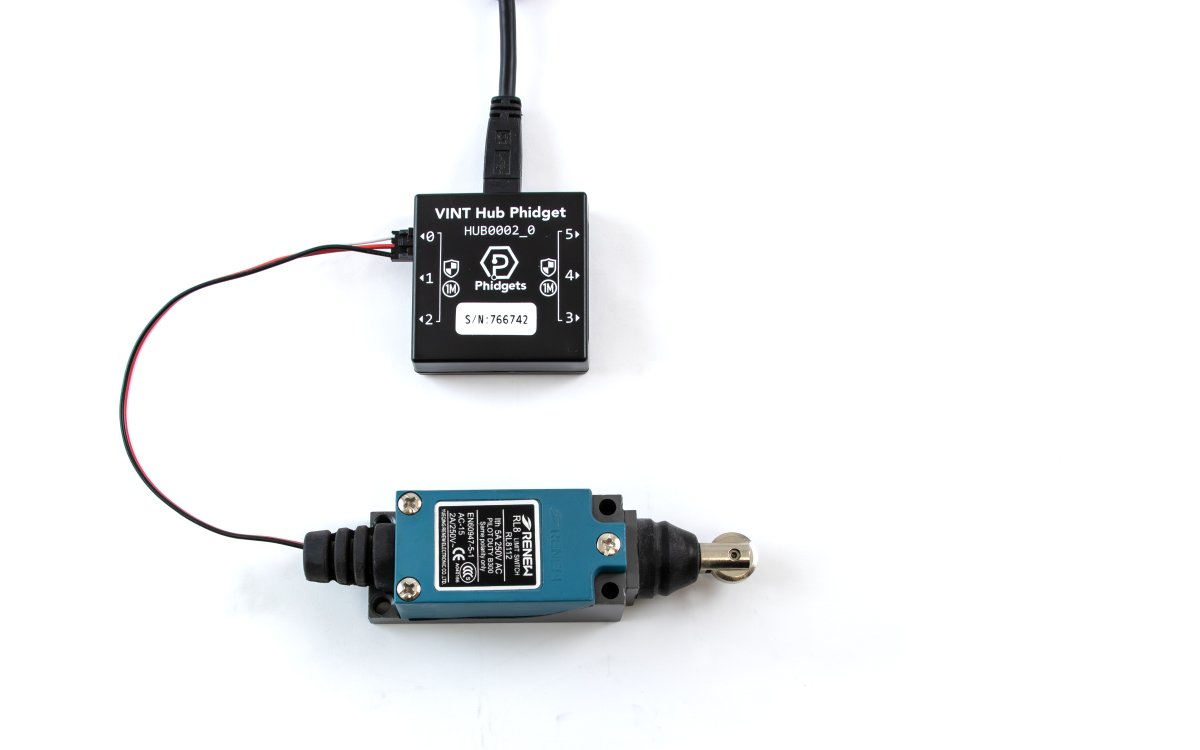

This switch can be read by connecting one end to a digital input and the other end to the ground pin of the same board. Here's a list of boards with digital inputs:
| Product | Digital Inputs | |||||
|---|---|---|---|---|---|---|
| Part Number | Price | Number of Digital Inputs | Low Voltage Max (False) | Low Voltage Max (True) | High Voltage Min (False) | High Voltage Min (True) |
 PhidgetInterfaceKit 8/8/8 Mini-Format
|
$80.00 | 8 | — | 900 mV DC | 4.2 V DC | — |
 PhidgetInterfaceKit 2/2/2
|
$50.00 | 2 | — | 800 mV DC | 2.1 V DC | — |
 PhidgetInterfaceKit 0/16/16
|
$95.00 | 16 | 900 mV DC | — | — | 4.2 V DC |
 PhidgetInterfaceKit 8/8/8
|
$80.00 | 8 | — | 900 mV DC | 4.2 V DC | — |
 PhidgetInterfaceKit 8/8/8
|
$80.00 | 8 | — | 1 V DC | 1.8 V DC | — |
 PhidgetInterfaceKit 8/8/8 w/6 Port Hub
|
$110.00 | 8 | — | 900 mV DC | 4.2 V DC | — |
 PhidgetMotorControl 1-Motor
|
$75.00 | 2 | — | 800 mV DC | 2.1 V DC | — |
 PhidgetTextLCD 20X2 : White : Integrated PhidgetInterfaceKit 8/8/8
|
$70.00 | 8 | — | 900 mV DC | 4.2 V DC | — |
 4x Digital Input Phidget
|
$12.00 | 4 | — | 1.5 V DC | 3.5 V DC | — |
 4x Isolated Digital Input Phidget
|
$20.00 | 4 | 1.3 V DC | — | — | 2.5 V DC |
 16x Isolated Digital Input Phidget
|
$50.00 | 16 | 1.3 V DC | — | — | 2.5 V DC |
 VINT Hub Phidget
|
$30.00 | 6 (Shared) | — | 1 V DC | 2 V DC | — |
 VINT Hub Phidget
|
$40.00 | 6 (Shared) | — | 1.3 V DC | 1.8 V DC | — |
 1-Port VINT Hub Phidget
|
$24.00 | 1 (Shared) | — | 1.3 V DC | 1.7 V DC | — |
 Wireless VINT Hub
|
$60.00 | 6 (Shared) | — | 1 V DC | 1.8 V DC | — |
You can use a 2-conductor cable to easily connect this switch to you InterfaceKit or Hub.

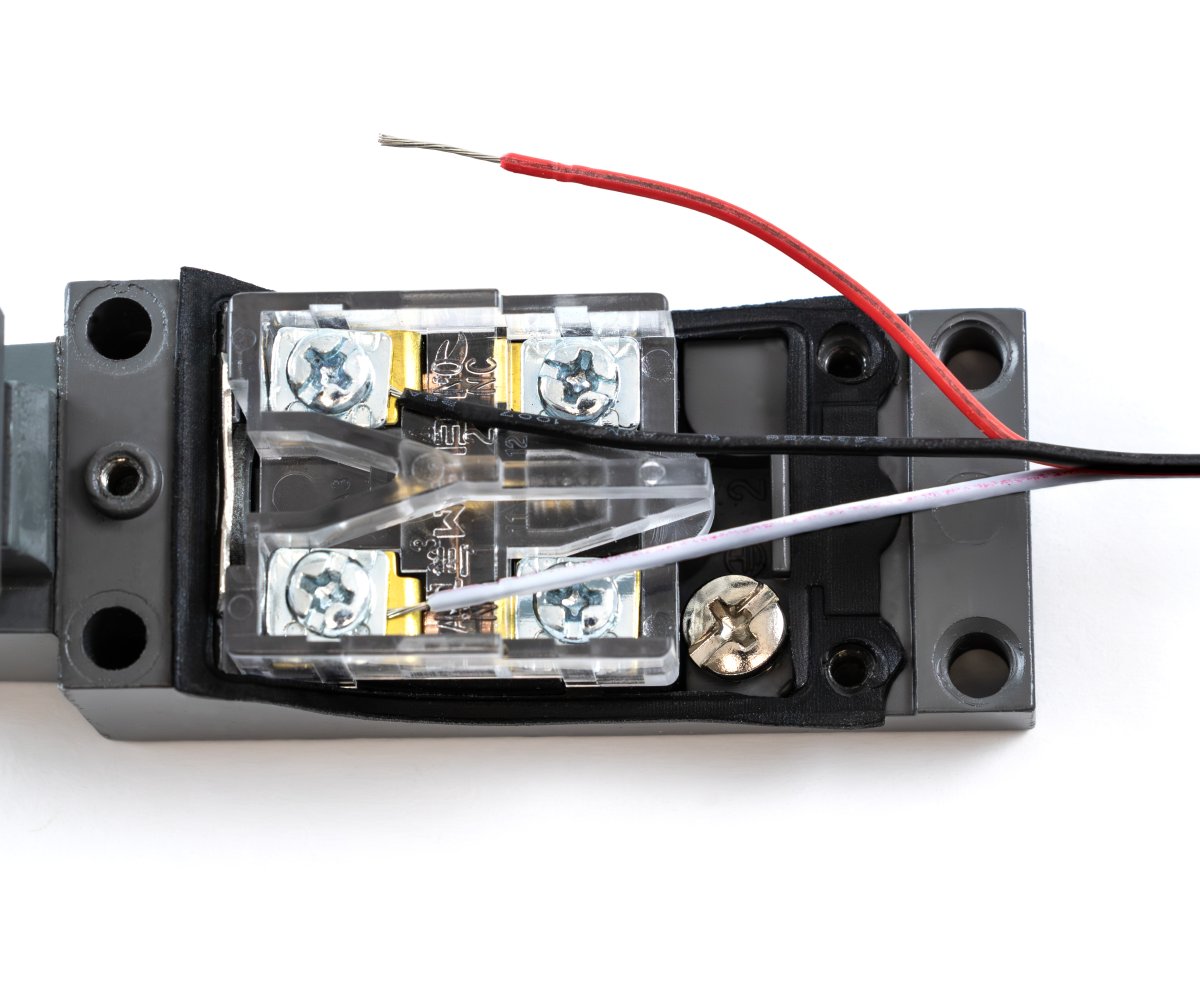

The upper terminals are for "Normally Open" operation and the lower terminals are for "Normally Closed". The last screw is for the case ground. We recommend using fork connectors to attach your wires to the terminals of the switch for a reliable connection. Alternatively, you could just screw the stripped wires into the terminal instead.
| Product | Physical Properties | |||
|---|---|---|---|---|
| Part Number | Price | Number of Conductors | Cable Gauge | Insulation Material |
 2 Conductor 16AWG Wire Black
|
$1.50/Meter | 2 | 16 AWG | PVC |
| Product | Sensor Properties | ||
|---|---|---|---|
| Part Number | Price | Sensor Type | Switch Type |
 Waterproof Roller Limit Switch
|
$8.00 | Input (Limit Switch) | SPDT Double Break |
 Waterproof Adjustable Roller Limit Switch
|
$8.00 | Input (Roller Switch) | SPDT Double Break |
 Waterproof Adjustable Rod Limit Switch
|
$8.00 | Input (Rod Switch) | SPDT Double Break |
 Waterproof Button Limit Switch
|
$8.00 | Input (Button Switch) | SPDT Double Break |
 Waterproof Flex Switch
|
$8.00 | Input (Flex Switch) | SPDT Double Break |
