Replaced by the 3530_1 - Optical Rotary Encoder ISC3004, the same encoder but with a Phidget encoder cable connector.

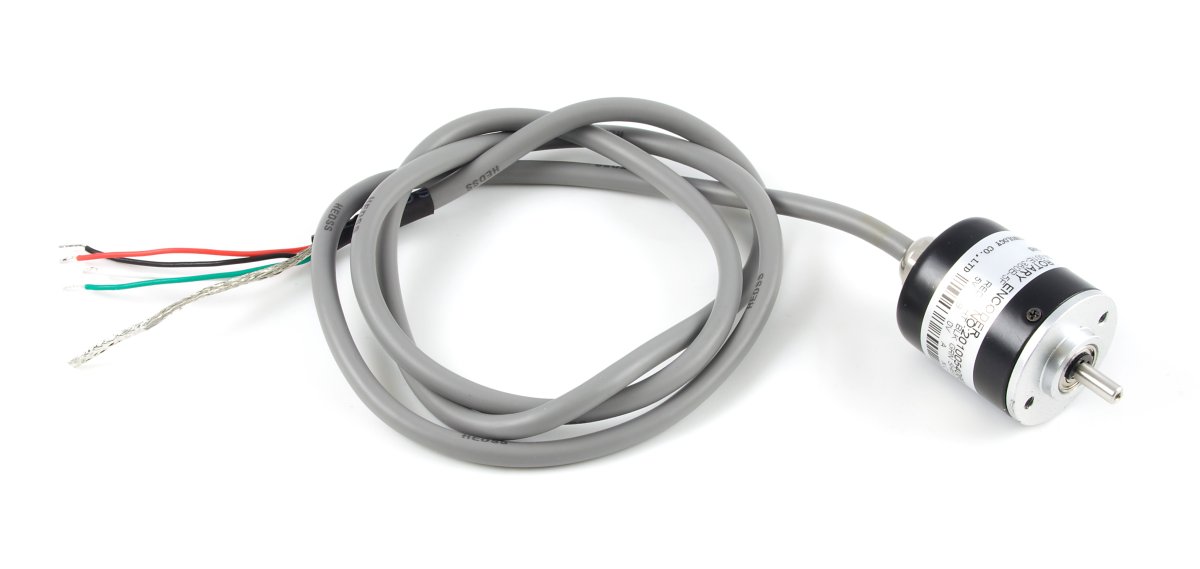

This is a small ball bearing construction, rotary encoder without index that goes up to 3000 rpm.
The encoder comes with a 1 meter cable and 2 mounting screws.
This quadrature encoder can be read by an encoder interface. To attach the shaft of this encoder to a motor or some other device, you can use a shaft coupler. See the Connection & Compatibility tab for details.
| Encoder Properties | |
|---|---|
| Output Circuit Type | Push-Pull (Single-Ended) |
| Controlled By | Encoder Interface |
| Encoder Resolution | 360 CPR |
| Encoder Speed Max | 3000 RPM |
| Electrical Properties | |
| Supply Voltage Min | 5 V DC |
| Supply Voltage Max | 5 V DC |
| Output Frequency Max | 80 kHz |
| Physical Properties | |
| Shaft Diameter | 4 mm |
| Shaft Maximum Axial Load | 10 N |
| Shaft Maximum Radial Load | 20 N |
| Operating Humidity Min | 30 %RH |
| Operating Humidity Max | (Non-condensing) 85 %RH |
| Operating Temperature Min | -25 °C |
| Operating Temperature Max | 85 °C |
| IP Rating | IP54 |
| Weight | 83 g |
| Customs Information | |
| Canadian HS Export Code | 9029.10.00 |
| American HTS Import Code | 9029.10.80.00 |
| Country of Origin | CN (China) |
This quadrature encoder must be read by an encoder interface. These interfaces will interpret the two quadrature signals in order to determine the continuous position of the rotating part. The following interfaces are compatible with this encoder:
| Product | Encoder Interface | ||
|---|---|---|---|
| Part Number | Price | Number of Encoder Inputs | Count Rate Max |
 PhidgetEncoder HighSpeed 4-Input
|
$75.00 | 4 | 1E+06 pulses/s |
 PhidgetEncoder HighSpeed 4-Input
|
$75.00 | 4 | 1E+06 pulses/s |
 PhidgetEncoder HighSpeed
|
$50.00 | 1 | 2E+06 pulses/s |
 PhidgetEncoder HighSpeed
|
$50.00 | 1 | 1E+06 pulses/s |
 PhidgetMotorControl 1-Motor
|
$75.00 | 1 | 500000 cycles/s |
 DC Motor Phidget
|
$75.00 | 1 | 400000 pulses/s |
 4A DC Motor Phidget
|
$40.00 | 1 | 400000 pulses/s |
 Quadrature Encoder Phidget
|
$15.00 | 1 | 400000 pulses/s |
If you need to connect the main shaft of this motor to the shaft of another device, you can use a shaft coupler:
| Product | Physical Properties | |||||
|---|---|---|---|---|---|---|
| Part Number | Price | Inner Diameter | Material | Coupling Rated Torque | Coupling Rated Speed | Torsional Stiffness |
 Jaw Coupling Half 4mm Series 12
|
$3.00 | 4 mm | Aluminum | 35.7 kg·cm | 12000 RPM | — |
 Spiral Beam Coupling 4mm - 4mm
|
$3.50 | 4 mm | Aluminium | 10 kg·cm | 8000 RPM | 110 N·m/rad |
The easiest way to connect your encoder to a Phidgets encoder interface is to use a Phidgets encoder cable, cut it to the desired length and solder the encoder wires to the encoder cable as follows:
| 3530 - Encoder | 3019 - Phidget encoder cable |
|---|---|
| Red | Red |
| Black | Black |
| White | White |
| Green | Brown |
Alternatively, you could buy the male connector (Molex part 50-57-9405), and crimp it onto the end of the cable, if you have the appropriate tools.
| Product | Physical Properties | ||
|---|---|---|---|
| Part Number | Price | Cable Length | Cable Gauge |
 HighSpeed Encoder Cable 50cm
|
$5.00 | 500 mm | 26 AWG |
| Product | Encoder Properties | |||
|---|---|---|---|---|
| Part Number | Price | Output Circuit Type | Encoder Resolution | Encoder Speed Max |
 Optical Rotary Encoder 4mm Shaft
|
$50.00 | Push-Pull (Single-Ended) | 360 CPR | 3000 RPM |
 Optical Rotary Encoder HKT22
|
$25.00 | Push-Pull (Single-Ended) | 300 CPR | 6000 RPM |
 Hollow Shaft Optical Encoder IHC3808
|
$50.00 | Push-Pull (Single-Ended) | 500 CPR | 4500 RPM |
 40 CPR Quadrature Encoder
|
$10.00 | Push-Pull | 40 CPR | 6000 RPM |
