12V/3.0Kg-cm/78RPM 51:1 DC Gear Motor

ID: 3263_1

This DC motor has a 51:1 gearbox, a rated speed of 78 RPM and rated torque of 3.06 Kg·cm.

$20.50

Quantity Available: 8

Qty Price
5 $19.68
10 $18.86
25 $18.45
50 $18.04
100 $17.63
50+...

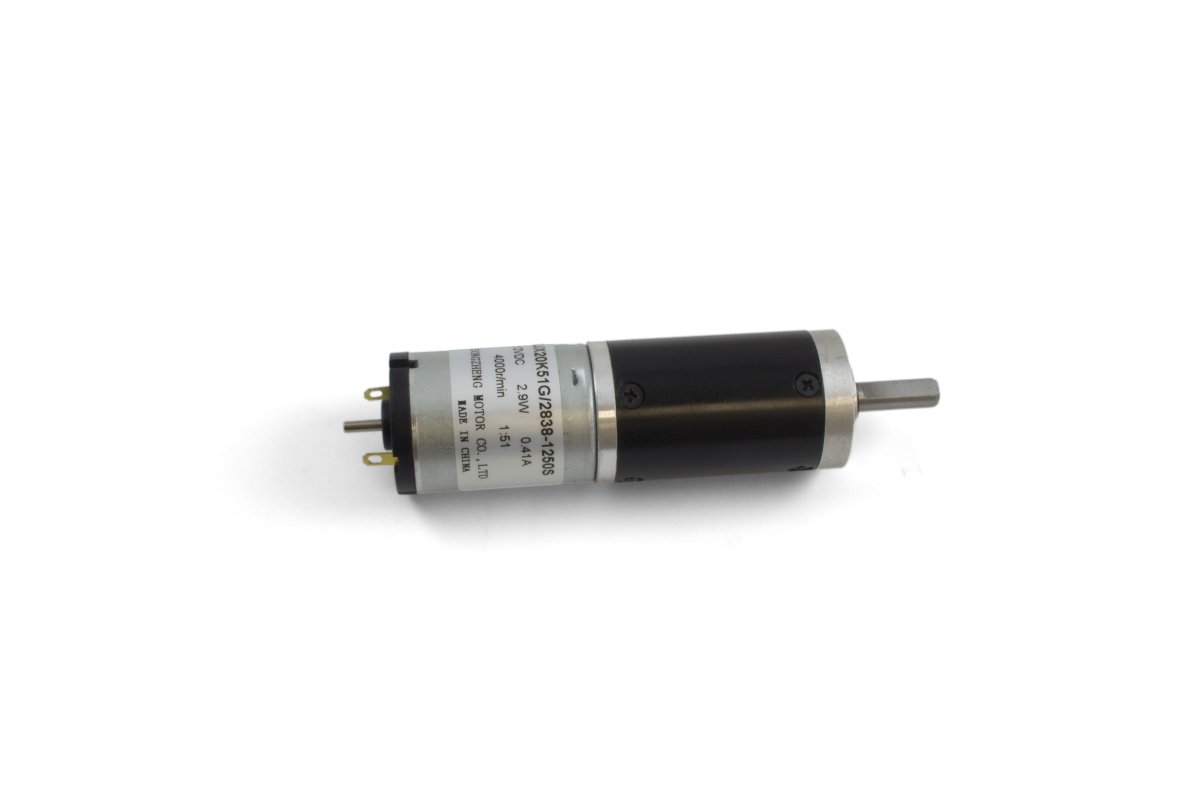

The 3263 is a 12 volt gear motor, generating 3.06 Kg-cm of torque at 78 RPM. This motor is quite compact considering the amout of power it can output.

The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.

Features

  • Rated for 3.06 kg-cm of torque
  • Reach speeds of up to 78RPM
  • Connects directly to a Phidgets DC Motor Controller
  • Best performance with controllers that can provide 410mA or more

Connection

This motor can be controlled by a DC motor controller. You can find a list of suitable controllers on the Connection & Compatibility tab.

Guides

DC Motor Controllers

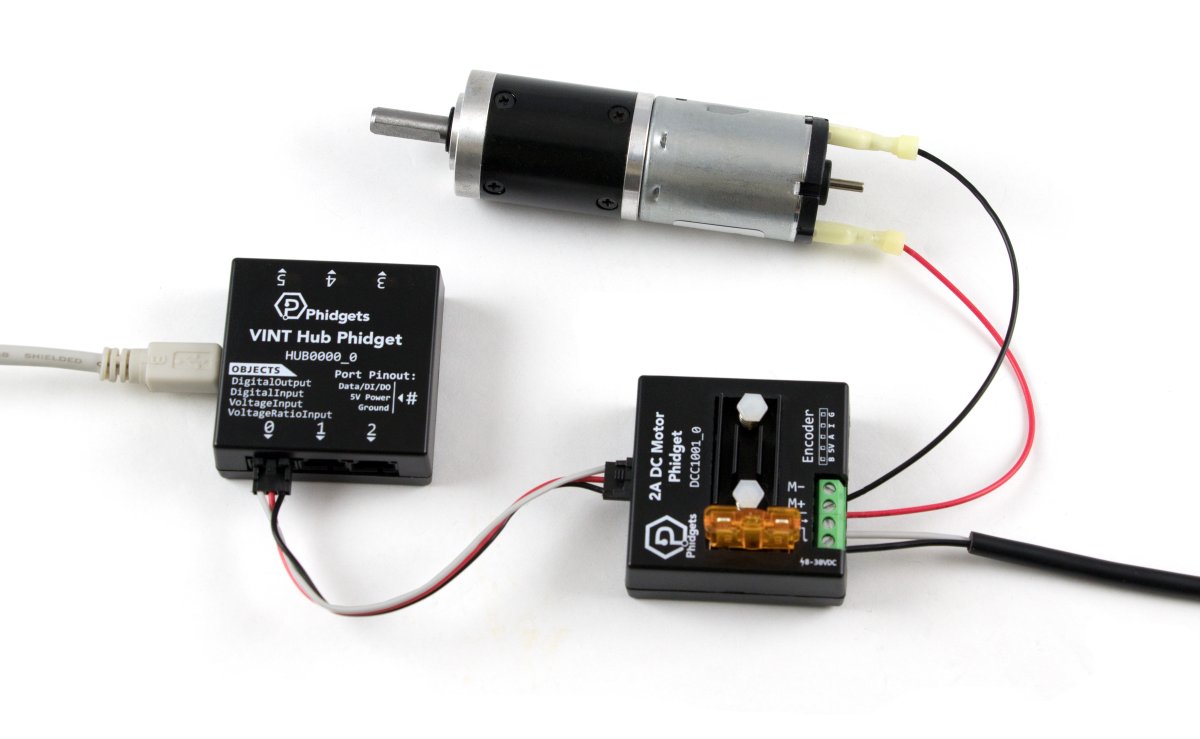

DC motors can be simply connected to a power supply according to their rated voltage in order to make them run, but if you want to have control over direction, velocity, and acceleration in real-time, you'll need to use a motor controller. In order to connect this motor to a controller, you'll need to solder wires to the contacts on the back of the motor and connect those wires to the motor terminal on the controller. Don't worry about wiring the motor backwards; doing so will only reverse the direction of rotation.

Product Controller Properties Electrical Properties Board Properties
Part Number Price Number of Motor Ports Velocity Resolution Acceleration Resolution Continuous Motor Current Max Controlled By
1064_1B
PhidgetMotorControl HC
$115.00 2 0.79 Duty Cycle 1.9 Duty Cycle/s (per motor) 14 A USB (Mini-USB)
1065_1B
PhidgetMotorControl 1-Motor
$75.00 1 0.39 Duty Cycle 24.5 Duty Cycle/s 5 A USB (Mini-USB)
DCC1000_0
DC Motor Phidget
$75.00 1 0.001 Duty Cycle 1 Duty Cycle/s 25 A VINT
DCC1002_0
4A DC Motor Phidget
$40.00 1 0.001 Duty Cycle 0.1 Duty Cycle/s 4 A VINT
DCC1003_0
2x DC Motor Phidget
$60.00 2 0.001 Duty Cycle 0.1 Duty Cycle/s (per motor) 4 A VINT

Shaft Couplers

If you need to connect the main shaft of this motor to another device with a shaft, you can use a shaft coupler:

Product Physical Properties
Part Number Price Inner Diameter Material Coupling Rated Torque Coupling Rated Speed Torsional Stiffness
TRM4338_0
Jaw Coupling Half 6mm Series 12
$2.80 6 mm Aluminum 35.7 kg·cm 12000 RPM

Pulleys and Sprockets

If you're using this motor to drive a rotary system that requires a lot of torque, you may be interested in pulleys and sprockets. By using a two pulleys or sprockets of different sizes, you can increase the gear ratio of the motor. Pulleys and sprockets can also be used to transmit the motor's rotation over a long distance. For more guidance on building a transmission system, visit our Rotary Motion Guide. Here is a list of our 6mm bore pulleys and sprockets:

Product Physical Properties
Part Number Price Inner Diameter Number of Teeth
TRM4162_0
GT2 Pulley with 6mm Bore and 22 Teeth
$2.50 6 mm 22

Mounting Brackets

Mounting this motor to a flat surface is easy with these metal mounting brackets. The holes on the bracket match those on the front of the gearbox. The following brackets will fit the mounting holes on this motor:

Product Physical Properties
Part Number Price Mounting Plate Size Material
3337_0
Motor Mounting Bracket (NEMA 11)
$3.00 NEMA - 11 Mild Steel (Coated)

Product Specifications

Motor Properties
Motor Type DC Motor
Output Power (Mechanical) 2.9 W
Rated Speed 78 RPM
Rated Torque 3.1 kg·cm
Stall Torque 18.2 kg·cm
Electrical Properties
Rated Voltage 12 V DC
Rated Current 410 mA
Stall Current 1.5 A
Physical Properties
Shaft Diameter 6 mm
Weight 193 g
Recommended Wire Size (Motor) 20 - 25 AWG
Gearbox Specifications
Gearbox Type Planetary
Gear Ratio 50 801895 : 1
Number of Gear Trains 3
Maximum Strength of Gears 30 kg·cm
Shaft Maximum Axial Load 35 N
Shaft Maximum Radial Load 25 N
Backlash Error
Customs Information
Canadian HS Export Code 8501.10.00
American HTS Import Code 8501.10.40.60
Country of Origin CN (China)

Documents


Here's a list of our DC motors:

Product Motor Properties Physical Properties Gearbox Specifications
Part Number Price Rated Speed Rated Torque Shaft Diameter Weight Gear Ratio Gearbox Type
3254_0
12V/0.2Kg-cm/230RPM 10:1 DC Gear Motor
$10.00 230 RPM 200 g·cm 6 mm 128 g 10 : 1 Spur
3255_0
12V/0.3Kg-cm/127RPM 18:1 DC Gear Motor
$10.00 127 RPM 310 g·cm 6 mm 133 g 18 : 1 Spur
3256_0
12V/0.8Kg-cm/46RPM 50:1 DC Gear Motor
$11.00 46 RPM 820 g·cm 6 mm 137 g 50 : 1 Spur
3257_0
12V/1.6Kg-cm/23RPM 100:1 DC Gear Motor
$11.00 23 RPM 1.6 kg·cm 6 mm 136 g 100 : 1 Spur
3261_0
12V/0.2Kg-cm/1080RPM 3.7:1 DC Gear Motor
$18.00 1080 RPM 240 g·cm 6 mm 144 g 3 1217 : 1 Planetary
3262_1
12V/0.9Kg-cm/285RPM 14:1 DC Gear Motor
$18.00 285 RPM 900 g·cm 6 mm 170 g 13 212289 : 1 Planetary
3263_1
12V/3.0Kg-cm/78RPM 51:1 DC Gear Motor
$20.50 78 RPM 3.1 kg·cm 6 mm 193 g 50 801895 : 1 Planetary
3265_0
12V/0.5Kg-cm/670RPM 3.7:1 DC Gear Motor
$38.00 670 RPM 540 g·cm 8 mm 416 g 3 1217 : 1 Planetary
3266_1
12V/1.9Kg-cm/175RPM 14:1 DC Gear Motor
$42.00 175 RPM 1.9 kg·cm 8 mm 464 g 13 212289 : 1 Planetary
3267_0
12V/6.6Kg-cm/49RPM 51:1 DC Gear Motor
$33.00 49 RPM 6.6 kg·cm 8 mm 526 g 50 801895 : 1 Planetary
3267_1
12V/6.6Kg-cm/49RPM 51:1 DC Gear Motor
$43.00 49 RPM 6.6 kg·cm 8 mm 526 g 50 801895 : 1 Planetary
3268_1
12V/17.3Kg-cm/18RPM 139:1 DC Gear Motor
$43.00 18 RPM 17.3 kg·cm 8 mm 526 g * 139 1841221 : 1 Planetary
3269_3
24V/5.1Kg-cm/588RPM 4.25:1 DC Gear Motor
$69.00 588 RPM 4.4 kg·cm 12 mm 1.3 kg 4 14 : 1 Planetary
3270_2
24V/14.2Kg-cm/192RPM 13:1 DC Gear Motor
$66.00 192 RPM 13.3 kg·cm 12 mm 1.5 kg 12 2425 : 1 Planetary
3272_2
24V/50.9Kg-cm/53RPM 47:1 DC Gear Motor
$72.00 53 RPM 43.8 kg·cm 12 mm 1.7 kg 46 82125 : 1 Planetary
3273_2
24V/82.6Kg-cm/33RPM 76:1 DC Gear Motor
$72.00 33 RPM 71.4 kg·cm 12 mm 1.7 kg 76 4964 : 1 Planetary
3274_2
24V/173.3Kg-cm/15RPM 168:1 DC Gear Motor
$76.00 15 RPM 136.6 kg·cm 12 mm 2 kg 167 601625 : 1 Planetary
DCM4000_0
24V/2.5Kg-cm/3280RPM DC Motor
$40.00 3280 RPM 4 kg·cm 8 mm 1.4 kg
DCM4001_0
24V/10Kg-cm/772RPM/4.25:1 DC Gear Motor
$80.00 772 RPM 12.2 kg·cm 12 mm 1.9 kg 4 14 : 1 Planetary
DCM4002_0
24V/45Kg-cm/182RPM/18:1 DC Gear Motor
$82.00 182 RPM 47 kg·cm 12 mm 2.1 kg 18 : 1 Planetary
DCM4003_0
24V/162Kg-cm/50RPM/65:1 DC Gear Motor
$84.00 50 RPM 153 kg·cm 12 mm 2.2 kg 65 : 1 Planetary
DCM4004_0
24V/4.3Kg-cm/3000RPM DC Motor
$50.00 2800 RPM 8.7 kg·cm 10 mm 2.7 kg
DCM4005_0
24V/6Kg-cm/3200RPM DC Motor
$60.00 2900 RPM 11.4 kg·cm 10 mm 3.3 kg

Here's a list of DC motors with encoders attached:

Product Motor Properties Physical Properties Gearbox Specifications
Part Number Price Rated Speed Rated Torque Shaft Diameter Weight Gear Ratio Gearbox Type
3261E_1
12V/0.2Kg-cm/1080RPM 3.7:1 DC Gear Motor w/ Encoder
$48.00 1080 RPM 240 g·cm 6 mm 147 g 3 1217 : 1 Planetary
