Quantity Available: 504
| Qty | Price |
|---|---|
| 5 | $28.50 |
| 10 | $27.00 |
| 25 | $24.00 |
| 50 | $21.00 |
| 100 | $19.50 |
| 250 | $18.00 |
| 500 | $16.50 |
| 1000 | $15.00 |

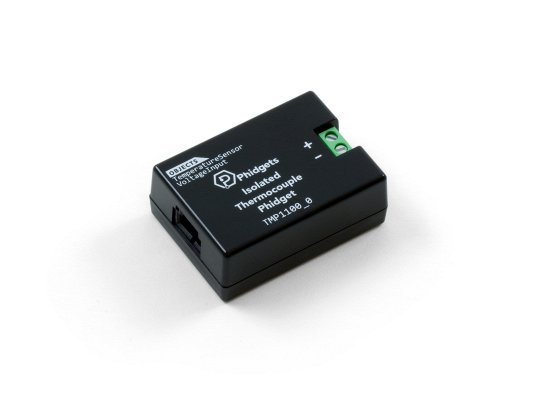

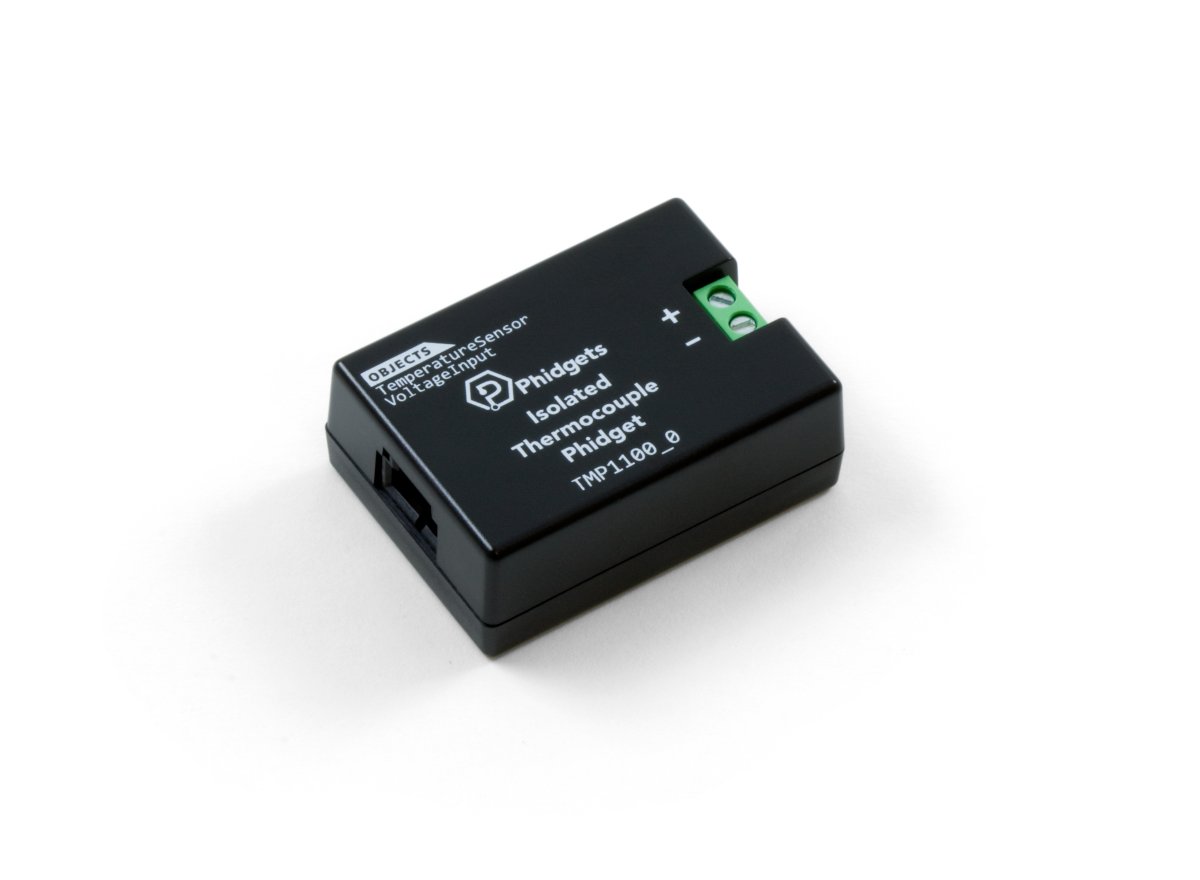

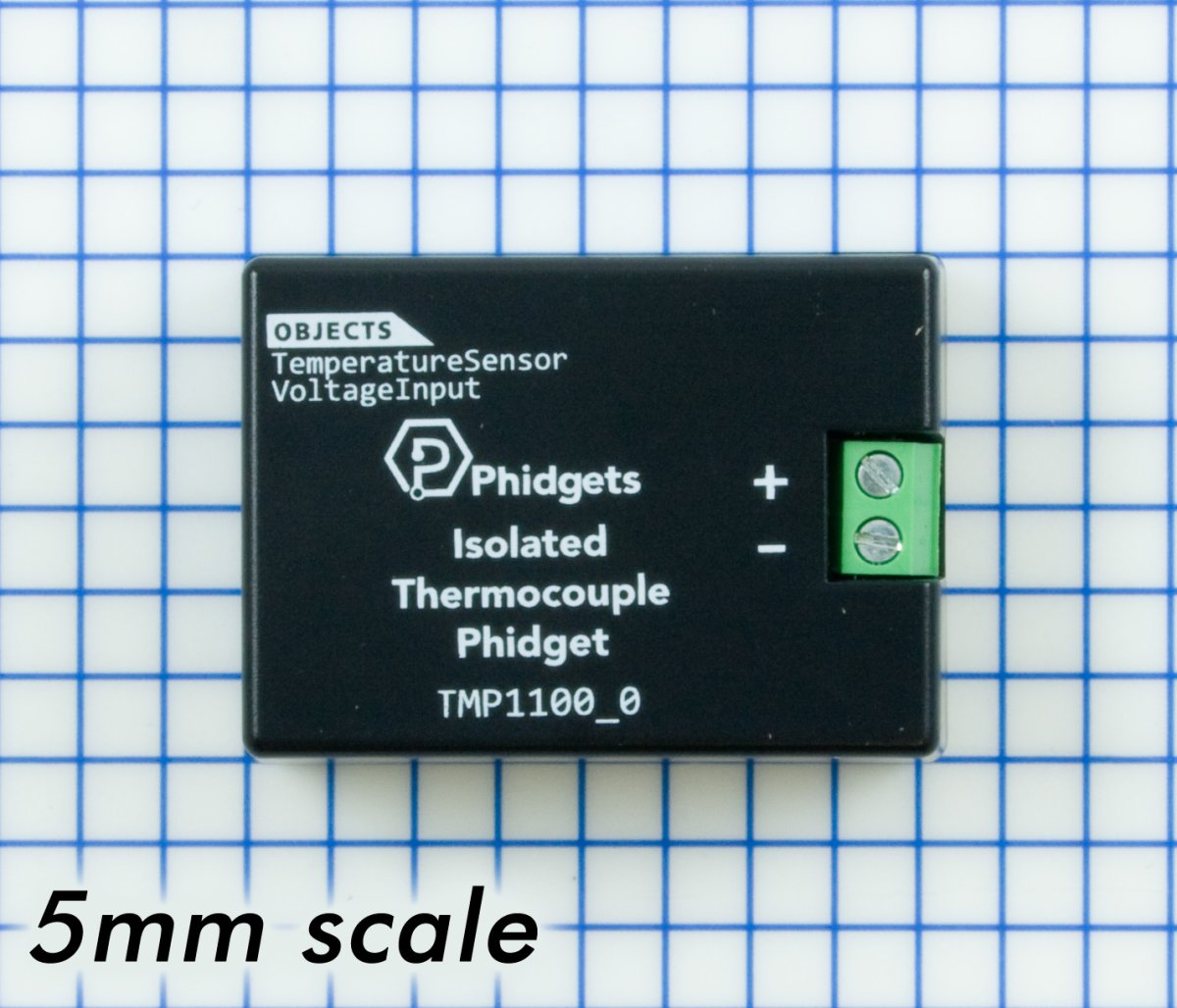

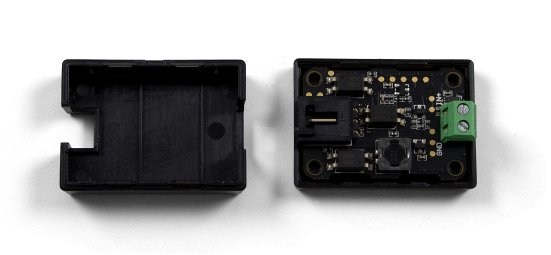

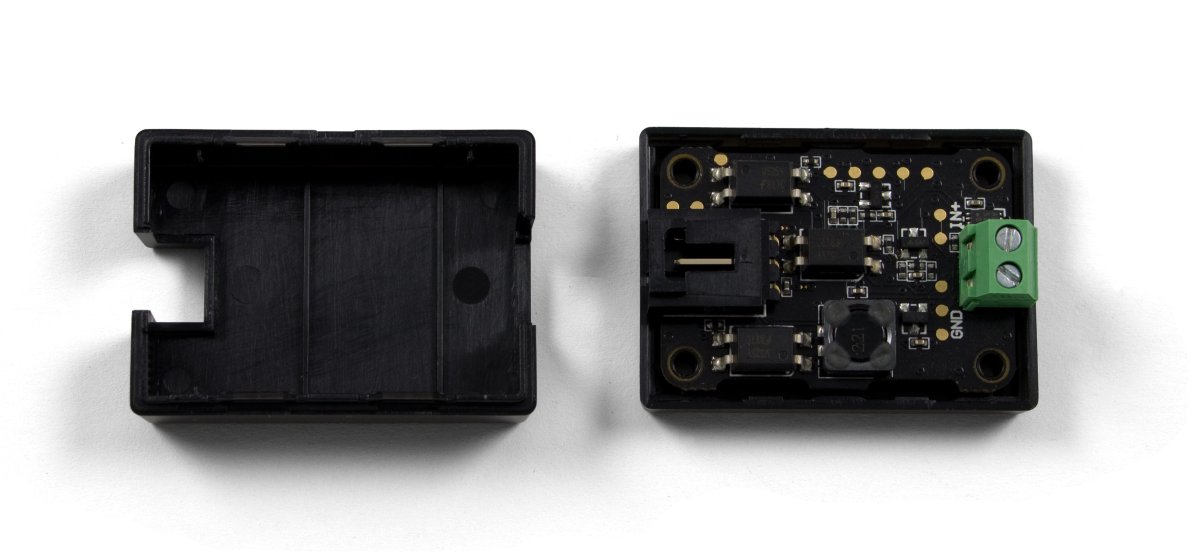

The TMP1100 with an attached thermocouple allows you to measure extreme temperatures. It is great for measuring temperatures in enclosed spaces or in liquids. This Phidget connects to your computer through a VINT Hub.
Here are some handy accessories for working with thermocouples. Extension wire, adapters, and plugs can be found here.
$4.00/Meter

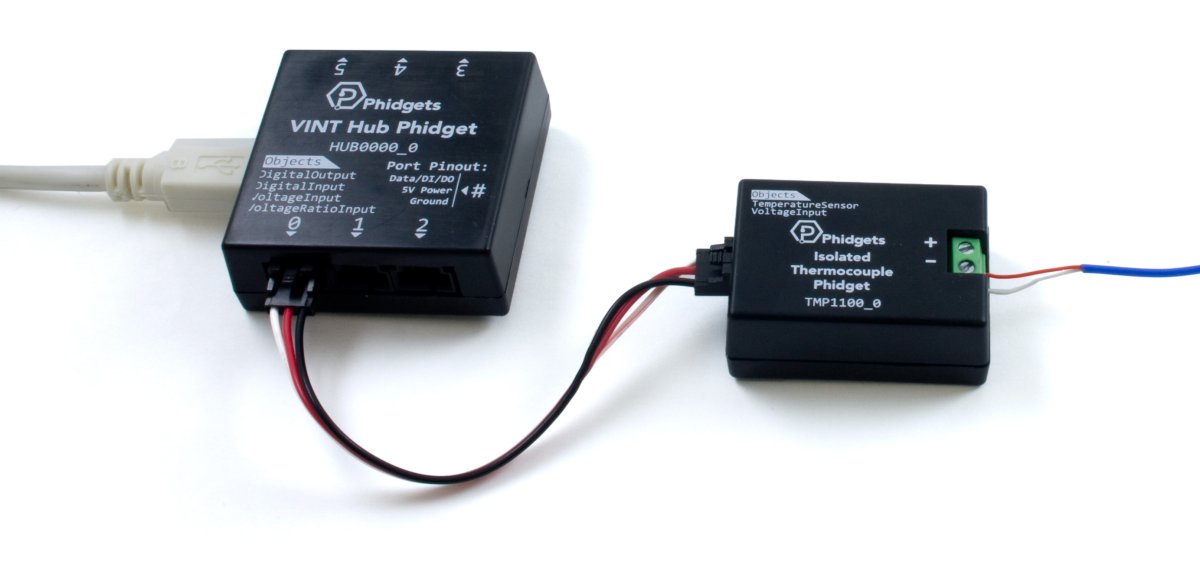

This Phidget is a smart device that must be controlled by a VINT Hub. For more information about VINT, have a look at the VINT Overview page. You can use a Phidget Cable to simply and easily connect the two devices. Here's a list of all of the different VINT Hubs currently available:
| Product | Board | ||
|---|---|---|---|
| Part Number | Price | Number of VINT Ports | Controlled By |
 VINT Hub Phidget
|
$30.00 | 6 | USB (Mini-USB) |
 Wireless VINT Hub
|
$60.00 | 6 | Local Network (Ethernet or Wi-Fi) |
 PhidgetSBC4
|
$120.00 | 6 | — |
Use a Phidget cable to connect this device to the hub. You can solder multiple cables together in order to make even longer Phidget cables, but you should be aware of the effects of having long wires in your system.
| Product | Physical Properties | |
|---|---|---|
| Part Number | Price | Cable Length |
 Phidget Cable 60cm
|
$2.00 | 600 mm |
 Phidget Cable 10cm
|
$1.50 | 100 mm |
 Phidget Cable 350cm
|
$3.00 | 3.5 m |
 Phidget Cable 120cm
|
$2.25 | 1.2 m |
 Phidget Cable 180cm
|
$2.75 | 1.8 m |
 Phidget Cable 30cm
|
$1.75 | 300 mm |
 Phidget Cable 90cm
|
$2.00 | 900 mm |
 Phidget Cable 150cm
|
$2.50 | 1.5 m |
You can connect one J,K,E or T type thermocouple to this Phidget. See the product page or data sheet for the thermocouple to determine which end plugs into the positive terminal on the Phidget. If you're not sure which end is which, it won't harm anything to try both configurations to determine which one is right. If the thermocouple is hooked up backward, you'll get erratic readings and the temperature will decrease when it should be increasing.
| Product | Temperature Sensor | ||||
|---|---|---|---|---|---|
| Part Number | Price | Thermocouple Type | Ambient Temperature Min | Ambient Temperature Max | Ambient Temperature Error Max |
 K-Type Teflon Bead Probe Thermocouple (-40°C to +200°C)
|
$5.00 | K | -40 °C | 200 °C | ± 0.75 °C |
 K-Type Fiberglass Bead Probe Thermocouple
|
$10.00 | K | -40 °C | 400 °C | ± 0.75 °C |
 K-Type Probe Thermocouple 11cm
|
$16.00 | K | -40 °C | 400 °C | 3.3 °C |
 K-Type Probe Thermocouple 20cm
|
$16.00 | K | -40 °C | 400 °C | 3.3 °C |
The TMP1100 with an attached thermocouple allows you to measure extreme temperatures. This Phidget connects to a J, K, E, or T type thermocouple. Choose the thermocouple type in software and data will be converted to degrees Celsius automatically. If you have other thermocouple types, you can open the channel in VoltageInput mode and convert it to Celsius manually.
You can use your Control Panel to explore your Phidget's channels.

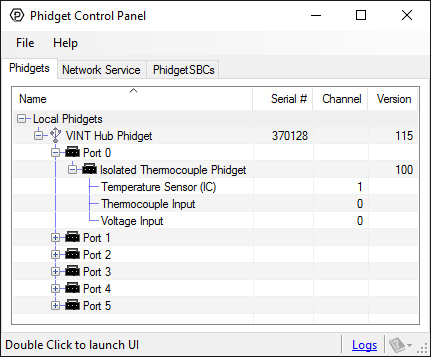

1. Open your Control Panel, and you will find the following channels:
2. Double click on a channel to open an example program. Each channel belongs to a different channel class:

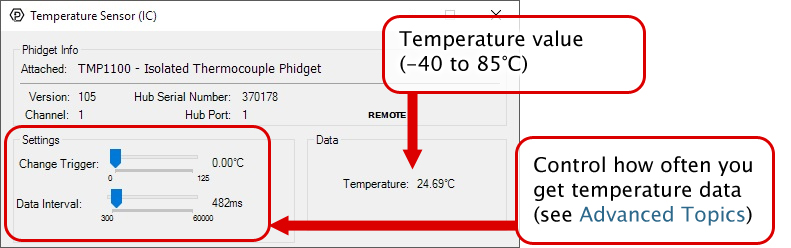

In your Control Panel, double click on "Temperature Sensor (IC)":

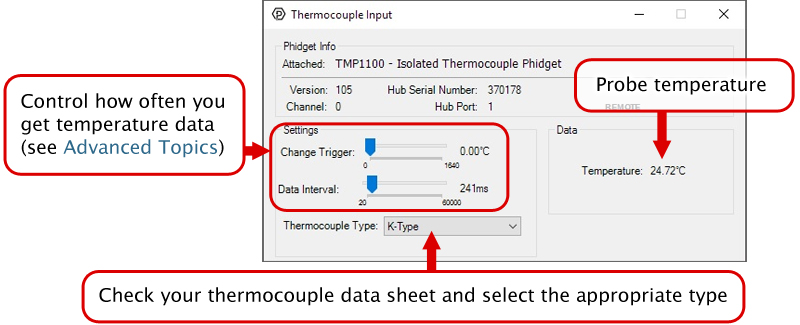

In your Control Panel, double click on "Thermocouple Input":

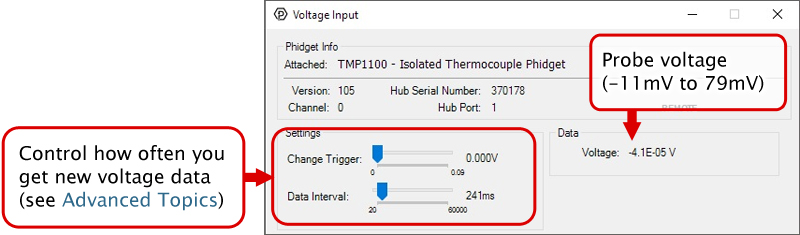

In your Control Panel, double click on "Voltage Input":
1. Setting up your Programming Environment
Before you open a Phidget channel in your program, you can set these properties to specify which channel to open. You can find this information through the Control Panel.
1. Open the Control Panel and double-click on the red map pin icon:
2. The Addressing Information window will open. Here you will find all the information you need to address your Phidget in your program.
See the Phidget22 API for your language to determine exact syntax for each property.
Note: Graphing and logging is currently only supported in the Windows version of the Phidget Control Panel.
In the Phidget Control Panel, open the channel for your device and click on the
icon next to the data type that you want to plot. This will open up a new window:
If you need more complex functionality such as logging multiple sensors to the same sheet or performing calculations on the data, you'll need to write your own program. Generally this will involve addressing the correct channel, opening it, and then creating an Event Handler and adding graphing/logging code to it.
The quickest way to get started is to download some sample code for your desired programming language and then search google for logging or plotting in that language (e.g. "how to log to csv in python") and add the code to the existing change handler.
You can perform filtering on the raw data in order to reduce noise in your graph. For more information, see the Control Panel Graphing page.
You can perform a transform on the incoming data to get different graph types that may provide insights into your sensor data. For more information on how to use these graph types, see the Control Panel Graphing page.
The Change Trigger is the minimum change in the sensor data needed to trigger a new data event. The Data Interval is the time (in ms) between data events sent out from your Phidget. You can modify one or both of these values to achieve different data outputs. You can learn more about these two properties here.
Firmware Upgrade
MacOS users can upgrade device firmware by double-clicking the device row in the Phidget Control Panel.
Linux users can upgrade via the phidget22admin tool (see included readme for instructions).
Windows users can upgrade the firmware for this device using the Phidget Control Panel as shown below.
Firmware Downgrade
Firmware upgrades include important bug fixes and performance improvements, but there are some situations where you may want to revert to an old version of the firmware (for instance, when an application you're using is compiled using an older version of phidget22 that doesn't recognize the new firmware).
MacOS and Linux users can downgrade using the phidget22admin tool in the terminal (see included readme for instructions).
Windows users can downgrade directly from the Phidget Control Panel if they have driver version 1.9.20220112 or newer:
Firmware Version Numbering Schema
Phidgets device firmware is represented by a 3-digit number. For firmware patch notes, see the device history section on the Specifications tab on your device's product page.
Thermocouples consist of two junctions, one where the thermocouple meets the Phidget and one where the two wires are welded together at the sensing end of the device. In simplified terms, a thermocouple works by detecting the temperature difference between these two junctions. To measure the temperature at the sensing end we need to know the temperature where the thermocouple connects to the Phidget. There is an ambient temperature sensor on the board. The thermocouple reading is automatically calculated using the data from the on board temperature sensor.
An important thing to note is that the ambient temperature sensor measures the temperature of the board and the air around it, though not specifically at the junction. Generally you can assume the two locations are nearly the same temperature, however as the electronics heat up by being powered on, there can be some small error introduced. This is exacerbated by having the board in an enclosed space where normal airflow is restricted thereby increasing the effect of self-heating. As a result we recommend that the board be left in as open and well ventilated/cooled a place as possible to minimize this error source.
For more information on thermocouples, check out the Thermocouple Guide.
| Board | |
|---|---|
| Controlled By | VINT |
| Number of Thermocouple Inputs | 1 |
| Thermocouple Input | |
| Thermocouple Voltage Resolution | 1 μV DC |
| Thermocouple Voltage Noise | 6 μV DC |
| Thermocouple Error Max (K-Type) | ± 2 °C |
| Thermocouple Temperature Resolution (K-Type) | 0.01 °C |
| Sampling Interval Min | 20 ms/sample |
| Sampling Interval Max | 60 s/sample |
| Onboard Temperature Sensor | |
| Temperature Error Max | ± 1 °C |
| Sampling Interval Max | 60 s/sample |
| Sampling Interval Min | 300 ms/sample |
| Temperature Error Typical (At 25°C) | ± 0.25 °C |
| Temperature Max | 85 °C |
| Temperature Min | -40 °C |
| Temperature Resolution | 0.06 °C |
| Electrical Properties | |
| Current Consumption Max | 17 mA |
| Physical Properties | |
| Recommended Wire Size | 16 - 26 AWG |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
| Customs Information | |
| Canadian HS Export Code | 8471.80.00 |
| American HTS Import Code | 8471.80.40.00 |
| Country of Origin | CN (China) |

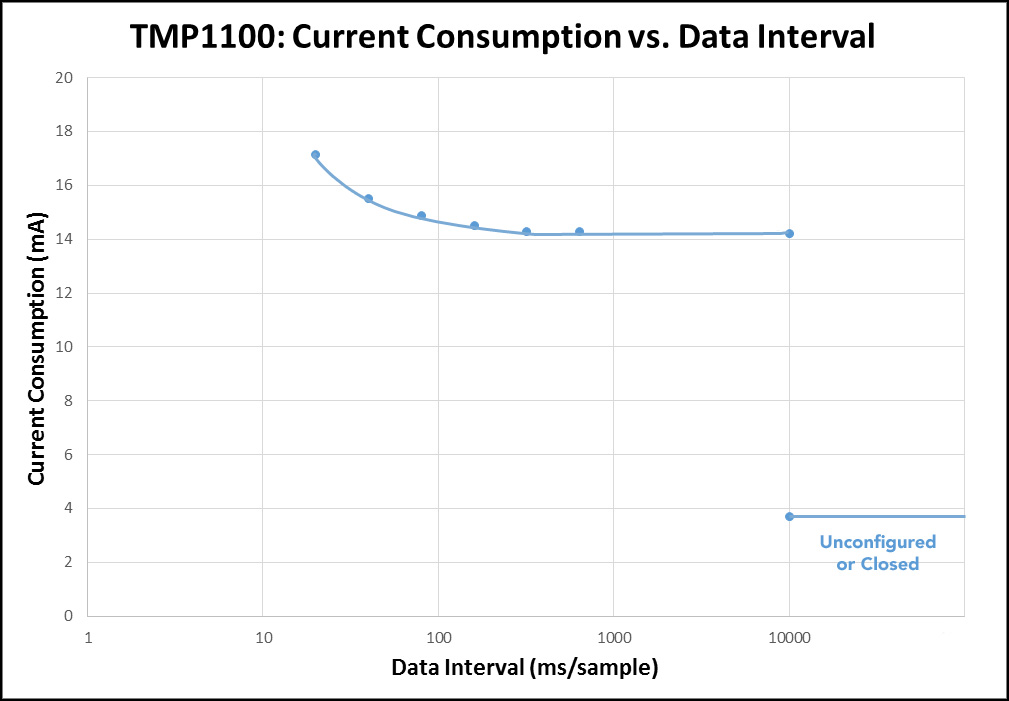

* - Current consumption varies depending on selected data interval. See the graph below for details.
| Date | Board Revision | Device Version | Comment |
|---|---|---|---|
| June 2017 | 0 | 103 | Product Release |
| June 2017 | 0 | 104 | Fixed change trigger and voltage saturation limits |
| June 2017 | 0 | 105 | Fixed timing when changing dataIntervals |
| January 2019 | 0 | 106 | Fixed calculations for high temperatures, added 50/60 Hz filtering |
| June 2021 | 0 | 108 | Adjusted interrupt priority to improve stability |
| April 2022 | 0 | 109 | Fixed VoltageInput saturation |
| Channel Name | API | Channel |
|---|---|---|
| Thermocouple Input | TemperatureSensor | 0 |
| Temperature Sensor (IC) | TemperatureSensor | 1 |
| Voltage Input | VoltageInput | 0 |
| API | Detail | Language | OS | |
|---|---|---|---|---|
| TemperatureSensor | Visual Studio GUI | C# | Windows | Download |
| TemperatureSensor | Java | Android | Download | |
| TemperatureSensor | JavaScript | Browser | Download | |
| TemperatureSensor | Objective-C | macOS | Download | |
| TemperatureSensor | Swift | macOS | Download | |
| TemperatureSensor | Swift | iOS | Download | |
| TemperatureSensor | Visual Basic .NET | Windows | Download | |
| TemperatureSensor | Max/MSP | Multiple | Download | |
| VoltageInput | Visual Studio GUI | C# | Windows | Download |
| VoltageInput | Java | Android | Download | |
| VoltageInput | Multi-Channel Example | JavaScript | Browser | Download |
| VoltageInput | JavaScript | Browser | Download | |
| VoltageInput | Objective-C | macOS | Download | |
| VoltageInput | Swift | macOS | Download | |
| VoltageInput | Swift | iOS | Download | |
| VoltageInput | Visual Basic .NET | Windows | Download | |
| VoltageInput | Max/MSP | Multiple | Download |
| Product | Board | Thermocouple Input | ||
|---|---|---|---|---|
| Part Number | Price | Controlled By | Number of Thermocouple Inputs | Thermocouple Voltage Resolution |
 PhidgetTemperatureSensor 4-Input
|
$100.00 | USB (Mini-USB) | 4 | 100 nV DC |
 Isolated Thermocouple Phidget
|
$30.00 | VINT | 1 | 1 μV DC |
 4x Thermocouple Phidget
|
$35.00 | VINT | 4 | 1 μV DC |
