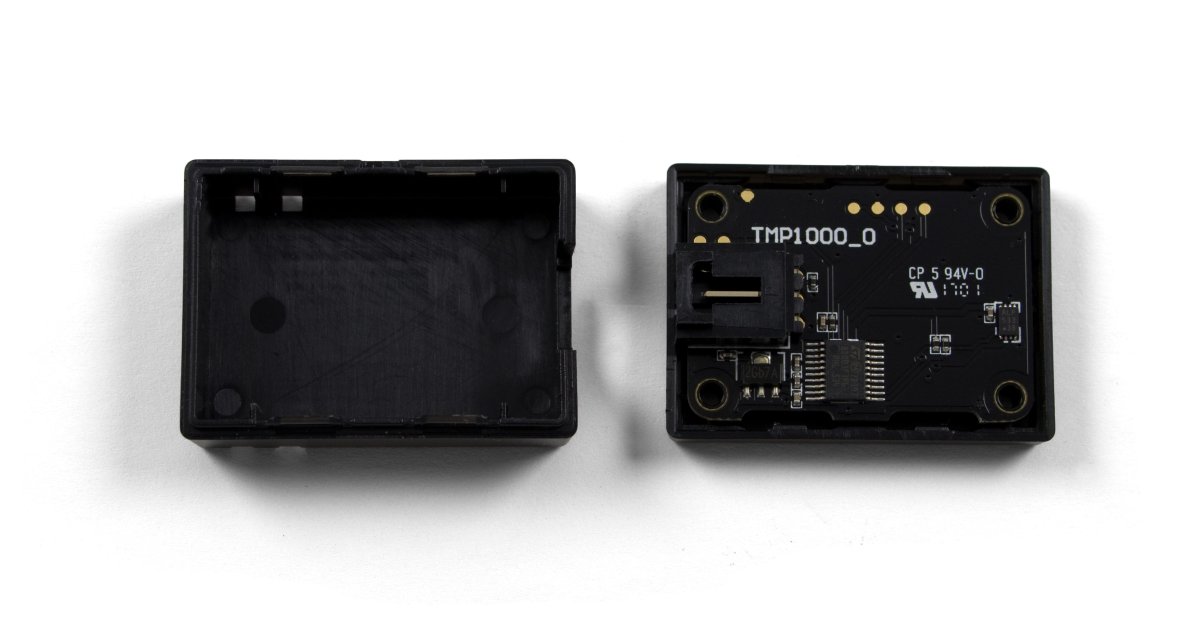

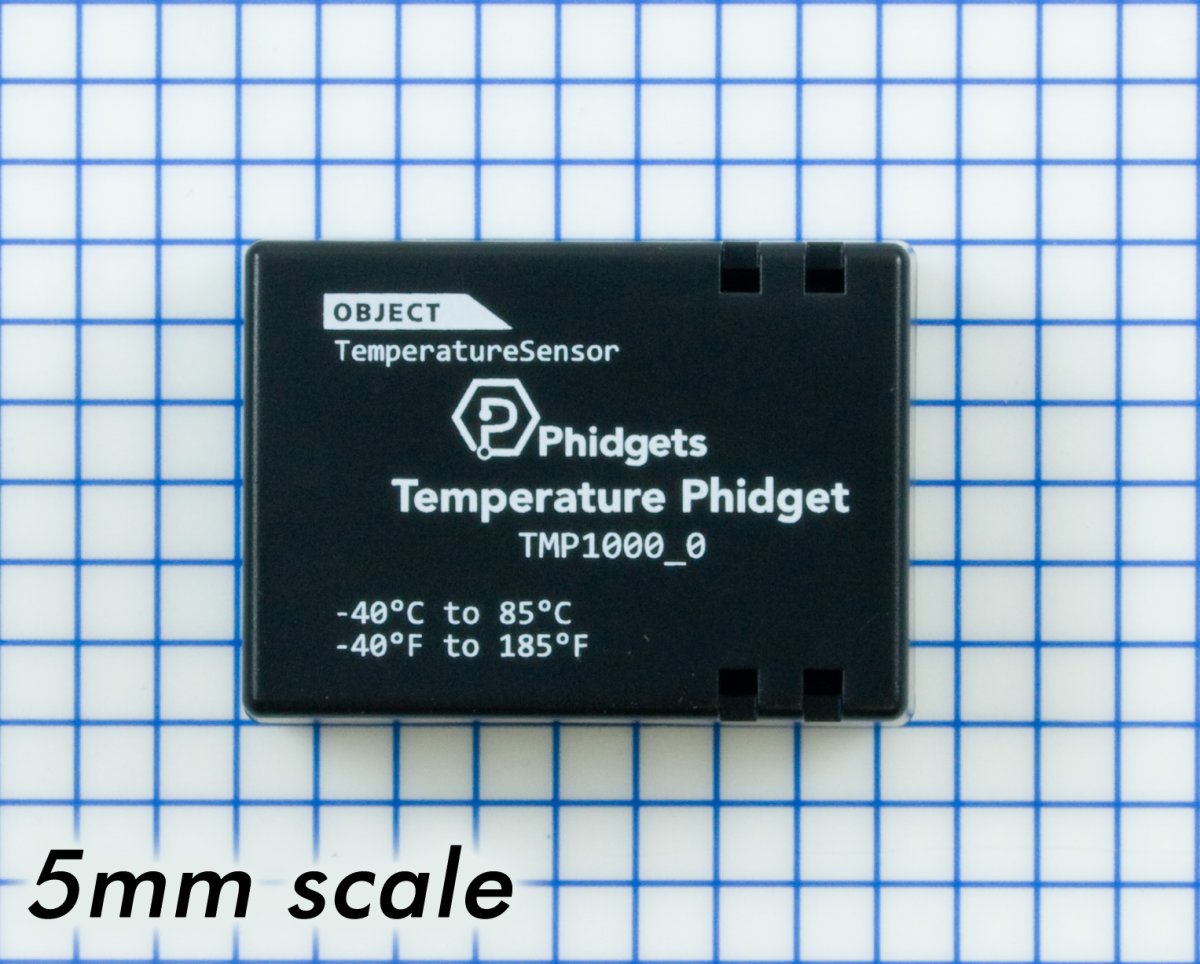

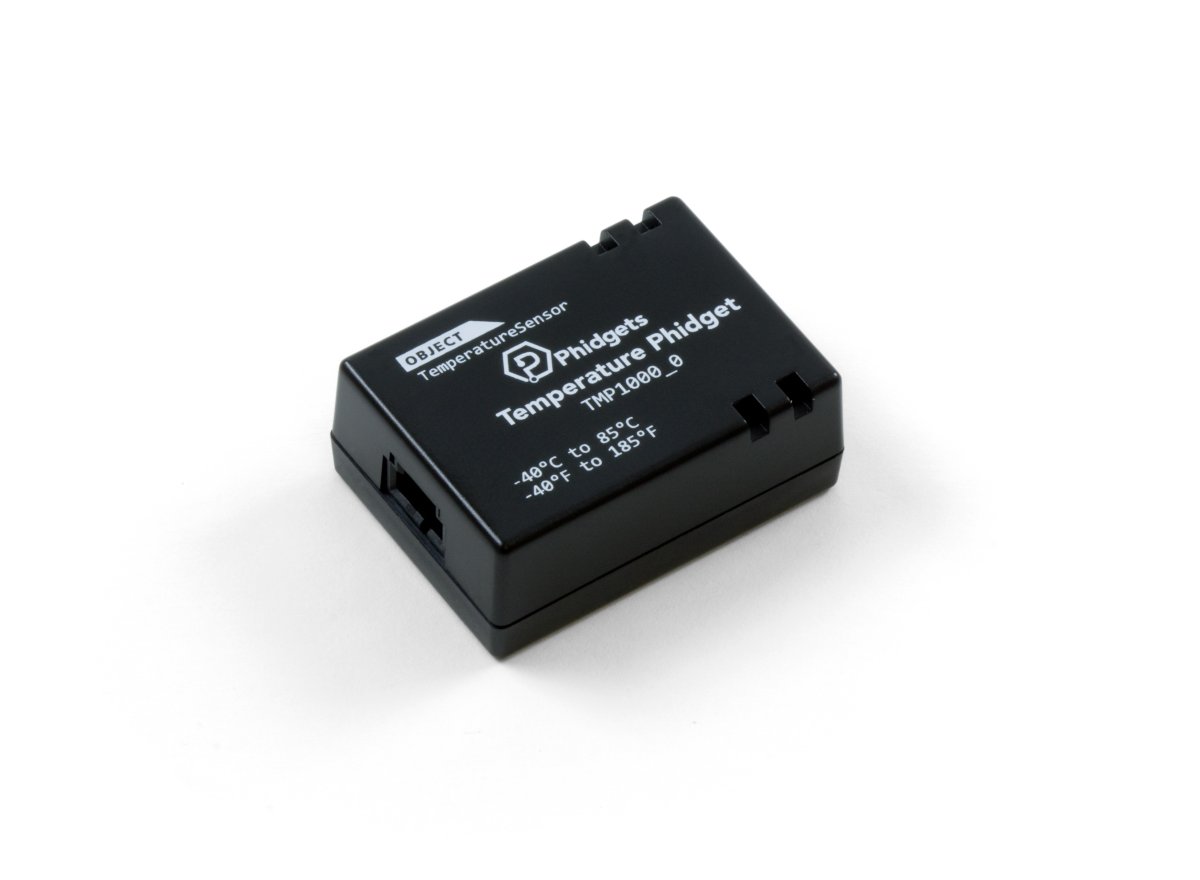

Temperature Phidget

ID: TMP1000_0

This Phidget connects to a VINT port and measures ambient temperature from -40°C to 85°C quickly and easily.

$15.00

Quantity Available: 871

Qty Price
5 $14.25
10 $13.50
25 $12.00
50 $10.50
100 $9.75
250 $9.00
500 $8.25
1000 $7.50

For when you need a temperature sensor, pure and simple: This Temperature Phidget can measure the ambient temperature of the surrounding air from -40°C to 85°C, perfect for home or outdoor use. Simply plug it into a port on your VINT Hub and with a single command you can read the current temperature in degrees Celsius (See the Comaptible Products tab for a list of VINT Hubs). If the temperature rises above 85°C or falls below -40°C, the API will fire a saturation error to notify that the measured temperature is out of range.



VINT Hubs

This Phidget is a smart device that must be controlled by a VINT Hub. For more information about VINT, have a look at the VINT Primer. You can use a Phidget Cable to simply and easily connect the two devices. Here's a list of all of the different VINT Hubs currently available:

Product Board
Image Part Number Price Number of VINT Ports
HUB0000_0 $30.00 6
SBC3003_0 $120.00 6

Phidget Cables

Use a Phidget cable to connect this device to the hub. You can solder multiple cables together in order to make even longer Phidget cables, but you should be aware of the effects of having long wires in your system.

Product Physical Properties
Image Part Number Price Cable Length
3002_0 $2.00 600 mm
3003_0 $1.50 100 mm
3004_0 $3.00 3.5 m
3034_0 $1.50 150 mm
3038_0 $2.25 1.2 m
3039_0 $2.75 1.8 m


Getting Started

Welcome to the TMP1000 user guide! In order to get started, make sure you have the following hardware on hand:


Next, you will need to connect the pieces:

TMP1000 Functional.jpeg

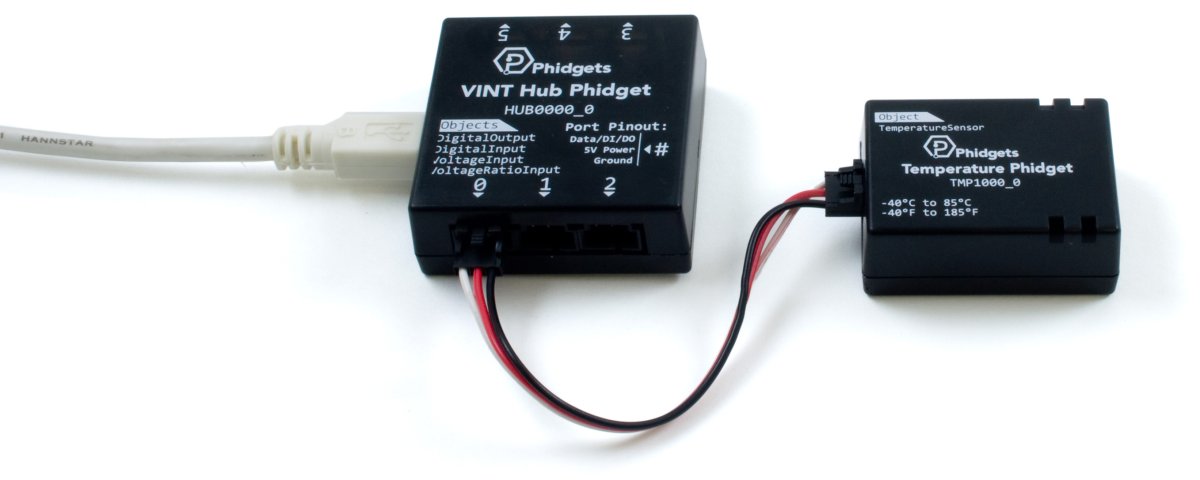

  1. Connect your device to your VINT Hub using the Phidget cable.
  2. Connect the VINT Hub to your computer.


Now that you have everything together, let's start using the TMP1000!

Using the TMP1000

Phidget Control Panel

In order to demonstrate the functionality of the TMP1000, the Phidget Control Panel running on a Windows machine will be used.


The Phidget Control Panel is available for use on both macOS and Windows machines.

Windows

To open the Phidget Control Panel on Windows, find the Ph.jpg icon in the taskbar. If it is not there, open up the start menu and search for Phidget Control Panel

Windows PhidgetTaskbar.PNG

macOS

To open the Phidget Control Panel on macOS, open Finder and navigate to the Phidget Control Panel in the Applications list. Double click on the Ph.jpg icon to bring up the Phidget Control Panel.


For more information, take a look at the getting started guide for your operating system:


Linux users can follow the getting started with Linux guide and continue reading here for more information about the TMP1000.

First Look

After plugging the TMP1000 into your computer and opening the Phidget Control Panel, you will see something like this:

TMP1000 Panel.jpg


The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:

  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.


The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

Temperature Sensor

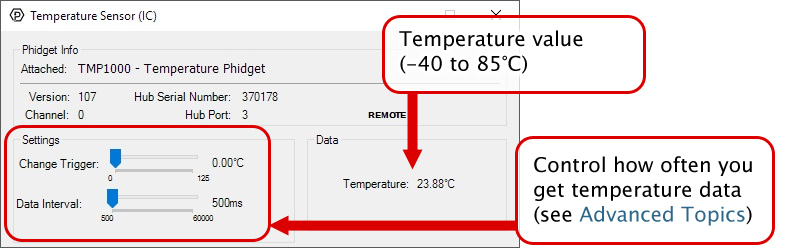

Double-click on the Temperature Sensor object , labelled Temperature Phidget, in order to run the example:

TMP1000 TemperatureSensorIC Example.jpg


General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

  • Modify the change trigger and/or data interval value by dragging the sliders. For more information on these settings, see the data interval/change trigger page.
  • The measured temperature can be seen next to the Temperature label. Cover the board with your hands to see the temperature quickly rise.


Finding The Addressing Information

Before you can access the device in your own code, and from our examples, you'll need to take note of the addressing parameters for your Phidget. These will indicate how the Phidget is physically connected to your application. For simplicity, these parameters can be found by clicking the button at the top of the Control Panel example for that Phidget.

The locate Phidget button is found in the device information box

In the Addressing Information window, the section above the line displays information you will need to connect to your Phidget from any application. In particular, note the Channel Class field as this will be the API you will need to use with your Phidget, and the type of example you should use to get started with it. The section below the line provides information about the network the Phidget is connected on if it is attached remotely. Keep track of these parameters moving forward, as you will need them once you start running our examples or your own code.

All the information you need to address your Phidget

Using Your Own Program

You are now ready to start writing your own code for the device. The best way to do that is to start from our examples:

This Phidget is compatible with the TemperatureSensor Examples.

Once you have your example, you will need to follow the instructions on the page for your programming language to get it running. To find these instructions, select your programming language from the Software Overview page.

What to do Next

  • Software Overview - Find your preferred programming language here to learn how to write your own code with Phidgets!
  • General Phidget Programming - Read this general guide to the various aspects of programming with Phidgets. Learn how to log data into a spreadsheet, use Phidgets over the network, and much more.
  • Phidget22 API - The API is a universal library of all functions and definitions for programming with Phidgets. Just select your language and device and it'll give you a complete list of all properties, methods, events, and enumerations that are at your disposal.

Product Specifications

Sensor Properties
Controlled By VINT
Sensor Type Temperature (Ambient)
Temperature Sensor
Ambient Temperature Min -40 °C
Ambient Temperature Max 85 °C
Temperature Resolution 0.063 °C
Temperature Error Typical (At 25°C) ± 0.25 °C
Temperature Error Max ± 1 °C
Sampling Interval Max 60 s/sample
Sampling Interval Min 500 ms/sample
Electrical Properties
Current Consumption Max 150 μA
Current Consumption Min 20 μA
Physical Properties
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C

Software Objects

Channel NameAPIChannel
Temperature Sensor (IC) TemperatureSensor 0

API


Back Forward
Print this API

Documents

Library & Driver Downloads

Code Samples

Language:

APIDetailLanguageOS
TemperatureSensor C Multiple Download
TemperatureSensor C# Windows Download
TemperatureSensor Java Multiple Download
TemperatureSensor Java Android Download
TemperatureSensor JavaScript Nodejs Download
TemperatureSensor JavaScript Browser Download
TemperatureSensor Objective-C macOS Download
TemperatureSensor Swift macOS Download
TemperatureSensor Swift iOS Download
TemperatureSensor Python Multiple Download
TemperatureSensor Visual Basic .NET Windows Download
TemperatureSensor Max/MSP Multiple Download

Projects

Product History

Fixed acceptable change trigger range
Date Board Revision Device Version Comment
June 20170105Product Release
June 20170106Fixed issue where first measurement was zero
June 20170107

Have a look at our ambient temperature sensors:

Product Sensor Properties Temperature Sensor
Image Part Number Price Sensor Type Controlled By Ambient Temperature Min Ambient Temperature Max Temperature Error Typical (At 25°C)
1124_0 $15.00 Temperature (Ambient) VoltageRatio Input -30 °C 80 °C ± 0.5 °C
1125_0 $50.00 Temperature/Humidity (Ambient) VoltageRatio Input -30 °C 80 °C ± 0.5 °C
HUM1000_0 $20.00 Humidity / Temperature VINT -40 °C 85 °C ± 0.3 °C
TMP1000_0 $15.00 Temperature (Ambient) VINT -40 °C 85 °C ± 0.25 °C
