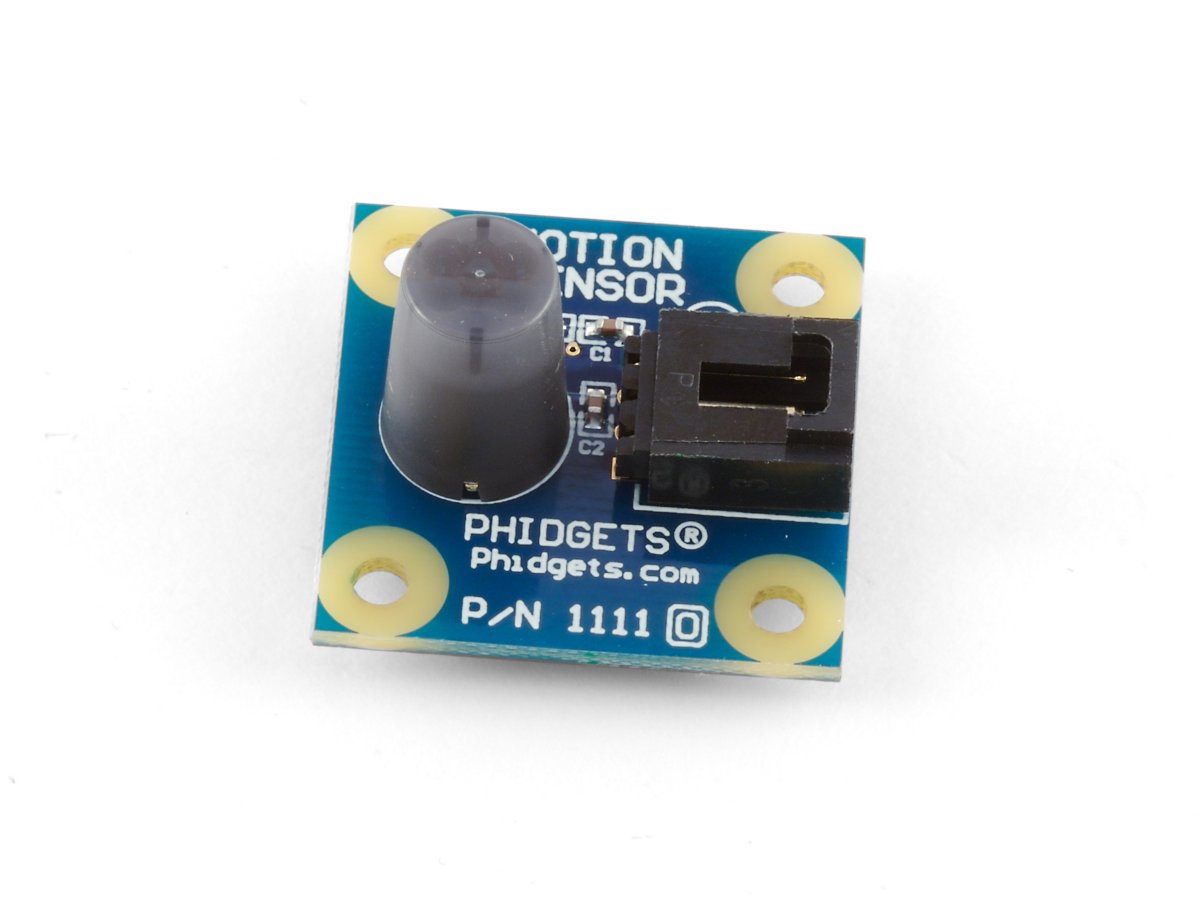

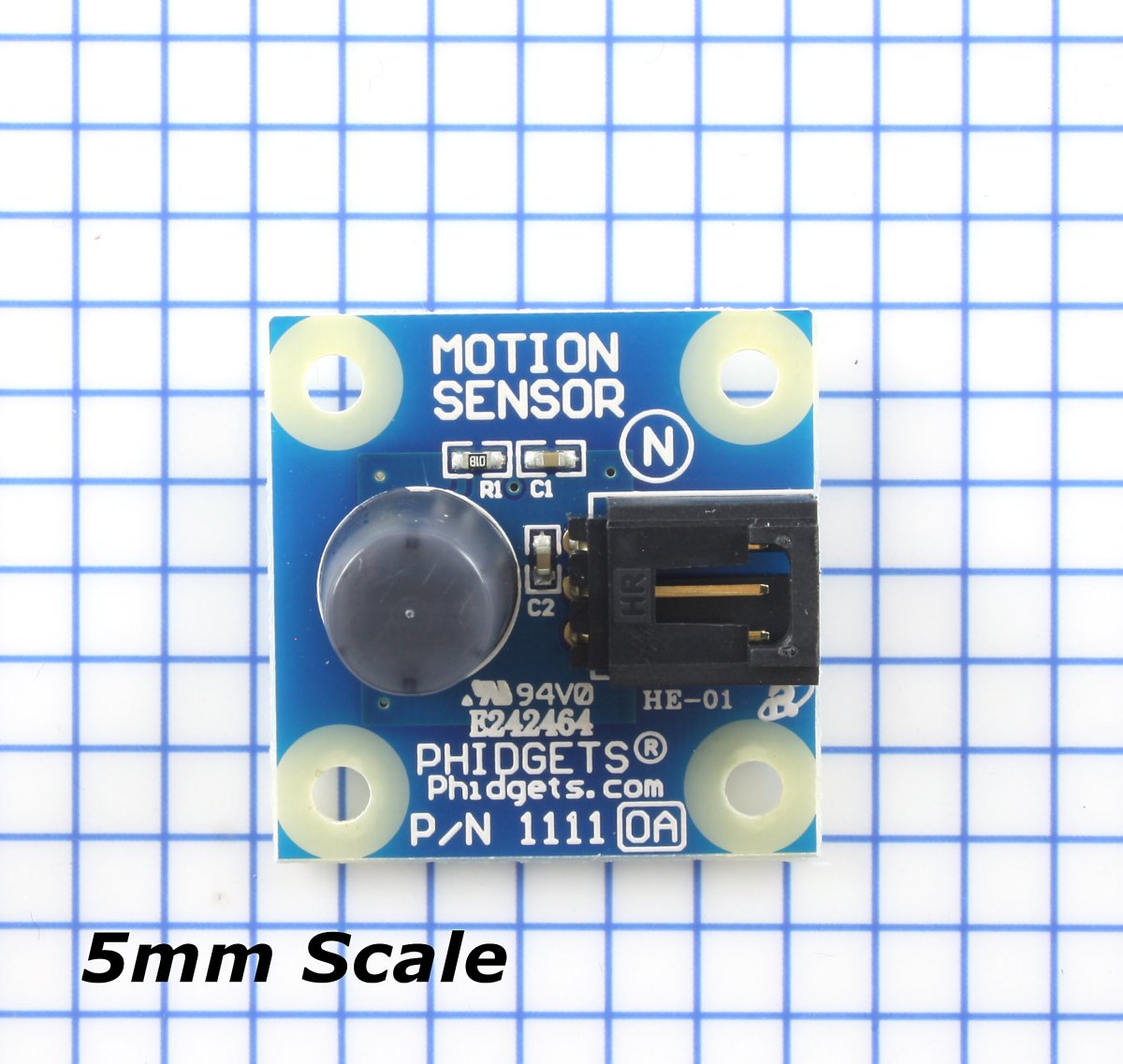

Motion Sensor

ID: 1111_0

Sensing changes in IR light, this sensor detects movement in a small room or hallway and connects to an Analog Input or VINT Hub port.

$45.00

Quantity Available: 506

Qty Price
5 $42.75
10 $40.50
25 $36.00
50 $31.50
100 $29.25

The 1111 detects changes in infrared radiation that occur when there is movement by a person (or object), which is different in temperature from the surroundings. As this sensor detects temperature differences, it is well suited to detecting the motion of people by their body temperature.

This sensor is also characterized by a narrow sensing area.


Comes packaged with

Product Specifications

Sensor Properties
Sensor Type Motion (Infrared)
Controlled By VoltageRatio Input
Sensor Output Type Ratiometric
Horizontal Detection Range 38°
Vertical Detection Range 22°
Motion Detection Distance 5 m
Electrical Properties
Current Consumption Max 15 μA
Output Impedance 1 kΩ
Supply Voltage Min 4.8 V DC
Supply Voltage Max 5.3 V DC
Physical Properties
Operating Temperature Min -20 °C
Operating Temperature Max 85 °C

Documents

Projects

Product History

Date Board Revision Device Version Comment
June 2002 0N/AProduct Release
August 20040N/AAnalog input connector changed from stereo jack to 3-pin

Getting Started

Welcome to the 1111 user guide! In order to get started, make sure you have the following hardware on hand:


Next, you will need to connect the pieces:

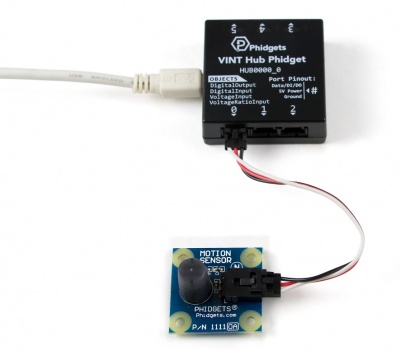

1111 0 Connecting The Hardware.jpg

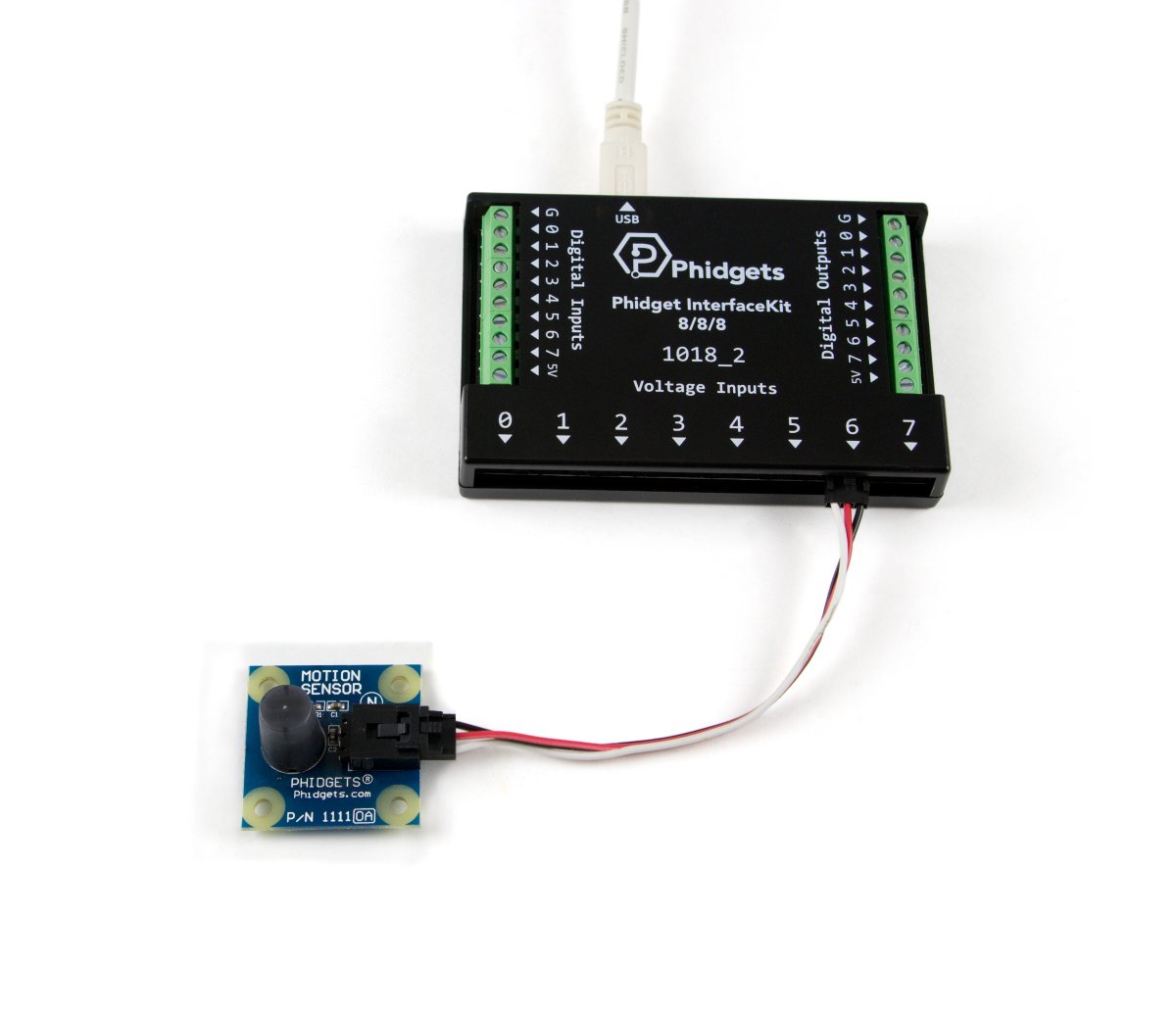

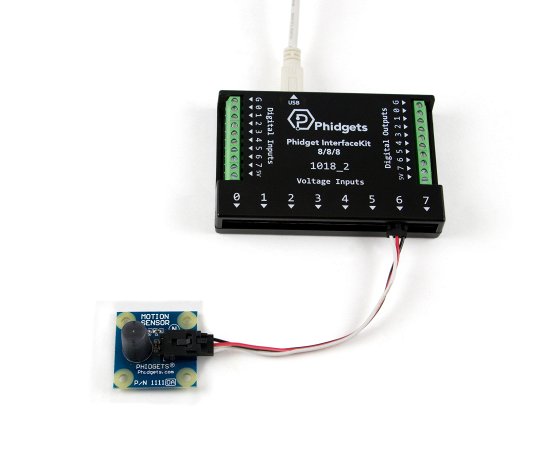

  1. Connect the 1111 to the 1018 with the Phidget cable.
  2. Connect the 1018 to your computer with the USB cable.


Now that you have everything together, let's start using the 1111!

Using the 1111

Phidget Control Panel

In order to demonstrate the functionality of the 1111, we will connect it to the 1018, and then run an example using the Phidget Control Panel on a Windows machine.


The Phidget Control Panel is available for use on both macOS and Windows machines. If you would like to follow along, first take a look at the getting started guide for your operating system:


Linux users can follow the getting started with Linux guide and continue reading here for more information about the 1111.

First Look

After plugging in the 1111 into the 1018, and the 1018 into your computer, open the Phidget Control Panel. You will see something like this:

1018 Panel.jpg


The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:

  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.


The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

Voltage Ratio Input

Double-click on a Voltage Ratio Input object in order to run the example:

1018 Sensors VoltageRatioInput.png


General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

  • Modify the change trigger and/or data interval value by dragging the sliders. For more information on these settings, see the data interval/change trigger page.
  • Select the 1111 from the Sensor Type drop-down menu. The example will now convert the voltage into a value from -1 to 1 automatically. Converting the voltage to a value from -1 to 1 is not specific to this example, it is handled by the Phidget libraries, with functions you have access to when you begin developing!


Technical Details

General

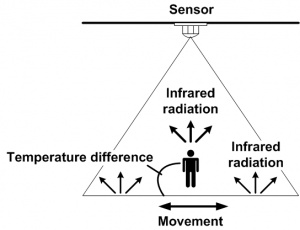

1111 0 What is infrared sensing.jpg

The 1111 detects changes in infrared radiation which occur when there is movement by a person (or object) which is different in temperature from the surroundings. As the 1111 detects temperature differences, it is well suited to detecting the motion of people by their body temperature. The sensor is also characterized by a narrow sensing area.

Phidget Cable


The Phidget Cable is a 3-pin, 0.100 inch pitch locking connector. Pictured here is a plug with the connections labelled. The connectors are commonly available - refer to the Analog Input Primer for manufacturer part numbers.

What to do Next

  • Software Overview - Find your preferred programming language here to learn how to write your own code with Phidgets!
  • General Phidget Programming - Read this general guide to the various aspects of programming with Phidgets. Learn how to log data into a spreadsheet, use Phidgets over the network, and much more.
  • Phidget22 API - The API is a universal library of all functions and definitions for programming with Phidgets. Just select your language and device and it'll give you a complete list of all properties, methods, events, and enumerations that are at your disposal.

Interface Boards and Hubs

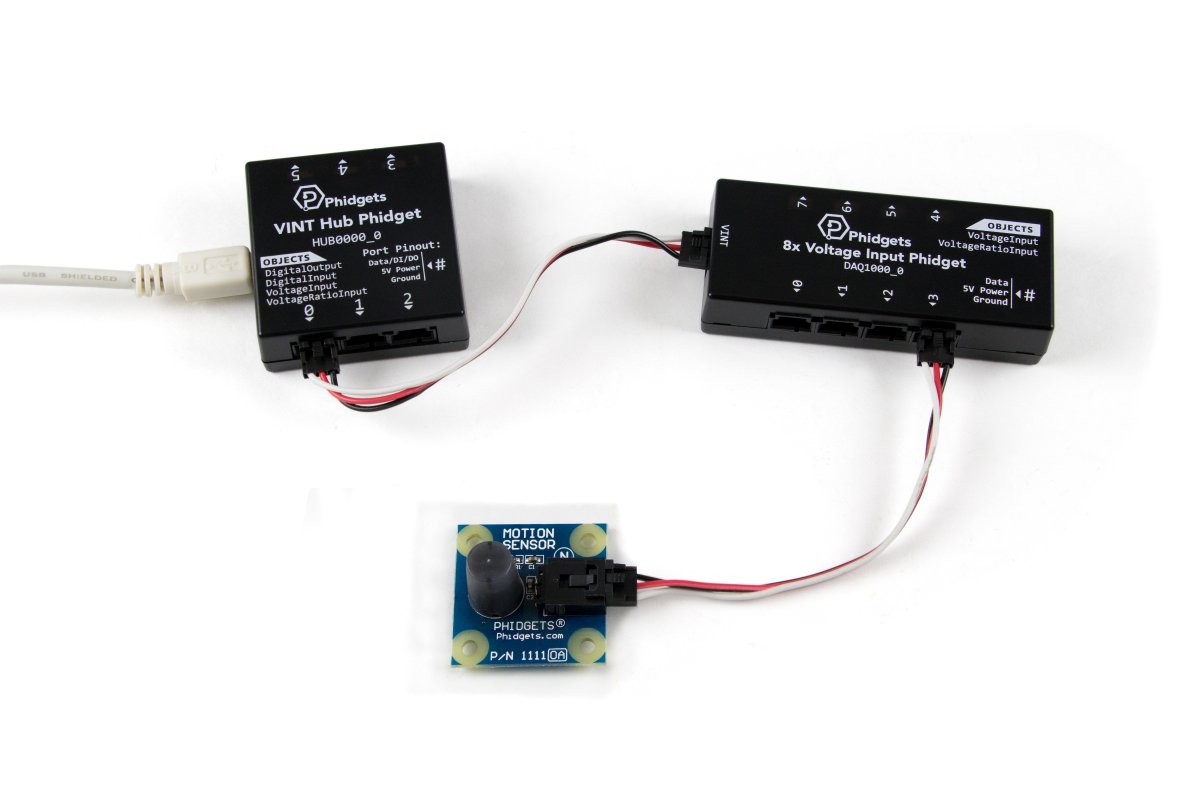

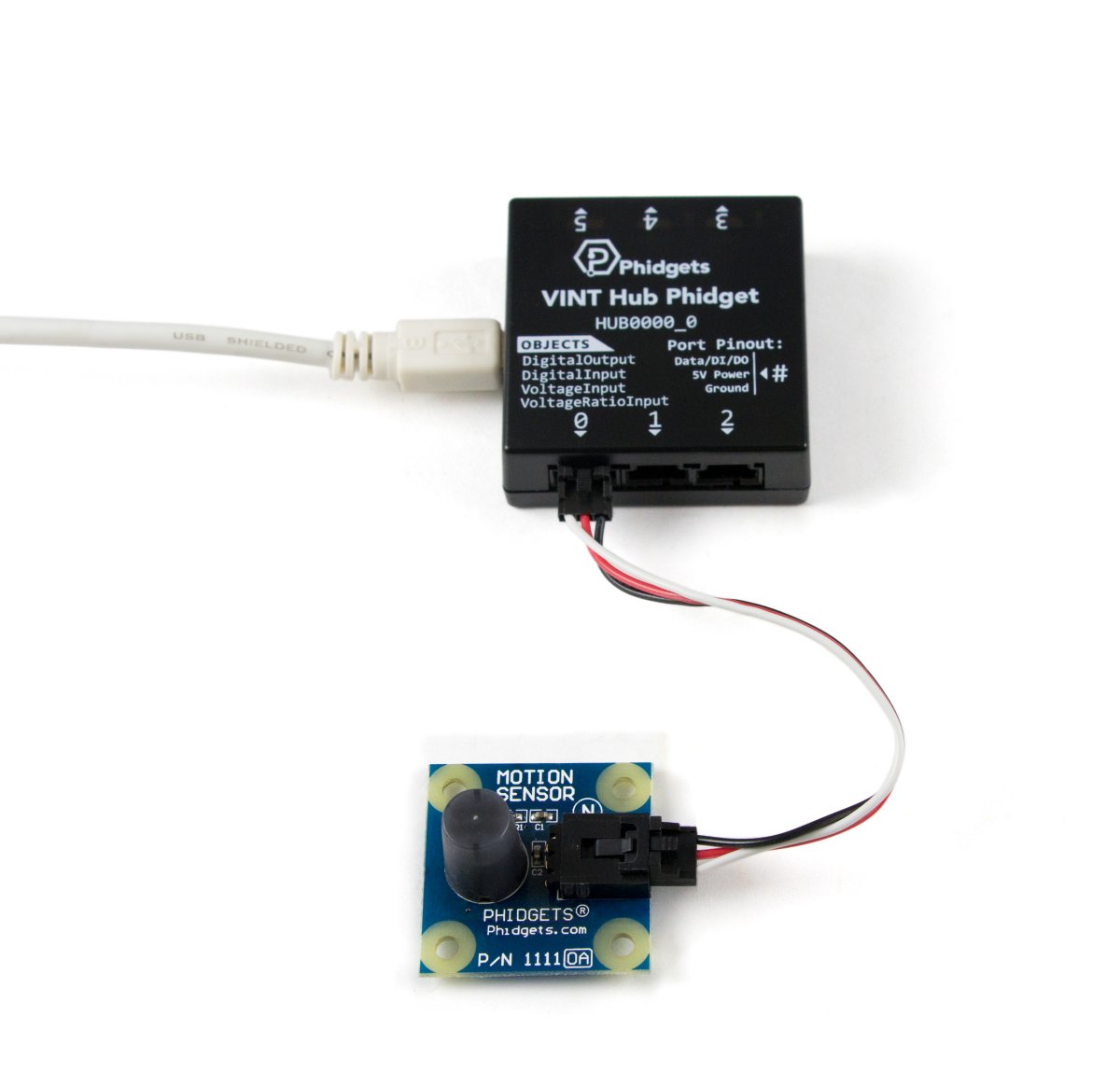

This sensor can be read by any Phidget with an Analog Input or VINT Hub port. It will connect to either one using the included Phidget cable. VINT Hub ports can behave just like Analog Inputs, but have the added flexibility of being able to be used as digital inputs, digital outputs, or ports to communicate with VINT devices. For more information about VINT, see the VINT Primer.

Product Voltage Inputs
Image Part Number Price Number of Voltage Inputs Voltage Input Resolution
1010_0 $80.00 8 10 bit
1011_0 $50.00 2 10 bit
1018_2 $80.00 8 10 bit
1019_1 $115.00 8 10 bit
1203_2 $125.00 8 10 bit
DAQ1000_0 $20.00 8 12 bit
HUB0000_0 $30.00 6 (Shared) * 16 bit
SBC3003_0 $120.00 6 (Shared) * 16 bit

Phidget Cables

This sensor comes with its own Phidget cable to connect it to an InterfaceKit or Hub, but if you need extras we have a full list down below. You can solder multiple cables together in order to make even longer Phidget cables, but you should be aware of the effects of having long wires in your system.

Product Physical Properties
Image Part Number Price Cable Length
3002_0 $2.00 600 mm
3003_0 $1.50 100 mm
3004_0 $3.00 3.5 m
3034_0 $1.50 150 mm
3038_0 $2.25 1.2 m
3039_0 $2.75 1.8 m
