GT5 Pulley with 10mm Bore and 16 Teeth (4mm Keyway)

ID: TRM4163_1

$3.50

Quantity Available: 81

Qty Price
5 $3.33
10 $3.15
25 $2.80
50 $2.45
100 $2.28
50+...

Pulley for GT5 timing belts. 10mm bore with a 4mm keyway. Machined from aluminum.

Features

  • Fits onto a 10mm shaft
  • 4mm keyway for a solid connection to keyed shaft
  • Tightens on with two 1.5mm hex screws
  • For use with GT5 size belt

Guides

Belts

This pulley can be used with any GT5 series belt. The size of belt required depends on the desired distance between your two pulleys; for installation details see the Rotary Motion Guide.

Product Physical Properties
Part Number Price Pulley Series Belt Circumference Working Tensile Strength
TRM4208_0
275mm GT5x15mm Timing Belt
$3.50 GT5 275 mm 444 N
TRM4209_0
350mm GT5x15mm Timing Belt
$3.00 GT5 350 mm 444 N
TRM4210_0
420mm GT5x15mm Timing Belt
$3.75 GT5 420 mm 444 N
TRM4211_0
500mm GT5x15mm Timing Belt
$3.75 GT5 500 mm 444 N
TRM4212_0
600mm GT5x15mm Timing Belt
$5.55 GT5 600 mm 444 N
TRM4213_0
770mm GT5x15mm Timing Belt
$5.55 GT5 770 mm 444 N
TRM4214_0
850mm GT5x15mm Timing Belt
$6.70 GT5 850 mm 444 N
TRM4215_0
1000mm GT5x15mm Timing Belt
$7.40 GT5 1 m 444 N
TRM4216_0
1400mm GT5x15mm Timing Belt
$9.65 GT5 1.4 m 444 N
TRM4217_0
1715mm GT5x15mm Timing Belt
$11.85 GT5 1.7 m 444 N
TRM4219_0
GT5x15mm Timing Belt Open
$5.20/Meter GT5 444 N

Brushless DC Motors

Brushless DC motors combine smooth rotation with accurate position control. This pulley can connect to the following BLDC Motors:

Product Physical Properties Motor Properties
Part Number Price Shaft Diameter Keyway Width Rated Speed Rated Torque
DCM4105_1
NEMA17 - Brushless DC Motor - 106:1 Gearbox
$85.00 10 mm 4 mm 38 RPM 96.9 kg·cm

DC Motors

Brushed DC motors are the simplest and most cost effective type of motor. This pulley can connect to the following DC Motors:

Product Physical Properties Motor Properties Electrical Properties Gearbox Specifications
Part Number Price Shaft Diameter Keyway Width Rated Torque Rated Voltage Gearbox Type Gear Ratio
DCM4004_0
24V/7Kg-cm/3000RPM DC Motor
$50.00 10 mm 4 mm 7.1 kg·cm 24 V DC
DCM4005_0
24V/9.6Kg-cm/3200RPM DC Motor
$60.00 10 mm 4 mm 9.7 kg·cm 24 V DC

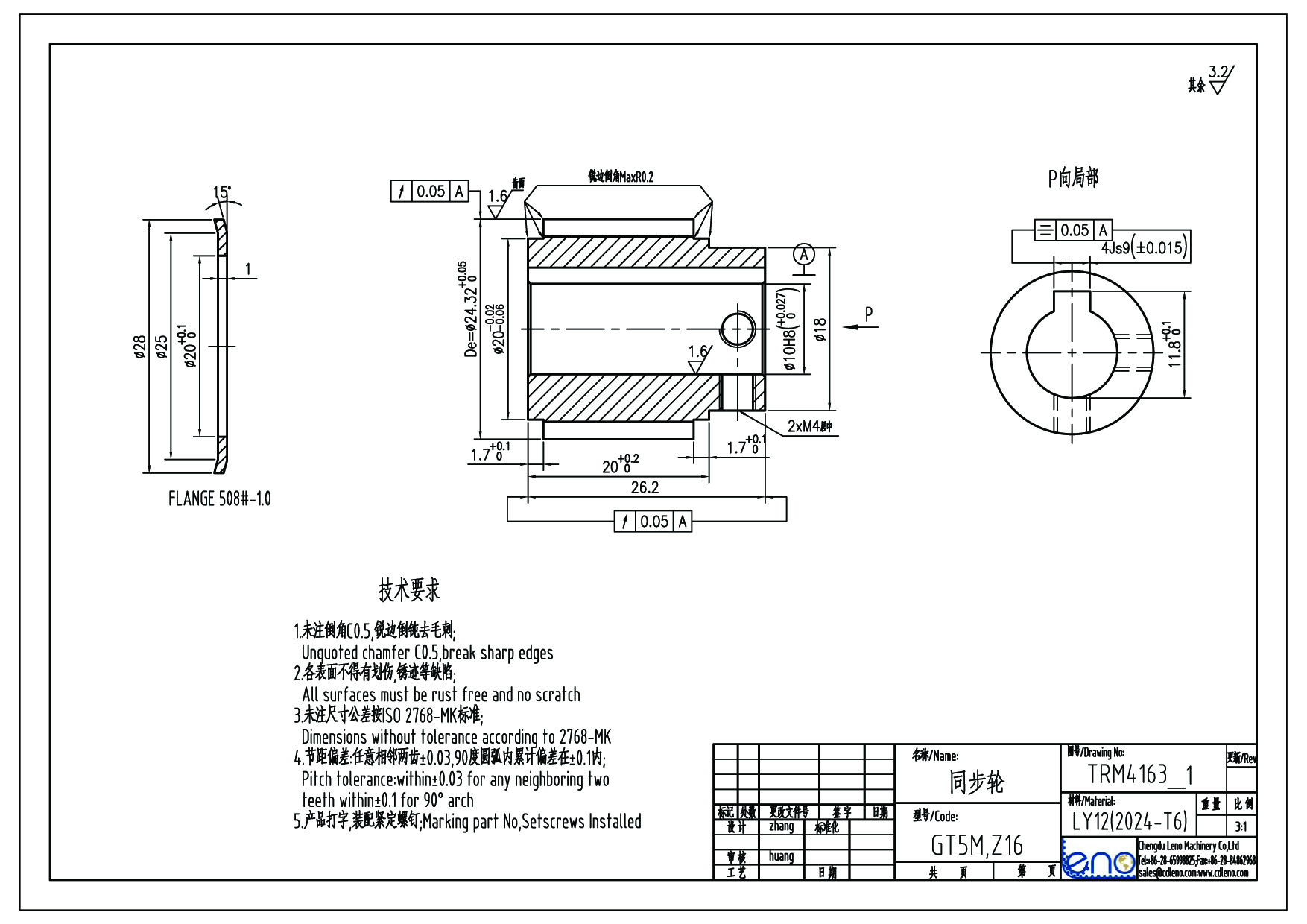

Product Specifications

Physical Properties
Inner Diameter 10 mm
Keyway Width 4 mm
Number of Teeth 16
Hex Key Size Required 1.5 mm
Customs Information
Canadian HS Export Code 8483.90.00
American HTS Import Code 8483.90.50.90
Country of Origin CN (China)

Documents

Product Physical Properties
Part Number Price Inner Diameter Number of Teeth
TRM4165_0
GT5 Pulley with 0.25" Bore and 12 Teeth
$2.75 14 12
TRM4111_0
GT5 Pulley with 8mm Bore and 12 Teeth
$3.00 8 mm 12
TRM4112_0
GT5 Pulley with 8mm Bore and 24 Teeth
$3.15 8 mm 24
TRM4113_0
GT5 Pulley with 8mm Bore and 34 Teeth
$4.45 8 mm 34
TRM4114_0
GT5 Pulley with 8mm Bore and 50 Teeth
$6.70 8 mm 50
TRM4115_0
GT5 Pulley with 9mm Bore and 50 Teeth
$7.40 9 mm 50
TRM4163_0
GT5 Pulley with 10mm Bore and 16 Teeth (3mm Keyway)
$3.00 10 mm 16
TRM4163_1
GT5 Pulley with 10mm Bore and 16 Teeth (4mm Keyway)
$3.50 10 mm 16
TRM4116_0
GT5 Pulley with 10mm Bore and 34 Teeth
$5.20 10 mm 34
TRM4117_0
GT5 Pulley with 10mm Bore and 50 Teeth
$7.40 10 mm 50
TRM4118_0
GT5 Pulley with 11mm Bore and 34 Teeth
$5.20 11 mm 34
TRM4119_0
GT5 Pulley with 11mm Bore and 50 Teeth
$7.40 11 mm 50
TRM4159_1
GT5 Idler Pulley 12mm Bore with Spacers
$7.00 12 mm 30
TRM4120_0
GT5 Pulley with 12mm Bore and 16 Teeth
$3.50 12 mm 16
TRM4121_0
GT5 Pulley with 12mm Bore and 24 Teeth
$4.00 12 mm 24
TRM4122_0
GT5 Pulley with 12mm Bore and 34 Teeth
$5.00 12 mm 34
TRM4123_0
GT5 Pulley with 12mm Bore and 50 Teeth
$7.40 12 mm 50
TRM4124_0
GT5 Pulley with 12mm Bore and 72 Teeth
$12.95 12 mm 72
TRM4125_0
GT5 Pulley with 0.5" Bore and 16 Teeth
$3.75 12 16
TRM4126_0
GT5 Pulley with 14mm Bore and 50 Teeth
$7.40 14 mm 50
TRM4127_0
GT5 Pulley with 5/8" Bore and 24 Teeth
$3.70 58 24
TRM4128_0
GT5 Pulley with 17mm Bore and 34 Teeth
$5.00 17 mm 34
TRM4129_0
GT5 Pulley with 17mm Bore and 50 Teeth
$7.40 17 mm 50
TRM4130_0
GT5 Pulley with 17mm Bore and 72 Teeth
$14.50 17 mm 72
TRM4131_0
GT5 Pulley with 19mm Bore and 50 Teeth
$7.40 19 mm 50
TRM4132_0
GT5 Pulley with 19mm Bore and 72 Teeth
$12.95 19 mm 72
TRM4133_0
GT5 Pulley with 24mm Bore and 50 Teeth
$7.40 24 mm 50
TRM4134_0
GT5 Pulley with 24mm Bore and 72 Teeth
$12.95 24 mm 72
