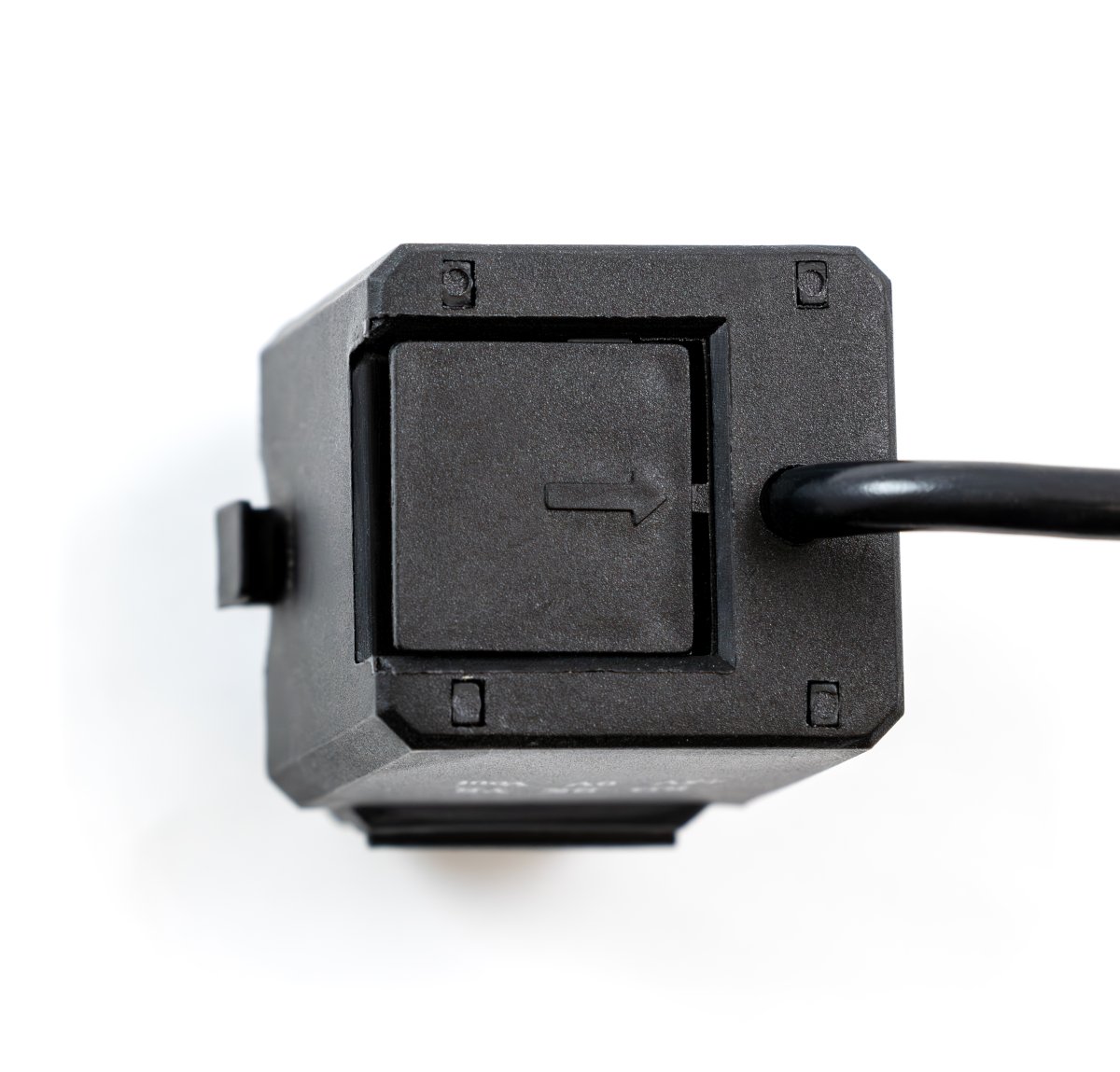

Clip-on Current Transducer 75A

ID: VCP4115_0

Measure the DC current running through a wire with this convenient clip-on sensor.

$20.00

Quantity Available: 529

Qty Price
5 $19.20
10 $18.40
25 $18.00
50 $17.60
100 $17.20
50+...

This clip-on current transducer provides a quick and easy way to measure up to 75A of DC current running through a wire without cutting or disassembling anything in the circuit. It simply clips on to the wire and connects to a Phidgets VINT port or analog input.

Note: The wire whose current you're measuring must have the power and ground separated out. If you measure both power and ground at the same time, the sensor will measure zero amps, because the current is the same in both wires and cancel each other out since they travel in opposite directions.

Features

  • Measure up to 75A DC current
  • Clip-on sensor makes for easy installation
  • Connects to a Phidget voltage input or VINT Hub

Formula

The formula for converting output voltage into DC Amps is: DC Amps = (V - 2.5) / 0.02083

Looping to Increase Resolution

If you need to measure less than 75A and want better resolution, you can loop the cable through the sensor a second time. The current value you get back from the sensor will be doubled, since it's measuring the same wire twice at the same time. You can divide this value by two, thus halving the maximum range from ±75A to ±37.5A, but effectively doubling the resolution of your measurement.

You can loop the cable through any number of times to repeat this process, although there will be diminishing returns as your resolution approaches the noise tolerance for the sensor. You could also cause problems with the measurement if the wire window is too full, if the wires shift around and push up on the clip.

Mechanical

Interface Boards and Hubs

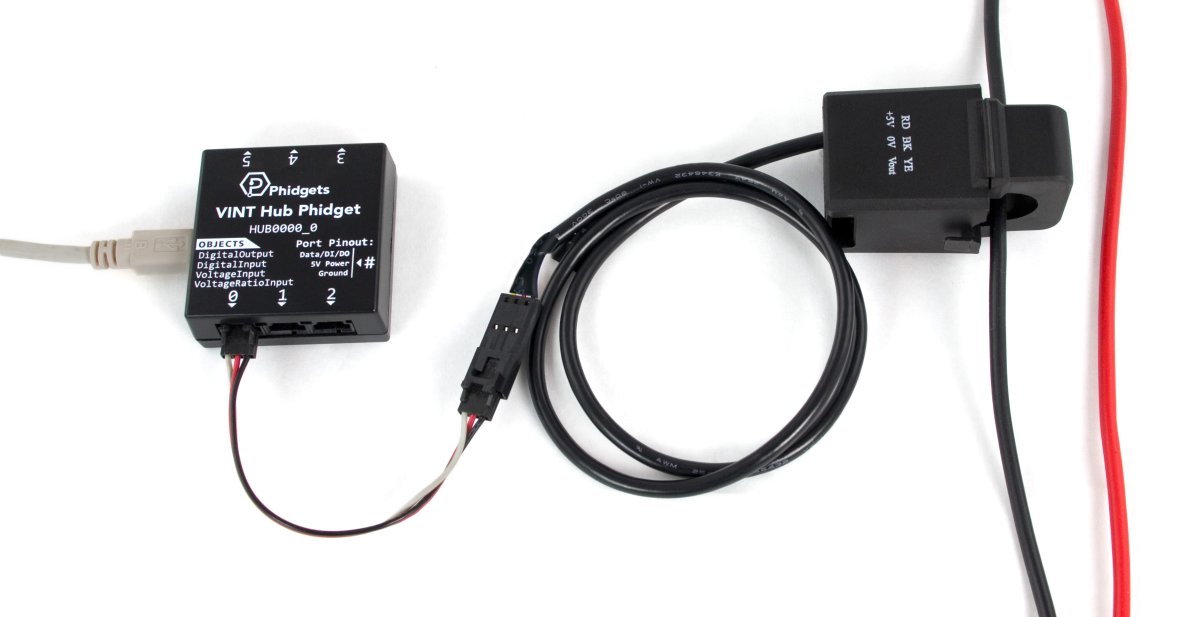

This sensor can be read by any Phidget with an Analog Input or VINT Hub port. It will connect to either one using the included Phidget cable. VINT Hub ports can behave just like Analog Inputs, but have the added flexibility of being able to be used as digital inputs, digital outputs, or ports to communicate with VINT devices. For more information about VINT, see the VINT Overview page.

Product Voltage Inputs
Part Number Price Number of Voltage Inputs Voltage Input Resolution (bits)
HUB0002_0
VINT Hub Phidget
$40.00 6 (Shared) *** 15 bit
HUB0007_0
1-Port VINT Hub Phidget
$24.00 1 (Shared) ** 16 bit
HUB0001_0
VINT Hub Phidget
$35.00 6 (Shared) * 15 bit
HUB0000_1
VINT Hub Phidget
$30.00 6 (Shared) *** 15 bit
HUB5000_0
Wireless VINT Hub
$60.00 6 (Shared) * 16 bit
SBC3003_0
PhidgetSBC4
$120.00 6 (Shared) * 16 bit
DAQ1000_0
8x Voltage Input Phidget
$20.00 8 12 bit
1018_3B
PhidgetInterfaceKit 8/8/8
$80.00 8
1011_0
PhidgetInterfaceKit 2/2/2
$50.00 2 10 bit
1018_2B
PhidgetInterfaceKit 8/8/8
$80.00 8 10 bit
1010_0
PhidgetInterfaceKit 8/8/8 Mini-Format
$70.00 8 10 bit
1019_1B
PhidgetInterfaceKit 8/8/8 w/6 Port Hub
$110.00 8 10 bit
1203_2B
PhidgetTextLCD 20X2 : White : Integrated PhidgetInterfaceKit 8/8/8
$70.00 8 10 bit

Phidget Cables

This sensor comes with a 3-pin Molex housing on the end of the cable, so it can easily be plugged into a Phidget Cable of your desired length:

Product Physical Properties
Part Number Price Cable Length
3003_0
Phidget Cable 10cm
$1.50 100 mm
CBL4104_0
Phidget Cable 30cm
$1.75 300 mm
3002_0
Phidget Cable 60cm
$2.00 600 mm
CBL4109_0
Phidget Cable 60cm
$2.00 600 mm
CBL4105_0
Phidget Cable 90cm
$2.00 900 mm
3038_0
Phidget Cable 120cm
$2.25 1.2 m
CBL4106_0
Phidget Cable 150cm
$2.50 1.5 m
3039_0
Phidget Cable 180cm
$2.75 1.8 m
3004_0
Phidget Cable 350cm
$3.00 3.5 m
KIT4030_0
Phidget Cable Kit
$10.00 80 mm

Product Specifications

Sensor Properties
Sensor Type Current (DC Clip-on)
Controlled By Voltage Input (0-5V)
Sensor Output Type Non-Ratiometric
Input Current Min -75 A
Input Current Max 75 A
Current Measurement Resolution 10 mA
Measurement Error Max 1 %
Electrical Properties
Output Voltage Min 0 V DC
Output Voltage Max 5 V DC
Isolation Voltage (DC) 2.5 kV DC
Physical Properties
Material UL94V-0 Plastic
Cable Length 500 mm
Wire Window Size 16 mm
Operating Temperature Min -10 °C
Operating Temperature Max 70 °C
Customs Information
Canadian HS Export Code 9030.33.00
American HTS Import Code 9030.33.38.00
Country of Origin CN (China)

Mechanical Drawing

Mechanical
