Absolute Air Pressure Sensor 20-400 kPa

ID: 1140_1B
Recommended for new designs: This product (or a similar replacement with a compatible form, fit and function) is estimated to be available for ten years or more.

This absolute air pressure sensor plugs into an Analog Input or VINT Hub port and measures pressure from 20 kPa to 400 kPa.

$30.00 Quantity Available: 108 Qty Price 5$28.50
10 $27.00 25$24.00
50 $21.00 100$19.50

Note: The 1140_1B is the same as the 1140_0, except it has a different sensor that has an upward-facing port and you have the option of which size of Phidget cable to include.

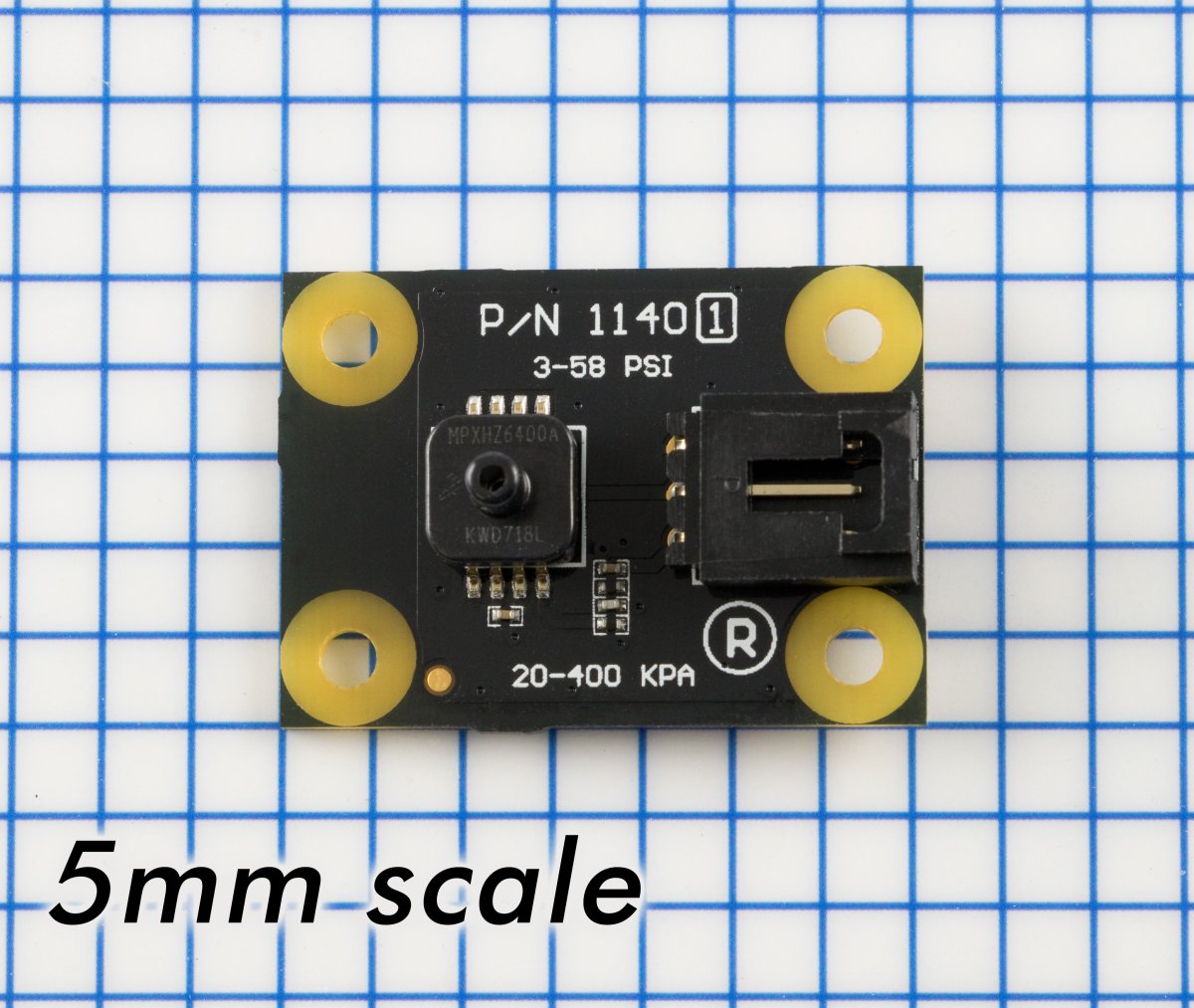

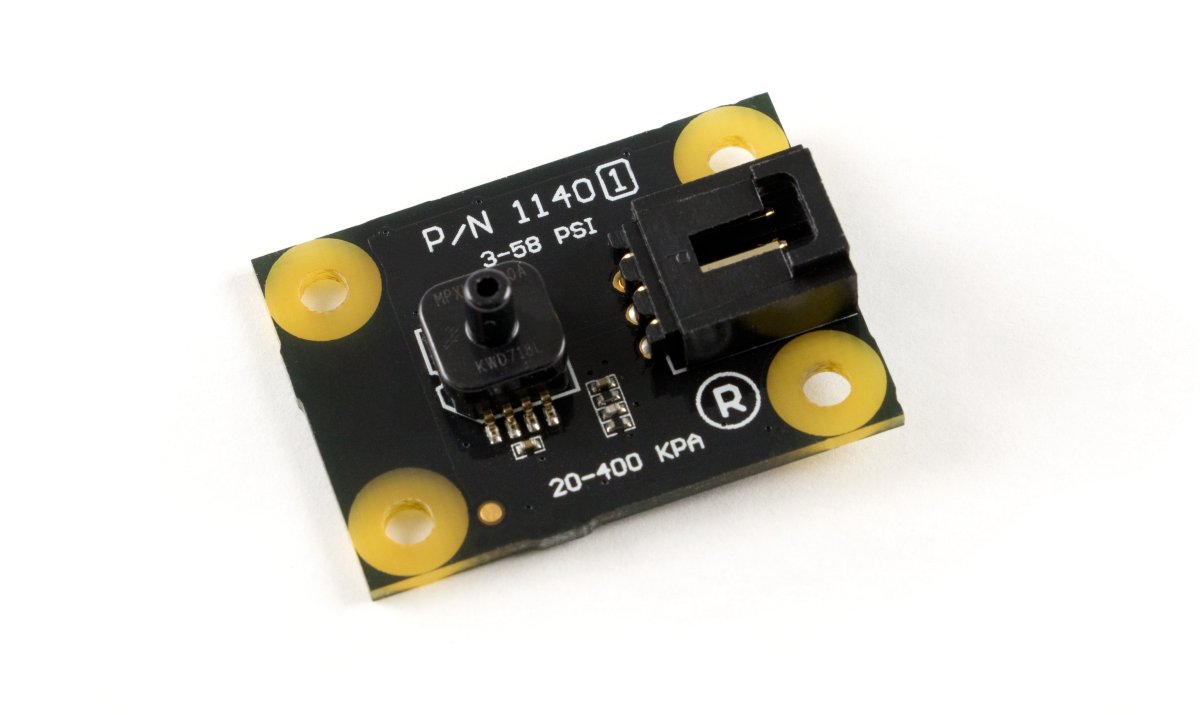

The 1140 Absolute Pressure Sensor is an air pressure sensor that measures the absolute pressure of its environment. It can measure pressures from 20 kPa to 400 kPa.

Warning

 This sensor is designed to measure the pressure of clean, non-condensing air. Contact with moist air (i.e, human breath), dusty air, or other gases can damage the sensor.

Interface Boards and Hubs

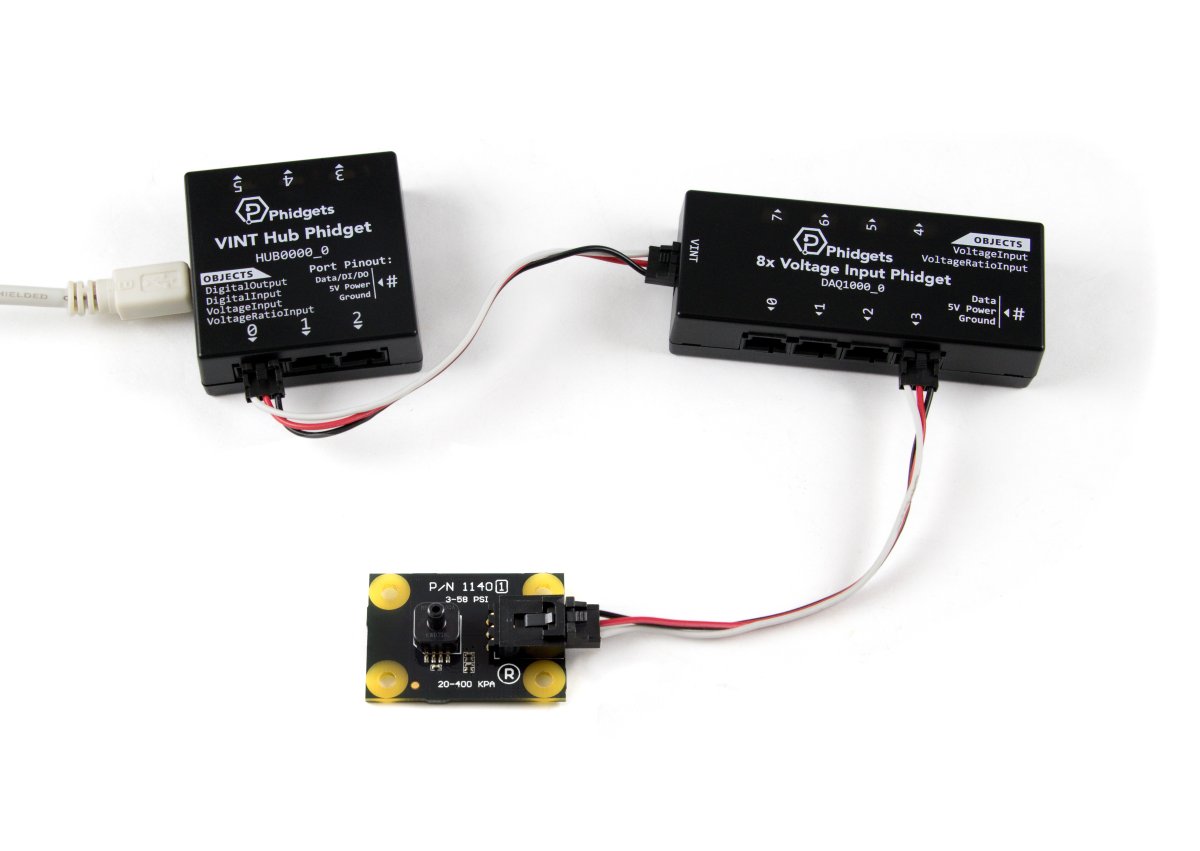

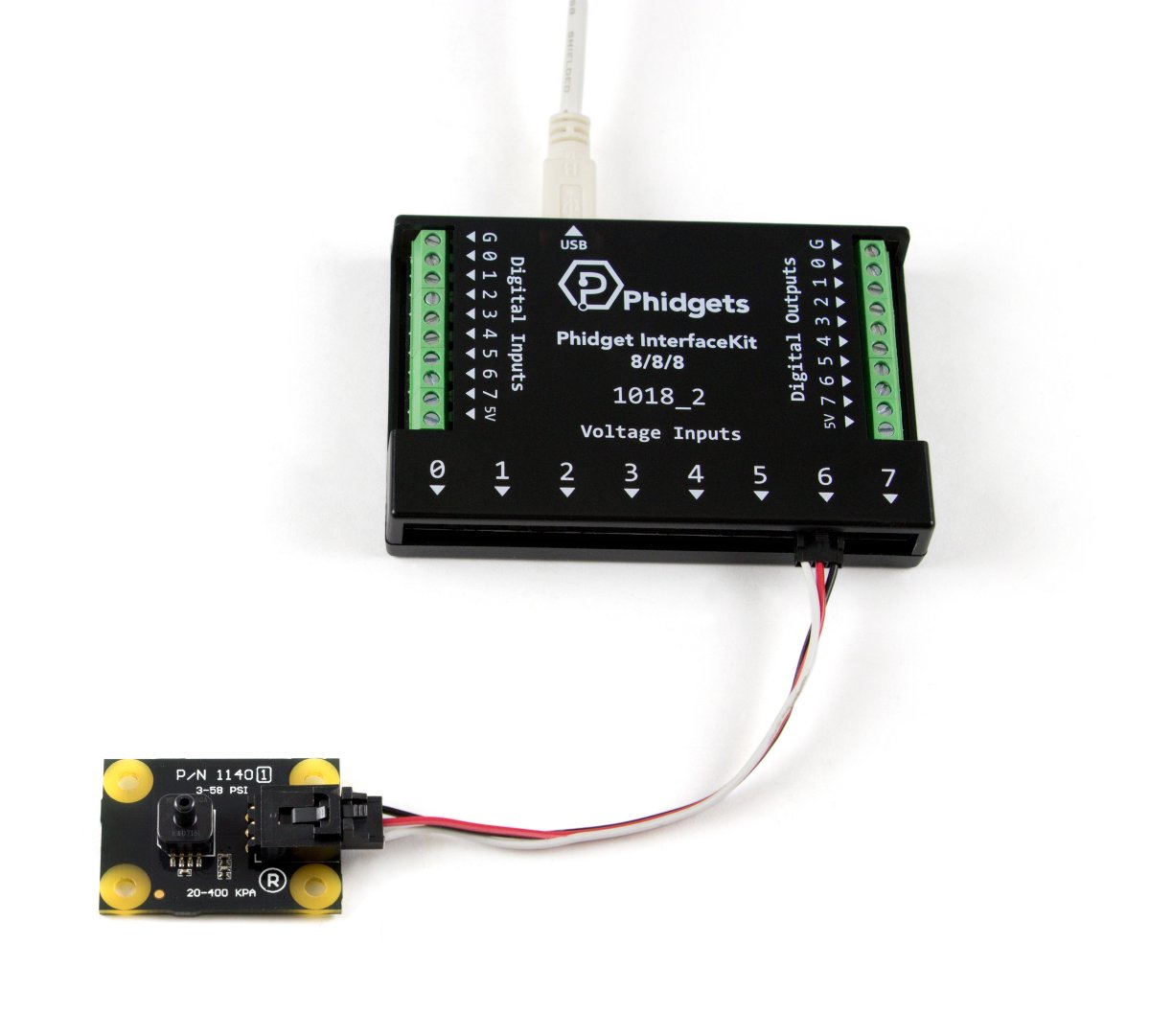

This sensor can be read by any Phidget with an Analog Input or VINT Hub port. VINT Hub ports can behave just like Analog Inputs, but have the added flexibility of being able to be used as digital inputs, digital outputs, or ports to communicate with VINT devices. For more information about VINT, see the VINT Primer.

Product Voltage Inputs
Image Part Number Price Number of Voltage Inputs Voltage Input Resolution
1010_0 $80.00 8 10 bit 1011_0$50.00 2 10 bit
1018_2B $80.00 8 10 bit 1019_1B$110.00 8 10 bit
1203_2B $70.00 8 10 bit DAQ1000_0$20.00 8 12 bit
HUB0000_0 $30.00 6 (Shared) * 16 bit SBC3003_0$120.00 6 (Shared) * 16 bit

Phidget Cables

This sensor requires a Phidget cable to connect it to an InterfaceKit or Hub. You can solder multiple cables together in order to make even longer Phidget cables, but you should be aware of the effects of having long wires in your system.

Product Physical Properties
Image Part Number Price Cable Length
3002_0 $2.00 600 mm 3003_0$1.50 100 mm
3004_0 $3.00 3.5 m 3034_0$1.50 150 mm
3038_0 $2.25 1.2 m 3039_0$2.75 1.8 m
CBL4104_0 $1.75 300 mm CBL4105_0$2.00 900 mm

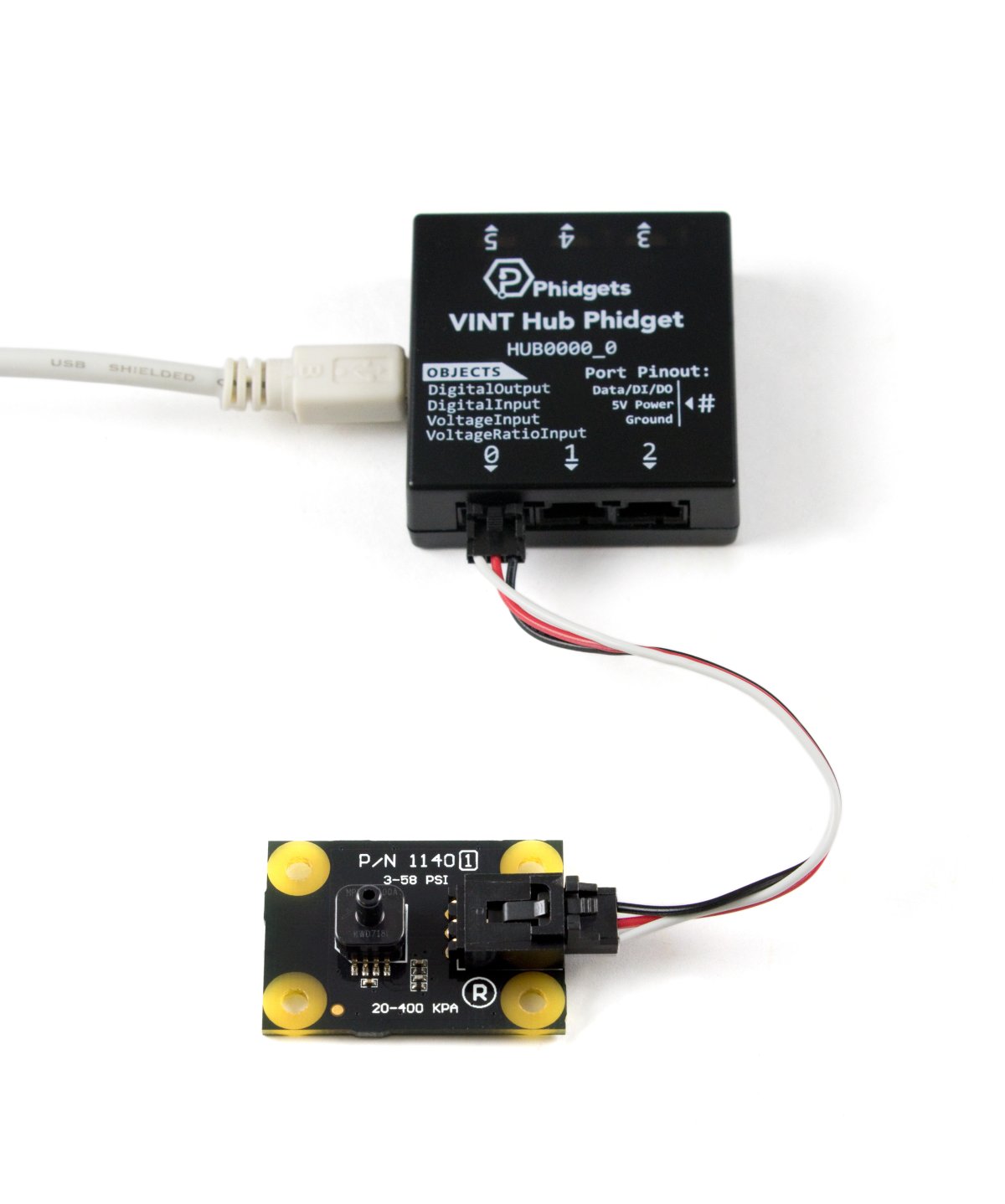

CBL4106_0 $2.50 1.5 m Getting Started Welcome to the 1140 user guide! In order to get started, make sure you have the following hardware on hand: Next, you will need to connect the pieces: 1. Connect the 1140 to the HUB0000 with the Phidget cable. 2. Connect the HUB0000 to your computer with the USB cable. Now that you have everything together, let's start using the 1140! Using the 1140 Phidget Control Panel In order to demonstrate the functionality of the 1140, we will connect it to the HUB0000, and then run an example using the Phidget Control Panel on a Windows machine. The Phidget Control Panel is available for use on both macOS and Windows machines. If you would like to follow along, first take a look at the getting started guide for your operating system: Linux users can follow the getting started with Linux guide and continue reading here for more information about the 1140. First Look After plugging in the 1140 into the HUB0000, and the HUB0000 into your computer, open the Phidget Control Panel. You will see something like this: The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information: • Serial number: allows you to differentiate between similar Phidgets. • Channel: allows you to differentiate between similar objects on a Phidget. • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry. The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example. Voltage Ratio Input Double-click on a Voltage Ratio Input object in order to run the example: General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality: • Modify the change trigger and/or data interval value by dragging the sliders. For more information on these settings, see the data interval/change trigger page. • Select the 1140 from the Sensor Type drop-down menu. The example will now convert the voltage into pressure (kPa) automatically. Converting the voltage to pressure (kPa) is not specific to this example, it is handled by the Phidget libraries, with functions you have access to when you begin developing! Technical Details General The 1140 provides an accurate, high level analog input signal that is proportional to the environment’s pressure. The minimum pressure measurement for this sensor is 20 kPa. Any value lower than 20 kPa cannot be accurately distinguished. Ports The sensor port has a diameter of 2.79mm to 3.30 mm (nominal 3mm). For hosing, we recommend using polyurethane tubing. We have had good results with 2.4mm ID tubing from EMI. In imperial measurement, 3/32” ID tubing is equivalent. This is available through laboratory supply stores such as Cole Parmer. Formulas The Phidget libraries can automatically convert sensor voltage into pressure (kPa) by selecting the appropriate SensorType. See the Phidget22 API for more details. The Formula to translate voltage ratio into Pressure is: ${\displaystyle {\text{Pressure (kPa)}}=({\text{VoltageRatio}}\times 413.05)+3.478}$ ${\displaystyle {\text{Pressure (psi)}}=({\text{VoltageRatio}}\times 59.89)+0.504}$ Barometric Temperature Correction This sensor reports the absolute pressure of its surroundings. In other words, the pressure compared to a perfect vacuum. If you plan on using this sensor as a barometer, you need to convert to barometric pressure. You can use conversion calculators such as this above sea level barometer reading correction calculator to make the adjustment based on your location's elevation. Phidget Cable The Phidget Cable is a 3-pin, 0.100 inch pitch locking connector. Pictured here is a plug with the connections labelled. The connectors are commonly available - refer to the Analog Input Primer for manufacturer part numbers. What to do Next • Programming Languages - Find your preferred programming language here and learn how to write your own code with Phidgets! • Phidget Programming Basics - Once you have set up Phidgets to work with your programming environment, we recommend you read our page on to learn the fundamentals of programming with Phidgets. This device doesn't have an API of its own. It is controlled by opening a VoltageRatioInput channel on the Phidget that it's connected to. For a list of compatible Phidgets with VoltageRatio Inputs, see the Connection & Compatibility tab. You can find details for the VoltageRatioInput API on the API tab for the Phidget that this sensor connects to. Product Specifications Sensor Properties Controlled By VoltageRatio Input Sensor Type Gas Pressure (Absolute) Sensor Output Type Ratiometric Pressure Min 20 kPa Pressure Max 400 kPa Case Pressure Max 1.6 MPa Pressure Resolution 413 Pa Measurement Error Max ± 1.5 % Warm-up Time 20 ms Response Time Max 1 ms Electrical Properties Supply Voltage Min 4.8 V DC Supply Voltage Max 5.3 V DC Current Consumption Max 10 mA Output Impedance 1 kΩ Output Voltage Min 200 mV DC Output Voltage Max 4.8 V DC Physical Properties Operating Temperature Min -40 °C Operating Temperature Max 125 °C Recommended Tubing Size 332 Documents Projects Product History Date Board Revision Device Version Packaging Revision Comment Oct 2012 0 N/A Product Release April 20181 N/A BChanged pressure sensor to MPXHZ6400AC6T1 and removed Phidget cable from packaging Here's a list of our gas pressure sensors: Product Sensor Properties Image Part Number Price Sensor Type Pressure Min Pressure Max Pressure Differential Min Pressure Differential Max Pressure Resolution 1126_1$32.00 Gas Pressure (Differential) -25 kPa 25 kPa 55 Pa
1136_0 $32.00 Gas Pressure (Differential) -2 kPa 2 kPa 5 Pa 1137_0$32.00 Gas Pressure (Differential) -7 kPa 7 kPa 17 Pa
1138_0 $32.00 Gas Pressure (Differential) 0 Pa 50 kPa 56 Pa 1140_1B$30.00 Gas Pressure (Absolute) 20 kPa 400 kPa 413 Pa
1141_0 $32.00 Gas Pressure (Absolute) 15 kPa 115 kPa 111 Pa PRE1000_0$15.00 Gas Pressure (Absolute) 50 kPa 110 kPa 250 mPa
