Quantity Available: 1000+
| Qty | Price |
|---|---|
| 5 | $1.43 |
| 10 | $1.35 |
| 25 | $1.20 |
| 50 | $1.05 |
| 100 | $0.98 |
| 250 | $0.90 |
| 500 | $0.83 |
| 1000 | $0.75 |

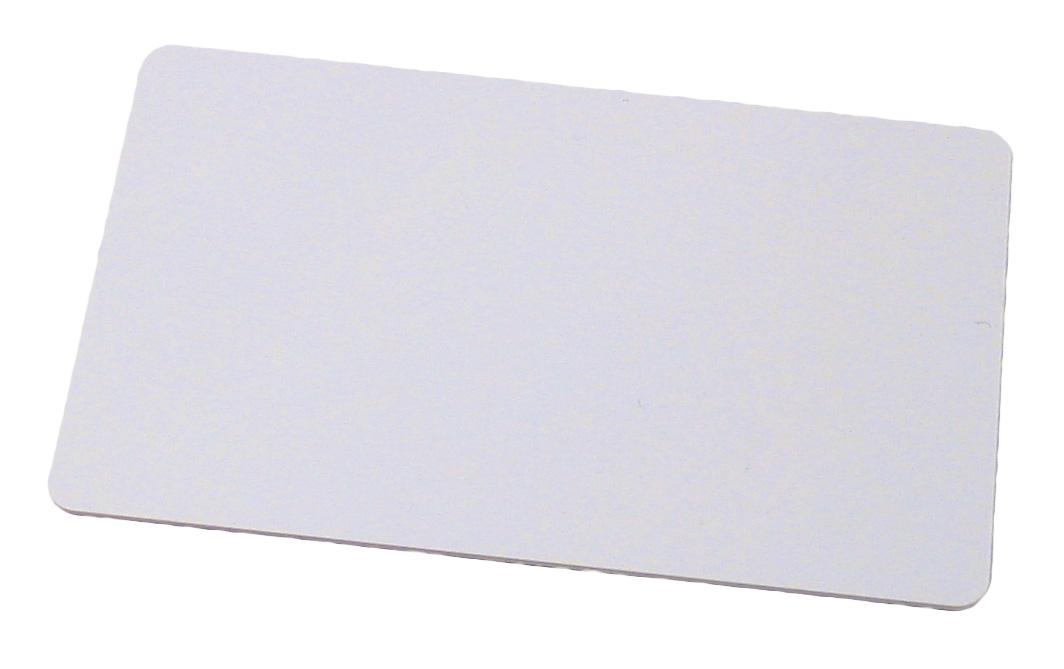

This RFID tag encased in a glossy white plastic card fits conveniently into a wallet and is ideal for access control or member tracking applications.
This is a blank tag- its ID must be chosen and written using the 1024 - PhidgetRFID Read/Write or another reader capable of writing to blank tags. It cannot be read with the 1023 - PhidgetRFID unless it has already been written as an EM4100 series tag.
This tag can be read by any of the RFID readers in the table below. Since this is a writable tag, it must have a tag string written to it at least once before it can be read. It supports the EM4100 series protocols, ISO11785 FDX-B, and our own PhidgetTag ASCII protocol. If you're using a different RFID reader, make sure it's designed to work at 125 kHz and supports one of this tag's protocols. For more details about the different protocols, see the user guide for your RFID reader.
| Product | RFID Reader | |||
|---|---|---|---|---|
| Part Number | Price | Antenna Resonant Frequency Min | Antenna Resonant Frequency Max | Supported Protocols |
 PhidgetRFID Read-Write
|
$60.00 | 125 kHz | 150 kHz | EM4100, ISO11785 FDX-B, PhidgetTag |
| Tag Properties | |
|---|---|
| Supported Protocols | EM4100, ISO11785 FDX-B, ASCII |
| Tag Characteristics | Passive, Read/Write |
| Transmission Frequency | 125 kHz |
| Typical Read/Write Distance (with 1024 - PhidgetRFID R-W) |
120 mm |
| Physical Properties | |
| Material | PVC Plastic |
| Color | White |
| Thickness | 800 μm |
| Weight | 5.5 g |
| IP Rating | IP67 |
| Customs Information | |
| Canadian HS Export Code | 8543.90.90 |
| American HTS Import Code | 8543.90.88.85 |
| Country of Origin | CN (China) |
| Product | Tag Properties | |||
|---|---|---|---|---|
| Part Number | Price | Supported Protocols | Tag Characteristics | Typical Read/Write Distance (with 1024 - PhidgetRFID R-W) |
 RFID Tag - Credit Card Sized
|
$1.10 | EM4102 | Passive, Read-Only | 110 mm |
 RFID Tag - ABS Key Fob Blue
|
$1.30 | EM4102 | Passive, Read-Only | 80 mm |
 RFID Tag - Clothing Button
|
$2.00 | EM4102 | Passive, Read-Only | 60 mm |
 RFID Tag - Watch with Adjustable Strap
|
$2.75 | EM4102 | Passive, Read-Only | 80 mm |
 RFID Tag - Watch-like with Elastic Strap
|
$2.00 | EM4102 | Passive, Read-Only | 80 mm |
 RFID Tag - PVC 30mm Disc White
|
$1.00 | EM4102 | Passive, Read-Only | 80 mm |
 RFID Tag - 30mm Disc Black
|
$1.30 | EM4102 | Passive, Read-Only | 100 mm |
 RFID Tag - Threaded Black
|
$0.80 | EM4102 | Passive, Read-Only | 70 mm |
 RFID Tag - Bird Leg Ring Black
|
$0.80 | EM4102 | Passive, Read-Only | 50 mm |
 Writable RFID Tag - PVC Card
|
$1.50 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 120 mm |
 Writable RFID Tag - ABS Key Fob
|
$1.20 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 100 mm |
 Writable RFID Tag - Watch with Adjustable Strap
|
$3.00 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 100 mm |
 Writable RFID Tag - ABS Disc 30mm
|
$2.30 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 100 mm |
 Writable RFID Tag - PVC Disc 30mm
|
$1.50 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 100 mm |
 RFID Tag - 5cm Metal Mount
|
$2.50 | EM4102 | Passive, Read-Only | 80 mm |
 RFID Tag - 18mm PVC Disc
|
$1.00 | EM4102 | Passive, Read-Only | 50 mm |
 Writable RFID Tag - PVC Disc 25mm
|
$1.50 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 100 mm |
