Name: RFID Tag - Credit Card Sized
Brand: Phidgets
SKU: 3008_0
Availability: InStock

Sorry, it looks like javascript is disabled in your browser.

Please enable Javascript to continue to Phidgets.com

PHIDGETS Inc.

Unit 1 - 6115 4 St SE
Calgary AB T2H 2H9
Canada
+1 403 282-7335

RFID Tag - Credit Card Sized

ID: 3008_0

Recommended for new designs: Phidgets Inc. is not the original manufacturer for this product, but we intend to sell it (or a similar replacement with a compatible form, fit and function) for as long as it is available from the supplier.

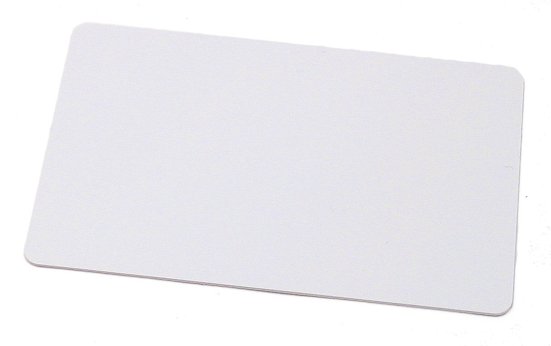

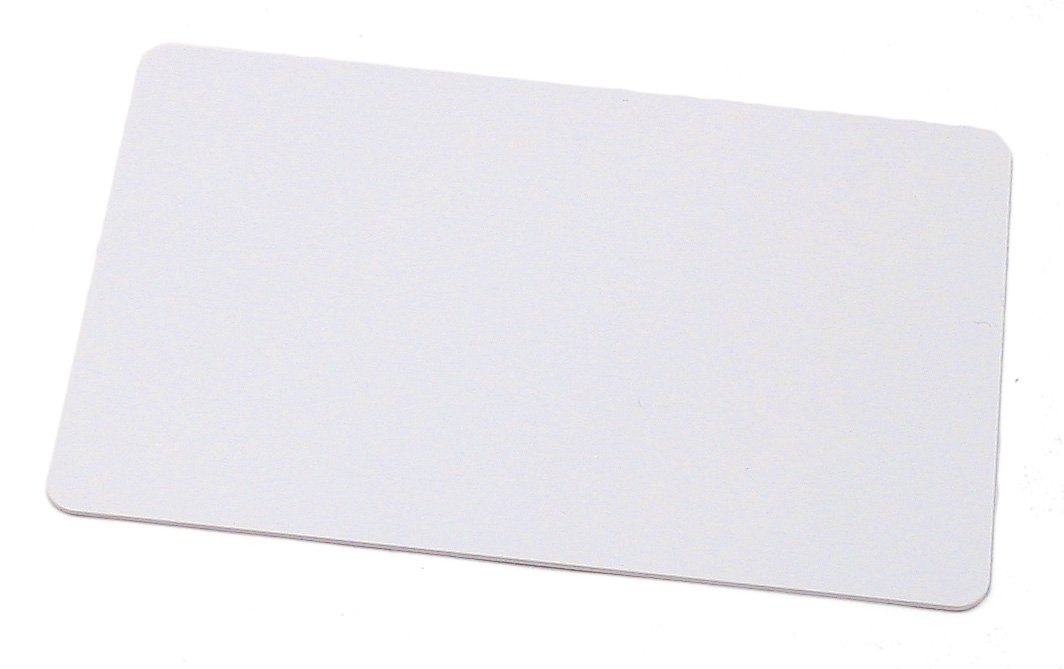

A credit card sized EM4102 RFID tag. Fits in standard wallets.

$1.10

Quantity Available: 1000+

Qty	Price
5	$1.05
10	$0.99
25	$0.88
50	$0.77
100	$0.72
250	$0.66
500	$0.61
1000	$0.55

This basic RFID Tag is used mostly as an identity card. The card comes with a 40-bit unique ID and cannot be re-programmed. This is a slightly flexible, blank, white card with a gloss finish.

Guides

RFID Guide

How does RFID work? Learn how frequency, protocol, and chipset impacts reader compatibility.

Articles

How to Set Up Multiple RFID Readers in Close Range

Using multiple radio-frequency identification (RFID) readers in a relatively confined space can be a tricky proposition. We tell our customers that if they want to have multiple readers in their application that they should space them at least 1 meter apart. That is quite a significant distance, and in some cases, it isn’t practical.

RFID Readers

This tag uses the EM4012 protocol (part of the EM4100 series) and can be read by any of the RFID readers in the table below. If you're using a different RFID reader, make sure it's designed to work at 125 kHz and supports this tag's protocol.

Product		RFID Reader
Part Number	Price	Antenna Resonant Frequency Min	Antenna Resonant Frequency Max	Supported Protocols
1024_0B PhidgetRFID Read-Write	$60.00	125 kHz	150 kHz	EM4100, ISO11785 FDX-B, PhidgetTag

Product Specifications

Tag Properties
Supported Protocols	EM4102
Tag Characteristics	Passive, Read-Only
Transmission Frequency	125 kHz
Encoding Method	Manchester
Message Length	64 bit
Unique ID Length	40 bit
Typical Read/Write Distance (with 1024 - PhidgetRFID R-W)	110 mm
Physical Properties
Material	PVC
Color	White Glossy
Thickness	840 μm
Length	85.6 mm
Width	54 mm
Weight	5.6 g
IP Rating	IP67
Customs Information
Canadian HS Export Code	8543.90.90
American HTS Import Code	8543.90.88.85
Country of Origin	CN (China)

Documents

Have a look at our RFID tags:

Product		Tag Properties
Part Number	Price	Supported Protocols	Tag Characteristics	Typical Read/Write Distance (with 1024 - PhidgetRFID R-W)
3008_0 RFID Tag - Credit Card Sized	$1.10	EM4102	Passive, Read-Only	110 mm
3902_0 RFID Tag - ABS Key Fob Blue	$1.30	EM4102	Passive, Read-Only	80 mm
3903_0 RFID Tag - Clothing Button	$2.00	EM4102	Passive, Read-Only	60 mm
3905_0 RFID Tag - Watch with Adjustable Strap	$2.75	EM4102	Passive, Read-Only	80 mm
3906_0 RFID Tag - Watch-like with Elastic Strap	$2.00	EM4102	Passive, Read-Only	80 mm
3908_0 RFID Tag - PVC 30mm Disc White	$1.00	EM4102	Passive, Read-Only	80 mm
3911_0 RFID Tag - 30mm Disc Black	$1.30	EM4102	Passive, Read-Only	100 mm
3913_0 RFID Tag - Threaded Black	$0.80	EM4102	Passive, Read-Only	70 mm
3914_0 RFID Tag - Bird Leg Ring Black	$0.80	EM4102	Passive, Read-Only	50 mm
3915_1 Writable RFID Tag - PVC Card	$1.50	EM4100, ISO11785 FDX-B, ASCII	Passive, Read/Write	120 mm
3916_0 Writable RFID Tag - ABS Key Fob	$1.20	EM4100, ISO11785 FDX-B, ASCII	Passive, Read/Write	100 mm
3917_0 Writable RFID Tag - Watch with Adjustable Strap	$3.00	EM4100, ISO11785 FDX-B, ASCII	Passive, Read/Write	100 mm
3918_0 Writable RFID Tag - ABS Disc 30mm	$2.30	EM4100, ISO11785 FDX-B, ASCII	Passive, Read/Write	100 mm
3920_0 Writable RFID Tag - PVC Disc 30mm	$1.50	EM4100, ISO11785 FDX-B, ASCII	Passive, Read/Write	100 mm
3921_0 RFID Tag - 5cm Metal Mount	$2.50	EM4102	Passive, Read-Only	80 mm
RFI4010_0 RFID Tag - 18mm PVC Disc	$1.00	EM4102	Passive, Read-Only	50 mm
RFI4110_0 Writable RFID Tag - PVC Disc 25mm	$1.50	EM4100, ISO11785 FDX-B, ASCII	Passive, Read/Write	100 mm
