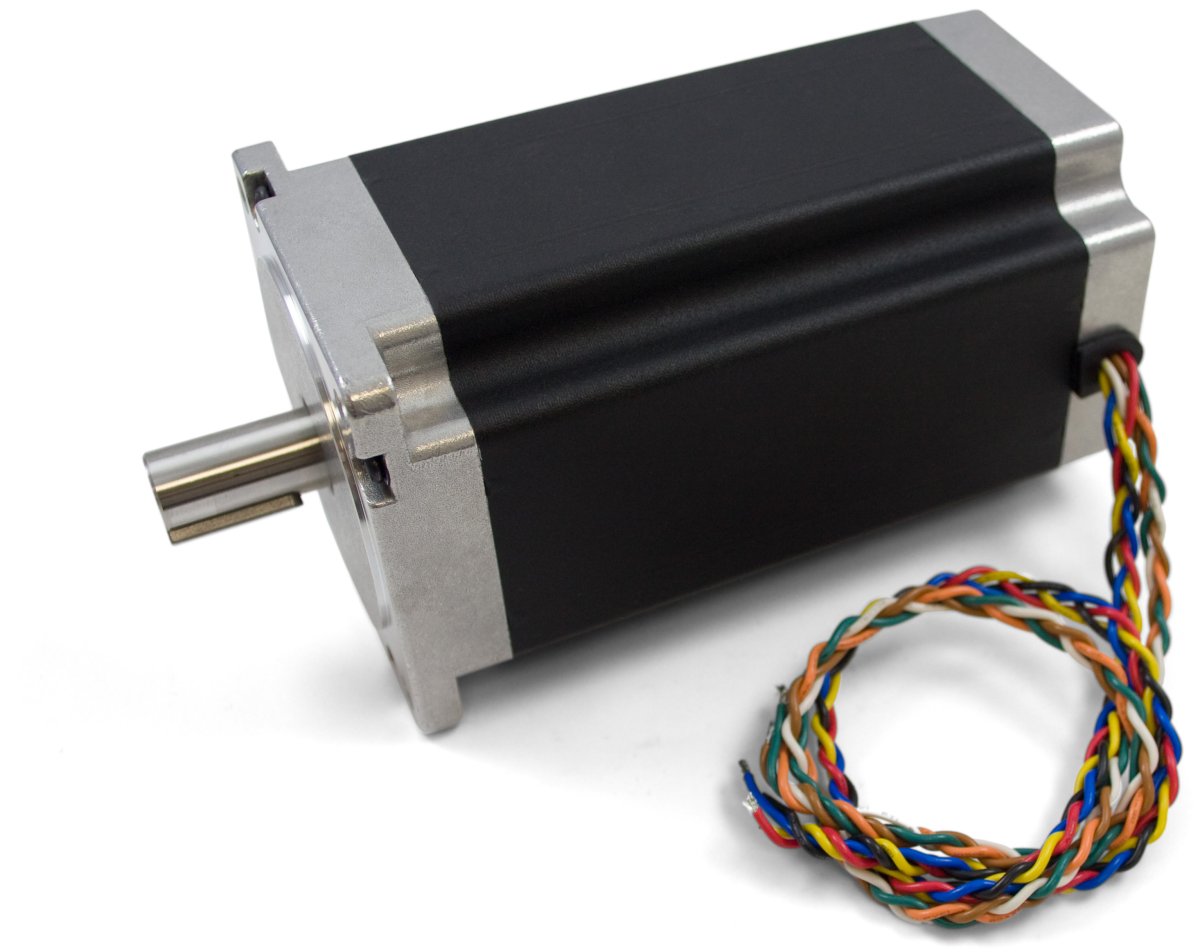

86STH156 NEMA-34 Bipolar Gearless Large Stepper

ID: 3336_0

This massive bipolar stepper with a rear shaft has a 1.8° step angle and over 100 kg·cm of torque at low speeds.

Discontinued

This NEMA-34 motor generates 122 kg-cm of holding torque at 4.2 Amps. It comes with the rear shaft exposed, so you can mount an encoder or shaft coupler. See the Connection & Compatibility tab for a complete list of attachments.

Connection

This motor must be controlled by a constant current or chopper drive controller. You can find a list of suitable controllers on the Connection & Compatibility tab. There you will also find compatible attachments such as encoders, mounting hardware, and transmission hardware.

Warning

warning

Connecting the motor directly to a power supply will destroy the motor and void the warranty. If you want to check your motor make sure it is connected to a constant current / chopper drive controller.

This motor is large enough that the back EMF generated from stalling or changing directions could easily damage your motor controller. If you're planning on using this motor in high-speed or high-torque applications, feel free to contact us for advice.

Motor Controllers

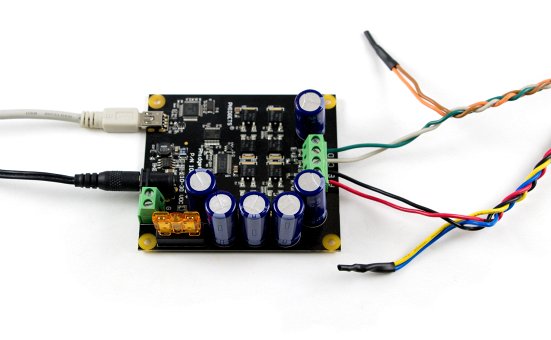

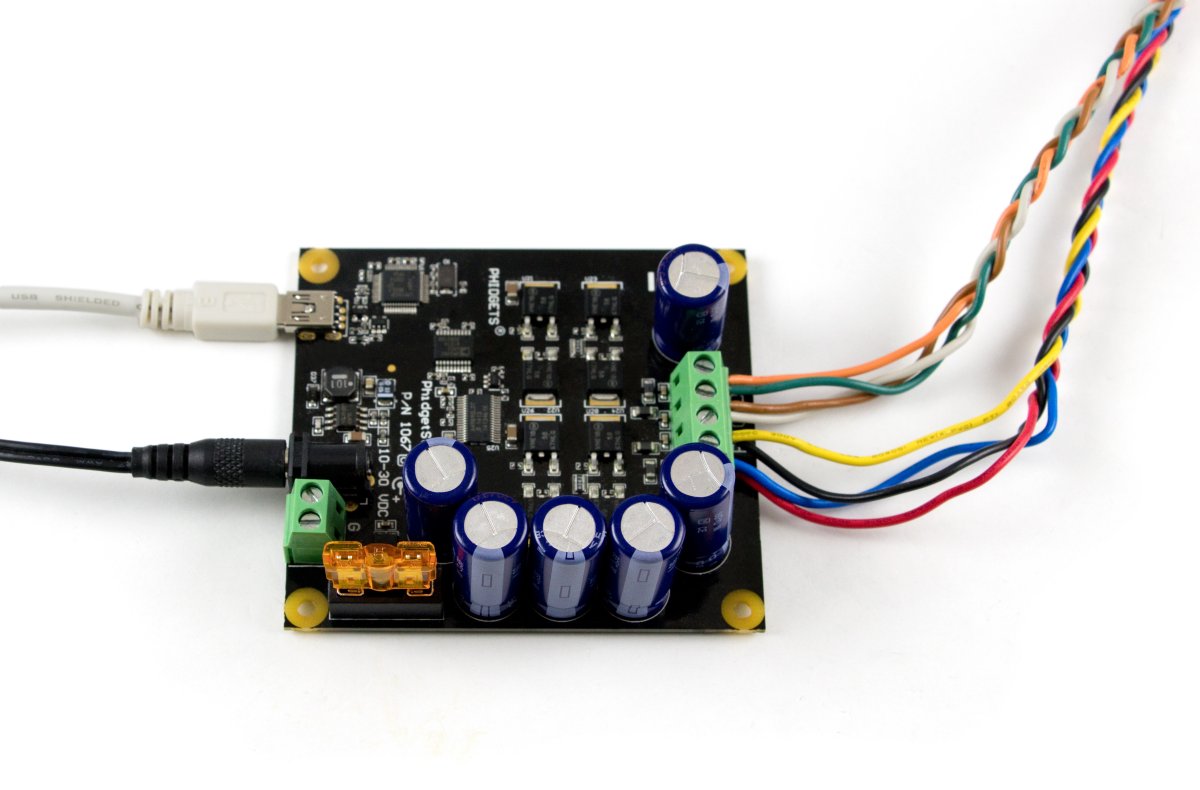

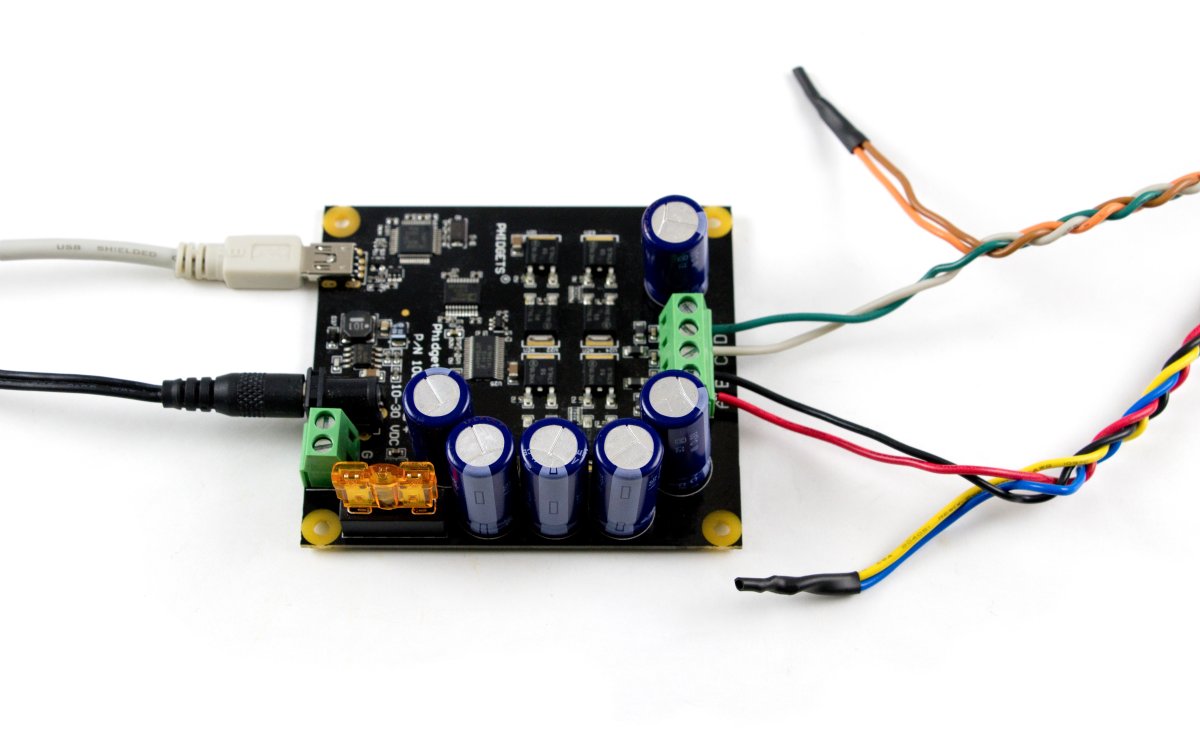

This motor must be controlled by a stepper motor controller. These diagrams show to wiring configurations: series and parallel. Series wiring will result in higher torque when the motor is stopped or at low speeds. Parallel wiring will provide better torque at higher speeds, but less torque overall. Since the current in parallel mode is split between two paths, the current rating is doubled. When connecting motor wires to one another, you must solder or screw clamp them together rather than just twisting them together.

Note: Make sure to unplug the power cord from the motor controller before switching wires around.

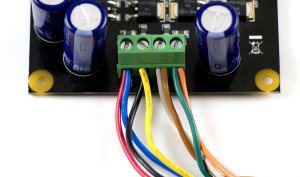

Parallel Wiring
Function3335STC10011067
A Red Blue A A
Yellow Black A- B
B White Brown B C
Orange Green B- D
Functional Functional

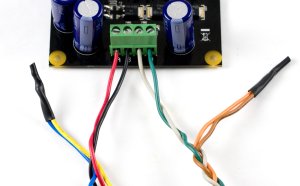

Series Wiring
Function3335STC10011067
A Red AA
Blue Yellow
Black B
B White BC
Orange Brown
Green D
Functional Functional

The following stepper controllers can be used to drive this motor:

Product Controller Properties Electrical Properties
Part Number Price Motor Position Resolution Stepper Velocity Resolution Stepper Velocity Max Available Current per Coil Max
1067_0B
PhidgetStepper Bipolar HC
$90.00 116 Step (40-Bit Signed) 1 1/16 steps/sec 250000 1/16 steps/sec 4 A
STC1002_0
8A Stepper Phidget
$80.00 116 Step (40-Bit Signed) 1 1/16 steps/sec 115000 1/16 steps/sec 8 A
STC1005_0
4A Stepper Phidget
$40.00 1/16 Step (40-Bit Signed) 1 1/16 steps/sec 115000 1/16 steps/sec 4 A

Encoders

The rear shaft of this motor can be equipped with an encoder for applications where you need to keep track of the exact position, velocity, or acceleration of the motor. The mounting holes on the back of this motor are compatible with the following encoders:

Product Encoder Properties
Part Number Price Output Circuit Type Encoder Resolution Encoder Speed Max
3531_0
Rotary Encoder - For 4mm Motor Shaft 300 CPR
$25.00 Push-Pull 300 CPR 6000 RPM
ENC4109_0
Rotary Encoder - For 4mm Motor Shaft 40 CPR
$10.00 Push-Pull 40 CPR 6000 RPM

Shaft Couplers

If you need to connect the main shaft of this motor to the shaft of another device, you can use a shaft coupler:

Product Physical Properties
Part Number Price Inner Diameter Material Coupling Rated Torque Coupling Rated Speed Torsional Stiffness
TRM4321_0
Jaw Coupling Half 5/8" Series 24
$6.85 58 Aluminum 611.8 kg·cm 4000 RPM

Pulleys and Sprockets

If you're using this motor to drive a rotary system that requires a lot of torque, you may be interested in pulleys and sprockets. By using a two pulleys or sprockets of different sizes, you can increase the gear ratio of the motor. Pulleys and sprockets can also be used to transmit the motor's rotation over a long distance. For more guidance on building a transmission system, visit our Rotary Motion Guide. Here is a list of our 5/8" bore pulleys and sprockets:

Product Physical Properties
Part Number Price Inner Diameter Number of Teeth
TRM4127_0
GT5 Pulley with 5/8" Bore and 24 Teeth
$3.70 58 24
TRM4150_0
#40 Chain Sprocket with 5/8" Bore and 9 Teeth
$4.50 58 9

Product Specifications

Motor Properties
Motor Type Bipolar Stepper
Manufacturer Part Number 86STH156-4208B
Step Angle 1.8°
Step Accuracy ± 5 %
Holding Torque 122 kg·cm
Rated Torque 106 kg·cm
Maximum Motor Speed 1500 RPM
Electrical Properties
Recommended Voltage 30 V DC
Coil Resistance 900 mΩ
Rated Current (Series Wiring) 3 A
Rated Current (Parallel Wiring) 6 A
Phase Inductance 8 mH
Physical Properties
Shaft Diameter 58
Rear Shaft Diameter 3.9 mm
Mounting Plate Size NEMA - 34
Weight 5.2 kg
Number of Leads 8
Wire Length 400 mm
Customs Information
Canadian HS Export Code 8501.31.00
American HTS Import Code 8501.31.20.00
Country of Origin CN (China)
