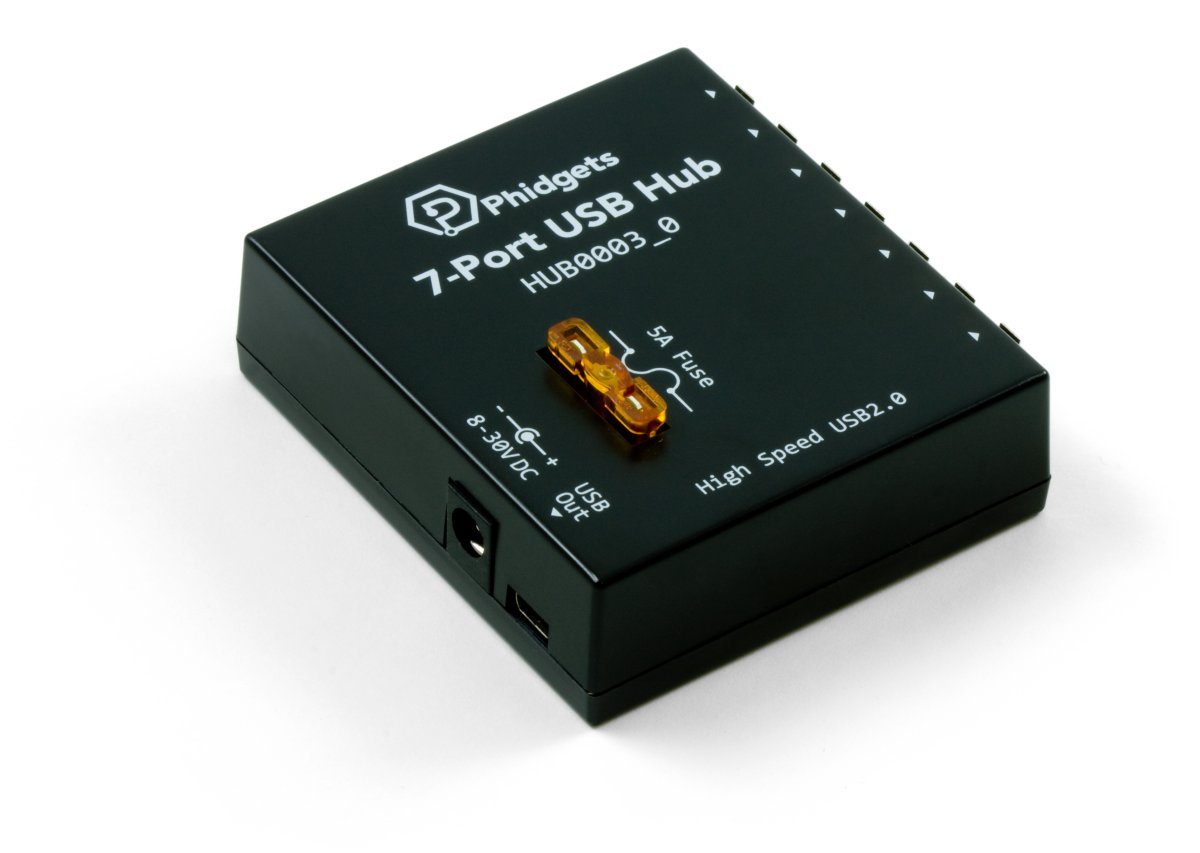

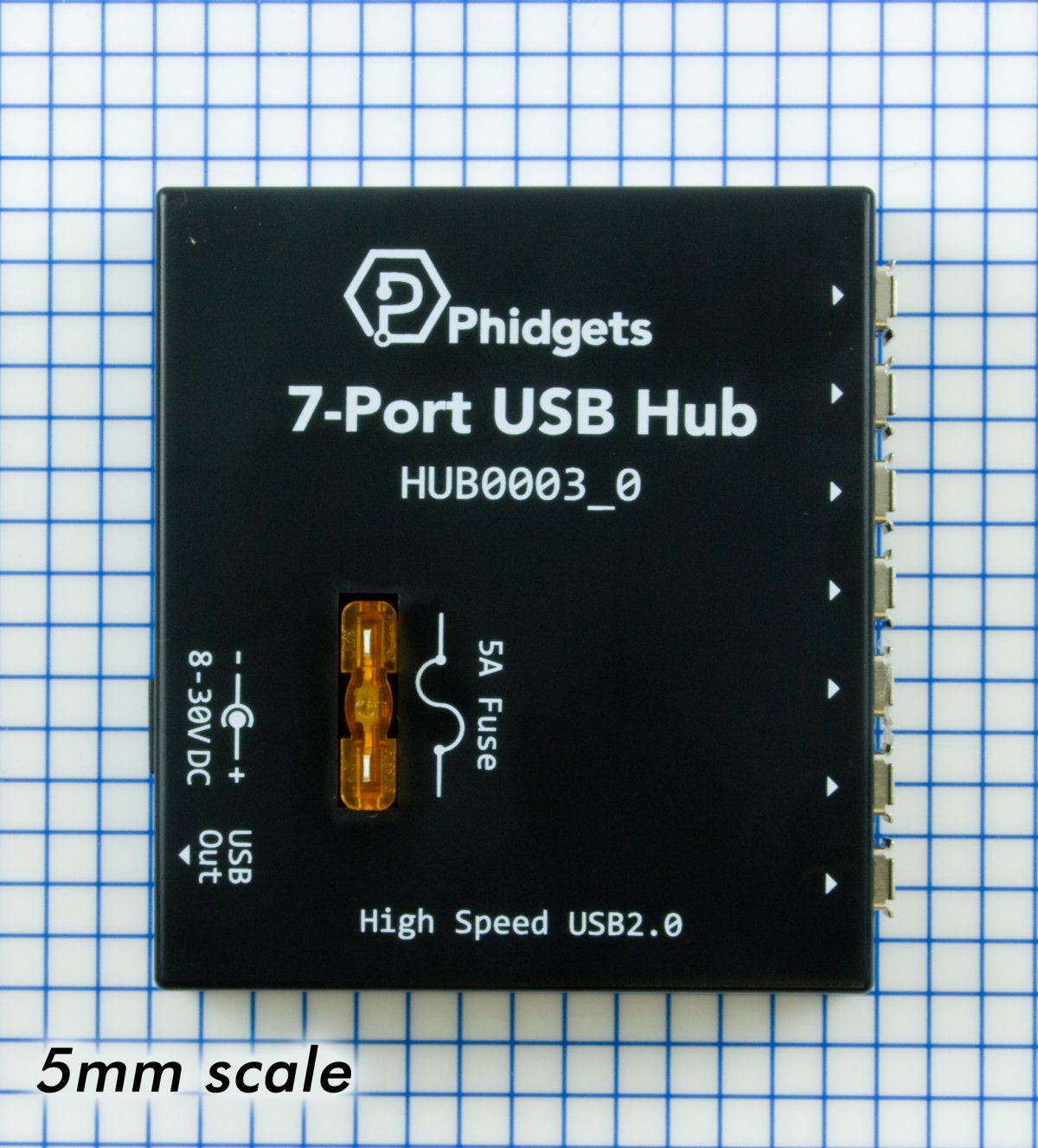

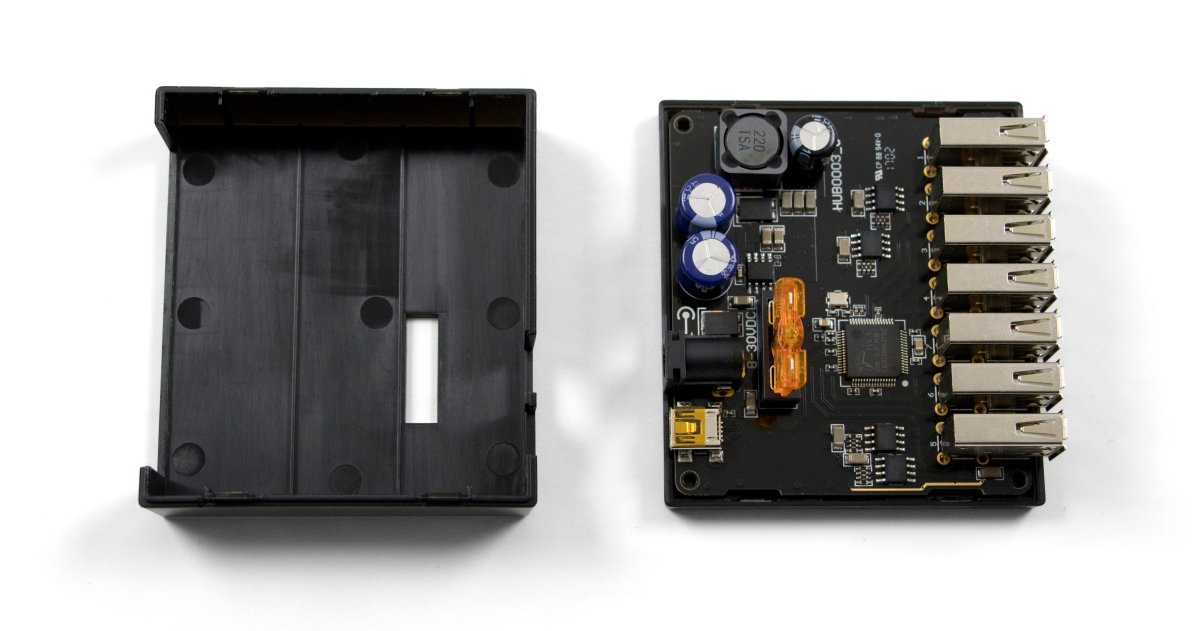

## 7-Port USB Hub

ID: HUB0003_0
Recommended for new designs: This product (or a similar replacement with a compatible form, fit and function) is estimated to be available for ten years or more.

This powered 7-port USB 2.0 hub is ideal for projects that use multiple USB Phidgets.

## $50.00 Quantity Available: 134 Qty Price 5$47.50
10 $45.00 25$40.00
50 $35.00 100$32.50
250 $30.00 500$27.50
1000 $25.00 So many USB devices, so few ports. With this USB hub for your VINT SBC, you'll have access to seven high-speed USB 2.0 ports. You can also use this USB Hub directly from your computer, if you just want an awesome USB 2.0 powered hub to keep all of your Phidgets happy. Because we know you're going to be plugging all sorts of power-hungry devices into this hub, we've made it externally powered by a power supply of 8 to 30 volts. That means you're not limited to the amount of power that this hub gets from the upstream USB connection. #### USB Cables Use a USB cable to connect Phidgets to this USB hub. We have a number of different lengths available, although the maximum length of a USB cable is 5 meters due to limitations in the timing protocol. For longer distances, we recommend that you use a Single Board Computer to control the Phidget remotely. Product Physical Properties Image Part Number Price Connector A Connector B Cable Length 3017_1$3.00 USB Type A USB Mini-B 280 mm
3018_0 $4.00 USB Type A USB Mini-B 1.8 m 3020_0$12.00 USB Type A USB Mini-B 4.5 m
3036_0 $3.50 USB Type A USB Mini-B 600 mm 3037_0$4.00 USB Type A USB Mini-B 1.2 m

#### Power Supplies

This Phidget requires a power supply between 8 and 30V DC. We recommend that you use a 12V 2A DC power supply, as this should be more than enough to power all seven USB ports at maximum capacity. Select the power supply from the list below that matches your region's wall socket type.

Product Electrical Properties Physical Properties
Image Part Number Price Power Supply Current Output Voltage Wall Plug Style
3022_0 $10.00 2 A 12 V Australian 3023_1$10.00 2 A 12 V European
3024_1 $10.00 2 A 12 V North American 3025_0$10.00 2 A 12 V British
3084_0 $1.50 500 mA 12 V European 3085_0$1.50 500 mA 12 V North American
3086_0 $10.00 1 A 24 V North American PSU4013_0$20.00 2.5 A 24 V
PSU4014_0 $40.00 5 A 24 V PSU4015_0$20.00 1 A 24 V
PSU4016_0 $40.00 14.6 A 24 V PSU4017_0$75.00 15 A 24 V
PSU4018_0 $20.00 5 A 12 V PSU4019_0$120.00 25 A 24 V

## Getting Started

Welcome to the HUB0003 user guide! In order to get started, make sure you have the following hardware on hand:

• HUB0003 - 7-Port USB Hub
• USB cable and power supply
• something to use with the HUB0003 (Phidget, generic USB device, etc.)

Next, you will need to connect the pieces:

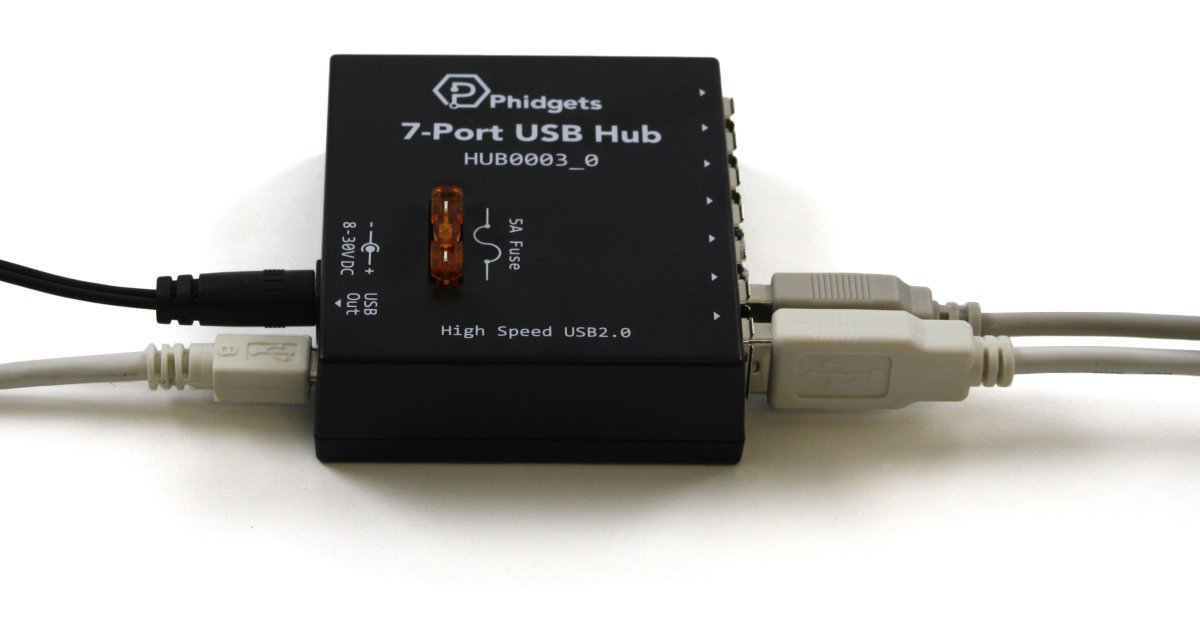

1. Connect the HUB0003 to your computer using the USB cable.
2. Connect the power supply to the barrel jack on the HUB0003.
3. Connect other USB devices to the USB ports on the HUB0003. Those devices should connect to your computer as if they were connected directly to the computer.

## Technical Details

### Power Requirements

As per USB standards, a USB device can be expected to consume a maximum of 0.5A. Therefore, you should select a power supply for the HUB0003 with a power rating of at least 17.5 watts (i.e. 3.5A at 5V) if you want to run all seven ports at maximum load with no problems. If there isn't enough power to go around, your attached Phidgets might periodically disconnect and reconnect. All of the power supplies sold at Phidgets are at least 24 watts, so you will be fine with any one of them.

## What to do Next

• Programming Languages - Find your preferred programming language here and learn how to write your own code with Phidgets!
• Phidget Programming Basics - Once you have set up Phidgets to work with your programming environment, we recommend you read our page on to learn the fundamentals of programming with Phidgets.

#### Product Specifications

Board Properties
Controlled By USB
USB Hub
Number of USB Ports 7
Available Current per USB Port 500 mA
USB Speed High Speed
Electrical Properties
Supply Voltage Min 8 V DC
Supply Voltage Max 30 V DC
Current Consumption Min 100 mA
Current Consumption Max 3 A
Replacement Fuse 5A Slow Blow Blade Type, Standard or Micro
Physical Properties
Power Jack 5.5 x 2.1mm Center Positive
Operating Temperature Min 0 °C
Operating Temperature Max 70 °C
Customs Information
Canadian HS Export Code 8471.80.00
American HTS Import Code 8471.80.40.00
Country of Origin CN (China)
