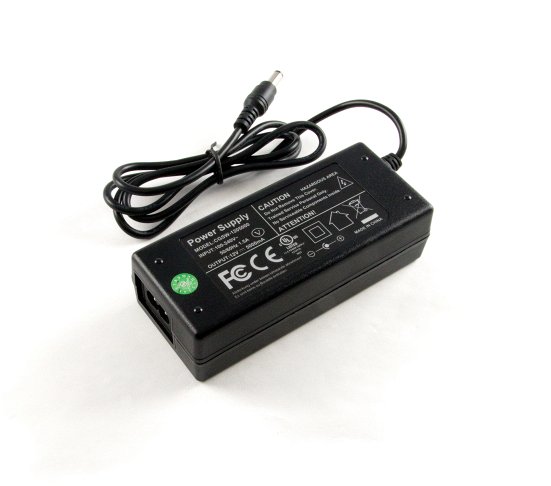

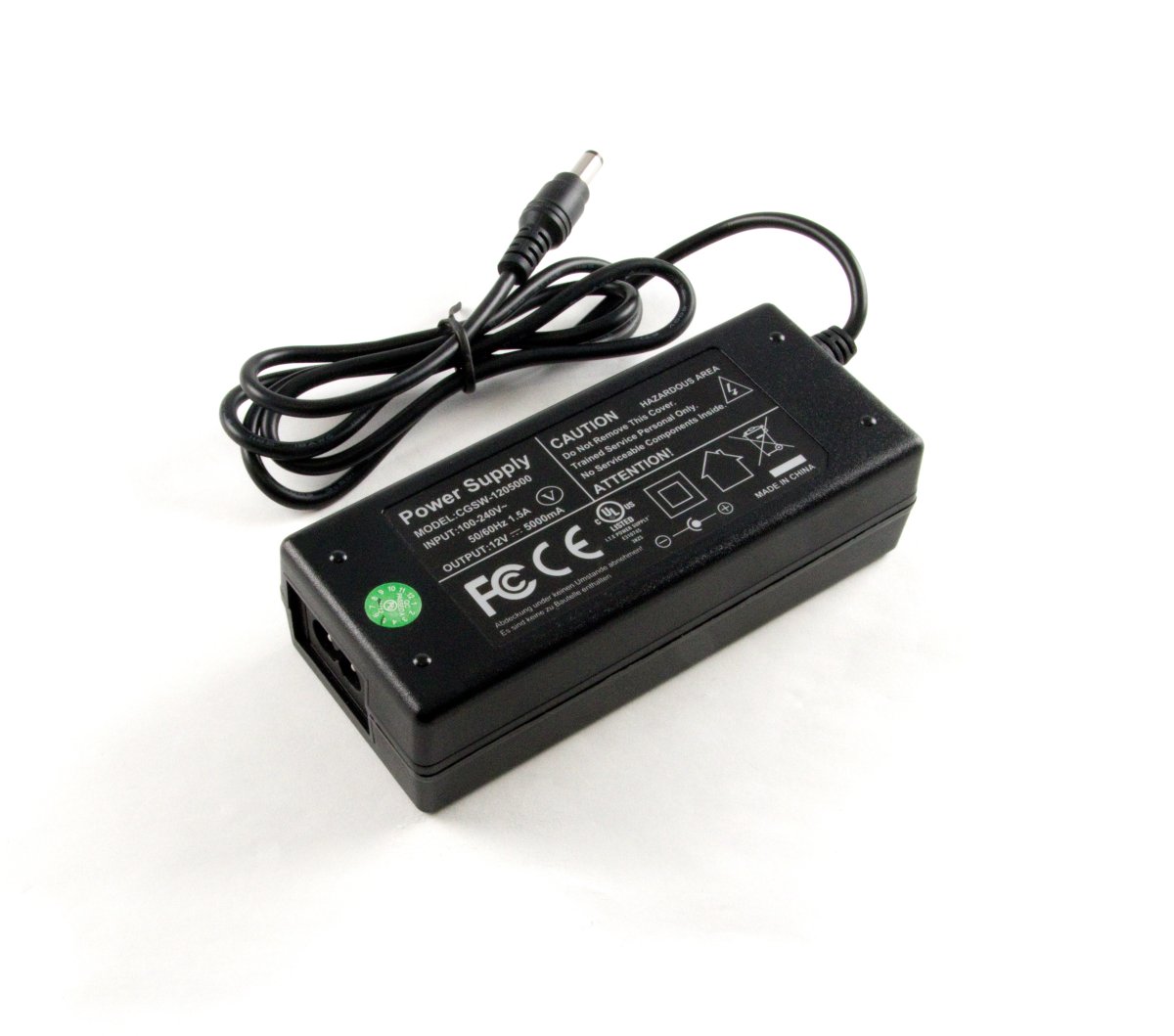

Power Supply 12VDC 5A

ID: PSU4018_0

$20.00

Quantity Available: 78

Qty Price
5 $19.20
10 $18.40
25 $18.00
50 $17.60
100 $17.20
50+...

The PSU4018 provides DC power at 12 Volts and 5 Amps (60 Watts). It is protected against over-current, over-voltage, short-circuits and over-temperature.

This power supply can be used with Phidgets that accept an external power supply, or for projects that need a power source.

You'll need a regional plug to be able to plug this supply into the wall.

Features

  • 12V 5A DC power supply
  • Regional plug sold separately
See the Connection & Compatibility tab for a list of regional plug options.

Power Plugs

You'll need a regional power plug to use this power supply.

Product Physical Properties
Part Number Price Wall Plug Style
PSU4103_0
AU Supply Plug Cord
$5.00 Australian
PSU4102_0
EU Supply Plug Cord
$5.00 European
PSU4101_0
UK Supply Plug Cord
$5.00 United Kingdom
PSU4100_0
US Supply Plug Cord
$5.00 North American

Product Specifications

Electrical Properties
Output Voltage 12 V
Power Supply Current 5 A
Output Power 60 W
AC Input Voltage Min 100 V AC
AC Input Voltage Max 240 V AC
AC Input Frequency Min 47 Hz
AC Input Frequency Max 63 Hz
Protection Circuitry Over-Current, Short Circuit, Over-Temperature, Over-voltage
Physical Properties
Power Jack Hole Diameter 5.5 mm
Power Jack Pin Diameter 2.1 mm
Power Jack Polarity Center Positive
Operating Temperature Min -20 °C
Operating Temperature Max 40 °C
Customs Information
Canadian HS Export Code 8504.40.00
American HTS Import Code 8504.40.70.07
Country of Origin CN (China)

Documents

Have a look at our power supplies:

Product Electrical Properties Physical Properties
Part Number Price Power Supply Current Output Voltage Wall Plug Style
PSU4016_0
Power Supply 24VDC 14.6A
$40.00 14.6 A 24 V
PSU4019_0
Power Supply 24VDC 25A Current Limiting
$120.00 25 A 24 V
PSU4015_0
Power Supply DIN Mount 24VDC 1A
$20.00 1 A 24 V
3084_0
Power Supply 12VDC 0.5A - EU
$1.50 500 mA 12 V European
3085_0
Power Supply 12VDC 0.5A - US
$1.50 500 mA 12 V North American
3022_0
Power Supply 12VDC 2.0A - AU
$10.00 2 A 12 V Australian
3023_1
Power Supply 12VDC 2.0A - EU
$10.00 2 A 12 V European
3025_0
Power Supply 12VDC 2.0A - UK
$10.00 2 A 12 V British
PSU4018_0
Power Supply 12VDC 5A
$20.00 5 A 12 V
3086_0
Power Supply 24VDC 1.0A - US
$10.00 1 A 24 V North American
PSU4013_0
Power Supply 24VDC 2.5A
$20.00 2.5 A 24 V
PSU4014_0
Power Supply 24VDC 5A
$40.00 5 A 24 V
3024_1
Power Supply-12VDC 2.0A - US
$10.00 2 A 12 V North American
