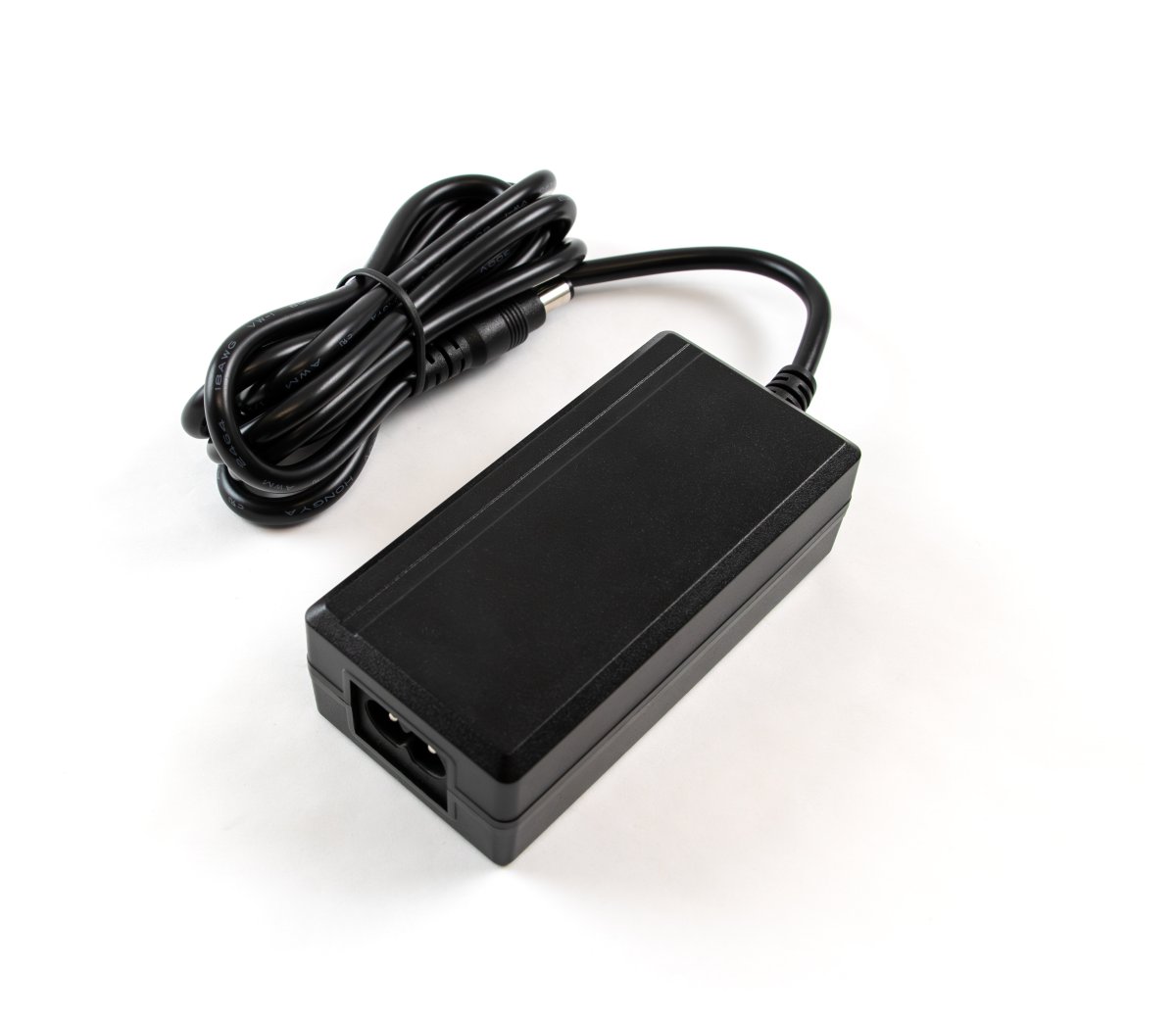

The PSU4020 provides DC power at 5 Volts and 3.5 Amps (17.5 Watts). It is protected against over-current and short-circuits.
This power supply can be used with Phidgets that accept an external power supply, or for projects that need a power source.
You'll need a regional plug to be able to plug this supply into the wall.
| Electrical Properties | |
|---|---|
| Output Voltage | 5 V |
| Power Supply Current | 3.5 A |
| Output Power | 17.5 W |
| AC Input Voltage Min | 100 V AC |
| AC Input Voltage Max | 240 V AC |
| AC Input Frequency Min | 47 Hz |
| AC Input Frequency Max | 63 Hz |
| Protection Circuitry | Over-Current, Short Circuit |
| Physical Properties | |
| Cable Gauge | 18 AWG |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 40 °C |
| Customs Information | |
| Canadian HS Export Code | 8504.40.00 |
| American HTS Import Code | 8504.40.70.01 |
| Country of Origin | CN (China) |
You'll need a regional power plug to use this power supply.
| Product | Electrical Properties | Physical Properties | ||
|---|---|---|---|---|
| Part Number | Price | Power Supply Current | Output Voltage | Wall Plug Style |
 Power Supply 24VDC 14.6A
|
$40.00 | 14.6 A | 24 V | — |
 Power Supply 24VDC 25A Current Limiting
|
$120.00 | 25 A | 24 V | — |
 Power Supply 24VDC 1.0A - US
|
$10.00 | 1 A | 24 V | North American |
 Power Supply-12VDC 2.0A - US
|
$10.00 | 2 A | 12 V | North American |
 Power Supply 12VDC 0.5A - EU
|
$1.50 | 500 mA | 12 V | European |
 Power Supply 12VDC 0.5A - US
|
$5.00 | 500 mA | 12 V | North American |
 Power Supply 12VDC 2.0A - AU
|
$10.00 | 2 A | 12 V | Australian |
 Power Supply 12VDC 2.0A - EU
|
$10.00 | 2 A | 12 V | European |
 Power Supply 12VDC 2.0A - UK
|
$10.00 | 2 A | 12 V | British |
 Power Supply 12VDC 5A
|
$18.00 | 5 A | 12 V | — |
 Power Supply 24VDC 2.5A
|
$20.00 | 2.5 A | 24 V | — |
 Power Supply 24VDC 5A
|
$40.00 | 5 A | 24 V | — |
 Power Supply 5VDC 3.5A
|
$15.00 | 3.5 A | 5 V | — |
