Quantity Available: 16
| Qty | Price |
|---|---|
| 5 | $23.04 |
| 10 | $22.08 |
This reflective sensor triggers when the infrared light it emits is reflected back at it. Most opaque objects will trigger it when they enter its 80cm range.
Note: The detecting distance will vary depending on the size and surface texture of the object.
This sensor requires a 10-30V power supply and outputs 5V when the sensor is triggered. The easiest way to use this sensor is to connect it to the Versatile Input Phidget, a device that can interface a wide variety of sensor types.

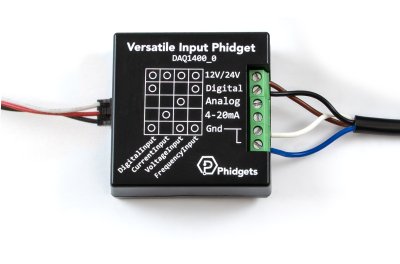

To connect the sensor, connect the wires as follows:
|
 |
| Product | Board Properties | |
|---|---|---|
| Part Number | Price | Controlled By |
 Versatile Input Phidget
|
$20.00 | VINT |
| Sensor Properties | |
|---|---|
| Manufacturer Part Number | MGP18-80DNK-Z |
| Controlled By | Digital Input (5V) |
| Sensor Type | Proximity (Infrared) |
| Detecting Distance Max | 800 mm |
| Sensor Output Switch Type | Normally Open |
| Field of View | 10° |
| Electrical Properties | |
| Supply Voltage Min | 10 V DC |
| Supply Voltage Max | 30 V DC |
| Current Consumption Max | 15 mA |
| Protection Circuitry | Reverse Polarity, Short-circuit |
| Physical Properties | |
| Cable Length | 2 m |
| Material | Poly(methyl methacrylate) |
| Operating Indicator | Red LED |
| IP Rating | IP67 |
| Length | 60 mm |
| Diameter | 17 mm |
| Operating Temperature Min | (Non-condensing) -25 °C |
| Operating Temperature Max | 55 °C |
| Operating Humidity Min | 35 %RH |
| Operating Humidity Max | 85 %RH |
| Customs Information | |
| Canadian HS Export Code | 8536.50.00 |
| American HTS Import Code | 8536.50.90.65 |
| Country of Origin | CN (China) |
| Product | Sensor Properties | |||
|---|---|---|---|---|
| Part Number | Price | Controlled By | Sensor Type | Detecting Distance Max |
 Motion Sensor Phidget
|
$15.00 | Voltage Input | Motion (PIR) | — |
 Beam Break Phidget
|
$10.00 | Voltage Input | Proximity (Infrared) | 15 mm |
 IR Reflective Sensor 10cm
|
$9.00 | VoltageRatio Input | Proximity (Infrared) | 100 mm |
 Capacitive Proximity Sensor - 15mm
|
$30.00 | Digital Input (5V) | Proximity (Capacitive) | 15 mm |
 Capacitive Proximity Sensor - 8mm
|
$20.00 | Digital Input (5V) | Proximity (Capacitive) | 8 mm |
 Capacitive Proximity Sensor - 8mm
|
$20.00 | Digital Input (5V) | Proximity (Capacitive) | 8 mm |
 Proximity Sensor Inductive - 5mm
|
$10.00 | Digital Input (5V) | Proximity (Inductive) | 5 mm |
 Inductive Proximity Sensor - 5mm
|
$10.00 | Digital Input (5V) | Proximity (Inductive) | 5 mm |
 Inductive Proximity Sensor - 8mm
|
$15.00 | Digital Input (5V) | Proximity (Inductive) | 8 mm |
 Magnetic Contact Switch
|
$2.50 | Digital Input (5V) | Proximity (Magnetic) | 19 mm |
 Magnetic Proximity Sensor - 10mm
|
$15.00 | Digital Input (5V) | Proximity (Magnetic) | 10 mm |
 Miniature Magnetic Contact Switch
|
$2.50 | Digital Input (5V) | Proximity (Magnetic) | 12 mm |
 Diffuse IR Proximity Sensor - 80cm
|
$24.00 | Digital Input (5V) | Proximity (Infrared) | 800 mm |
 IR Reflective Proximity Sensor - 2m
|
$20.00 | Digital Input (5V) | Proximity (Infrared) | 2 m |
 IR Beam Break Proximity Sensor - 15mm
|
$20.00 | Digital Input (5V) | Through-Beam (Infrared) | 15 mm |
 IR Beam Break Proximity Sensor - 30mm
|
$22.00 | Digital Input (5V) | Through-Beam (Infrared) | 30 mm |
 IR Beam Break Proximity Sensor - 50mm
|
$24.00 | Digital Input (5V) | Through-Beam (Infrared) | 50 mm |
 IR Beam Break Proximity Sensor - 5m
|
$26.00 | Digital Input (5V) | Through-Beam (Infrared) | 5 m |
 IR Beam Break Proximity Sensor - 10m
|
$30.00 | Digital Input (5V) | Through-Beam (Infrared) | 10 m |
 IR Beam Break Proximity Sensor - 15m
|
$32.00 | Digital Input (5V) | Through-Beam (Infrared) | 15 m |
