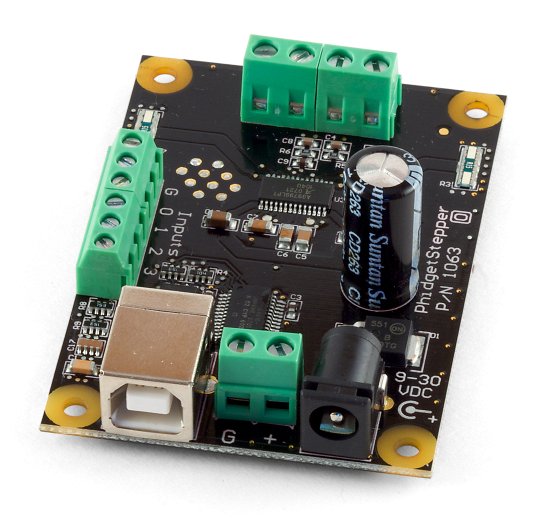

## PhidgetStepper Bipolar 1-Motor

ID: 1063_0

Accurately control one bipolar stepper motor with this controller.

Discontinued

Replaced by the 1063 - PhidgetStepperBipolar 1-Motor.

The 1063 – PhidgetStepper Bipolar 1-Motor allows you to control the position, velocity, and acceleration of one bipolar stepper motor.

The 1063 can be used in applications that require very precise positioning; This is also the product you want to use to control larger industrial steppers or for applications that need a lot of torque.

Comes packaged with

CharacteristicValue
Position Resolution 1/16th step (40-bit signed)
Maximum Position Limit 239 - 1 1/16th steps (40-bit signed)
Minimum Position Limit -(239 -1) 1/16th steps
Velocity Resolution 8 1/16th steps/second (12-bit)
Velocity Limit 32,768 1/16th steps/second
Acceleration Resolution 4000 1/16th steps/second2 (8-bit)
Acceleration Minimum 4000 1/16th steps/second2
Acceleration Limit 1,020,000 1/16th steps/second2
Maximum top End Torque 1000 oz-in @ 2.5A

Digital Input Update Rate ~125 samples/second
Digital Input Pull-Up Resistance 15K ohms
Digital Input Recommended Wire Size 16 - 26 AWG

Minimum Power Supply Voltage 9V
Maximum Power Supply Voltage 30V
Max Current Per Coil 2.5A

USB-Power Current Specification 100mA
Operating Temperature 0 - 70°C

#### Software Objects

Device Object Name Channel
Stepper Motor Output Stepper 0
Motor Current Sense CurrentInput 0
Digital Inputs DigitalInput 0 - 3

#### Here's a list of our bipolar stepper motors:

Product Motor Properties Electrical Properties Physical Properties Gearbox Properties
Image Part Number Price Step Angle Rated Torque Maximum Motor Speed Recommended Voltage Shaft Diameter Weight Gear Ratio
3320_0 $16.00 1.8° 520 g·cm 1300 RPM 24 V DC 5 mm 111.4 g 3321_0$36.00 0.067° 14 kg·cm 50 RPM 24 V DC 6 mm 217.5 g 26 103121 : 1
3322_0 $38.00 0.018° 32 kg·cm 13 RPM 24 V DC 6 mm 243.6 g 99 10442057 : 1 3323_0$16.00 1.8° 1.2 kg·cm 1000 RPM 24 V DC 5 mm 200 g
3324_0 $16.00 1.8° 3.3 kg·cm 1000 RPM 24 V DC 5 mm 289 g 3325_0$40.00 0.35° 18 kg·cm 200 RPM 24 V DC 8 mm 457 g 5 211 : 1
3326_0 $42.00 0.13° 30 kg·cm 70 RPM 24 V DC 8 mm 502 g 13 212289 : 1 3327_0$44.00 0.067° 30 kg·cm 40 RPM 24 V DC 8 mm 503 g 26 103121 : 1
3328_0 $46.00 0.035° 48 kg·cm 20 RPM 24 V DC 8 mm 564 g 50 43974913 : 1 3329_0$48.00 0.018° 48 kg·cm 10 RPM 24 V DC 8 mm 564 g 99 10442057 : 1
3330_0 $28.00 0.9° 11.2 kg·cm 500 RPM 24 V DC 14 695 g 3331_0$20.00 1.8° 11 kg·cm 2150 RPM 12 V DC 14 686 g
3332_0 $70.00 0.42° 46.6 kg·cm 165 RPM 24 V DC 12 mm 1.2 kg 4 14 : 1 3333_0$72.00 0.12° 150 kg·cm 50 RPM 24 V DC 12 mm 1.3 kg 15 310 : 1
3334_0 $74.00 0.023° 240 kg·cm 10 RPM 24 V DC 12 mm 1.5 kg 76 4964 : 1 3335_0$60.00 1.8° 30 kg·cm 200 RPM 30 V DC 12 mm 1.8 kg
3340_0 \$20.00 0.9° 3.3 kg·cm 400 RPM 24 V DC 5 mm 288 g

Note: The 1063 only works with Bipolar stepper motors. You cannot use it to control Unipolar stepper motors such as the 3314, 3315, or 3316. For these motors you need a 1062 – PhidgetStepper Unipolar 4-Motor.

Recommended Power Supplies

#### Code Samples

Language:

APIDetailLanguageOS

#### Product History

Date Board Revision Device Version Comment
January 2009 0100Product Release
February 20111100Mini-USB connector, added more capacitance to the board, Digital Input terminal block exposes +5V, 12-24 AWG terminal blocks
May 2011 1101getLabelString fixed for labels longer than 7 characters
November 2013 Product Discontinued. Succeeded by the 1067 - PhidgetStepper HC. For information on differences between the 1063 and 1067, see below.
Differences between the 1063 and 1067:
• Increased maximum velocity and acceleration, allowing you to drive your stepper motor even faster
• Increased available motor current for larger motors
• Added safety features such as power isolation and a fuse for surge protection
• Microstepping at all speeds for smoother acceleration
• Removed motor current sensing
• Removed digital inputs

## Getting Started

Welcome to the 1063 user guide! In order to get started, make sure you have the following hardware on hand:

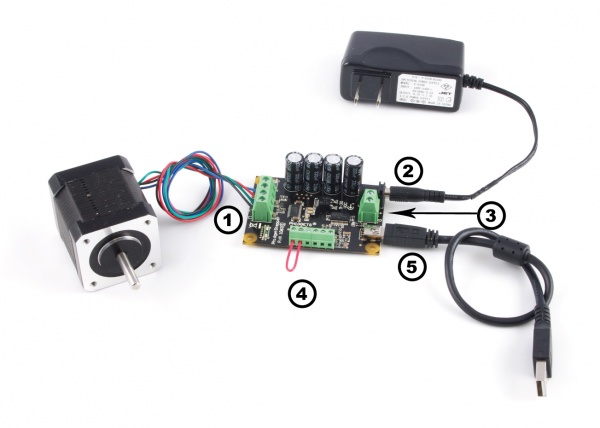

Next, you will need to connect the pieces:

1. Connect the motor to the PhidgetStepper's inputs. If you are having difficulty connecting the wires, refer to the technical section.
2. Connect the power supply using the barrel connector.
3. Power supplies with higher current (more than 2.5 Amps) should be wired directly to the terminal block.
4. Connect the Phidget to your computer using the USB cable.

Now that you have everything together, let's start using the 1063!

## Using the 1063

### Phidget Control Panel

In order to demonstrate the functionality of the 1063, the Phidget Control Panel running on a Windows machine will be used.

The Phidget Control Panel is available for use on both macOS and Windows machines.

#### Windows

To open the Phidget Control Panel on Windows, find the icon in the taskbar. If it is not there, open up the start menu and search for Phidget Control Panel

#### macOS

To open the Phidget Control Panel on macOS, open Finder and navigate to the Phidget Control Panel in the Applications list. Double click on the icon to bring up the Phidget Control Panel.

### First Look

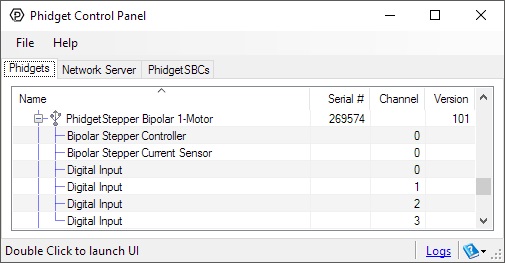

After plugging the 1063 into your computer and opening the Phidget Control Panel, you will see something like this:

The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:

• Serial number: allows you to differentiate between similar Phidgets.
• Channel: allows you to differentiate between similar objects on a Phidget.
• Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.

The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

### Stepper Motor

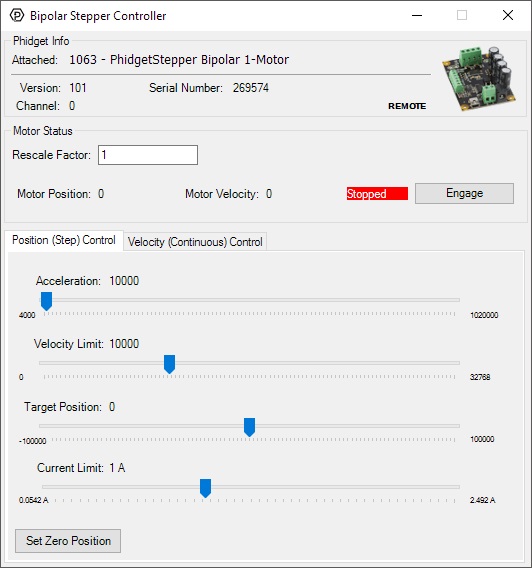

Double-click on the Stepper object, labelled Bipolar Stepper Controller, in order to run the example:

General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

• Toggle the Engage button to provide power to the motor coils.
• By default, motor position, velocity, and acceleration are measured in sixteenths of a step. If you want to use different units, change the value in the Rescale Factor textbox.
• Use the Target Position slider to set a new target position. Change the Acceleration and Velocity sliders to speed up or slow down the 1063's approach.
• Use the Current Limit slider to change the maximum amount of current supplied to the motor's coils. See your motor's datasheet for the recommended coil current.
• Select the Velocity (Continuous) Control tab for continuous rotation instead of specifiying a position.

### Digital Input

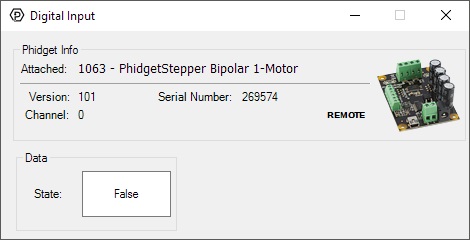

Double-click on a Digital Input object in order to run the example:

General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

• This is an active-low device, therefore, it will be true when connected to ground, and false when connected to a high voltage.

### Current Input

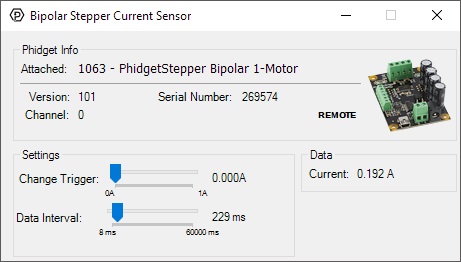

Double-click on the Current Input object , labelled Bipolar Stepper Current Sensor, in order to run the example:

General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

• Modify the change trigger and/or data interval value by dragging the sliders. For more information on these settings, see the data interval/change trigger page.

Before you can access the device in your own code, and from our examples, you'll need to take note of the addressing parameters for your Phidget. These will indicate how the Phidget is physically connected to your application. For simplicity, these parameters can be found by clicking the button at the top of the Control Panel example for that Phidget.

In the Addressing Information window, the section above the line displays information you will need to connect to your Phidget from any application. In particular, note the Channel Class field as this will be the API you will need to use with your Phidget, and the type of example you should use to get started with it. The section below the line provides information about the network the Phidget is connected on if it is attached remotely. Keep track of these parameters moving forward, as you will need them once you start running our examples or your own code.

You are now ready to start writing your own code for the device. The best way to do that is to start from our Code Samples.

Select your programming language of choice from the drop-down list to get an example for your device. You can use the options provided to further customize the example to best suit your needs.

Once you have your example, you will need to follow the instructions on the page for your programming language to get it running. To find these instructions, select your programming language from the Programming Languages page.

## Technical Details

### How does the 1063 control Stepper Motors?

The 1063 can be used to control 4, 6, or 8 wire bipolar stepper motors.

The PhidgetStepper Bipolar is most effective when used with stepper motors designed to be driven with a chopper drive stepper controller. These motors are often large, with a rectangular industrial appearance. The specifications of these motors are often confusing and may seem contradictory. Our users are often confused attempting to relate the specifications of their motor to the capabilities of the 1063. If you are in doubt if your motor will work with the 1063, call us.

When the steppers are first engaged from software, the stepper motor likely will not be at the same state as the default output state of the controller. This will cause the stepper to ‘snap’ to the position asserted by the controller - potentially moving by 2 full steps.

At low speeds, less than 1024 1/16th steps per second, the 1063 uses a microstepping scheme to allow precise control of the current to each coil, and therefore the position of the stepper. It’s important to note that many steppers are not designed to be microstepped precisely, and will not accurately produce the expected angle.

At higher speeds, the 1063 switches to a full stepping mode. The 1063 will automatically switch back to microstepping when approaching the target position.

To avoid the use of floating point in the APIs, the position, velocity and acceleration parameters are expressed in microsteps (1/16th steps), instead of full steps. If your application wants to move the motor by 1 full step, you change the position by 16.

#### Open and Closed Loop Control

Because stepper motors do not have the inherent ability to sense their actual shaft position, they are considered open loop systems.

This means that the value contained in the current position property is merely a count of the number of steps that have occurred towards the target value; it can not be relied upon as a measure of the actual shaft angle, as external forces may also be affecting the motor.

There are several ways of overcoming this drawback. The simplest is to allow the motor load to depress a limit switch located at a known position. This can be used to fire an event in software to recalibrate the shaft position values. A more elegant solution might involve the mounting of an optical encoder on the shaft and the development of a control system.

### How to Connect your Stepper to the 1063

Bipolar Steppers motors are available in 4, 6 or 8 wire configurations. Driving a motor in the Bipolar Configuration produces maximum torque. The word Bipolar means that the controlling electronics have to be able to produce a current flow in either direction in each coil, to produce magnetic fields in opposite directions.

#### 4 Wire Stepper Motors

 A 4 wire Stepper motor can only be controlled as a bipolar. There are two coils, with the ends of each coil brought out. By applying current to the two coils in sequence, and changing the direction of current flow, the motor can be made to rotate. Determining how to connect a 4 wire stepper to the 1063 can be done by following this procedure. Suppose we have four wires: red, green, yellow and blue. Start by measuring the resistance between all the wires. Below is a sample table of resistance data, in ohms. This table contains example values, your readings may be different but should still produce a similar pattern.
Wire Color Green Blue Yellow Red
Green 30
Blue
Yellow 30
Red

Looking at the table, you see that there are two pairs of wires (Green-Blue, and Yellow-Red), with roughly the same resistance measured between the wires in each pair. Pick one of the four wires and wire it to the A terminal. The other wire in this pair is connected to the B terminal. At random, wire the other pair to C and D. The motor will turn in clockwise or counter-clockwise rotation. Swapping the A and B wires or the C and D wires will change whether the motor considers “forward” to mean clockwise or counter-clockwise rotation (Remember, steppers can be run in forward or reverse by choosing a target position greater than or less than the current position).

### 6 Wire Stepper Motors

 In a 6 – wire bipolar motor, there is two + wires, one for each coil, which are the center taps for each coil. You will need to isolate which are the center tap wires and the corresponding wires for their coil. These center taps are left unconnected to operate as a bipolar. Let’s assume our six wire stepper motor wires are colored as follows: red, green, blue, white, purple, and yellow. We measure the resistance between all wires and are presented with the following values in ohms (these are simply example values):

Wire Color Red White Yellow Purple Green Blue
Red 10 10
White 10 10
Yellow 20
Purple
Green 20
Blue

Looking at our table, we can see our pattern. The red wire has the same resistance to the green and blue wires. The white wire has the same resistance to the yellow and purple wire. Red, green, and blue are for one pole, and white, yellow, and purple are the other pole. The red and white wires are the center of their coils. Leave the red/white wires unconnected, and follow the instructions for connecting a 4-Wire Bipolar Motor as described earlier in this section.

There are in fact two valid combinations, one that will produce a clockwise rotation in the stepper motor for increasing position and one that will produce counter-clockwise rotation. Swapping the A and B wires or the C and D wires will change whether the motor considers “forward” to mean clockwise or counter-clockwise rotation.

#### 8 Wire Stepper Motors

 8 Wire Motors are very difficult to wire up if you do not have a schematic showing how the wires are connected to the internal coils. Only follow these instructions if you are really desperate. In an 8 wire motor, the coils are split, and we have to reconnect the coils, to reduce them to a 4 wire. Assume our eight wire stepper motor wires are colored as follows: red, yellow, purple, orange, blue, green, brown, and white. In an 8-wire stepper motor, these wires would be part of 4 coils, 2 wires per coil. We need to determine the cable pairings. We measure the resistance between each wire and are presented with the following values in ohms (these are simply example values):
Wire Color Orange Red Yellow Purple Blue Green Brown White
Orange 1
Red 1
Yellow 1
Purple 1
Blue
Green
Brown
White

This table tells us which wires are parts of a coil. From the table we can tell that red/green, yellow/brown, purple/white, and orange/blue are the coils. We are now left with the following situation; we need to determine the proper orientation of the wires to determine our connections. Of each pair, one of the wires will be assigned to A, B, C, or D, and the other wire will be connected to another pair. The number of combinations to be tried to see if they produce rotation is large, but can be reduced to a maximum of 96 possibilities by following these steps:

1. Choose one wire from a pair to connect to A. (2 possibilities)
2. Choose one wire of the other pairs (6 possibilities) and connect to B. The other wire from this pair is connected to the wire from Step 1 not connected to A.
3. Choose one wire from the two remaining pairs (4 possibilities) and connect to C.
4. Choose one wire from the remaining pair (2 possibilities) and connect to the wire from Step 3 not connected to C. The remaining wire from this pair is connected to D.
5. After trying each permutation, engage the motor from software and try to rotate it. Do not connect the pairs to anything - as if you were using a 6-wire stepper in bipolar mode.

If you attempt to use this algorithm, build a table of permutations beforehand and proceed in a systematic way.

There are a total of 96 wiring combinations, of which there are 2 valid combinations where one will cause a clockwise motor rotation and the other will cause a counter-clockwise rotation.

If you are not using a Phidget stepper, we suggest consulting any manuals or data sheets that are associated with your particular motor in order to determine the proper wiring for your motor.

### Choosing a Power Supply Voltage

When looking at a stepper motor's specifications, you may come across a "Rated Voltage" value. This value is usually equal to the rated current multiplied by the resistance of the coils of the motor, making it somewhat of a redundant specification. As mentioned earlier, you can increase your controller's supply voltage in order to allow the motor to reach higher speeds at a lower current (because high current causes high inductance which puts a hard limit on how much speed and torque a motor can produce). The motor will also produce more heat as you increase the supply voltage, so it's a good idea to choose a supply voltage based on the performance you need for the motor. Some motors will have a "Recommended Voltage" for a particular controller, which is the amount of voltage needed to reach the optimal speed and torque of the motor with minimal heating.

### Setting Current Limit

The 1063 allows the current applied to the motor to be programmatically set. This is important - if the current limit is set too high, the motor’s internal resistance will cause the sine-wave approximations used to implement microstepping to clip at the maximum current possible, given your motor/supply voltage. This clipping will cause rough operation, or prevent the motor from turning. If the limit is set too low, the motor may not be able to handle it’s load, by missing steps, or not turning at all at high accelerations.

#### How to determine CurrentLimit

• Disconnect one coil from the Phidget and make sure your power supply is set at the voltage you will use in your application.
• The CurrentLimit has to be less than the current limit of your motor, so start CurrentLimit at a small value.
• Using our example, change the position until you find a maximum current.
• Move up the current limit until the current feedback is not increasing.

This is your current limit. If you do not need so much torque, you can reduce the current limit to save power and reduce heating. If you need more current than the 1063 is specified to provide, you'll need to add some form of heat dissipation to the driver chip (A3979), in the form of a heatsink, air circulation, or both. The only problem with artificially increasing this limit through cooling is that you have no way of knowing how much further you can push the controller without some sort of temperature monitoring.

### Continuous Rotation

A stepper motor can be caused to rotate continuously by simply setting the motor position property to an extremely large number of steps. The valid range of values for the motor position property is large enough to be able to cause the motor to continuously turn at maximum velocity for 194 days.

### Saving Power

Holding torque is the amount of torque required to rotate the motor ‘against it’s will’ when the full rated current is flowing through the coils. If current consumption / heating is a problem, and full holding torque is not required, the Current Limit can be decreased in software when the motor is not moving. Holding torque will decrease linearly with the Current Limit.

There is also a small resistance to movement within the motor even when there is no current, called Detent Torque. This may be sufficient to prevent rotation in your application, particularly if the stepper has a gearbox on it.

If the motor is not supporting a load or is not required to maintain a specific angle, it is recommended to set the Enable property to false. This will allow the motor shaft to rotate freely, but the present angle may be lost if forces on the motor-shaft are greater than can be resisted by the detent torque of the unpowered motor.

### High Precision Applications

Stepper motor precision is limited by the manufacturing process used to build them. Errors in the rotor and coils will cause some degree of inaccuracy. In our experience, inexpensive stepper motors will often have positioning errors approaching a half-step. Gearing a stepper motor down with a gearbox will reduce this error proportional to the reduction ratio of the gearbox.

### Synchronization of Multiple Motors

Many applications call for several steppers motors operating in unison - for example, operating a CNC table, or a robot arm. Highly precise synchronization of steppers using the PhidgetStepper is not possible, as the sequencing will be affected by the real-time performance of your operating system. Each stepper is controlled as a independent unit, so there is no way of arranging for a particular action to happen to all motors at the same time. Typical jitter can be 10-30mS.

### Compatibility Guidelines

When looking for a motor that will be compatible with the 1063, check the motor's data sheet and make sure it meets the following specifications.

• Bipolar motor - While the 1063 can control some six-wire unipolar motors, we recommend you look for bipolar stepper motors.
• 4, 6, or 8-wire motor - A 5-wire motor cannot be used with the 1063, because the coils of the motor are connected internally.
• Rated/Recommended Voltage - If the motor comes with a rated or recommended voltage, it should be no more than 30 volts, and you should use a power supply that can output that voltage.
• Rated Current - The motor should be rated for a maximum of 1.5A per coil.

### Troubleshooting

If your stepper motor is not behaving correctly, you can use a multimeter to determine whether it is the controller or the motor that is at fault.

Disconnect the motor and set the current limit to 0. Set the target position to 7 and measure the voltage difference between the A and B terminals it should be either -12, or +12V assuming you are using a 12V power supply (just depending on which terminal you have the positive multimeter lead connected to). Then set the target position to 8, the voltage should drop to 0, and it will go to the opposite at 9 (-12 or +12). This pattern will repeat for 39,40,41 and 71,72,73 and 103,104,105 etc... in increments of 32. If this is behaving as expected then the problem is probably with how you have connected your motor, or your code.

## What to do Next

• Programming Languages - Find your preferred programming language here and learn how to write your own code with Phidgets!
• Phidget Programming Basics - Once you have set up Phidgets to work with your programming environment, we recommend you read our page on to learn the fundamentals of programming with Phidgets.
