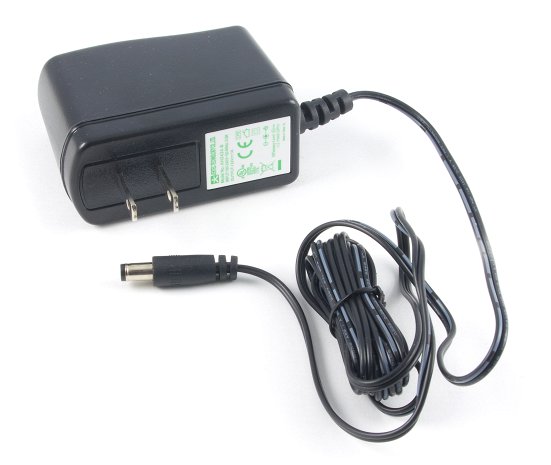

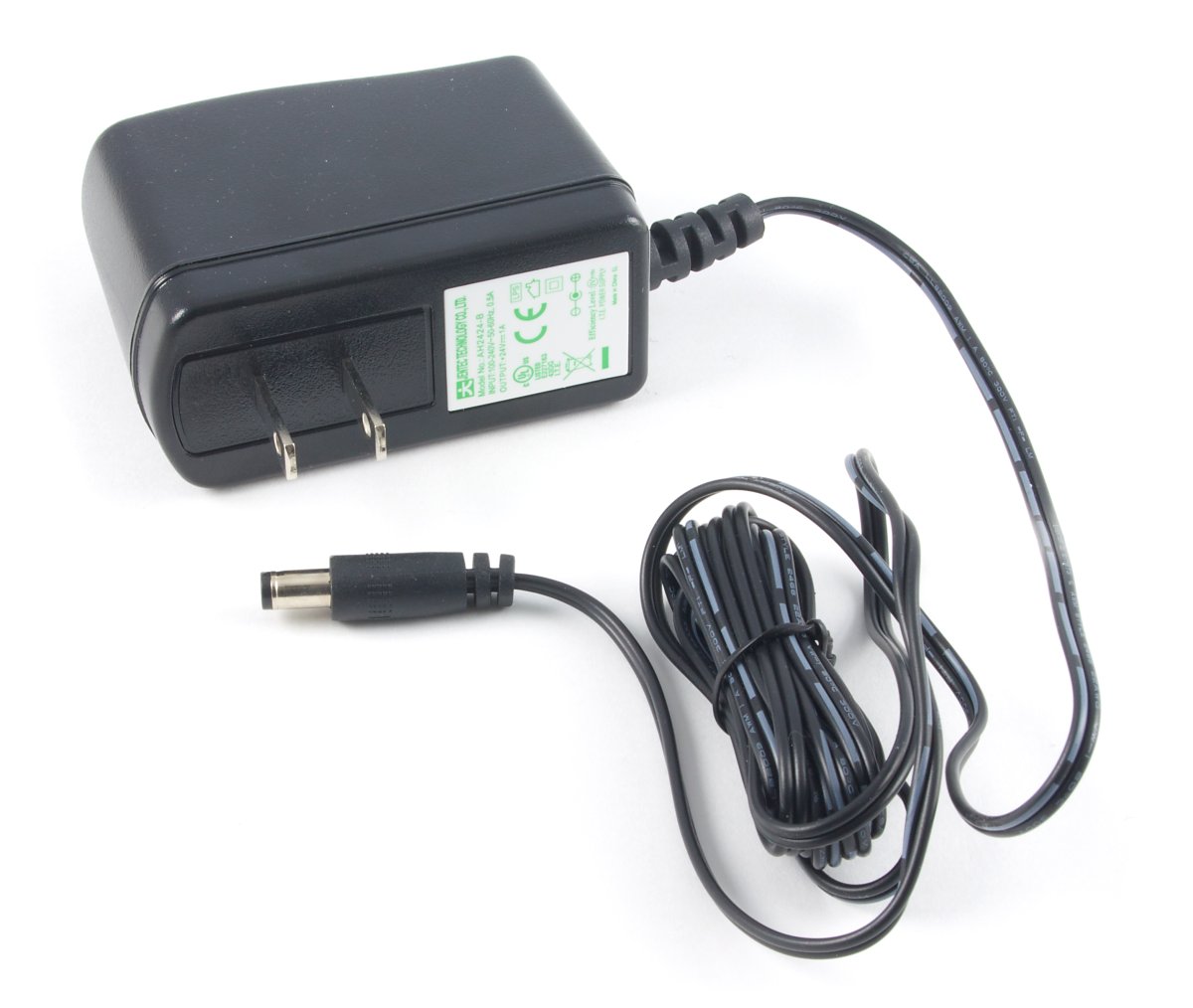

Power Supply 24VDC 1.0A - US

ID: 3086_0

Qualified: Phidgets Inc. is not the original manufacturer for this product, so while we intend to continue selling it for as long as it's available, some minor characteristics such as colour or shape may change in future stock.

$10.00

Quantity Available: 240

Qty	Price
5	$9.60
10	$9.20
25	$9.00
50	$8.80
100	$8.60

North American style plug.

The 3086 provides efficient power at 24VDC, 1.0 Amps, 24 Watts. It is protected against over-current, over-voltage, and short-circuits.

Standards

UL - file E227163
CE - EN 55022/61000/55024

Recommended Use

The power supply can be used with all Phidgets that accept an external power supply, or for projects that need a power source.

If you need higher voltage, this is the power supply we recommend to use with these boards:

Power Supply Accessories

Here are some handy products that are compatible with this power supply:

Product		Physical Properties
Part Number	Price	Connector A	Connector B	Cable Length	Cable Gauge
CBL4209_1 Female Pigtail 5.5x2.1mm	$2.75	Power Jack 5.5 x 2.1mm (Female)	2 Loose Wires	250 mm	20 AWG

Product Specifications

Electrical Properties
Output Voltage	24 V
Power Supply Current	1 A
Output Power	24 W
AC Input Voltage Min	100 V AC
AC Input Voltage Max	240 V AC
AC Input Frequency Min	50 Hz
Protection Circuitry	Over-Current, Over-Voltage, Short Circuit
AC Input Frequency Max	60 Hz
Physical Properties
Wall Plug Style	North American
Power Jack Hole Diameter	5.5 mm
Power Jack Pin Diameter	2.1 mm
Power Jack Polarity	Center Positive
Operating Temperature Min	0 °C
Operating Temperature Max	40 °C
Customs Information
Canadian HS Export Code	8504.40.00
American HTS Import Code	8504.40.70.01
Country of Origin	TW (Taiwan)

Documents

Technical Datasheet
