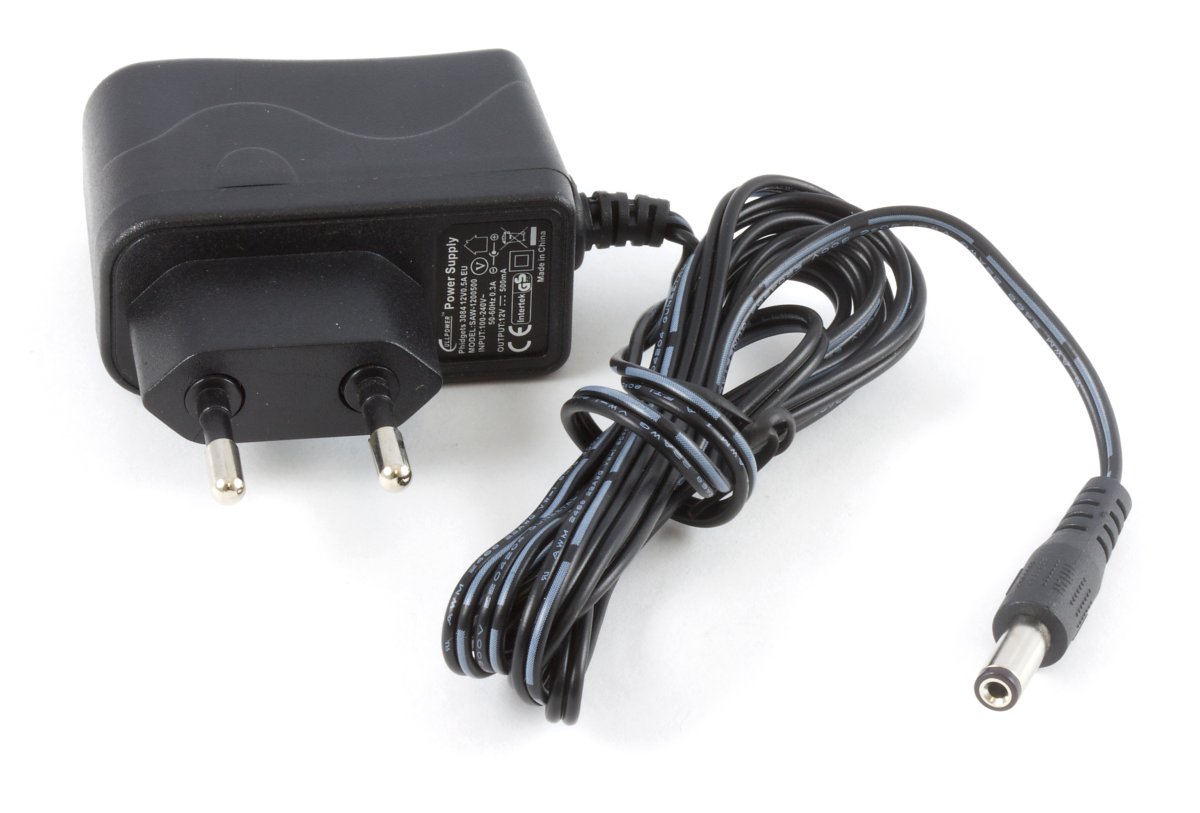

Power Supply 12VDC 0.5A - EU

ID: 3084_0
Qualified: Phidgets Inc. is not the original manufacturer for this product, so while we intend to continue selling it for as long as it's available, some minor characteristics such as colour or shape may change in future stock.

$1.50

Quantity Available: 848

Qty Price
5 $1.44
10 $1.38
25 $1.35
50 $1.32
100 $1.29

European style plug.

The 3084 provides efficient power at 12VDC, 0.5 Amps, 6 Watts. It is protected against over-current.

It is a well priced, small power supply for projects that require a low-power external power supply.

Standards

  • CE - Standard: EN60950/EN55022

Recommended Use

This power supply can be used with all Phidgets that accept an external power supply, or for projects that need a power source.

If you are unsure about how much power your project demands, call us, or choose a larger power supply.

Power Supply Accessories

Here are some handy products that are compatible with this power supply:

Product Physical Properties
Part Number Price Connector A Connector B Cable Length Cable Gauge
CBL4209_1
Female Pigtail 5.5x2.1mm
$2.75 Power Jack 5.5 x 2.1mm (Female) 2 Loose Wires 250 mm 20 AWG

Product Specifications

Electrical Properties
Output Voltage 12 V
Power Supply Current 500 mA
Output Power 6 W
AC Input Voltage Min 100 V AC
AC Input Voltage Max 240 V AC
AC Input Frequency Min 50 Hz
AC Input Frequency Max 60 Hz
Protection Circuitry Over-Current, Over-Voltage, Over-Temperature, Short Circuit
Physical Properties
Wall Plug Style European
Power Jack Hole Diameter 5.5 mm
Power Jack Pin Diameter 2.1 mm
Power Jack Polarity Center Positive
Operating Temperature Min -20 °C
Operating Temperature Max 40 °C
Customs Information
Canadian HS Export Code 8504.40.00
American HTS Import Code 8504.40.70.01
Country of Origin CN (China)
