Name: GT2 Pulley with 6mm Bore and 22 Teeth
Brand: Phidgets
SKU: TRM4162_0
Availability: InStock

Sorry, it looks like javascript is disabled in your browser.

Please enable Javascript to continue to Phidgets.com

PHIDGETS Inc.

Unit 1 - 6115 4 St SE
Calgary AB T2H 2H9
Canada
+1 403 282-7335

GT2 Pulley with 6mm Bore and 22 Teeth

ID: TRM4162_0

Recommended for new designs: Phidgets Inc. is not the original manufacturer for this product, but we intend to sell it (or a similar replacement with a compatible form, fit and function) for as long as it is available from the supplier.

$2.50

Quantity Available: 256

Qty	Price
5	$2.40
10	$2.30

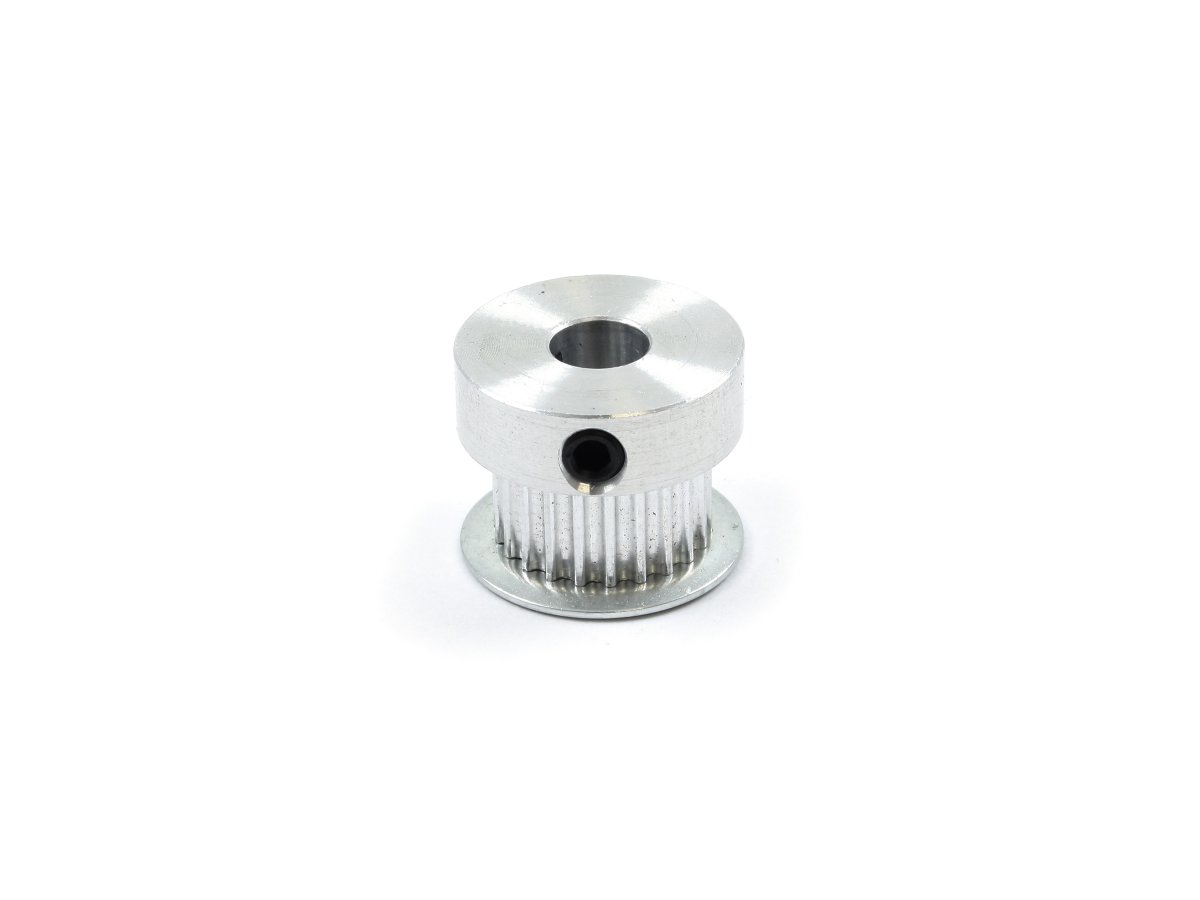

Pulley for GT2 timing belts. Machined from aluminum.

Guides

Rotary Motion Guide

Rotary systems involve rotating mechanical parts such as motors, sprockets, and pulleys. Learn the basics about rotary motion here.

Belts

This pulley can be used with any GT2 series belt. The size of belt required depends on the desired distance between your two pulleys; for installation details see the Rotary Motion Guide.

Product		Physical Properties
Part Number	Price	Pulley Series	Belt Circumference	Working Tensile Strength
TRM4200_0 120mm GT2x6mm Timing Belt	$1.50	GT2	120 mm	27 N
TRM4201_0 156mm GT2x6mm Timing Belt	$1.50	GT2	156 mm	27 N
TRM4202_0 184mm GT2x6mm Timing Belt	$1.50	GT2	184 mm	27 N
TRM4203_0 220mm GT2x6mm Timing Belt	$1.50	GT2	220 mm	27 N
TRM4204_0 276mm GT2x6mm Timing Belt	$1.50	GT2	276 mm	27 N
TRM4205_0 330mm GT2x6mm Timing Belt	$3.00	GT2	330 mm	27 N
TRM4206_0 392mm GT2x6mm Timing Belt	$3.35	GT2	392 mm	27 N
TRM4207_0 560mm GT2x6mm Timing Belt	$5.20	GT2	560 mm	27 N
TRM4218_0 GT2x6mm Timing Belt Open	$2.25/Meter	GT2	—	27 N

Stepper Motors

Stepper motors have high torque and precise position control. This pulley can connect to the main shaft of the following stepper motors:

Product		Physical Properties		Motor Properties	Electrical Properties	Gearbox Properties
Part Number	Price	Shaft Diameter	Mounting Plate Size	Rated Torque	Recommended Voltage	Gearbox Type	Gear Ratio
3321_0 NEMA11 - 1.8 Degree - 0.67A Stepper - 27:1 Gearbox	$36.00	6 mm	NEMA - 11	14 kg·cm	24 V DC	Planetary	26 ¹⁰³⁄₁₂₁ : 1
3322_0 NEMA11 - 1.8 Degree - 0.67A Stepper - 100:1 Gearbox	$38.00	6 mm	NEMA - 11	32 kg·cm	24 V DC	Planetary	99 ¹⁰⁴⁴⁄₂₀₅₇ : 1

DC Motors

DC motors are the simplest and most common option for rotary motion in many projects. This pulley can connect to the main shaft of the following DC motors:

Product		Physical Properties	Motor Properties	Electrical Properties	Gearbox Specifications
Part Number	Price	Shaft Diameter	Rated Torque	Rated Voltage	Gearbox Type	Gear Ratio
3254_0 12V/0.2Kg-cm/230RPM 10:1 DC Gear Motor	$10.00	6 mm	200 g·cm	12 V DC	Spur	10 : 1
3255_0 12V/0.3Kg-cm/127RPM 18:1 DC Gear Motor	$10.00	6 mm	310 g·cm	12 V DC	Spur	18 : 1
3256_0 12V/0.8Kg-cm/46RPM 50:1 DC Gear Motor	$11.00	6 mm	820 g·cm	12 V DC	Spur	50 : 1
3257_0 12V/1.6Kg-cm/23RPM 100:1 DC Gear Motor	$11.00	6 mm	1.6 kg·cm	12 V DC	Spur	100 : 1
3261E_1 12V/0.2Kg-cm/1080RPM 3.7:1 DC Gear Motor w/ Encoder	$48.00	6 mm	240 g·cm	12 V DC	Planetary	3 ¹²⁄₁₇ : 1
3261_0 12V/0.2Kg-cm/1080RPM 3.7:1 DC Gear Motor	$18.00	6 mm	240 g·cm	12 V DC	Planetary	3 ¹²⁄₁₇ : 1
3262_1 12V/0.9Kg-cm/285RPM 14:1 DC Gear Motor	$18.00	6 mm	900 g·cm	12 V DC	Planetary	13 ²¹²⁄₂₈₉ : 1
3263_1 12V/3.0Kg-cm/78RPM 51:1 DC Gear Motor	$20.50	6 mm	3.1 kg·cm	12 V DC	Planetary	50 ⁸⁰¹⁄₈₉₅ : 1

Product Specifications

Physical Properties
Inner Diameter	6 mm
Number of Teeth	22
Hex Key Size Required	2 mm
Customs Information
Canadian HS Export Code	8483.90.00
American HTS Import Code	8483.90.50.90
Country of Origin	CN (China)

Documents

Product		Physical Properties
Part Number	Price	Inner Diameter	Number of Teeth
TRM4100_0 GT2 Pulley with 5mm Bore and 16 Teeth	$2.50	5 mm	16
TRM4101_0 GT2 Pulley with 0.25" Bore and 22 Teeth	$3.00	¹⁄₄″	22
TRM4102_0 GT2 Pulley with 8mm Bore and 22 Teeth	$2.75	8 mm	22
TRM4103_0 GT2 Pulley with 8mm Bore and 32 Teeth	$2.50	8 mm	32
TRM4104_0 GT2 Pulley with 8mm Bore and 44 Teeth	$3.00	8 mm	44
TRM4105_0 GT2 Pulley with 8mm Bore and 60 Teeth	$3.00	8 mm	60
TRM4106_0 GT2 Pulley with 8mm Bore and 80 Teeth	$4.00	8 mm	80
TRM4107_0 GT2 Pulley with 12mm Bore and 36 Teeth	$3.00	12 mm	36
TRM4108_0 GT2 Pulley with 12mm Bore and 44 Teeth	$3.00	12 mm	44
TRM4109_0 GT2 Pulley with 12mm Bore and 60 Teeth	$3.55	12 mm	60
TRM4110_0 GT2 Pulley with 12mm Bore and 80 Teeth	$4.45	12 mm	80
TRM4158_0 GT2 Idler Pulley with 8mm Bore and 44 Teeth	$1.75	8 mm	44
TRM4158_1 GT2 Idler Pulley 8mm Bore with Spacers	$5.50	8 mm	44
TRM4162_0 GT2 Pulley with 6mm Bore and 22 Teeth	$2.50	6 mm	22
