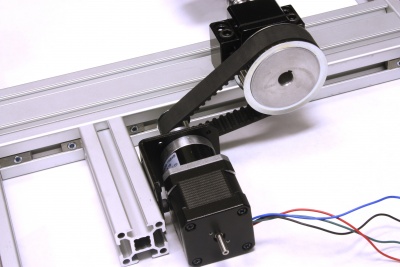

Rotary Motion Guide
Rotary systems involve rotating mechanical parts such as motors, sprockets, and pulleys. Learn the basics about rotary motion here.
Products for USB Sensing and Control
Quantity Available: 78
| Qty | Price |
|---|---|
| 5 | $1.68 |
| 10 | $1.61 |

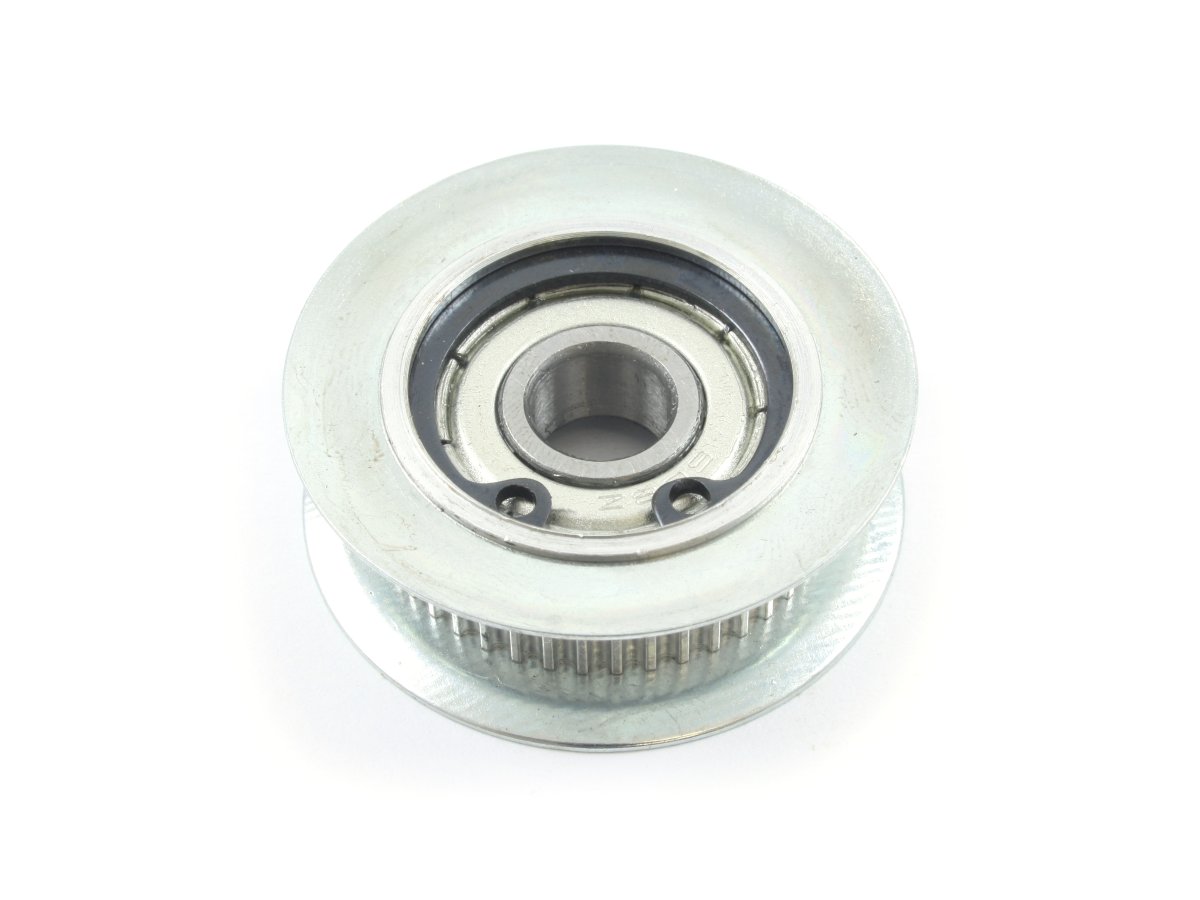

Idler pulleys are standard pulleys with an integrated bearing. This allows them to spin freely without impeding the rotation in your system. This is useful for when you want an adjustable way to tension a belt system that doesn't impact the movement of the belt or place additional load on the motor.
Note: A small amount of Loctite can be used on the shaft to prevent the idler pulley from shifting laterally on the shaft if this is an issue.
This pulley can be used with any GT2 series belt. The size of belt required depends on the desired distance between your two pulleys; for installation details see the Rotary Motion Guide.
| Product | Physical Properties | |||
|---|---|---|---|---|
| Part Number | Price | Pulley Series | Belt Circumference | Working Tensile Strength |
 120mm GT2x6mm Timing Belt
|
$1.50 | GT2 | 120 mm | 27 N |
 156mm GT2x6mm Timing Belt
|
$1.50 | GT2 | 156 mm | 27 N |
 184mm GT2x6mm Timing Belt
|
$1.50 | GT2 | 184 mm | 27 N |
 220mm GT2x6mm Timing Belt
|
$1.50 | GT2 | 220 mm | 27 N |
 276mm GT2x6mm Timing Belt
|
$1.50 | GT2 | 276 mm | 27 N |
 330mm GT2x6mm Timing Belt
|
$3.00 | GT2 | 330 mm | 27 N |
 392mm GT2x6mm Timing Belt
|
$3.35 | GT2 | 392 mm | 27 N |
 560mm GT2x6mm Timing Belt
|
$5.20 | GT2 | 560 mm | 27 N |
 GT2x6mm Timing Belt Open
|
$2.25/Meter | GT2 | — | 27 N |
If you're building a rotary transmission system of any kind, chances are you'll need some rotary shaft. Here's a list of rotary shaft compatible with this pulley:
| Product | Physical Properties | |
|---|---|---|
| Part Number | Price | Diameter |
 8mm Precision Ground Rotary Shaft
|
$6.50/Meter | 8 mm |
| Physical Properties | |
|---|---|
| Inner Diameter | 8 mm |
| Number of Teeth | 44 |
| Customs Information | |
| Canadian HS Export Code | 8483.50.00 |
| American HTS Import Code | 8483.50.90.40 |
| Country of Origin | CN (China) |
| Product | Physical Properties | ||
|---|---|---|---|
| Part Number | Price | Inner Diameter | Number of Teeth |
 GT2 Pulley with 5mm Bore and 16 Teeth
|
$2.50 | 5 mm | 16 |
 GT2 Pulley with 6mm Bore and 22 Teeth
|
$2.50 | 6 mm | 22 |
 GT2 Pulley with 0.25" Bore and 22 Teeth
|
$3.00 | 1⁄4″ | 22 |
 GT2 Idler Pulley 8mm Bore with Spacers
|
$5.50 | 8 mm | 44 |
 GT2 Idler Pulley with 8mm Bore and 44 Teeth
|
$1.75 | 8 mm | 44 |
 GT2 Pulley with 8mm Bore and 22 Teeth
|
$2.75 | 8 mm | 22 |
 GT2 Pulley with 8mm Bore and 32 Teeth
|
$2.50 | 8 mm | 32 |
 GT2 Pulley with 8mm Bore and 44 Teeth
|
$3.00 | 8 mm | 44 |
 GT2 Pulley with 8mm Bore and 60 Teeth
|
$3.00 | 8 mm | 60 |
 GT2 Pulley with 8mm Bore and 80 Teeth
|
$4.00 | 8 mm | 80 |
 GT2 Pulley with 12mm Bore and 36 Teeth
|
$3.00 | 12 mm | 36 |
 GT2 Pulley with 12mm Bore and 44 Teeth
|
$3.00 | 12 mm | 44 |
 GT2 Pulley with 12mm Bore and 60 Teeth
|
$3.55 | 12 mm | 60 |
 GT2 Pulley with 12mm Bore and 80 Teeth
|
$4.45 | 12 mm | 80 |
