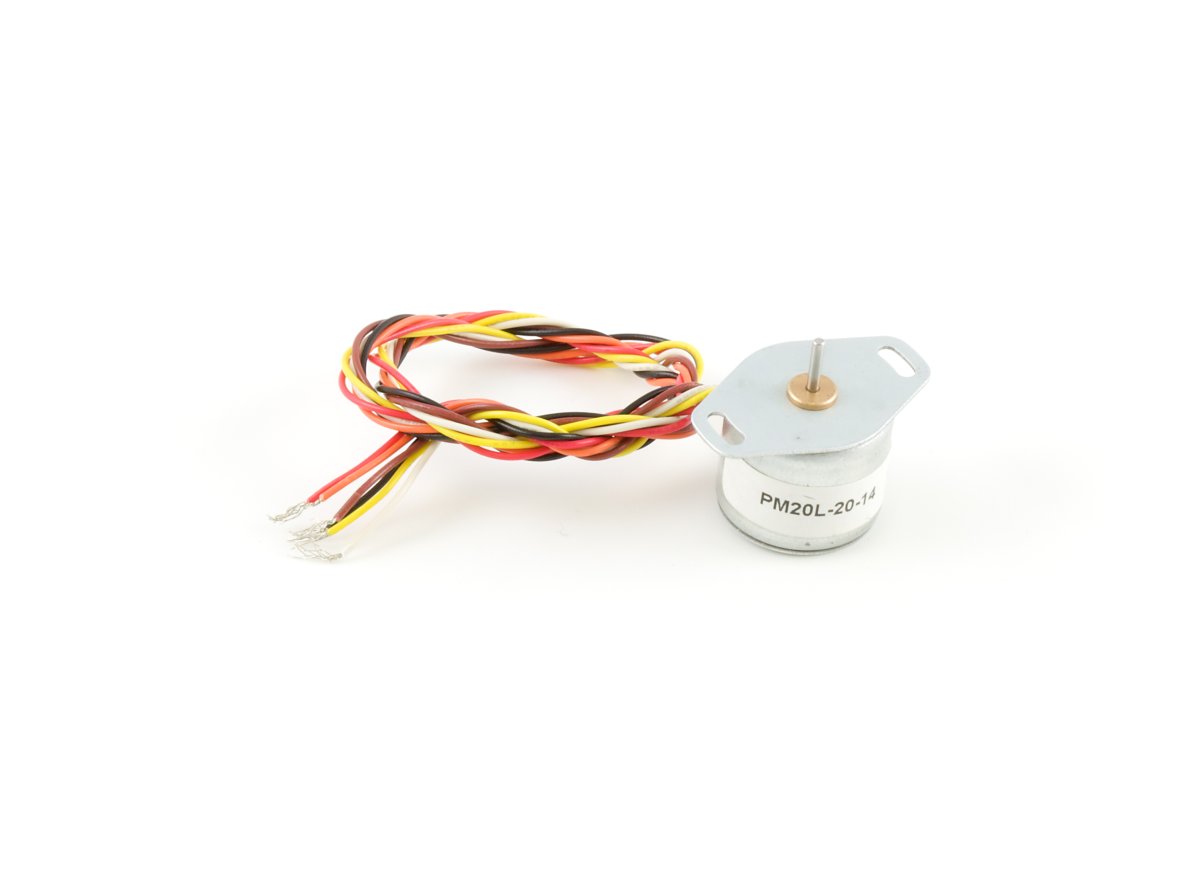

50g-cm Unipolar Stepper

ID: 3316_0

This high speed unipolar stepper has an 18° step angle and 30 g·cm of torque at low speeds.

$5.50

Quantity Available: 110

Qty Price
5 $5.28
10 $5.06
25 $4.95
50 $4.84
100 $4.73

This motor is good for turning small knobs or buttons.

Connection

This motor must be controlled by a constant current or chopper drive controller. You can find a list of suitable controllers on the Compatible Products tab.

Product Specifications

Motor Properties
Motor Type Unipolar Stepper
Manufacturer Part Number PM20L-20-14
Step Angle 18°
Step Accuracy 7 %
Holding Torque 50 g·cm
Rated Torque 30 g·cm
Maximum Speed at Rated Voltage 575 RPM
Electrical Properties
Rated Voltage 12 V DC
Rated Current 80 mA
Coil Resistance 135 Ω
Phase Inductance 32 mH
Physical Properties
Shaft Diameter 1.5 mm
Weight 24 g
Number of Leads 6
Wire Length 300 mm

Motor Controllers

Wire Color Orange Red Yellow Black White Brown
Board Connector + A B C D +

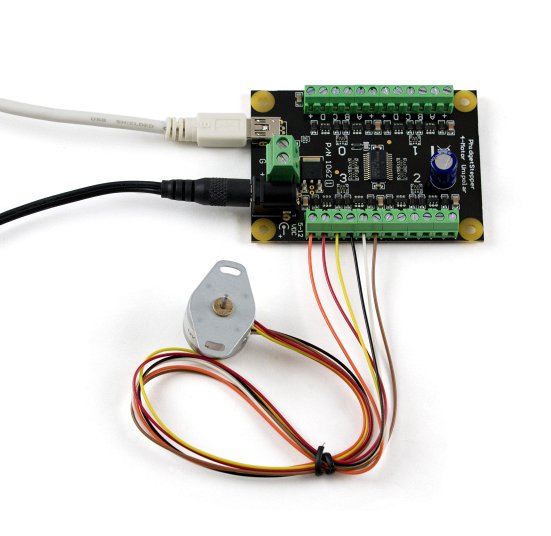

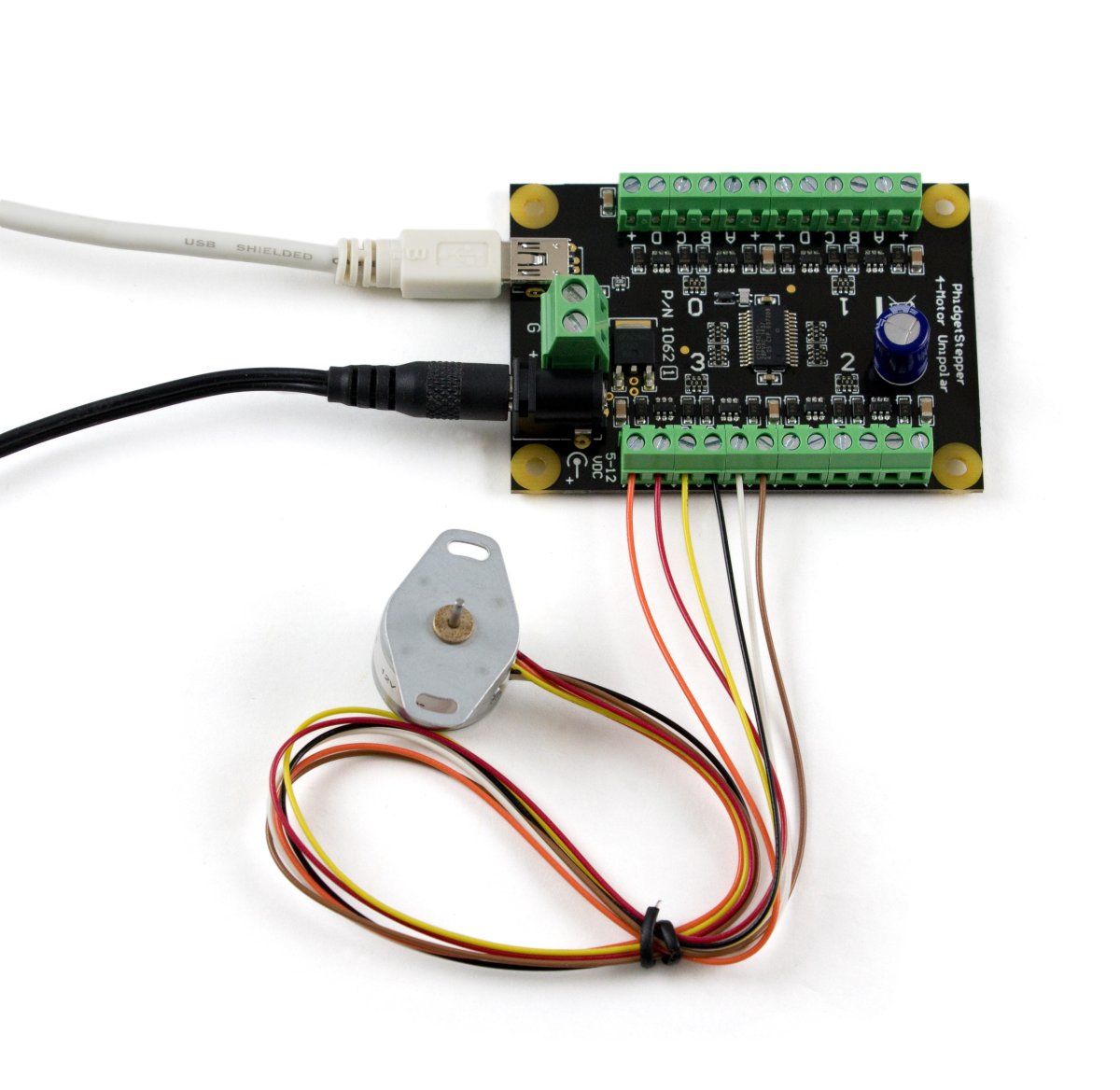

This motor must be controlled by a stepper motor controller. The following table shows how to connect the motor wires to the board connectors to produce a clockwise rotation in the stepper motor when increasing position.

To connect the motor to a bipolar motor controller, leave out the orange and brown wires.

Note: Make sure to unplug the power cord from the controller board before switching wires around.

Product Controller Properties Board Properties
Image Part Number Price Number of Motor Ports Motor Type Controlled By
1062_1 $75.00 4 Unipolar Stepper USB
1067_0 $95.00 1 Bipolar Stepper USB
STC1000_0 $75.00 1 Bipolar Stepper VINT

Here's a list of our unipolar stepper motors:

Product Motor Properties Electrical Properties
Image Part Number Price Motor Type Step Angle Rated Torque Maximum Speed at Rated Voltage Rated Voltage
3314_0 $6.50 Unipolar Stepper 7 12° 710 g·cm 240 RPM 12 V DC
3315_0 $5.00 Unipolar Stepper 7 12° 50 g·cm 240 RPM 12 V DC
3316_0 $5.50 Unipolar Stepper 18° 30 g·cm 575 RPM 12 V DC
