K-Type Probe Thermocouple 20cm

ID: TMP4107_0

This stainless steel probe type thermocouple is easy to install and plugs into a Phidgets thermocouple board.


Quantity Available: 196

Qty Price
5 $15.36
10 $14.72
25 $14.40
50 $14.08
100 $13.76

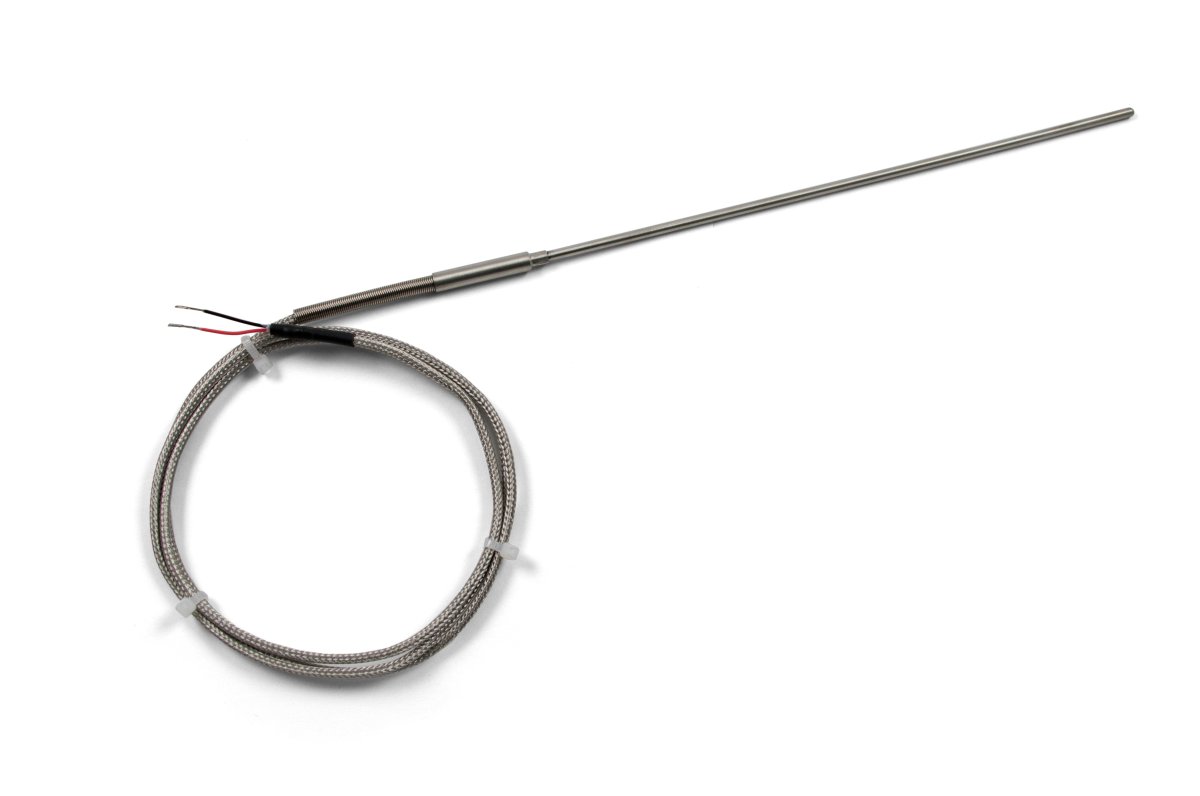

Measure -40 to 400°C with this stainless steel K-type thermocouple probe. Since the end of the thermocouple is enclosed, it is ideal for measuring liquids. The thermocouple junction is ungrounded, meaning it is isolated from the outer sheath and more resistant to environmental noise.

If you need to fix it to a panel or mount it inside an enclosure, have a look at the HDW4100 - 1/8" Mounting Nut or the HDW4101 - M12 Mounting Nut.

Note: Beyond the 20cm tip, this thermocouple is not waterproof.

For more information on thermocouples, visit the Thermocouple Primer.

Product Specifications

Sensor Properties
Sensor Type Thermocouple
Temperature Sensor
Thermocouple Type K
Probe Type Immersion (Ungrounded)
Ambient Temperature Min -40 °C
Ambient Temperature Max 400 °C
Ambient Temperature Min (Momentary) -40 °C
Ambient Temperature Max (Momentary) 1000 °C
Ambient Temperature Error Max 3.3 °C
Physical Properties
Cable Length 1 m
Probe Diameter 3.2 mm
Cable Diameter 3 mm
Probe Material Stainless Steel

Mounting Nuts

This probe thermocouple can be quickly and easily mounted into the side of a panel or enclosure using a mounting nut. The end is threaded so it can be fastened in place with a nut and washer.

Thermocouple Interfaces

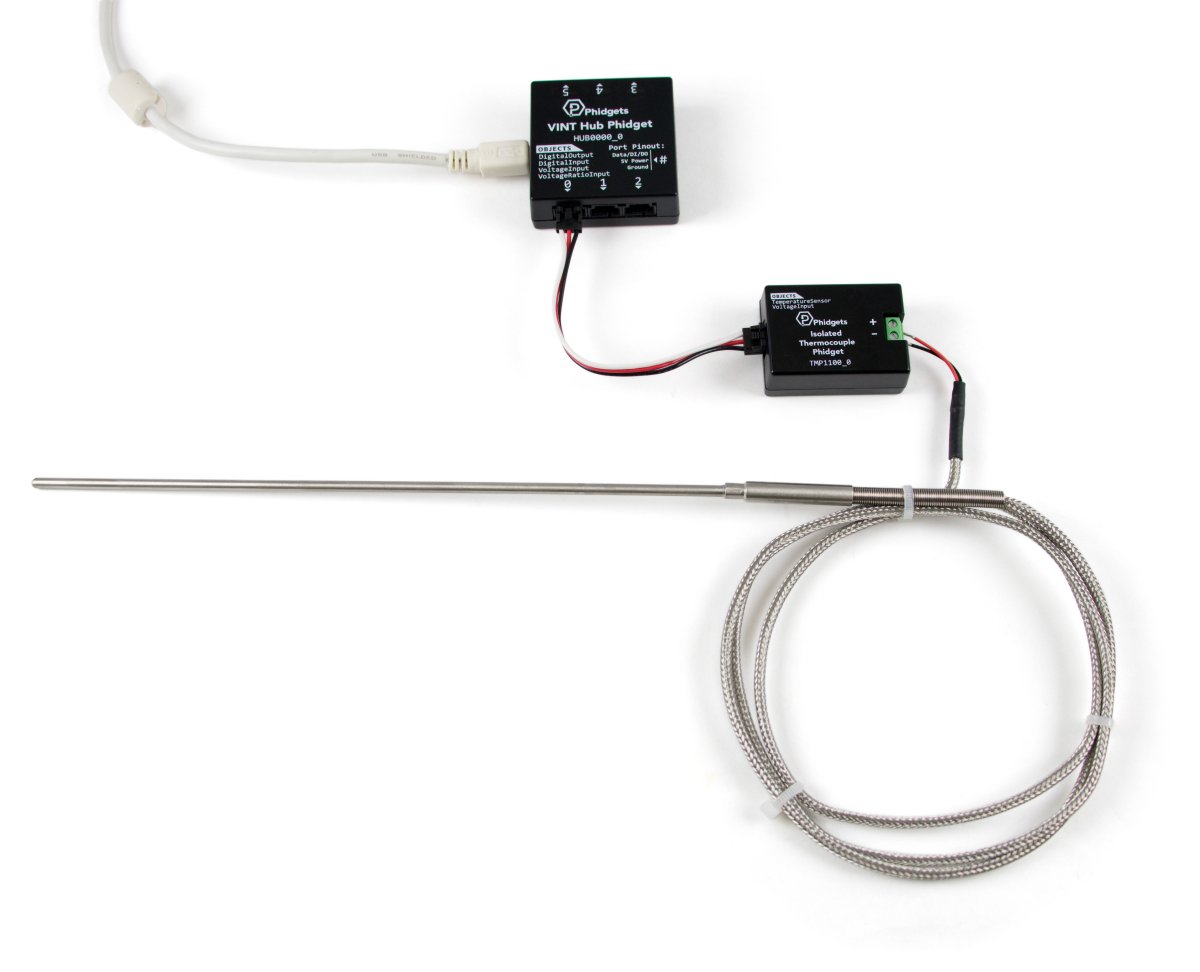

This K-type thermocouple can be read by connecting it to any of the thermocouple interfaces in the list below.

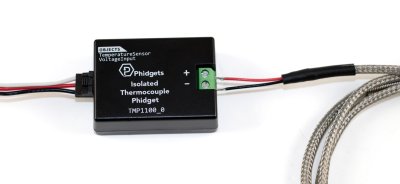

Note: On the 1051 or TMP1100, connect the white thermocouple wire to (-) terminal block and the Red wire to the + terminal block. On the 1048 or TMP1101, connect the white wire to G and the red wire to input terminal block (numbered 0 to 3).

Thermocouple Accessories

Thermocouples cannot easily be soldered, since adding an additional metal junction will throw off the readings. The following products will help connect or extend thermocouple wires.

Check out our thermocouples:

Product Temperature Sensor
Image Part Number Price Thermocouple Type Ambient Temperature Min Ambient Temperature Max Ambient Temperature Error Max
3108_2 $30.00 K -50 °C 700 °C ± 0.75 °C
TMP4103_0 $5.00 K -40 °C 200 °C ± 0.75 °C
TMP4104_0 $10.00 K -40 °C 400 °C ± 0.75 °C
TMP4106_0 $16.00 K -40 °C 400 °C 3.3 °C
TMP4107_0 $16.00 K -40 °C 400 °C 3.3 °C
