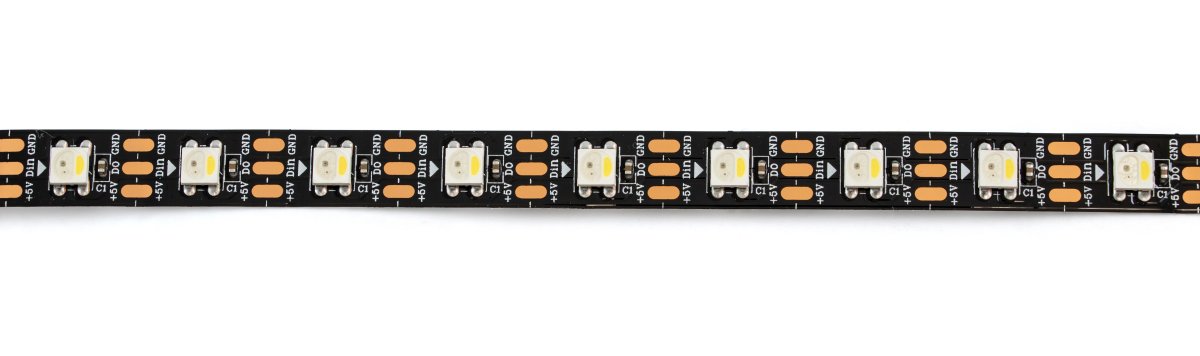

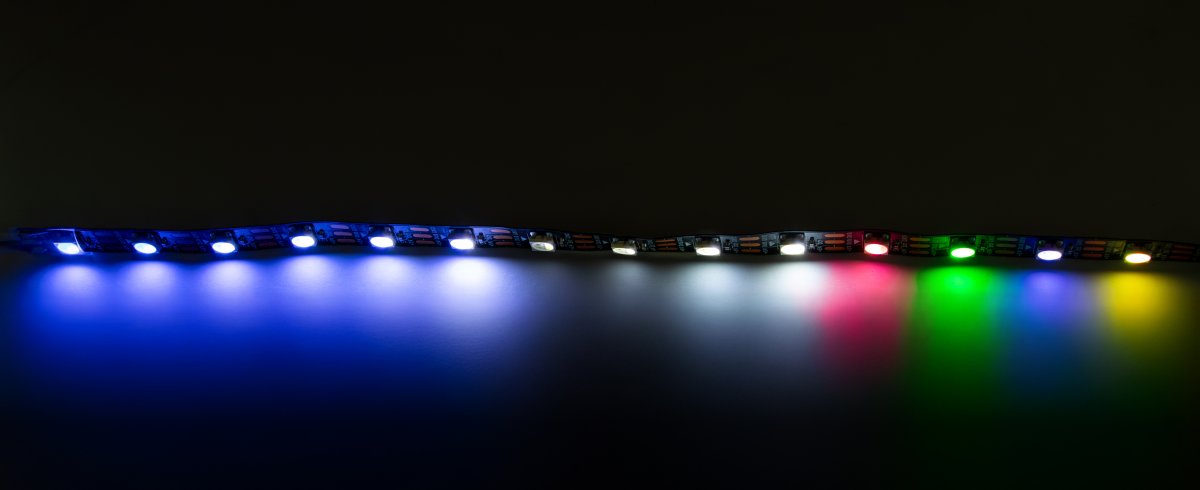

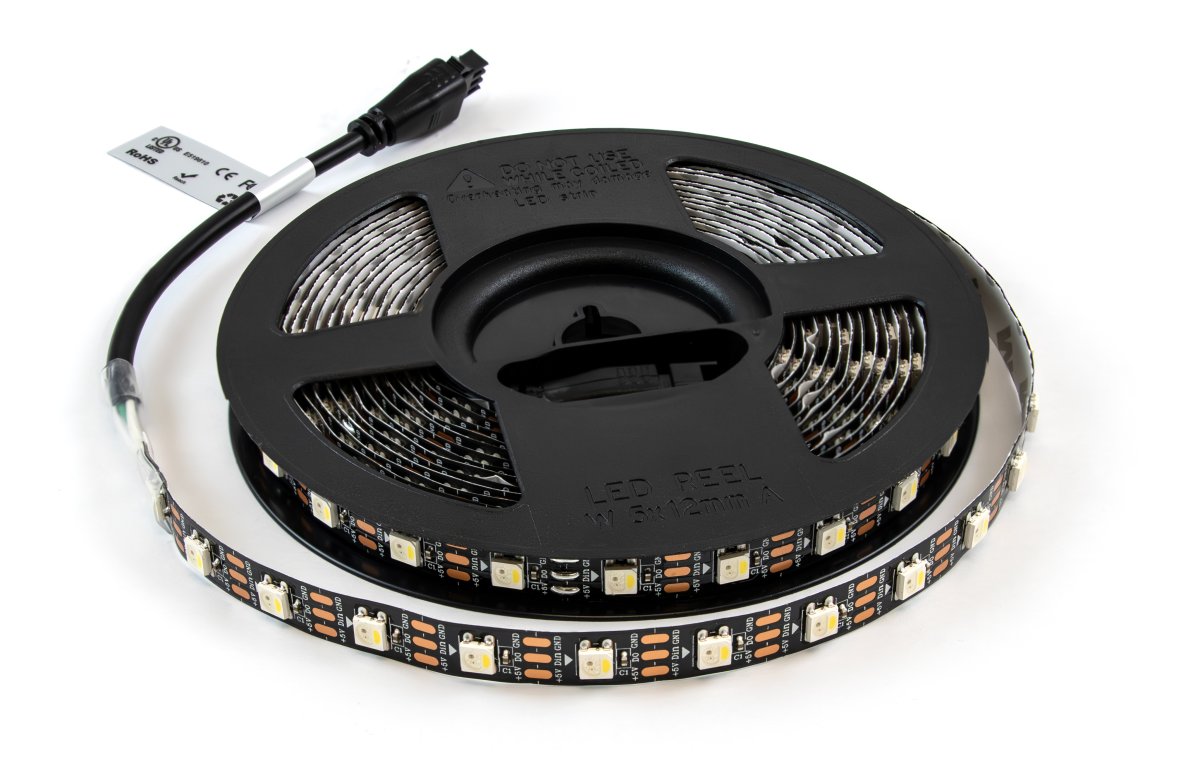

This addressable LED strip has 300 LEDs with a spacing of 60 LEDs per meter with individual control of the red, green, blue and white values for each light. The white produced by this strip is a 6000K cool white and is separate from the RGB diodes, giving you cleaner whites and more color combinations to choose from.

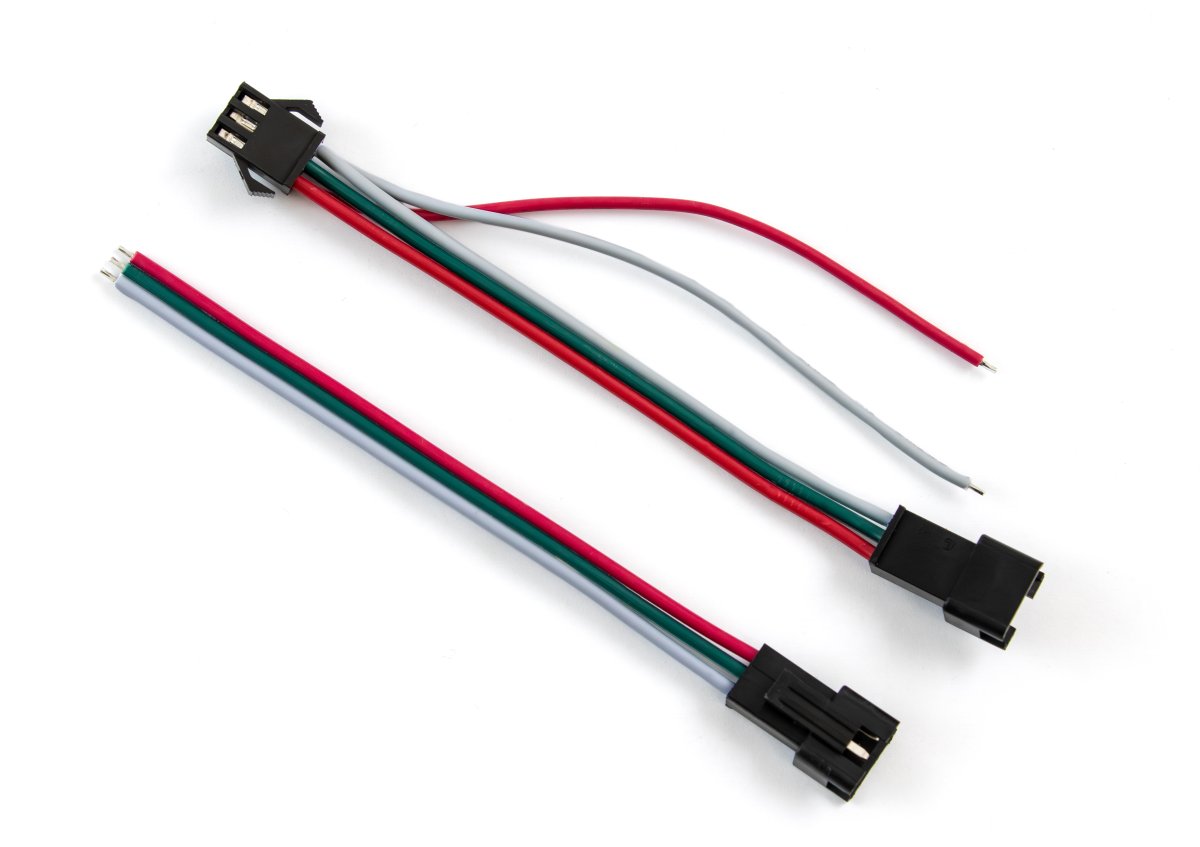

The strip can be cut and resoldered along any of the exposed traces to create different shapes and patterns, and the 3M adhesive backing can be used for a quick mounting option. Both ends of the strip are terminated with the industry standard JST connector so it can be chained with other lights. An additional cable is included for injecting power at the end of the strip or between multiple strips, and a JST pigtail is included for easy connection to an Addressable LED Phidget.
| Physical Properties | |
|---|---|
| LED Density | 60 LEDs/m |
| Length | 5 m |
| Width | 10 mm |
| Height | 2.2 mm |
| IP Rating | 30 |
| Operating Temperature Min | -20 °C |
| Operating Temperature Max | 40 °C |
| LED Properties | |
| LED Protocol | SK6812 |
| Color Order | GRBW |
| Electrical Properties | |
| Supply Voltage | 5 V DC |
| LED Current Max | 40 mA/LED |
| Customs Information | |
| Canadian HS Export Code | 8541.41.00 |
| American HTS Import Code | 8541.41.00.00 |
| Country of Origin | CN (China) |

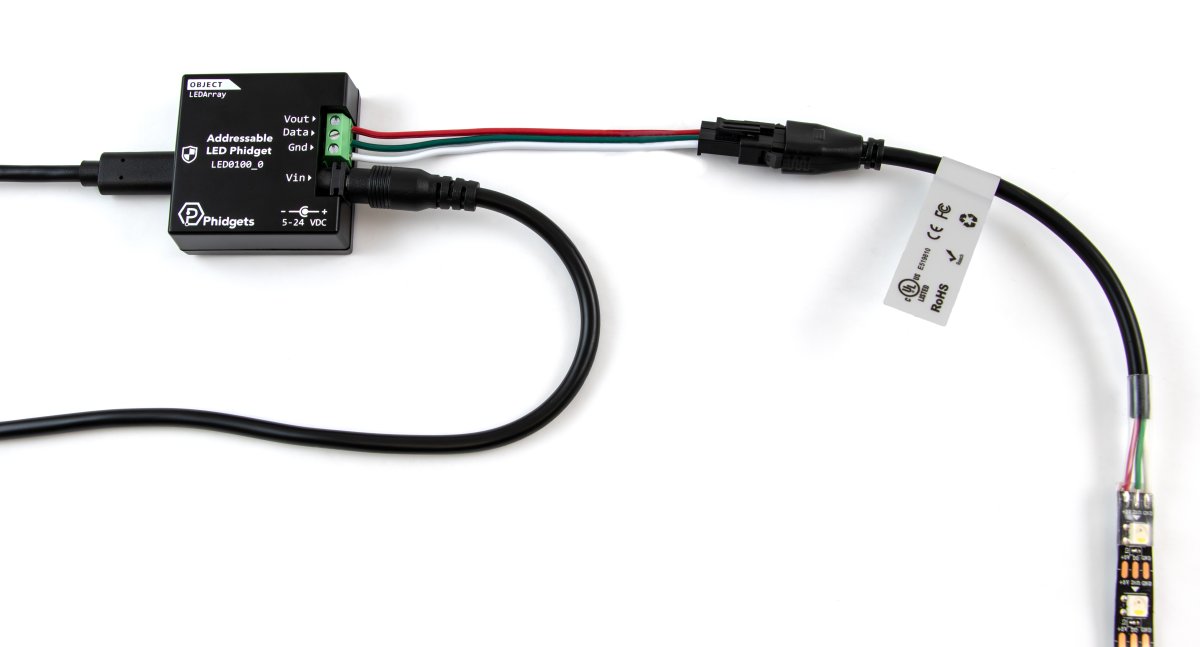

To control your addressable LEDs, you'll need an Addressable LED Phidget:
For best performance, this strip requires a 5V DC power supply. You can run this strip off of USB power with the Addressable LED Phidget, but you'll be limited in terms of brightness and number of LEDs illuminated at the same time.
| Product | Electrical Properties | ||
|---|---|---|---|
| Part Number | Price | Output Voltage | Power Supply Current |
 Power Supply 5VDC 3.5A
|
$15.00 | 5 V | 3.5 A |
| Product | Physical Properties | LED Properties | Electrical Properties | |||
|---|---|---|---|---|---|---|
| Part Number | Price | LED Density | Length | LED Protocol | LED Current Max | Supply Voltage |
 1m Addressable LED Strip (60 LED/m)
|
$10.00 | 60 LEDs/m | 1 m | WS2812B | 40 mA/LED | 5 V DC |
 5m Addressable LED Strip (30 LED/m)
|
$20.00 | 30 LEDs/m | 5 m | WS2812B | 40 mA/LED | 5 V DC |
 5m Addressable LED Strip (60 LED/m)
|
$32.00 | 60 LEDs/m | 5 m | WS2812B | 40 mA/LED | 5 V DC |

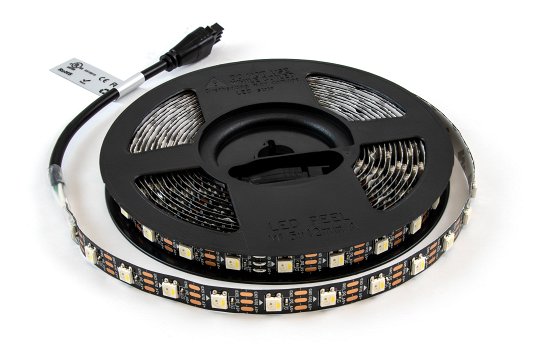

 5m Addressable RGBW LED Strip (60 LED/m)
|
$50.00 | 60 LEDs/m | 5 m | SK6812 | 40 mA/LED | 5 V DC |
 Addressable LED 16x16 Grid
|
$30.00 | 100 LEDs/m | 160 mm | WS2812B | 60 mA/LED | 5 V DC |
