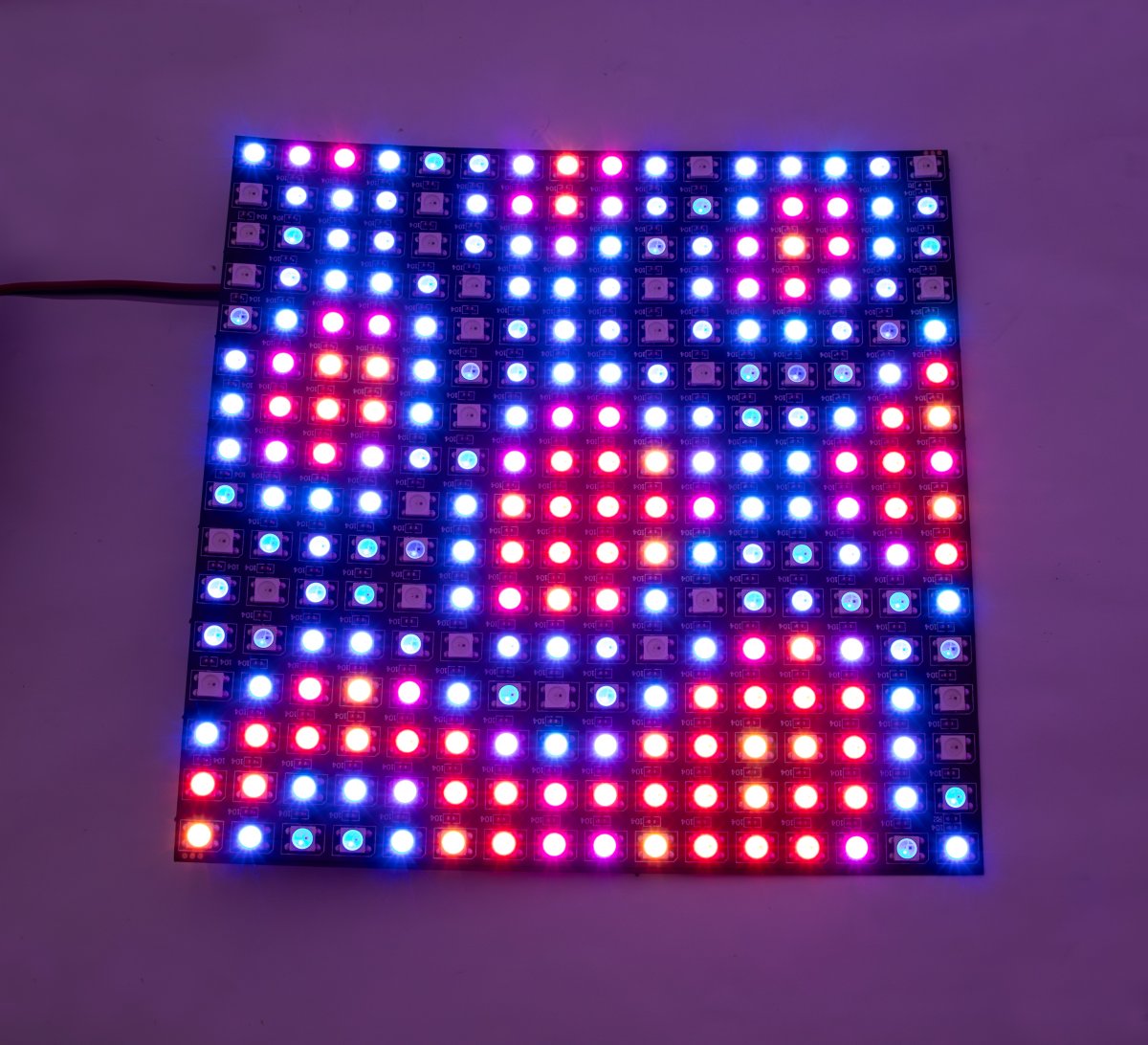

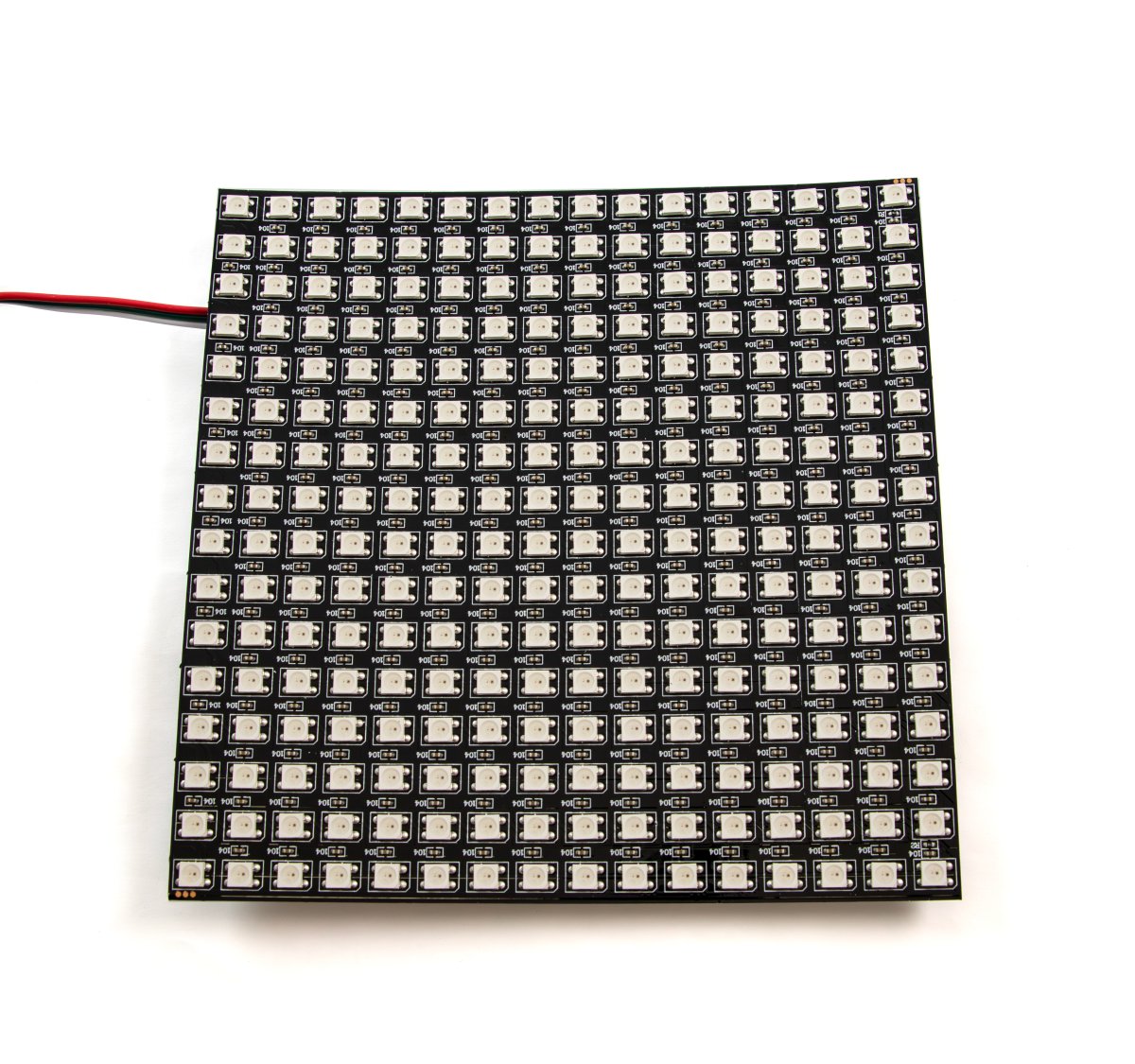

This addressable LED grid has 256 LEDs within a 16x16 centimeter square with individual control of the red, green and blue values for each light.

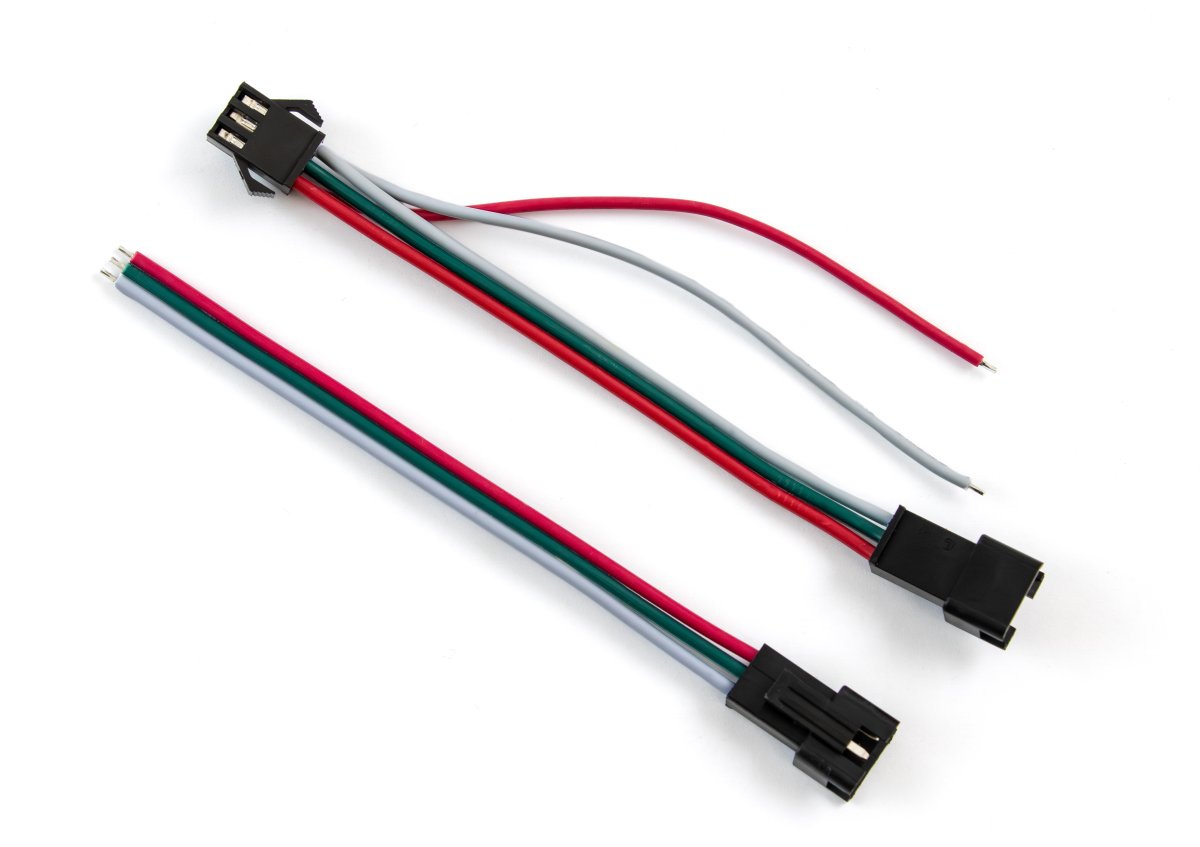

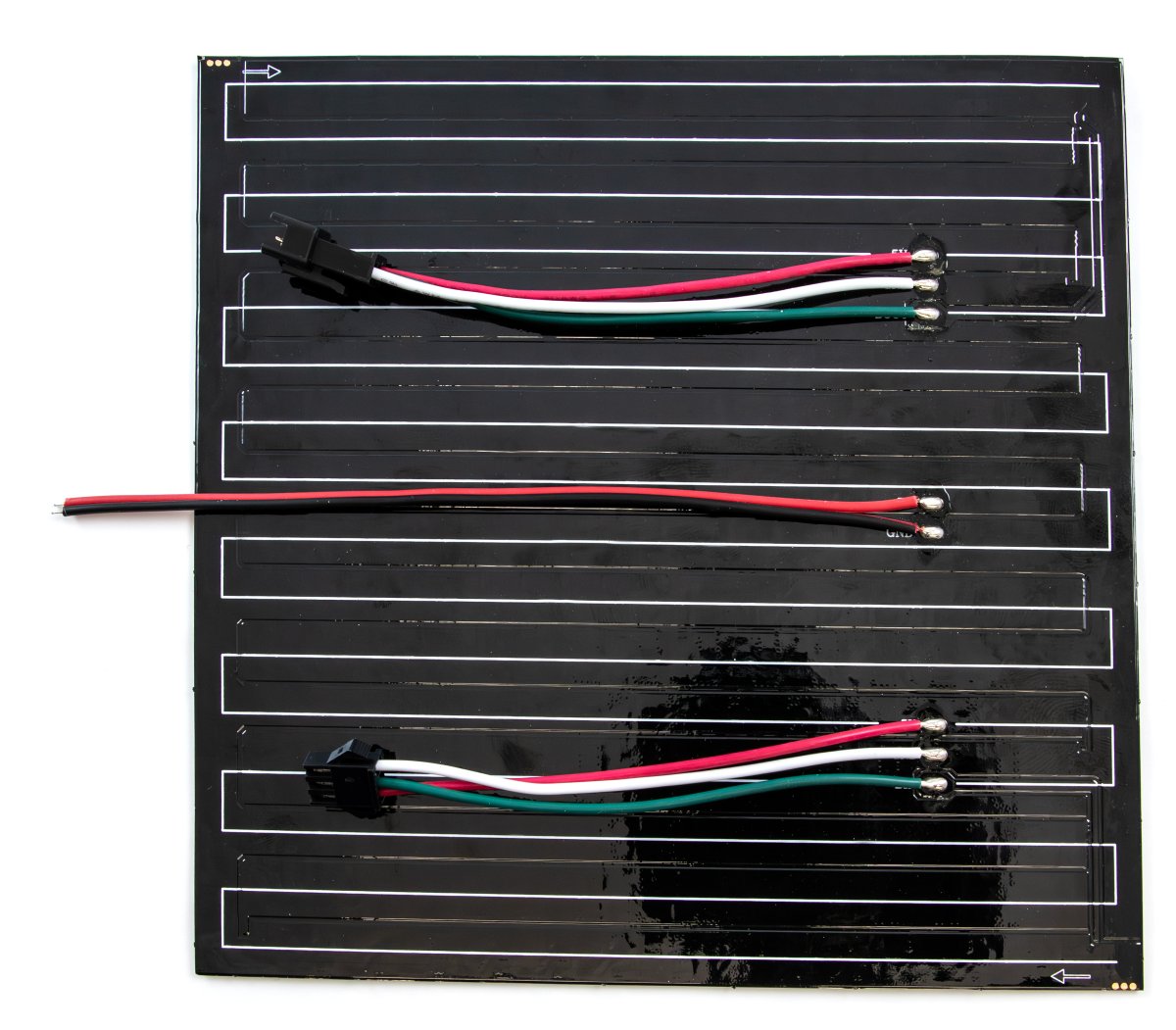

Both ends of the grid are terminated with the industry standard JST connector so it can be chained with other lights, and power and ground lines are exposed half way through the grid for optional power injection. An additional cable is included for injecting power between multiple grids, and a JST pigtail is included for easy connection to an Addressable LED Phidget.
| Physical Properties | |
|---|---|
| LED Density | 100 LEDs/m |
| Length | 160 mm |
| Width | 160 mm |
| Height | 2.2 mm |
| IP Rating | 30 |
| Operating Temperature Min | -20 °C |
| Operating Temperature Max | 40 °C |
| LED Properties | |
| LED Protocol | WS2812B |
| Color Order | GRB |
| Electrical Properties | |
| Supply Voltage | 5 V DC |
| LED Current Max | 60 mA/LED |
| Customs Information | |
| Canadian HS Export Code | 8541.41.00 |
| American HTS Import Code | 8541.41.00.00 |
| Country of Origin | CN (China) |

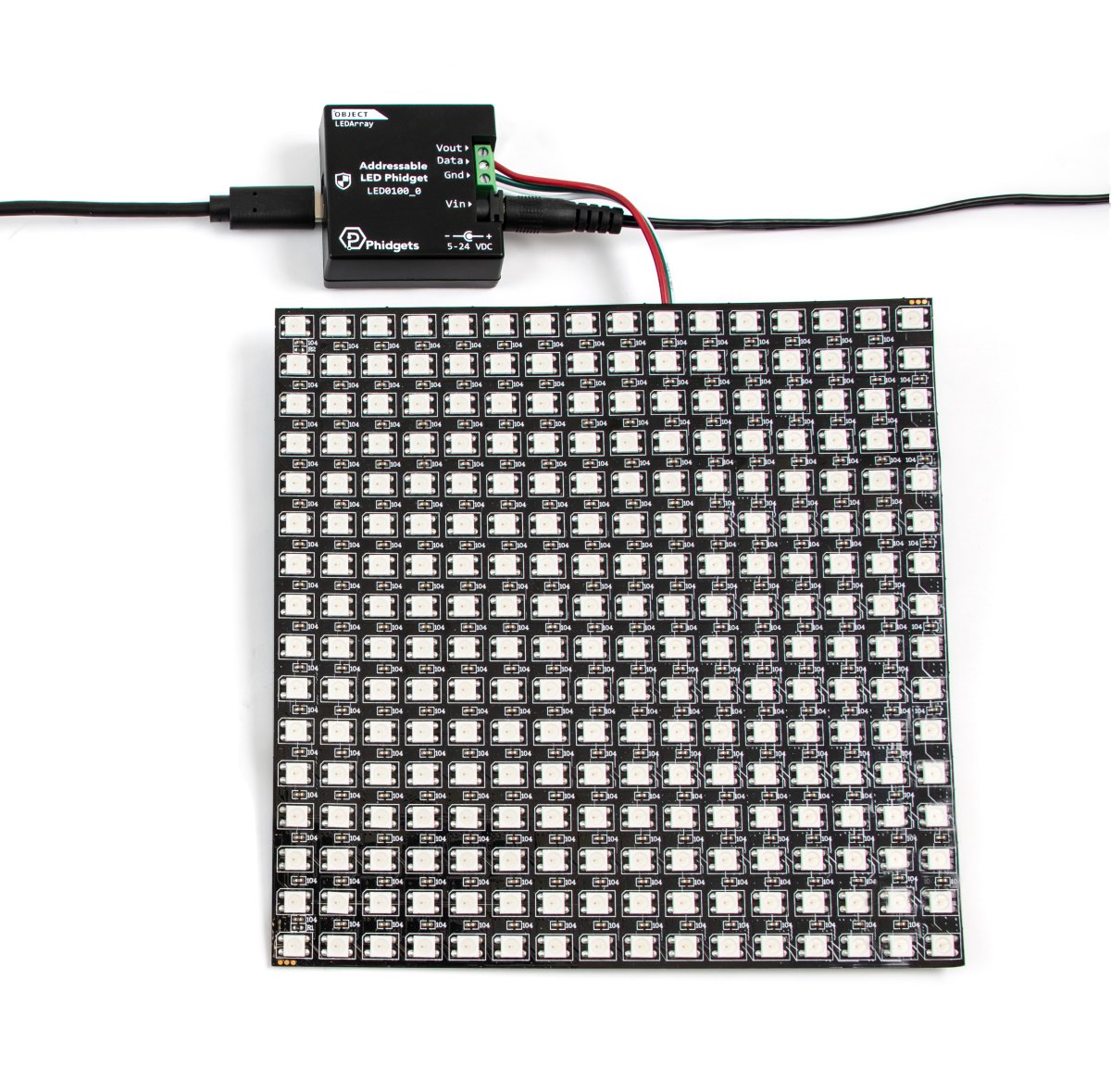

To control your addressable LEDs, you'll need an Addressable LED Phidget:
For best performance, this grid requires a 5V DC power supply. You can run this grid off of USB power with the Addressable LED Phidget, but you'll be limited in terms of brightness and number of LEDs illuminated at the same time.
| Product | Electrical Properties | ||
|---|---|---|---|
| Part Number | Price | Output Voltage | Power Supply Current |
 Power Supply 5VDC 3.5A
|
$15.00 | 5 V | 3.5 A |
| Product | Physical Properties | LED Properties | Electrical Properties | |||
|---|---|---|---|---|---|---|
| Part Number | Price | LED Density | Length | LED Protocol | LED Current Max | Supply Voltage |
 1m Addressable LED Strip (60 LED/m)
|
$10.00 | 60 LEDs/m | 1 m | WS2812B | 40 mA/LED | 5 V DC |
 5m Addressable LED Strip (30 LED/m)
|
$20.00 | 30 LEDs/m | 5 m | WS2812B | 40 mA/LED | 5 V DC |
 5m Addressable LED Strip (60 LED/m)
|
$32.00 | 60 LEDs/m | 5 m | WS2812B | 40 mA/LED | 5 V DC |
 5m Addressable RGBW LED Strip (60 LED/m)
|
$50.00 | 60 LEDs/m | 5 m | SK6812 | 40 mA/LED | 5 V DC |
 Addressable LED 16x16 Grid
|
$30.00 | 100 LEDs/m | 160 mm | WS2812B | 60 mA/LED | 5 V DC |
