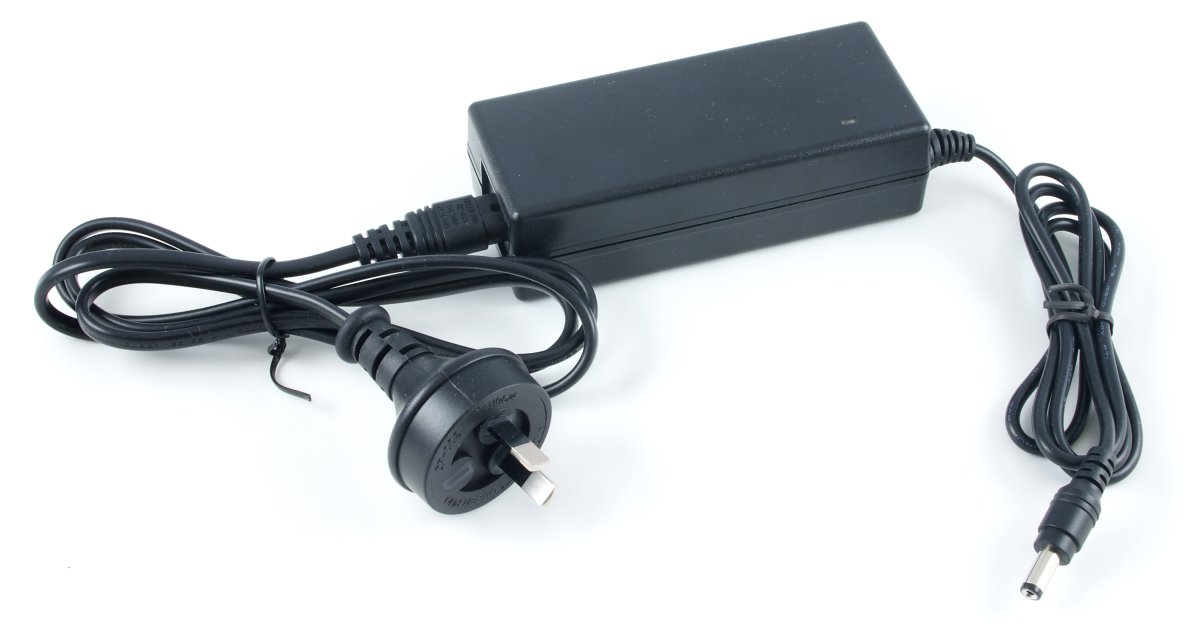

Power Supply 12VDC 5.0A - AU

ID: 3080_0

$25.00

Quantity Available: 19

Qty Price
5 $24.00
10 $23.00
25 $22.50
50 $22.00
100 $21.50

Removable Australian style wall plug.

The 3080 provides efficient power at 12DC, 5.0 Amps, 60 Watts. It is protected against over-current, over-voltage, short-circuits and over-temperature.

This power supply can be used with Phidgets that accept an external power supply, or for projects that need a power source.

This is the largest power supply we offer and should be used , for example, with the stepper and dc motor controllers that require a larger amount of current and power to meet your project's motor speed and torque requirements.

If you are unsure about how much power your project demands, call us.

Standards

  • CE - EN60950/EN55022
  • FCC - FCC part 15

Product Specifications

Electrical Properties
Power Supply Voltage Min 11.4 V DC
Output Voltage 12 V
Power Supply Voltage Max 12.6 V DC
Power Supply Current 5 A
Output Power 60 W
AC Input Voltage Min 100 V AC
AC Input Voltage Max 240 V AC
AC Input Frequency Min 50 Hz
AC Input Frequency Max 60 Hz
Protection Circuitry Over-Current, Over-Voltage, Over-Temperature, Short Circuit
Physical Properties
Wall Plug Style Australian
Power Jack Hole Diameter 5.5 mm
Power Jack Pin Diameter 2.1 mm
Power Jack Polarity Center Positive
Operating Temperature Min -20 °C
Operating Temperature Max 40 °C

Power Supply Accessories

Here are some handy products that are compatible with this power supply:

Product Physical Properties
Image Part Number Price Connector A Connector B Cable Length Cable Gauge
3031_0 $2.75 Power Jack 5.5 x 2.1mm (Female) 2 Loose Wires 250 mm 20 AWG

Have a look at our power supplies:

Product Electrical Properties Physical Properties
Image Part Number Price Power Supply Voltage Min Power Supply Voltage Max Power Supply Current Wall Plug Style
3022_0 $10.00 11.4 V DC 12.6 V DC 2 A Australian
3023_1 $10.00 11.4 V DC 12.6 V DC 2 A European
3024_1 $10.00 11.4 V DC 12.6 V DC 2 A North American
3025_0 $10.00 11.4 V DC 12.6 V DC 2 A British
3080_0 $25.00 11.4 V DC 12.6 V DC 5 A Australian
3081_0 $25.00 11.4 V DC 12.6 V DC 5 A European
3082_0 $25.00 11.4 V DC 12.6 V DC 5 A North American
3083_0 $25.00 11.4 V DC 12.6 V DC 5 A British
3084_0 $6.75 11.4 V DC 12.6 V DC 500 mA European
3085_0 $6.75 11.4 V DC 12.6 V DC 500 mA North American
3086_0 $10.00 22.8 V DC 25.2 V DC 1 A North American
