Unipolar stepper motor
3315 functional
Unipolar stepper motor 3315 functional

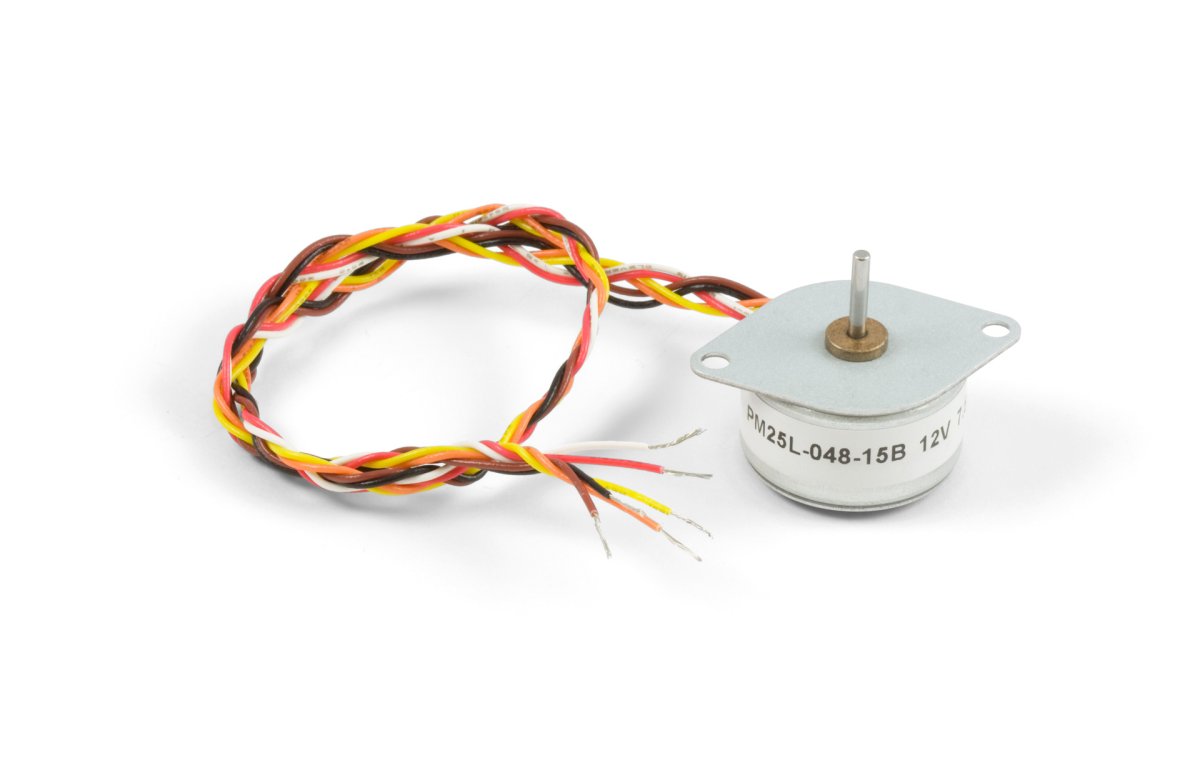

140g-cm Unipolar Stepper

ID: 3315_0
This affordable unipolar stepper has a 7.5° step angle and 50 g·cm of torque at low speeds.

$5.00

Quantity Available: 110

Qty Price
5 $4.80
10 $4.60
25 $4.50
50 $4.40
100 $4.30

This is a good compromise between the 3314 and the 3316.

Connection

This motor must be controlled by a constant current or chopper drive controller. You can find a list of suitable controllers on the Connection & Compatibility tab.

Motor Controllers

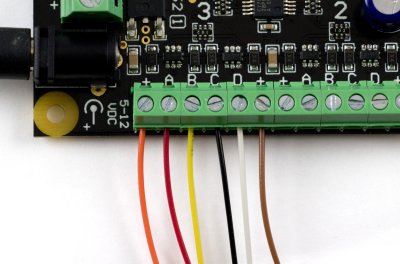

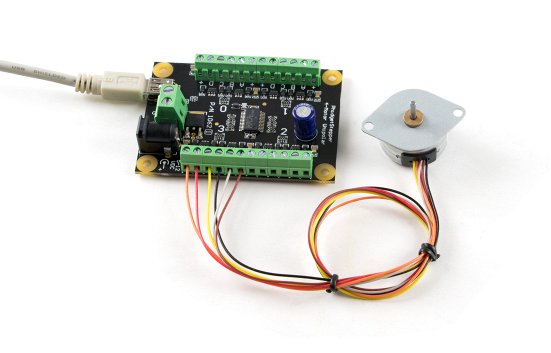

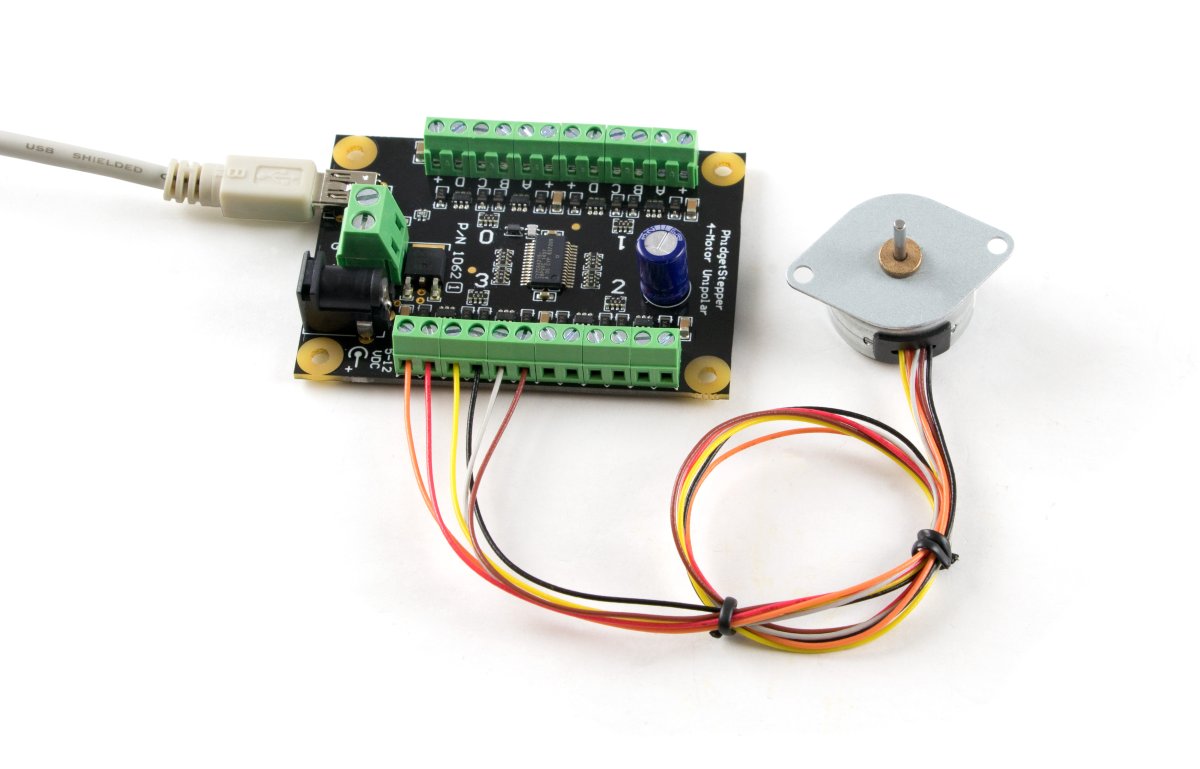

This motor must be controlled by a stepper motor controller. The following table shows how to connect the motor wires to the board connectors to produce a clockwise rotation in the stepper motor when increasing position.

To connect the motor to a bipolar motor controller, leave out the orange and brown wires.

Note: Make sure to unplug the power cord from the controller board before switching wires around.

Function 33151062STC1001
+ Orange + N.C.
A Red A A
B Yellow B Ā
C Black C B
D White D B̄
+ Brown + N.C.
 Functional
Product Controller Properties Board Properties
Image Part Number Price Number of Motor Ports Motor Type Controlled By
1062_1B $50.00 4 Unipolar Stepper USB (Mini-USB)
1067_0B $90.00 1 Bipolar Stepper USB (Mini-USB)
STC1000_0 $75.00 1 Bipolar Stepper VINT
STC1001_0 $40.00 1 Bipolar Stepper VINT
STC1002_0 $80.00 1 Bipolar Stepper VINT

Product Specifications

Motor Properties
Motor Type Unipolar Stepper
Manufacturer Part Number PM25L-048-15
Step Angle 7 1⁄2°
Step Accuracy 7 %
Holding Torque 140 g·cm
Rated Torque 50 g·cm
Maximum Speed at Rated Voltage 240 RPM
Electrical Properties
Rated Voltage 12 V DC
Rated Current 100 mA
Coil Resistance 120 Ω
Phase Inductance 31 mH
Physical Properties
Shaft Diameter 2 mm
Weight 31 g
Number of Leads 6
Wire Length 300 mm

Here's a list of our unipolar stepper motors:

Product Motor Properties Electrical Properties
Image Part Number Price Motor Type Step Angle Rated Torque Maximum Speed at Rated Voltage Rated Voltage
3314_0 $6.50 Unipolar Stepper 7 1⁄2° 710 g·cm 240 RPM 12 V DC
3315_0 $5.00 Unipolar Stepper 7 1⁄2° 50 g·cm 240 RPM 12 V DC
3316_0 $5.50 Unipolar Stepper 18° 30 g·cm 575 RPM 12 V DC
