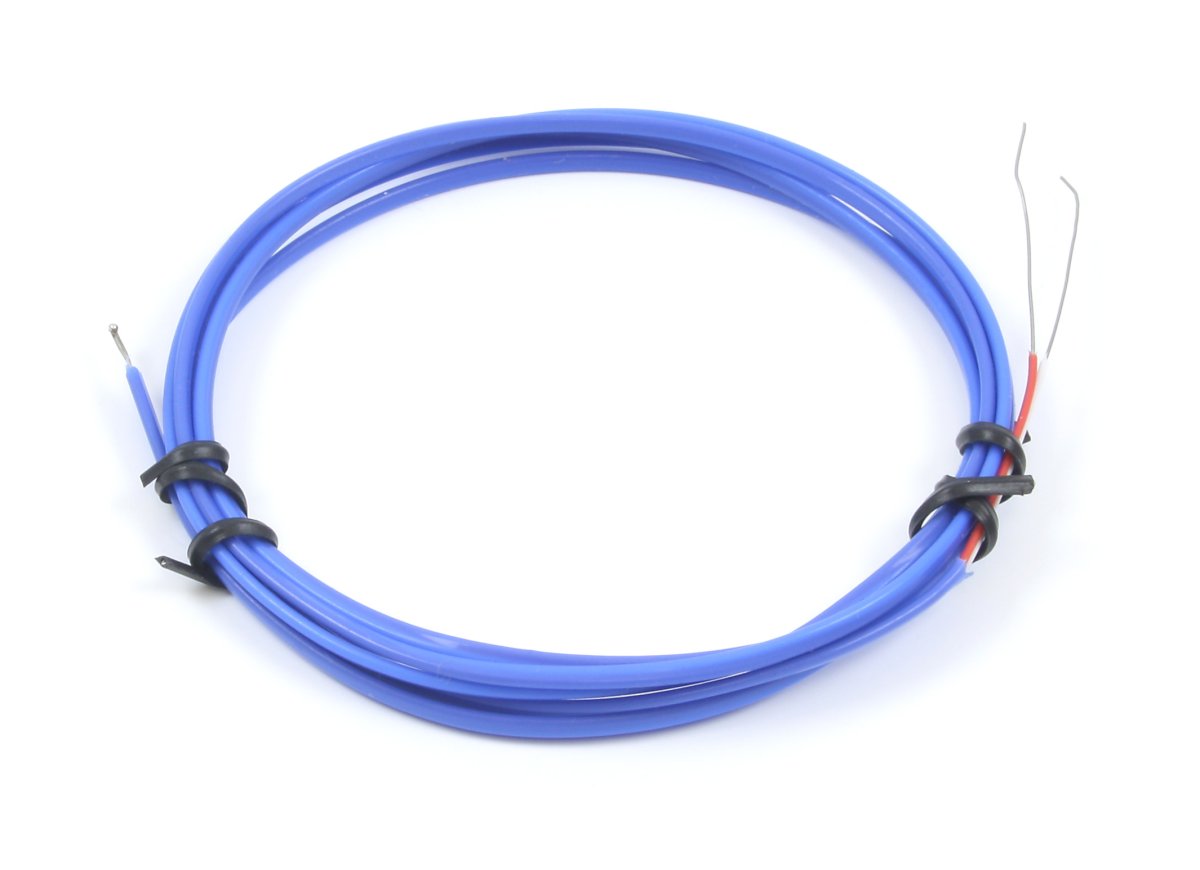

K-Type Teflon Bead Probe Thermocouple (-40°C to +200°C)

ID: TMP4103_0
Recommended for new designs: Phidgets Inc. is not the original manufacturer for this product, but we intend to sell it (or a similar replacement with a compatible form, fit and function) for as long as it is available from the supplier.

This K-Type thermocouple measures temperatures from -40°C to 200°C and connects to a Phidgets thermocouple board.

$5.00

Quantity Available: 715

Qty Price
5 $4.80
10 $4.60
25 $4.50
50 $4.40
100 $4.30

The TMP4103_0 - K-Type thermocouple can measure temperatures between -40°C to +200°C with a ±0.75°C accuracy.

For more information on thermocouples, visit the Thermocouple Primer.

Connection

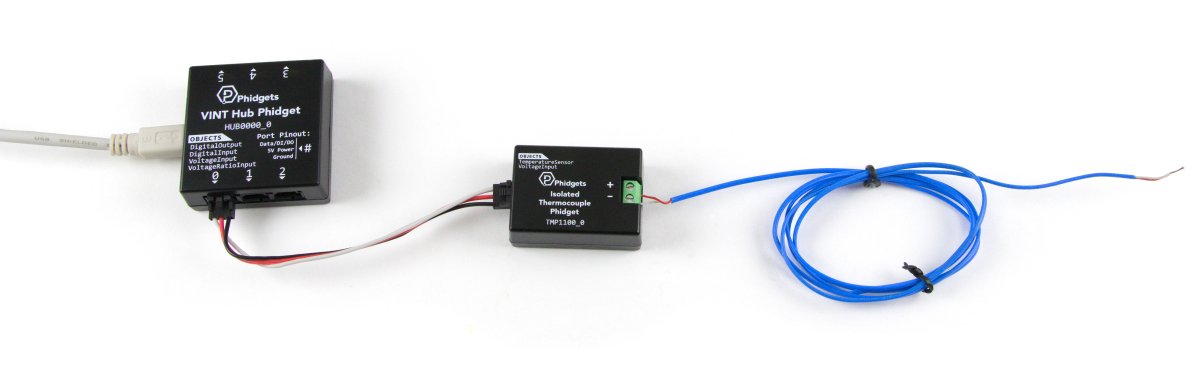

This thermocouple connects to a thermocouple interface. See the Connection & Compatibility tab for details.

Product Specifications

Sensor Properties
Sensor Type Thermocouple
Controlled By Thermocouple Interface
Temperature Sensor
Thermocouple Type K
Probe Type Bead
Ambient Temperature Min -40 °C
Ambient Temperature Max 200 °C
Ambient Temperature Error Max ± 0.75 °C
Physical Properties
Connector Type Stripped Leads
Cable Length 1 m
Cable Gauge 28 AWG
Insulation Material Teflon
Probe Material chromel-alumel
Customs Information
Canadian HS Export Code 9025.19.00
American HTS Import Code 9025.19.80.85
Country of Origin CN (China)

Thermocouple Interfaces

This K-type thermocouple can be read by connecting it to any of the thermocouple interfaces in the list below.

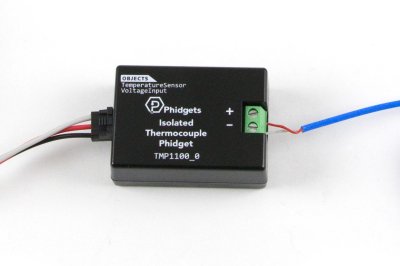

Note: On the 1051 or TMP1100, connect the white thermocouple wire to the (-) terminal block and the red wire to the (+) terminal block.
On the 1048 or TMP1101, connect the white wire to G and the red wire to input terminal block (numbered 0 to 3).

Function 3108
Thermocouple
Thermocouple
Interface
+ Red + / #
- White - / G
Functional

Thermocouple Accessories

Thermocouples cannot easily be soldered, since adding an additional metal junction will throw off the readings. The following products will help connect or extend thermocouple wires.

Check out our thermocouples:

Product Temperature Sensor
Image Part Number Price Thermocouple Type Ambient Temperature Min Ambient Temperature Max Ambient Temperature Error Max
TMP4103_0 $5.00 K -40 °C 200 °C ± 0.75 °C
TMP4104_0 $10.00 K -40 °C 400 °C ± 0.75 °C
TMP4106_0 $16.00 K -40 °C 400 °C 3.3 °C
TMP4107_0 $16.00 K -40 °C 400 °C 3.3 °C
