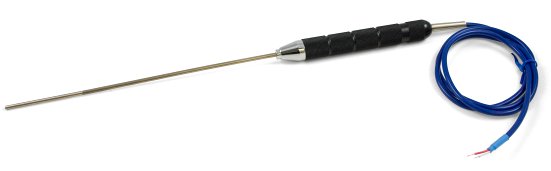

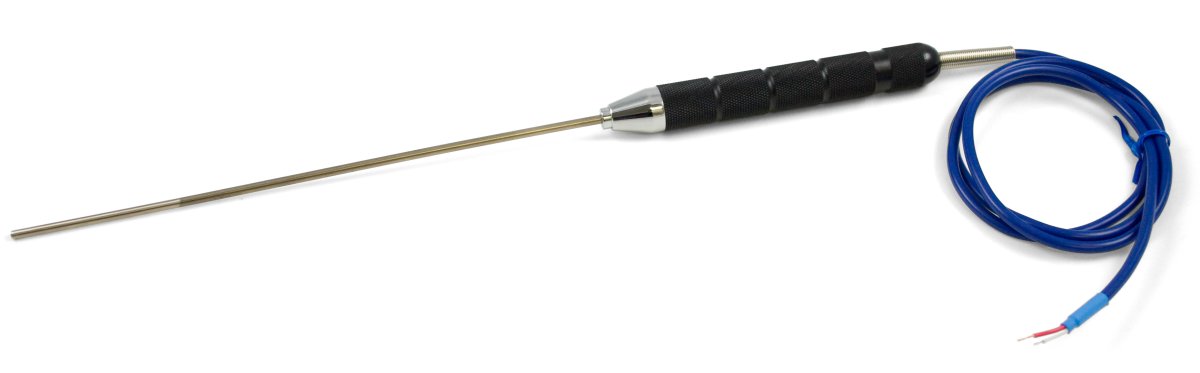

TPK-03 Immersion Probe K-type Thermocouple (-50 to +700°C)

ID: 3108_2

This K-Type thermocouple measures temperatures from -50°C to 700°C and connects to a Phidgets thermocouple board.

Discontinued

Replaced by the TMP4106 - K-Type Probe Thermocouple 11cm

The 3108 - K-Type thermocouple can take continuous temperature readings between -50°C to +700°C with a ±0.75°C accuracy. The 3108 can also take a instant, single temperature reading between -100°C to +900°C.

It is typically used to take the temperature of liquids and gels.

For more information on thermocouples, visit the Thermocouple Guide.

Connection

This thermocouple connects to a thermocouple interface. See the Connection & Compatibility tab for details.

Product Specifications

Sensor Properties
Sensor Type	Thermocouple
Controlled By	Thermocouple Interface
Temperature Sensor
Thermocouple Type	K
Probe Type	Immersion
Ambient Temperature Min	-50 °C
Ambient Temperature Max	700 °C
Ambient Temperature Min (Momentary)	-100 °C
Ambient Temperature Max (Momentary)	900 °C
Ambient Temperature Error Max	± 0.75 °C
Physical Properties
Connector Type	Miniature Male Connector
Cable Length	850 mm
Probe Diameter	3.2 mm
Cable Gauge	28 AWG
Insulation Material	PE Plastic
Probe Material	K/316 Stainless Steel
Handle Material	Engineering Plastic
Customs Information
Canadian HS Export Code	9025.19.00
American HTS Import Code	9025.19.80.85
Country of Origin	TW (Taiwan)

Thermocouple Interfaces

This K-type thermocouple can be read by connecting it to any of the thermocouple interfaces in the list below.

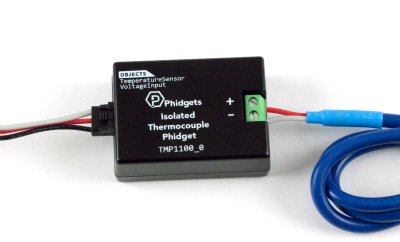

Note: On the 1051 or TMP1100, connect the white thermocouple wire to the (-) terminal block and the red wire to the (+) terminal block.
On the 1048 or TMP1101, connect the white wire to G and the red wire to input terminal block (numbered 0 to 3).

Function	3108 Thermocouple	Thermocouple Interface
+	Red	+ / #
-	White	- / G

ID: 1048_2B

PhidgetTemperatureSensor 4-Input

$100.00

ID: TMP1100_0

Isolated Thermocouple Phidget

$30.00

ID: TMP1101_1

4x Thermocouple Phidget

$35.00

Thermocouple Accessories

Thermocouples cannot easily be soldered, since adding an additional metal junction will throw off the readings. The following products will help connect or extend thermocouple wires.

ID: 3111_0

K-Type Thermocouple Connector

$4.00

ID: 3112_0

K-Type Thermocouple Extension Wire

$4.00/Meter

Check out our thermocouples:

Product		Temperature Sensor
Part Number	Price	Thermocouple Type	Ambient Temperature Min	Ambient Temperature Max	Ambient Temperature Error Max
TMP4103_0 K-Type Teflon Bead Probe Thermocouple (-40°C to +200°C)	$5.00	K	-40 °C	200 °C	± 0.75 °C
TMP4104_0 K-Type Fiberglass Bead Probe Thermocouple	$10.00	K	-40 °C	400 °C	± 0.75 °C
TMP4106_0 K-Type Probe Thermocouple 11cm	$16.00	K	-40 °C	400 °C	3.3 °C
TMP4107_0 K-Type Probe Thermocouple 20cm	$16.00	K	-40 °C	400 °C	3.3 °C
