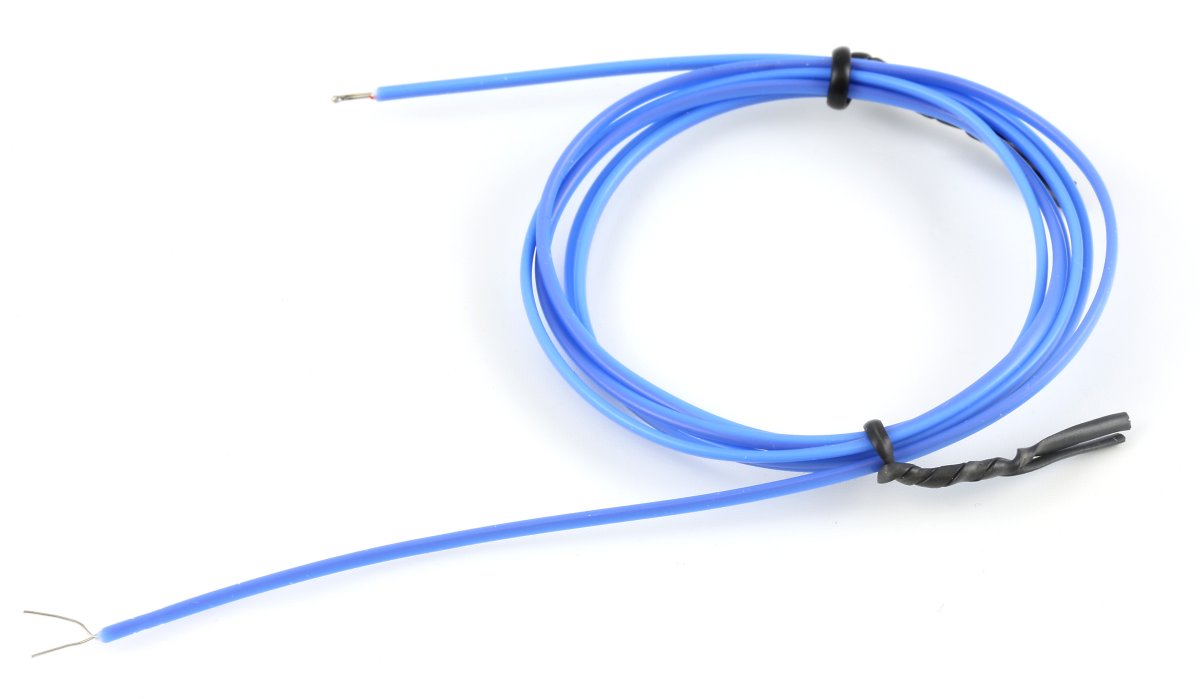

TPK-01 Bead Probe K-Type Thermocouple - Discontinued

ID: 3107_0
This K-Type thermocouple measures temperatures from -50°C to 200°C and connects to a Phidgets thermocouple board.

Discontinued

Replaced by the TMP4103 - K-Type Bead Probe Thermocouple

The 3107 - K-Type thermocouple can measure temperatures between -50°C to +200°C with a ±0.75°C accuracy.

For more information on thermocouples, visit the Thermocouple Primer.

Product Specifications

Sensor Properties
Sensor Type Thermocouple
Controlled By Thermocouple Interface
Temperature Sensor
Thermocouple Type K
Probe Type Bead
Ambient Temperature Min -50 °C
Ambient Temperature Max 200 °C
Ambient Temperature Error Max ± 0.75 °C
Physical Properties
Connector Type 6mm Stripped Leads
Cable Length 1 m
Cable Gauge 28 AWG
Insulation Material Teflon
Probe Material chromel-alumel

Thermocouple Interfaces

This K-type thermocouple can be read by connecting it to any of the thermocouple interfaces in the list below.

Note: On the 1051 or TMP1100, connect the white thermocouple wire to (-) terminal block and the Red wire to the + terminal block. On the 1048 or TMP1101, connect the white wire to G and the red wire to input terminal block (numbered 0 to 3).

Thermocouple Accessories

Thermocouples cannot easily be soldered, since adding an additional metal junction will throw off the readings. The following products will help connect or extend thermocouple wires.

Check out our thermocouples:

Product Temperature Sensor
Image Part Number Price Thermocouple Type Ambient Temperature Min Ambient Temperature Max Ambient Temperature Error Max
3108_2 $30.00 K -50 °C 700 °C ± 0.75 °C
TMP4103_0 $5.00 K -40 °C 200 °C ± 0.75 °C
TMP4104_0 $10.00 K -40 °C 400 °C ± 0.75 °C
TMP4106_0 $16.00 K -40 °C 400 °C 3.3 °C
TMP4107_0 $16.00 K -40 °C 400 °C 3.3 °C
