M8 Mounting Nut for Temperature Probes

ID: HDW4102_0

Use with a 3.2mm diameter probe type thermocouple or RTD to mount it into the side of an enclosure or container.

$9.00

Quantity Available: 546

Qty Price
5 $8.64
10 $8.28
25 $8.10
50 $8.01
100 $7.92
50+...

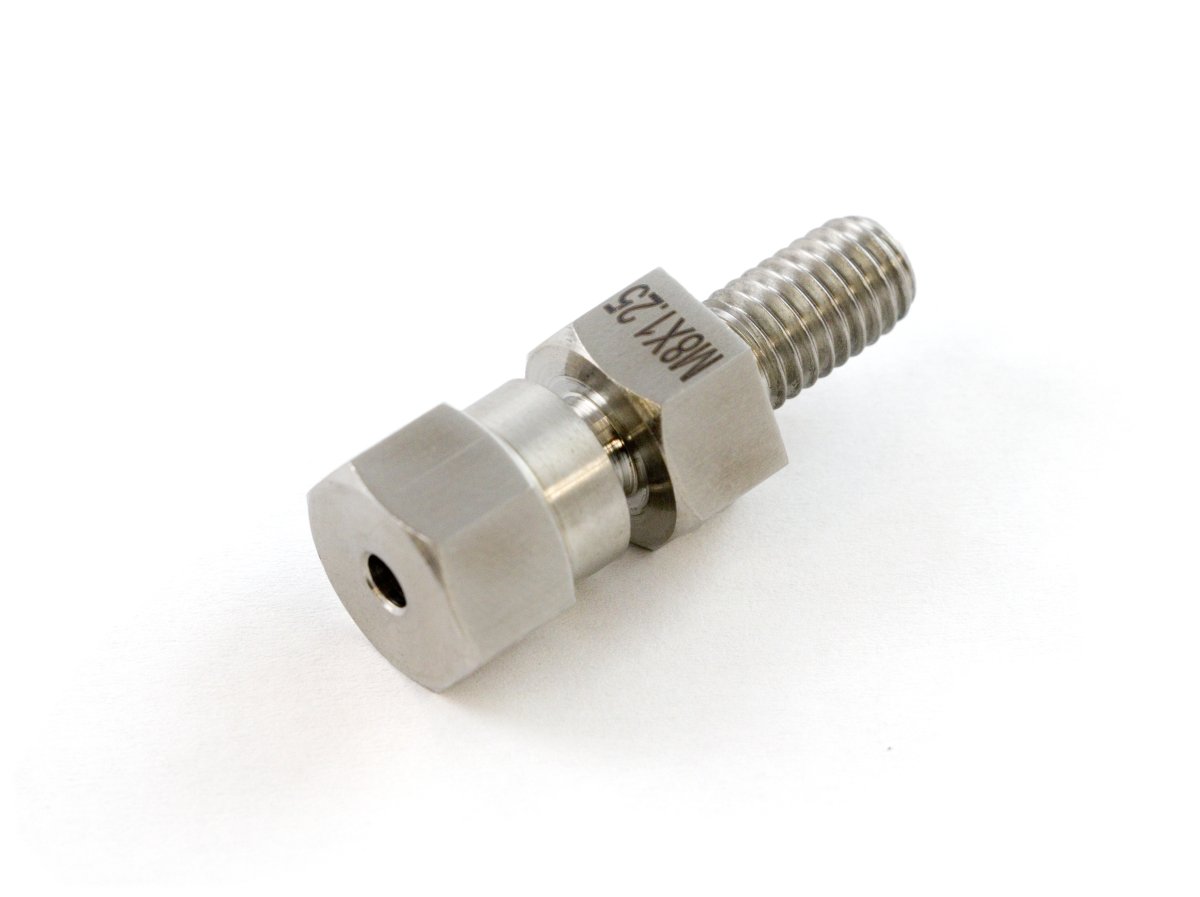

This stainless steel mounting nut is designed to be used with a probe thermocouple or RTD. Just slide the pieces on and tighten to attach. Once it's secured, you can mount it to a panel or inside of an enclosure with a simple M8x1.25 nut and washer.

Features

  • Easily mount a 3.2mm probe through a panel
  • Front half of nut is machined with M8 screw thread
  • Included mounting sleeve fixes probe in place when the two nut halves are fastened

Product Specifications

Physical Properties
Material Stainless Steel
Screw Thread Size M8x1.25
Inner Diameter 3.2 mm
Customs Information
Canadian HS Export Code 7318.15.00
American HTS Import Code 7318.15.20.41
Country of Origin CN (China)

Probe Thermocouples and RTDs

Assembly

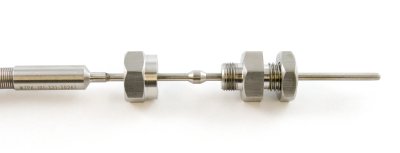

This mounting nut fits onto a probe thermocouple or RTD so it can securely mount through the side of a panel or enclosure. Here are the steps for assembling the pieces:

  • Slide the shorter nut onto the probe with the threaded end facing outward
  • Slide on the mounting sleeve
  • Slide the longer nut onto the probe with the long end facing outward
  • Thread the jam nut onto the very end
  • Move the pieces to the desired length on the probe and tighten the front and back nuts until secure
  • Screw the entire assembly into the threaded hole in your installation and then tighten the jam nut against the probe to provide tension and prevent loosening over time from vibrations.

Here is a list of thermocouples and RTDs we sell that are compatible with this nut:

Product Temperature Sensor
Part Number Price Thermocouple Type Ambient Temperature Min Ambient Temperature Max
TMP4106_0
K-Type Probe Thermocouple 11cm
$16.00 K -40 °C 400 °C
TMP4107_0
K-Type Probe Thermocouple 20cm
$16.00 K -40 °C 400 °C
TMP4109_0
PT1000 4-Wire RTD 11cm
$40.00 -50 °C 500 °C
TMP4110_0
PT1000 4-Wire RTD 20cm
$40.00 -50 °C 500 °C
Product Physical Properties
Part Number Price Material Screw Thread Size Inner Diameter
HDW4104_0
1/2" NPT Mounting Nut for Temperature Probes
$10.00 Stainless Steel 1/2" NPT 3.2 mm
HDW4103_0
1/4" NPT Mounting Nut for Temperature Probes
$9.50 Stainless Steel 1/4" NPT 3.2 mm
HDW4100_0
1/8″ NPT Mounting Nut for Temperature Probes
$7.50 Stainless Steel 1/8" NPT 3.2 mm
HDW4101_0
M12 Mounting Nut for Temperature Probes
$9.00 Stainless Steel M12x1.5 3.2 mm
HDW4102_0
M8 Mounting Nut for Temperature Probes
$9.00 Stainless Steel M8x1.25 3.2 mm
