Acrylic Enclosure for the 1002

ID: 3800_0

This clear acrylic enclosure protects your Phidget and is assembled with a Phillips screwdriver.

Replaced by 3800_2

Replaced by the 3800_1 - Acrylic Enclosure for the 1002

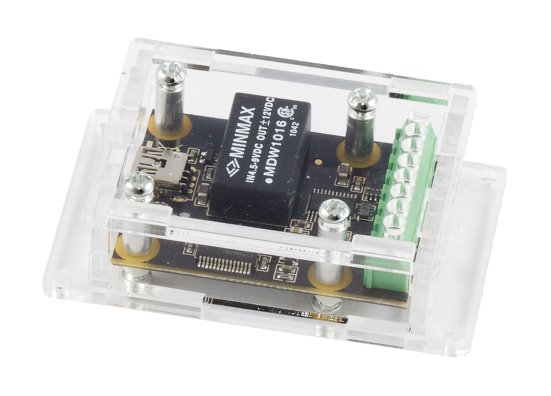

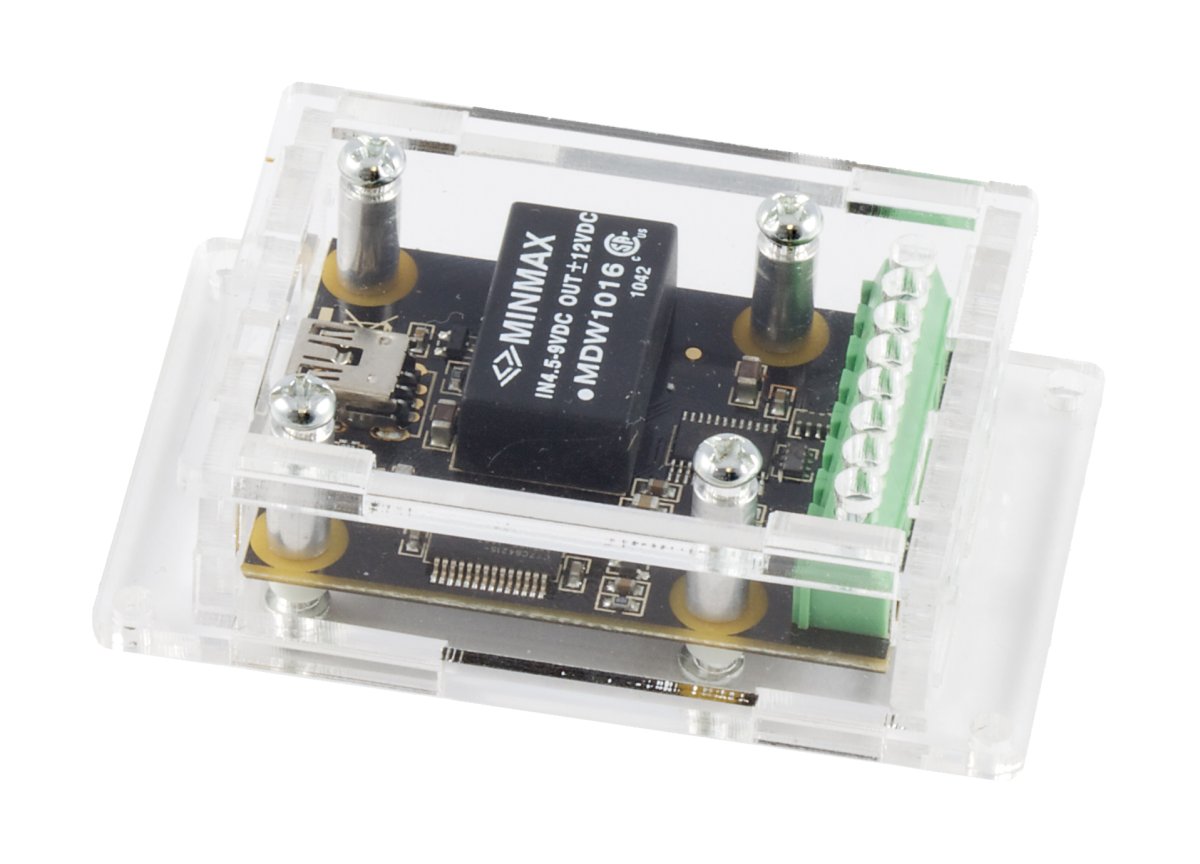

The 3800 Enclosure is designed to protect the Rev 0 version of the 1002 – PhidgetAnalog 4-Output while giving you access to all terminals and connectors through openings in the enclosure.

You can plug and unplug cables, connect and disconnect devices, without having to open the enclosure.

Note: The Phidget board is not included with the enclosure and must be purchased separately.

Package Includes

6 clear acrylic pieces
Mounting Hardware (Nuts, bolts, spacers)

Required Tools

Small Phillips screwdriver

Product Specifications

Physical Properties
Fits Board Revision	0
Material	Clear Acrylic
Thickness	3.2 mm
IP Rating	20
Customs Information
Canadian HS Export Code	8473.30.00
American HTS Import Code	8473.30.51.00
Country of Origin	CN (China)

Warning

Be careful when tightening the mounting screws, as too much tension could crack the acrylic.
